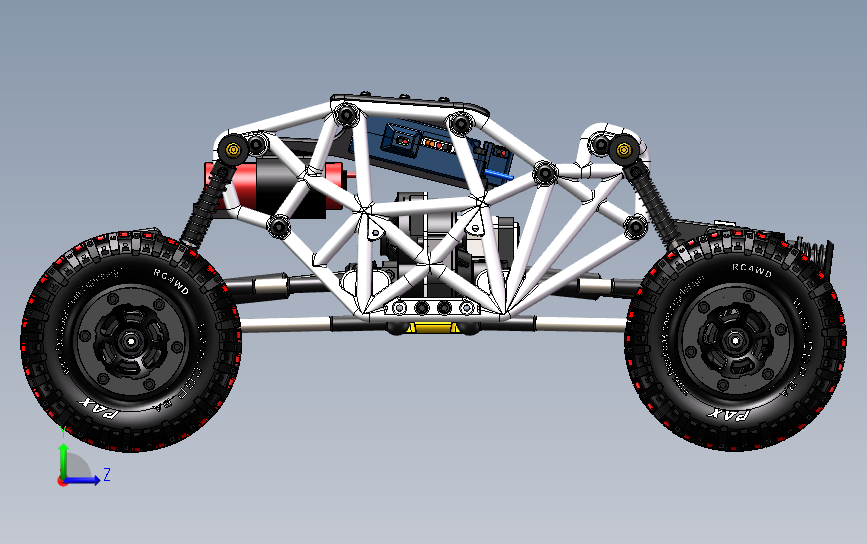

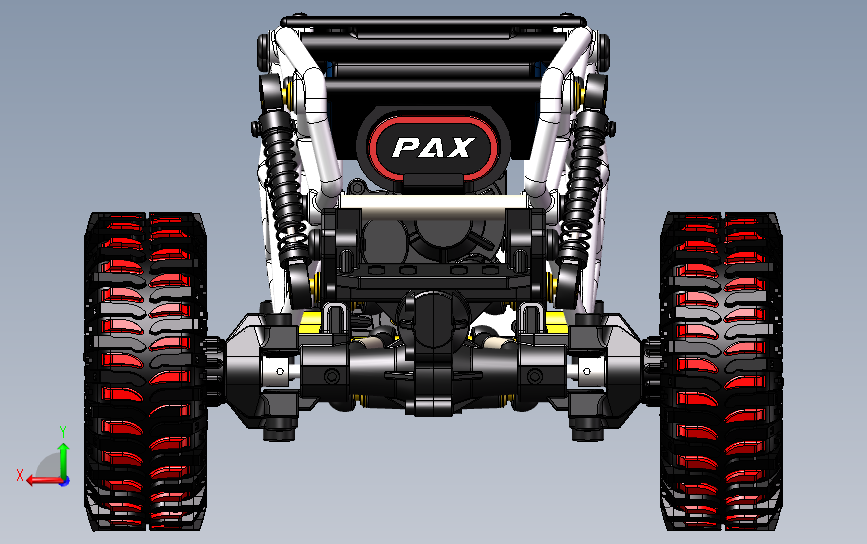

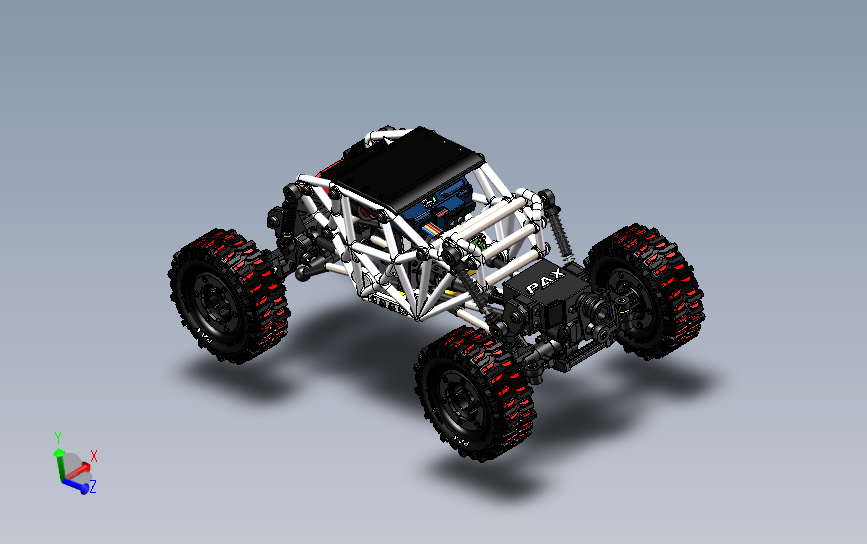

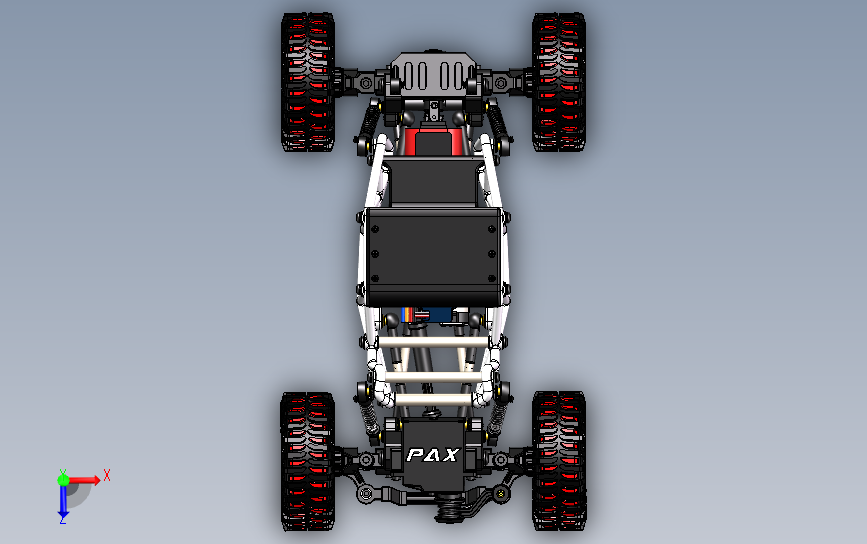

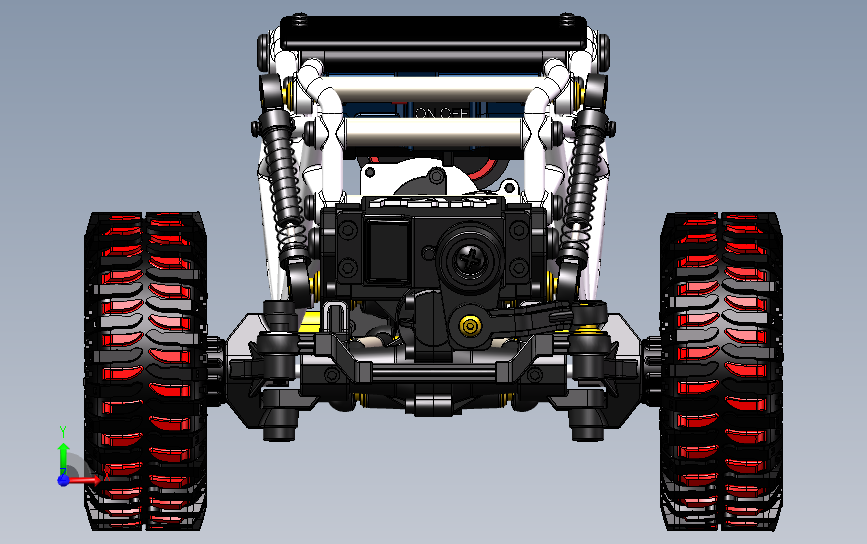

钢管越野车详图（ID:532265）

交通运输 / 车辆工程 / 钢管越野车详图

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	16787492537129.zip	60.92M
2	2x256Wire-1.sldprt	68.96K
3	2x256Wire-2.sldprt	60.56K
4	AdaptorFrontShockLeft.sldprt	66.75K
5	AdaptorFrontShockRight.sldprt	67.88K
6	AxelHousing.sldprt	137.89K
7	AxelO-Ring.sldprt	37.94K
8	AxelShaft.sldprt	84.02K
9	BACKAXELUNIT-1.sldasm	35.31K
10	BACKAXELUNIT.sldasm	35.25K
11	BACKWHEELUNIT.sldasm	44.13K
12	BatteryPack.sldprt	126.01K
13	BatteryStartWires.sldprt	39.47K
14	Bearing5mmDia.sldprt	39.89K
15	Bearing6mmDia.sldprt	40.56K
16	Bearing8mmDia.sldprt	40.38K
17	BoggerBeadLocker.sldprt	115.04K
18	BOGGERLEFTTIRE-RIM-1.sldasm	35.11K
19	BOGGERLEFTTIRE-RIM.sldasm	35.34K
20	BOGGERRIGHTTIRE-RIM-Copy-1.sldasm	35.59K
21	BOGGERRIGHTTIRE-RIM-Copy.sldasm	35.04K
22	BoggerRim.sldprt	455.42K
23	BoggerRimScrew.sldprt	48.20K
24	BOGGERRIMUNIT-1.sldasm	36.73K
25	BOGGERRIMUNIT-2.sldasm	37.06K
26	BOGGERRIMUNIT-3.sldasm	36.84K
27	BOGGERRIMUNIT.sldasm	36.39K
28	BoggerTire.sldprt	5.84M
29	BrassPivotBall.sldprt	46.03K
30	CENTERBASEMOUNT.sldasm	35.49K
31	CenterBaseMount.sldprt	170.80K
32	CentralGearMountingMetalPlateAug29.sldprt	74.80K
33	CENTRALMOTORUNIT.sldasm	44.56K
34	CENTRALMOUNTINGUNIT.sldasm	37.64K
35	ControlBoard.sldprt	496.18K
36	ControlBoxBottom.sldprt	220.06K
37	ControlBoxTop.sldprt	236.33K
38	CONTROLLERUNIT.sldasm	34.76K
39	DRIVE-SHAFTFRONTDefault-_flexible1.sldasm	36.04K
40	DRIVE-SHAFTREARDefault-_flexible1.sldasm	36.67K
41	DriveShaft.sldprt	73.49K
42	DriveShaftBallCustom.sldprt	40.58K
43	DriveShaftBearing.sldprt	39.50K
44	DriveShaftInnerCustom.sldprt	163.81K
45	DriveShaftOuterCustom.sldprt	97.25K
46	DRIVETRAINUNIT-1.sldasm	40.40K
47	DRIVETRAINUNIT.sldasm	40.71K
48	Extension.sldprt	47.49K
49	FlatheadScrewforGearBaseMount.sldprt	57.23K
50	FRONTAXELUNITDefault-_flexible1.sldasm	35.85K
51	FRONTAXELUNITDefault-_flexible2.sldasm	35.49K
52	FrontSoftWhiteSpring.sldprt	46.35K
53	FRONTWHEELUNIT.sldasm	49.85K
54	Gear-1.sldprt	233.43K
55	Gear-1Plastic.sldprt	367.19K
56	Gear-2Plastic.sldprt	394.91K
57	Gear-3Plastic.sldprt	179.92K
58	GearInsert-1.sldprt	48.32K
59	GearInsert-2.sldprt	37.88K
60	GearNut-01.sldprt	41.65K
61	GearShaft-1.sldprt	70.39K
62	GearShaft-2.sldprt	44.04K
63	GearWasher-A.sldprt	37.05K
64	GearWasher-B.sldprt	37.20K
65	HexRimInsert.sldprt	66.95K
66	LINK-1EXTENSIONUNIT-1.sldasm	33.13K
67	LINK-1EXTENSIONUNIT-2.sldasm	32.52K
68	LINK-1EXTENSIONUNIT-3.sldasm	32.97K
69	LINK-1EXTENSIONUNIT.sldasm	32.63K
70	LINK-2AEXTENSIONUNIT-1.sldasm	34.33K
71	LINK-2AEXTENSIONUNIT.sldasm	34.43K
72	LINK-2BEXTENSIONUNIT-1.sldasm	33.60K
73	LINK-2BEXTENSIONUNIT.sldasm	33.12K
74	LOSICONTROLBOX.sldasm	37.14K
75	LOSISticker.sldprt	38.90K
76	MAINSHAFTUNITDefault-_flexible1.sldasm	32.70K
77	MotorBody.sldprt	182.73K
78	MotorGear.sldprt	120.42K
79	MotorMountScrew.sldprt	76.33K
80	OnOffSticker.sldprt	72.11K
81	OnOffSwitch.sldprt	120.38K
82	PitmanSleeve.sldprt	37.76K
83	Pivot-01.sldprt	46.89K
84	Pivot-02.sldprt	52.89K
85	Plastic-04.sldprt	259.29K
86	Plastic-05.sldprt	140.84K
87	Plastic-06.sldprt	117.04K
88	Plastic-07.sldprt	118.20K
89	Plastic-08-Left.sldprt	373.67K
90	Plastic-08-Right.sldprt	349.53K
91	Plastic-12.sldprt	190.05K
92	Plastic-13.sldprt	151.42K
93	Plastic-14.sldprt	58.96K
94	Plastic-15.sldprt	231.08K
95	Plastic-21.sldprt	172.54K
96	Plastic-22.sldprt	138.44K
97	R1CHASSISASSEMBLY.sldasm	43.40K
98	R1ChassisOtherSide.sldprt	725.00K
99	R1ChassisSide.sldprt	729.14K
100	RearMediumRedSpring.sldprt	75.42K
101	RimAxelPin.sldprt	36.73K
102	RimBearing.sldprt	39.60K
103	RimNut-01.sldprt	42.29K
104	RoofCover.sldprt	132.93K
105	Screw-02.sldprt	55.90K
106	Screw-03.sldprt	48.59K
107	Screw-04.sldprt	47.74K
108	Screw-05.sldprt	56.26K
109	Screw-06.sldprt	61.29K
110	Screw-07.sldprt	47.65K
111	Screw-1by2.5mmDia.sldprt	68.25K
112	Screw-1by2mmDia.sldprt	69.29K
113	Screw-2by2.5mmDia.sldprt	71.54K
114	Screw-AforCentralGearUnit.sldprt	47.83K
115	Screw-BforCentralGearUnit.sldprt	50.48K
116	ScrewControlBox.sldprt	55.46K
117	ScrewforGearBaseMount.sldprt	59.91K
118	ServoBody.sldprt	256.89K
119	ServoExtension.sldprt	44.46K
120	ServoScrewforExtension.sldprt	69.98K
121	ServoSpring.sldprt	46.63K
122	ServoSpringRing.sldprt	55.89K
123	SERVOUNIT.sldasm	34.14K
124	ServoV-Ring.sldprt	49.82K
125	ShockPivot-1.sldprt	73.07K
126	ShockPivot-2.sldprt	108.03K
127	ShockRamBody.sldprt	50.51K
128	ShockScrew-1.sldprt	60.54K
129	ShockShaft.sldprt	37.87K
130	SHOCKUNITALEFT.sldasm	34.29K
131	SHOCKUNITARIGHT.sldasm	34.02K
132	SHOCKUNITB-1.sldasm	34.94K
133	SHOCKUNITB.sldasm	35.43K
134	TIGRodBrace-1.sldprt	39.39K
135	TIGRodBrace-2.sldprt	38.47K
136	TIGRodBrace-3.sldprt	38.08K
137	TIGRodBrace-5.sldprt	38.00K
138	Tubing-1Aluminum.sldprt	37.85K
139	Tubing-2Aluminum.sldprt	37.15K
140	UniversalJointCustom.sldprt	69.97K
141	UniversalJointScrew.sldprt	56.62K
142	WireConnection1.sldprt	40.90K
143	WireConnection2.sldprt	53.66K
144	WireConnection3.sldprt	42.66K
145	WireConnection4.sldprt	40.39K
146	WormGear.sldprt	63.00K
147	WORMGEARUNIT-1.sldasm	32.43K
148	WORMGEARUNIT.sldasm	32.80K
149	钢管越野车详图.SLDASM	22.94M
