旋转铆合机旋压铆合机（ID:562457）
0.png)

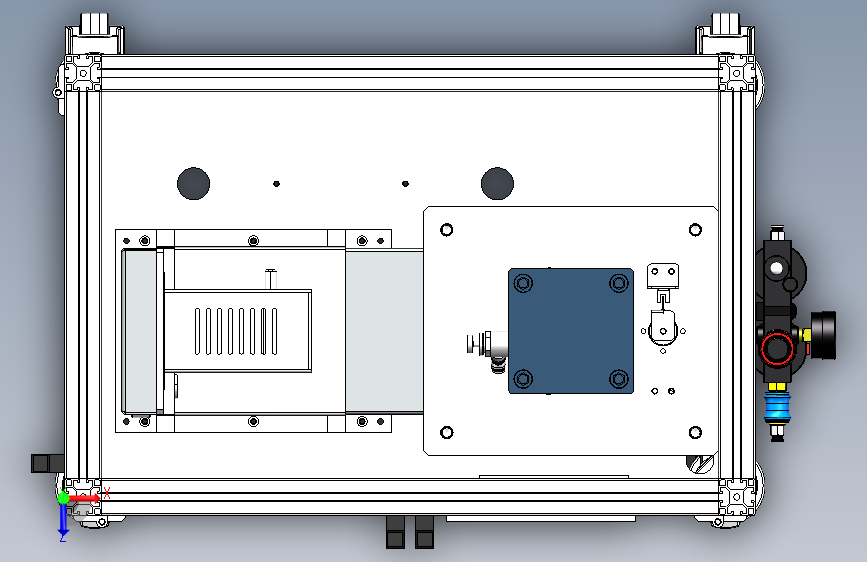

1.png)

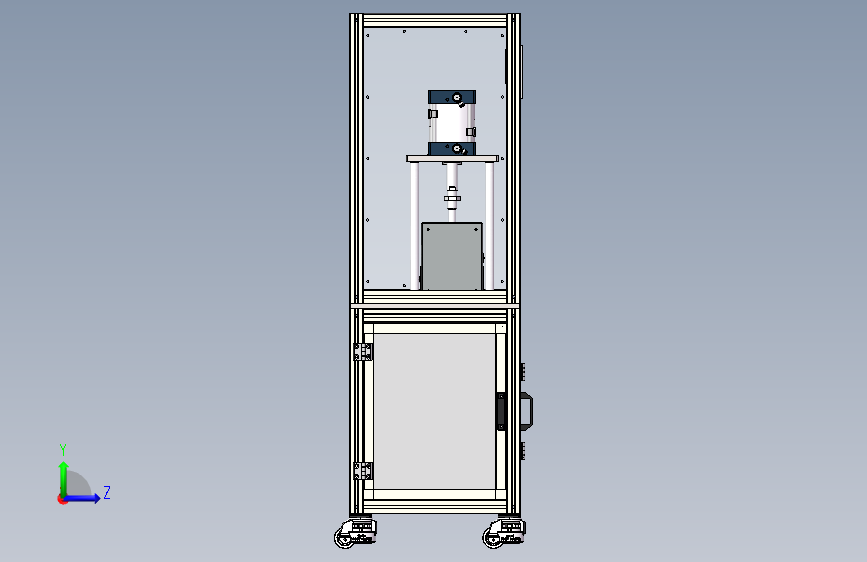

2.png)
3.png)

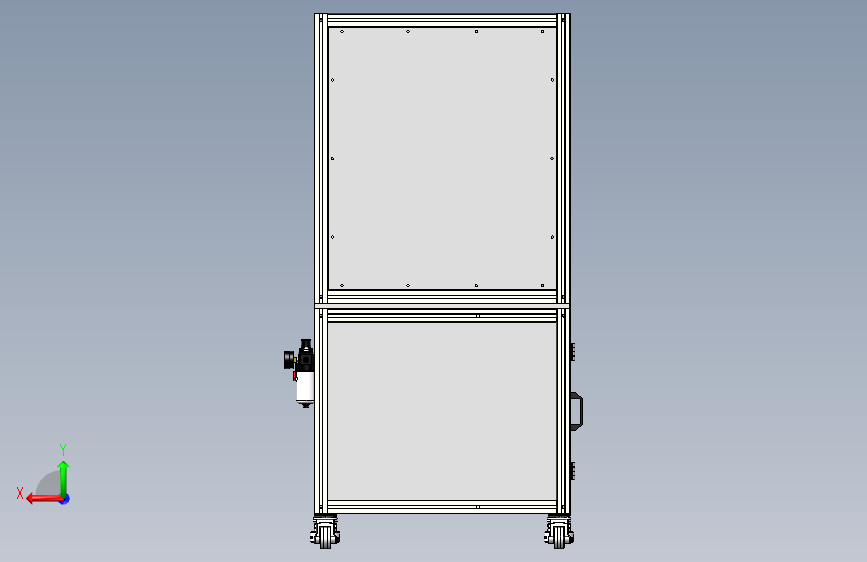

4.png)

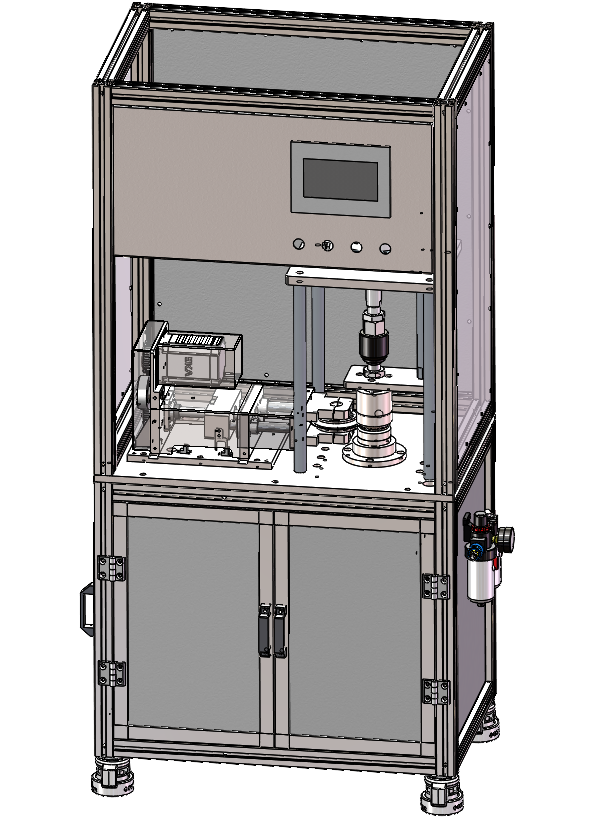

| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 16806875015233.zip | 255.36M |
| 2 | 1.封面主视图.png | 280.59K |
| 3 | 120型750W方筒22轴减速电机.STEP | 1.15M |
| 4 | 120型750W方筒22轴减速电机.step.SLDPRT | 1.08M |
| 5 | 1530连接块[1530铝型材连接块].SLDPRT | 126.36K |
| 6 | 250W300W常规15轴.STEP | 1.36M |
| 7 | 355-0800A-01.step.SLDPRT | 90.37K |
| 8 | 355-0802B-01.step.SLDPRT | 1.18M |
| 9 | 355-0803A-01.step.SLDPRT | 71.90K |
| 10 | 48002.step.SLDPRT | 388.06K |
| 11 | 4V230C08B.stp | 306.26K |
| 12 | 86闭环步进电机[RH-286EC118-E1].SLDPRT | 505.61K |
| 13 | 86闭环步进电机[RH-286EC118-E1].step | 760.65K |
| 14 | ATP20L050_A_P12_3.sldprt | 82.16K |
| 15 | ATP20L050_A_P12_6.sldprt | 342.46K |
| 16 | ATP20L050_A_P14_3.sldprt | 85.20K |
| 17 | ATP20L050_A_P14_6.sldprt | 351.23K |
| 18 | ATP24L050_A_P12_3.sldprt | 41.81K |
| 19 | ATP24L050_A_P12_6.sldprt | 222.45K |
| 20 | ATP24L050_A_P14_3.sldprt | 41.04K |
| 21 | ATP24L050_A_P14_6.sldprt | 225.50K |
| 22 | ATP24L075_A_P14_3.sldprt | 41.06K |
| 23 | ATP24L075_A_P14_6.sldprt | 225.95K |
| 24 | BFC20001.stp | 636.39K |
| 25 | BSL01.stp | 66.69K |
| 26 | C_BUFN12.sldasm | 120.24K |
| 27 | C_BUFN12_3.sldprt | 38.98K |
| 28 | C_BUFN12_5.sldprt | 68.33K |
| 29 | C_TBSB1505_200_3.sldprt | 69.84K |
| 30 | C_TBSB1505_200_5.sldprt | 286.95K |
| 31 | C_TBSB2005_200_3.sldprt | 69.50K |
| 32 | C_TBSB2005_200_5.sldprt | 49.88K |
| 33 | C_TBSB2005_240_3.sldprt | 188.64K |
| 34 | C_TBSB2005_240_5.SLDDRW | 222.34K |
| 35 | C_TBSB2005_240_5.sldprt | 49.88K |
| 36 | C_TBSB2005_300_3.sldprt | 68.79K |
| 37 | C_TBSB2005_300_5.sldprt | 50.27K |
| 38 | C_TFK15_SET_12.sldprt | 220.10K |
| 39 | C_TFK15_SET_3.sldprt | 70.21K |
| 40 | C_TFK15_SET_5.sldprt | 77.64K |
| 41 | C_TFK15_SET_7.sldprt | 105.04K |
| 42 | C_TFK15_SET_9.sldprt | 99.64K |
| 43 | DFU型滚珠丝杠[DFUR1605-4].step | 610.41K |
| 44 | DXQ61101-01-01-01台架下框架.SLDPRT | 874.34K |
| 45 | EG20_RAIL_1.step.SLDPRT | 149.36K |
| 46 | EGH20CA.stp | 875.45K |
| 47 | EGH20CA_BLOCK_2.step.SLDPRT | 241.84K |
| 48 | F-M27X200F.stp | 173.45K |
| 49 | HGH20CA1R220Z0C_HGH____-0.step.SLDPRT | 909.23K |
| 50 | HGH20CA1R220Z0C_HGH____.step.SLDPRT | 268.20K |
| 51 | HSV08.stp | 102.12K |
| 52 | PC802.stp | 112.53K |
| 53 | PSL602A.stp | 156.76K |
| 54 | PSL804A.stp | 180.66K |
| 55 | SBYZ10101-01-01A台架下框架.SLDPRT | 1.56M |
| 56 | SBYZ10101-01-02A后板.SLDPRT | 66.02K |
| 57 | SBYZ10101-01-03A右板.SLDPRT | 65.21K |
| 58 | SBYZ10101-01-04A电柜板.SLDPRT | 235.96K |
| 59 | SBYZ10101-01-05-01A前门框架.SLDPRT | 311.09K |
| 60 | SBYZ10101-01-05-02A前门板.SLDPRT | 66.73K |
| 61 | SBYZ10101-01-05A前门.SLDASM | 218.58K |
| 62 | SBYZ10101-01-06-01A侧门框架.SLDPRT | 357.10K |
| 63 | SBYZ10101-01-06-02A侧门板.SLDPRT | 66.94K |
| 64 | SBYZ10101-01-06A侧门.SLDASM | 218.30K |
| 65 | SBYZ10101-01-07A旋铆台面.SLDPRT | 335.63K |
| 66 | SBYZ10101-01-08A台架上框架.SLDPRT | 1.68M |
| 67 | SBYZ10101-01-09A上后板.SLDPRT | 92.01K |
| 68 | SBYZ10101-01-10A上侧板.SLDPRT | 92.09K |
| 69 | SBYZ10101-01-11A上面板.SLDPRT | 251.62K |
| 70 | SBYZ10101-01-12A上料检测架.SLDPRT | 130.43K |
| 71 | SBYZ10101-01-13A电磁阀组件.SLDASM | 665.86K |
| 72 | SBYZ10101-01-14A进气三联件.SLDASM | 2.84M |
| 73 | SC125X75S_70__0__-AX-2_.stp | 475.56K |
| 74 | SFS型滚珠丝杠[SFSR1205-2.8].SLDASM | 1.06M |
| 75 | SFS型滚珠丝杠[SFSR1205-2.8].step | 689.64K |
| 76 | SFS型滚珠丝杠[SFSR1205-2.8].step.SLDASM | 268.36K |
| 77 | STP_DFUR1605-4_16_EK_12______150_1.step.SLDPRT | 481.91K |
| 78 | STP_DFUR1605-4_16_EK_12______150_2.step.SLDPRT | 121.17K |
| 79 | STP_EGH20CA_E2_______R______________________220_1_1.step.SLDPRT | 701.64K |
| 80 | STP_EGH20CA_E2_______R______________________220_1_2.step.SLDPRT | 124.34K |
| 81 | STP_SFSR1205-2.8_12_BK_10________150_1.step.SLDPRT | 427.56K |
| 82 | STP_SFSR1205-2.8_12_BK_10________150_2.step.SLDPRT | 102.25K |
| 83 | XMJ10101-01-01A台架下框架.SLDDRW | 775.03K |
| 84 | XMJ10101-01-01A台架下框架.SLDPRT | 1.58M |
| 85 | XMJ10101-01-02A后板.SLDPRT | 64.87K |
| 86 | XMJ10101-01-03A右板.SLDPRT | 65.37K |
| 87 | XMJ10101-01-04A电柜板.SLDDRW | 318.06K |
| 88 | XMJ10101-01-04A电柜板.SLDPRT | 493.64K |
| 89 | XMJ10101-01-05-01A前门框架.SLDDRW | 302.04K |
| 90 | XMJ10101-01-05-01A前门框架.SLDPRT | 305.36K |
| 91 | XMJ10101-01-05-02A前门板.SLDPRT | 66.67K |
| 92 | XMJ10101-01-05A前门.SLDASM | 219.86K |
| 93 | XMJ10101-01-06-01A侧门框架.SLDDRW | 300.66K |
| 94 | XMJ10101-01-06-01A侧门框架.SLDPRT | 342.65K |
| 95 | XMJ10101-01-06-02A侧门板.SLDPRT | 67.35K |
| 96 | XMJ10101-01-06A侧门.SLDASM | 277.06K |
| 97 | XMJ10101-01-07A旋铆台面.SLDDRW | 305.86K |
| 98 | XMJ10101-01-07A旋铆台面.SLDPRT | 335.98K |
| 99 | XMJ10101-01-07B旋铆台面.SLDPRT | 362.87K |
| 100 | XMJ10101-01-08A台架上框架.SLDDRW | 1.09M |
| 101 | XMJ10101-01-08A台架上框架.SLDPRT | 1.69M |
| 102 | XMJ10101-01-08B台架上框架.SLDPRT | 1.68M |
| 103 | XMJ10101-01-09A上后板.SLDPRT | 155.35K |
| 104 | XMJ10101-01-10A上侧板.SLDPRT | 89.87K |
| 105 | XMJ10101-01-11A上面板.SLDDRW | 303.26K |
| 106 | XMJ10101-01-11A上面板.SLDPRT | 472.80K |
| 107 | XMJ10101-01-12A上料检测架.SLDDRW | 220.80K |
| 108 | XMJ10101-01-12A上料检测架.SLDPRT | 200.25K |
| 109 | XMJ10101-01-13A电磁阀组件.SLDASM | 806.14K |
| 110 | XMJ10101-01-13A电磁阀组件.SLDDRW | 553.79K |
| 111 | XMJ10101-01-14A进气三联件.SLDASM | 2.91M |
| 112 | XMJ10101-01-14A进气三联件.SLDDRW | 1.68M |
| 113 | XMJ10101-01A台架总成.SLDASM | 10.65M |
| 114 | XMJ10101-01A台架总成.SLDDRW | 5.66M |
| 115 | XMJ10101-02-01A法兰轴套.SLDDRW | 271.43K |
| 116 | XMJ10101-02-01A法兰轴套.SLDPRT | 154.09K |
| 117 | XMJ10101-02-02A下旋转轴.SLDDRW | 301.11K |
| 118 | XMJ10101-02-02A下旋转轴.SLDPRT | 150.10K |
| 119 | XMJ10101-02-03A下轴承挡环.SLDDRW | 197.86K |
| 120 | XMJ10101-02-03A下轴承挡环.SLDPRT | 87.04K |
| 121 | XMJ10101-02-04A下电机连接板.SLDDRW | 233.23K |
| 122 | XMJ10101-02-04A下电机连接板.SLDPRT | 139.12K |
| 123 | XMJ10101-02-05A下吊板.SLDDRW | 221.47K |
| 124 | XMJ10101-02-05A下吊板.SLDPRT | 107.68K |
| 125 | XMJ10101-02-06A下工装_HD14QDJ212.SLDDRW | 285.91K |
| 126 | XMJ10101-02-06A下工装_HD14QDJ212.SLDPRT | 306.59K |
| 127 | XMJ10101-02-06B下工装_HD14QDJ212.SLDDRW | 276.69K |
| 128 | XMJ10101-02-06B下工装_HD14QDJ212.SLDPRT | 253.41K |
| 129 | XMJ10101-02A旋转工装台总成.SLDASM | 2.97M |
| 130 | XMJ10101-02A旋转工装台总成.SLDDRW | 5.83M |
| 131 | XMJ10101-03-01A压料气缸安装板.SLDDRW | 239.94K |
| 132 | XMJ10101-03-01A压料气缸安装板.SLDPRT | 187.35K |
| 133 | XMJ10101-03-02A压料立柱.SLDDRW | 200.49K |
| 134 | XMJ10101-03-02A压料立柱.SLDPRT | 107.72K |
| 135 | XMJ10101-03-03A压料导向轴.SLDDRW | 207.35K |
| 136 | XMJ10101-03-03A压料导向轴.SLDPRT | 114.53K |
| 137 | XMJ10101-03-04A压料小板.SLDDRW | 205.82K |
| 138 | XMJ10101-03-04A压料小板.SLDPRT | 134.07K |
| 139 | XMJ10101-03-05A压料轴承套.SLDDRW | 251.23K |
| 140 | XMJ10101-03-05A压料轴承套.SLDPRT | 123.14K |
| 141 | XMJ10101-03-06A压料头.SLDPRT | 154.08K |
| 142 | XMJ10101-03-06B压料头.SLDDRW | 274.89K |
| 143 | XMJ10101-03-06B压料头.SLDPRT | 162.64K |
| 144 | XMJ10101-03-06C压料头.SLDDRW | 314.32K |
| 145 | XMJ10101-03-06C压料头.SLDPRT | 163.29K |
| 146 | XMJ10101-03-06D压料头.SLDDRW | 315.47K |
| 147 | XMJ10101-03-06D压料头.SLDPRT | 164.11K |
| 148 | XMJ10101-03-07A压料头上盖.SLDDRW | 217.80K |
| 149 | XMJ10101-03-07A压料头上盖.SLDPRT | 107.52K |
| 150 | XMJ10101-03-08A下压检测架.SLDDRW | 231.54K |
| 151 | XMJ10101-03-08A下压检测架.SLDPRT | 268.06K |
| 152 | XMJ10101-03-09A上检测片.SLDDRW | 207.17K |
| 153 | XMJ10101-03-09A上检测片.SLDPRT | 219.95K |
| 154 | XMJ10101-03-10A轴连接.SLDPRT | 103.95K |
| 155 | XMJ10101-03-11A压料头球座.SLDDRW | 230.24K |
| 156 | XMJ10101-03-11A压料头球座.SLDPRT | 109.85K |
| 157 | XMJ10101-03-12A中心钢球.SLDDRW | 267.76K |
| 158 | XMJ10101-03-12A中心钢球.SLDPRT | 165.82K |
| 159 | XMJ10101-03A压料架总成.SLDASM | 3.64M |
| 160 | XMJ10101-03A压料架总成.SLDDRW | 4.55M |
| 161 | XMJ10101-04-01A大底板.SLDDRW | 284.90K |
| 162 | XMJ10101-04-01A大底板.SLDPRT | 213.24K |
| 163 | XMJ10101-04-01B大底板.SLDDRW | 307.22K |
| 164 | XMJ10101-04-01B大底板.SLDPRT | 237.37K |
| 165 | XMJ10101-04-02A固定座板.SLDDRW | 293.72K |
| 166 | XMJ10101-04-02A固定座板.SLDPRT | 305.22K |
| 167 | XMJ10101-04-02B固定座板.SLDDRW | 352.15K |
| 168 | XMJ10101-04-02B固定座板.SLDPRT | 311.50K |
| 169 | XMJ10101-04-03A直线轴承安装板.SLDDRW | 297.07K |
| 170 | XMJ10101-04-03A直线轴承安装板.SLDPRT | 235.55K |
| 171 | XMJ10101-04-04A刀轴座.SLDDRW | 201.40K |
| 172 | XMJ10101-04-04A刀轴座.SLDPRT | 135.10K |
| 173 | XMJ10101-04-05A刀轴压板.SLDDRW | 194.40K |
| 174 | XMJ10101-04-05A刀轴压板.SLDPRT | 116.79K |
| 175 | XMJ10101-04-06-01A刀架.SLDDRW | 242.44K |
| 176 | XMJ10101-04-06-01A刀架.SLDPRT | 106.94K |
| 177 | XMJ10101-04-06-02A铆合轮.SLDDRW | 333.42K |
| 178 | XMJ10101-04-06-02A铆合轮.SLDPRT | 196.84K |
| 179 | XMJ10101-04-06A刀具组件.SLDASM | 1.72M |
| 180 | XMJ10101-04-06A刀具组件.SLDDRW | 2.58M |
| 181 | XMJ10101-04-07A刀架滑块.SLDDRW | 235.46K |
| 182 | XMJ10101-04-07A刀架滑块.SLDPRT | 184.65K |
| 183 | XMJ10101-04-08A铆合架导向柱.SLDDRW | 199.46K |
| 184 | XMJ10101-04-08A铆合架导向柱.SLDPRT | 145.59K |
| 185 | XMJ10101-04-09A丝杆螺母座.SLDDRW | 248.77K |
| 186 | XMJ10101-04-09A丝杆螺母座.SLDPRT | 175.38K |
| 187 | XMJ10101-04-10A经济型压轧滚珠丝杠[C_TBSB2005_240].sldasm | 171.67K |
| 188 | XMJ10101-04-10A经济型压轧滚珠丝杠[C_TBSB2005_240].SLDDRW | 331.58K |
| 189 | XMJ10101-04-11A丝杆防撞软限位.SLDDRW | 173.91K |
| 190 | XMJ10101-04-11A丝杆防撞软限位.SLDPRT | 89.76K |
| 191 | XMJ10101-04-12A张紧轮轴.SLDDRW | 257.95K |
| 192 | XMJ10101-04-12A张紧轮轴.SLDPRT | 123.20K |
| 193 | XMJ10101-04-13A张紧轮后盖.SLDDRW | 174.35K |
| 194 | XMJ10101-04-13A张紧轮后盖.SLDPRT | 83.71K |
| 195 | XMJ10101-04-14A涨紧轮.SLDDRW | 222.78K |
| 196 | XMJ10101-04-14A涨紧轮.SLDPRT | 116.65K |
| 197 | XMJ10101-04-15A固定座挡板.SLDDRW | 217.26K |
| 198 | XMJ10101-04-15A固定座挡板.SLDPRT | 163.56K |
| 199 | XMJ10101-04-16A同步带盖.SLDDRW | 268.41K |
| 200 | XMJ10101-04-16A同步带盖.SLDPRT | 312.78K |
| 201 | XMJ10101-04-16B同步带盖.SLDDRW | 226.36K |
| 202 | XMJ10101-04-16B同步带盖.SLDPRT | 292.56K |
| 203 | XMJ10101-04-17A丝杆盖.SLDDRW | 217.19K |
| 204 | XMJ10101-04-17A丝杆盖.SLDPRT | 252.16K |
| 205 | XMJ10101-04-18A滑块罩.SLDDRW | 227.37K |
| 206 | XMJ10101-04-18A滑块罩.SLDPRT | 202.21K |
| 207 | XMJ10101-04-19A检测片.SLDDRW | 185.74K |
| 208 | XMJ10101-04-19A检测片.SLDPRT | 118.36K |
| 209 | XMJ10101-04-19B检测片.SLDDRW | 185.54K |
| 210 | XMJ10101-04-19B检测片.SLDPRT | 120.63K |
| 211 | XMJ10101-04-20A检测片左.SLDPRT | 92.57K |
| 212 | XMJ10101-04-20A电机罩.SLDDRW | 345.70K |
| 213 | XMJ10101-04-20A电机罩.SLDPRT | 514.13K |
| 214 | XMJ10101-04-21A角撑板.SLDDRW | 200.01K |
| 215 | XMJ10101-04-21A角撑板.SLDPRT | 119.03K |
| 216 | XMJ10101-04A铆合台总成.SLDASM | 7.99M |
| 217 | XMJ10101-04A铆合台总成.SLDDRW | 7.90M |
| 218 | XMJ10101-04A铆合台总成装配方式.mp4 | 550.43K |
| 219 | XMJ10101-04B铆合台总成.SLDASM | 4.62M |
| 220 | XMJ10101旋转压铆机.SLDASM | 23.25M |
| 221 | XMJ10101旋转压铆机.SLDDRW | 29.49M |
| 222 | XMJ10101旋转压铆机.x_t | 63.27M |
| 223 | XMJ10102-02-06A下工装_QD1332-531.SLDDRW | 271.39K |
| 224 | XMJ10102-02-06A下工装_QD1332-531.SLDPRT | 174.03K |

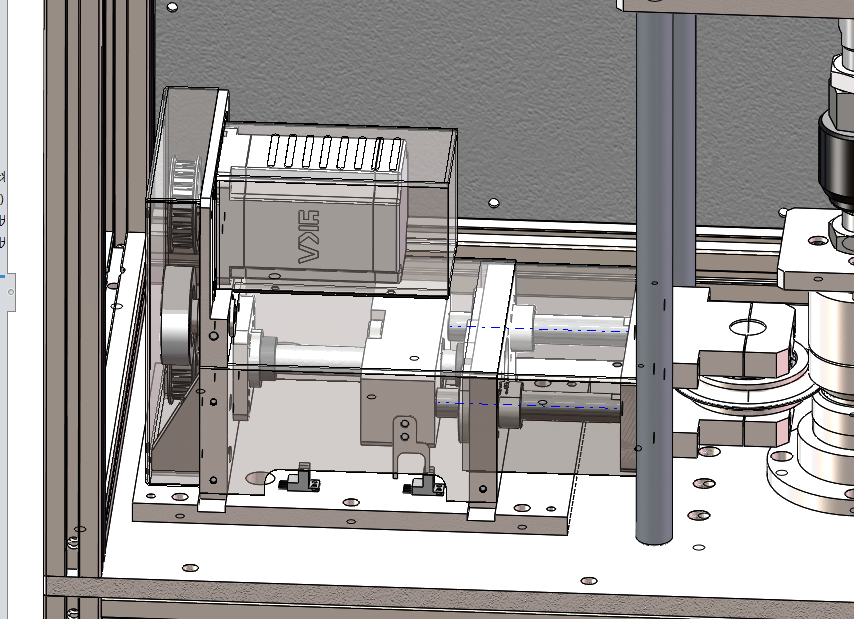

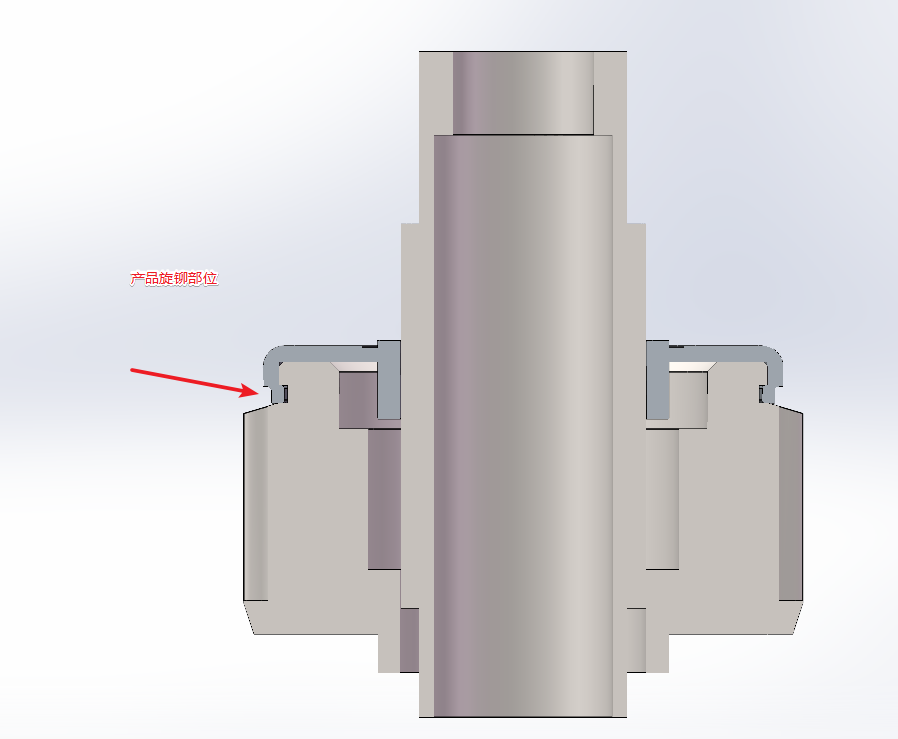

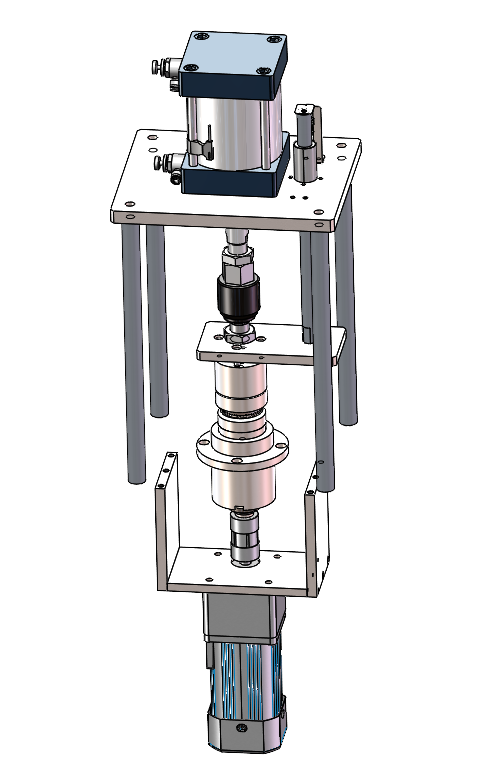

| 225 | XMJ10102-02-06B下工装_QD1332-531.SLDDRW | 274.60K |
| 226 | XMJ10102-02-06B下工装_QD1332-531.SLDPRT | 323.56K |
| 227 | 三菱触摸屏[GS2107-WTBD].SLDPRT | 189.10K |
| 228 | 下电机支架.SLDASM | 141.84K |
| 229 | 丝杆固定座[BSGK-12].SLDPRT | 631.06K |
| 230 | 丝杆支撑座[C_BUFN12].SLDASM | 120.23K |
| 231 | 丝杠支座固定侧组件[C_TFK15_SET].sldasm | 178.31K |
| 232 | 丝杠支座组件[C_TFK15_SET].SLDASM | 195.17K |
| 233 | 两面带密封圈（接触式）的深沟球轴承[61905-2RS].step | 871.30K |
| 234 | 主要部分压装部分.png | 409.48K |
| 235 | 产品_内销轴.SLDPRT | 88.29K |
| 236 | 产品_内销轴_52.SLDPRT | 126.94K |
| 237 | 产品_内销轴_64.SLDPRT | 131.40K |
| 238 | 产品_外盖板.SLDPRT | 141.24K |
| 239 | 产品_外盖板压后.SLDPRT | 351.72K |
| 240 | 产品_带齿外壳.SLDPRT | 1.57M |
| 241 | 产品_带齿外壳HD14QDJ212大齿轮.SLDPRT | 490.15K |
| 242 | 产品_带齿外壳QD1332-531大齿轮.SLDPRT | 467.06K |
| 243 | 产品_盖板541压后.SLDPRT | 203.72K |
| 244 | 产品_装配半成品.SLDASM | 363.32K |
| 245 | 产品_装配半成品.SLDDRW | 320.06K |
| 246 | 产品_装配半成品HD14QDJ212.SLDASM | 114.62K |
| 247 | 产品_装配半成品HD14QDJ212.SLDDRW | 865.73K |
| 248 | 产品_装配半成品QD1332-531.SLDASM | 382.83K |
| 249 | 产品_装配半成品QD1332-531.SLDDRW | 865.83K |
| 250 | 产品图.png | 56.10K |
| 251 | 低组装型滚珠线性滑轨[EGH20CA].step | 310.79K |
| 252 | 凹槽形微型光电传感器[EE-SX674A].SLDPRT | 127.01K |
| 253 | 刀具组件设计.png | 398.57K |
| 254 | 压料上半月片.SLDPRT | 240.16K |
| 255 | 压料头连接杆.SLDPRT | 238.40K |
| 256 | 压料气缸[SC125X75S_70__0__-AX-2].SLDASM | 1.80M |
| 257 | 压料部分.png | 103.79K |
| 258 | 压轧滚珠丝杠[C_TBSB2005_200].sldasm | 194.68K |
| 259 | 合页[GH2626].SLDPRT | 284.61K |
| 260 | 合页[银色不等边3040-30].SLDPRT | 285.19K |
| 261 | 同步带[ATP45].SLDPRT | 88.79K |
| 262 | 同步带[ATP46].SLDDRW | 180.07K |
| 263 | 同步带轮[ATP20L050_A_P12].sldasm | 197.66K |
| 264 | 同步带轮[ATP20L050_A_P12].SLDDRW | 290.33K |
| 265 | 同步带轮[ATP20L050_A_P14].sldasm | 204.09K |
| 266 | 同步带轮[ATP20L050_A_P14].SLDDRW | 292.48K |
| 267 | 同步带轮[ATP24L050_A_P12].sldasm | 196.46K |
| 268 | 同步带轮[C_HTPA36S5M150_A_N20].sldprt | 314.33K |
| 269 | 同步轮[ATP24L050_A_P14].sldasm | 203.54K |
| 270 | 同步轮[ATP24L075_A_P14].sldasm | 130.19K |
| 271 | 同步轮[C_HTPA24S5M150_A_N14].sldprt | 330.00K |
| 272 | 固定板式磁性门吸[PP6652].SLDASM | 4.14M |
| 273 | 固定板式磁性门吸[PP6652].step | 834.94K |
| 274 | 固定板式磁性门吸[PP6652].step.SLDASM | 1.22M |
| 275 | 圆螺母[M25×1.5].SLDPRT | 188.29K |
| 276 | 圆螺母[M25×1.5].step | 81.12K |
| 277 | 圆螺母[M30×1.5].SLDPRT | 136.86K |
| 278 | 圆螺母[M30×1.5].step | 82.61K |
| 279 | 塞打螺丝[D8-25-M6].SLDDRW | 225.86K |
| 280 | 塞打螺丝[D8-25-M6].SLDPRT | 144.89K |
| 281 | 孔用弹性挡圈A型[42].SLDPRT | 103.40K |
| 282 | 孔用弹性挡圈A型[42].step | 48.02K |
| 283 | 孔用弹性挡圈A型[68].SLDPRT | 103.59K |
| 284 | 孔用弹性挡圈A型[68].step | 48.02K |
| 285 | 开关电源.SLDDRW | 154.25K |
| 286 | 开关电源.SLDPRT | 87.97K |
| 287 | 手滑阀[HSV08].SLDASM | 994.63K |
| 288 | 推力球轴承[51109].SLDPRT | 692.60K |
| 289 | 推力球轴承[51109].step | 537.40K |
| 290 | 推力球轴承[51206].SLDPRT | 645.75K |
| 291 | 推力球轴承[51206].step | 374.49K |
| 292 | 推力球轴承[51209].SLDPRT | 610.84K |
| 293 | 推力球轴承[51209].step | 431.98K |

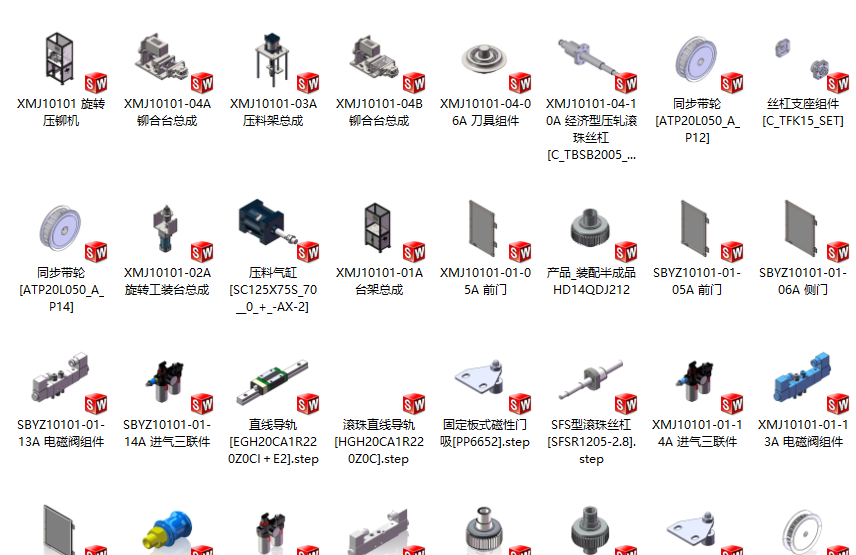

| 294 | 旋压铆合机零件部分.png | 128.53K |
| 295 | 旋转压铆机vBOM.xls | 28.00K |
| 296 | 旋转压铆机技术方案v1.8.doc | 310.50K |
| 297 | 旋转压铆机技术方案v1.8.pdf | 348.29K |
| 298 | 旋转台组件.mp4 | 718.70K |
| 299 | 标准型直线轴承_法兰式加长型[LMF20LUU].SLDPRT | 124.58K |
| 300 | 步进驱动[HBS86H].SLDPRT | 236.64K |
| 301 | 气接头[PC802].SLDPRT | 321.70K |

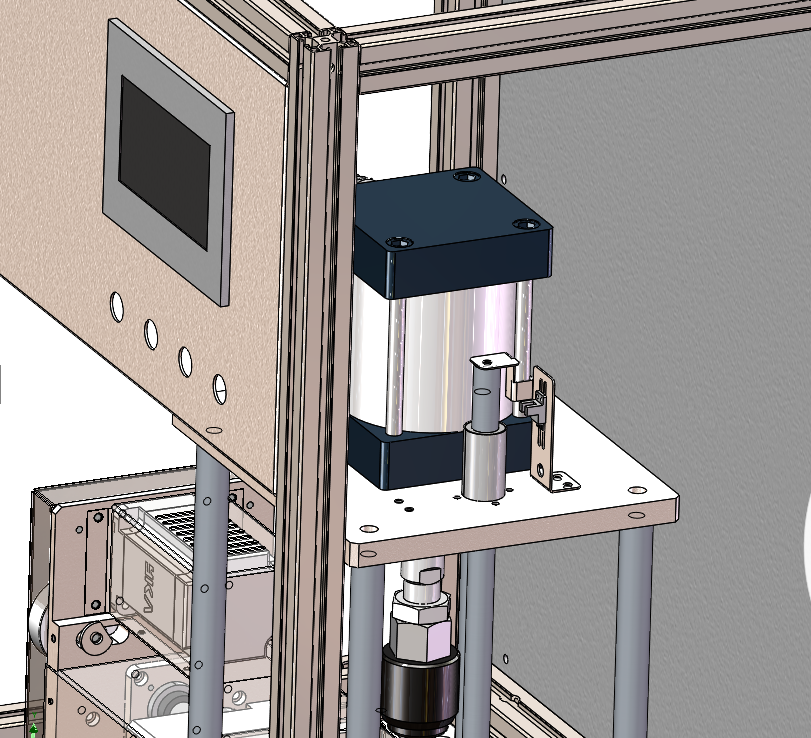

| 302 | 气缸提高精度检测.png | 584.25K |
| 303 | 没用的零件.SLDPRT | 211.32K |
| 304 | 浮动接头[F-M27X200F].SLDPRT | 211.88K |
| 305 | 消声器[BSL01].SLDPRT | 260.05K |
| 306 | 深沟球轴承[6004-2LS].SLDPRT | 1.49M |
| 307 | 深沟球轴承[6004-2LS].step | 684.56K |
| 308 | 深沟球轴承[6008].SLDPRT | 1.92M |
| 309 | 深沟球轴承[6008].step | 883.47K |
| 310 | 深沟球轴承[61905-2RS].SLDPRT | 3.64M |
| 311 | 深沟球轴承[61908-2RS].SLDPRT | 4.16M |
| 312 | 深沟球轴承[61908-2RS].step | 1.04M |
| 313 | 滚珠丝杆[C_TBSB2005_214_5].SLDPRT | 127.64K |
| 314 | 滚珠直线导轨[HGH20CA1R220Z0C].SLDASM | 2.32M |
| 315 | 滚珠直线导轨[HGH20CA1R220Z0C].step | 2.45M |
| 316 | 滚珠直线导轨[HGH20CA1R220Z0C].step.SLDASM | 480.28K |
| 317 | 漫反射光电检测开关[G18-3A10NAG18-3A10].SLDPRT | 228.32K |
| 318 | 瑞恳[300W-2K720rpm-CF定速型配电容-18轴].SLDPRT | 1.31M |
| 319 | 电柜箱.SLDPRT | 178.27K |
| 320 | 电磁阀[4V230C08B].SLDASM | 512.65K |
| 321 | 皮带.SLDPRT | 50.71K |
| 322 | 直线导轨[EGH20CA1R220Z0CI＋E2].SLDASM | 1.47M |
| 323 | 直线导轨[EGH20CA1R220Z0CI＋E2].step | 1.50M |
| 324 | 直线导轨[EGH20CA1R220Z0CI＋E2].step.SLDASM | 350.77K |
| 325 | 直线轴承[LMF20UU].SLDPRT | 1.86M |
| 326 | 直线轴承[LMF20UU].step | 4.43M |
| 327 | 直线轴承[LMF25UU].SLDPRT | 1.79M |
| 328 | 直线轴承[LMF25UU].step | 1.08M |
| 329 | 磁吸铁片[PP6652].SLDPRT | 143.39K |
| 330 | 福马轮[MV-FW80D].SLDPRT | 4.50M |
| 331 | 福马轮[MV-FW80D].step | 11.19M |
| 332 | 米丝米经济型丝杆[C-TBSB1505-300].SLDASM | 1.12M |
| 333 | 米丝米经济型丝杆[C-TBSB1505-300].STEP | 209.29K |
| 334 | 米丝米经济型滚珠丝杆[C_TBSB1505_200].sldasm | 301.03K |
| 335 | 经济型压轧滚珠丝杠[C_TBSB2005_300].sldasm | 194.97K |
| 336 | 联轴器[JAD42-20-20].SLDPRT | 386.38K |
| 337 | 联轴器[LM-D40L75-20Kx20K].SLDPRT | 86.42K |
| 338 | 联轴器[SJCB-40-GR-18K6X18K6].SLDPRT | 214.45K |
| 339 | 节流阀[PSL602A].SLDPRT | 309.32K |
| 340 | 节流阀[PSL804A].SLDPRT | 303.90K |
| 341 | 轴用弹性挡圈A型d0≥10[20].SLDPRT | 106.83K |
| 342 | 轴用弹性挡圈A型d0≥10[20].step | 54.56K |
| 343 | 轴用弹性挡圈A型d0≥10[40].SLDPRT | 103.78K |
| 344 | 轴用弹性挡圈A型d0≥10[40].step | 56.49K |
| 345 | 轴用弹性挡圈B型[40B].step | 55.06K |
| 346 | 进气[BFC20001].SLDASM | 1.94M |
| 347 | 铆合刀组件.SLDASM | 5.45M |

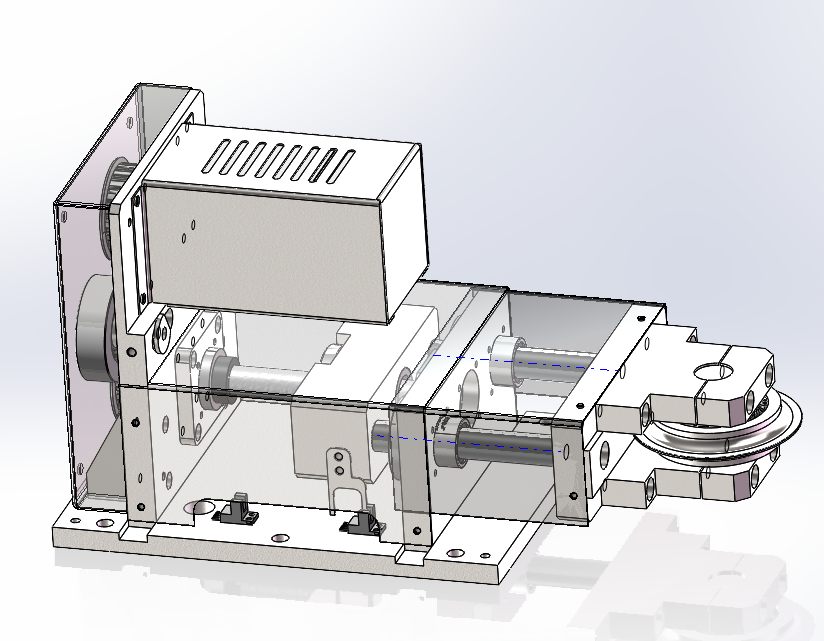

| 348 | 铆合台总成.png | 333.20K |

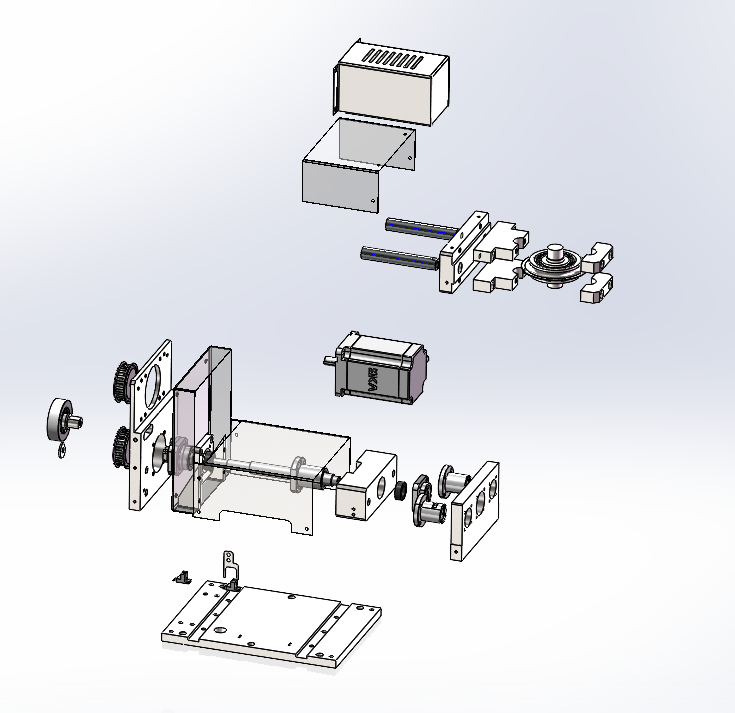

| 349 | 铆合台爆炸图含爆炸过程.png | 155.11K |

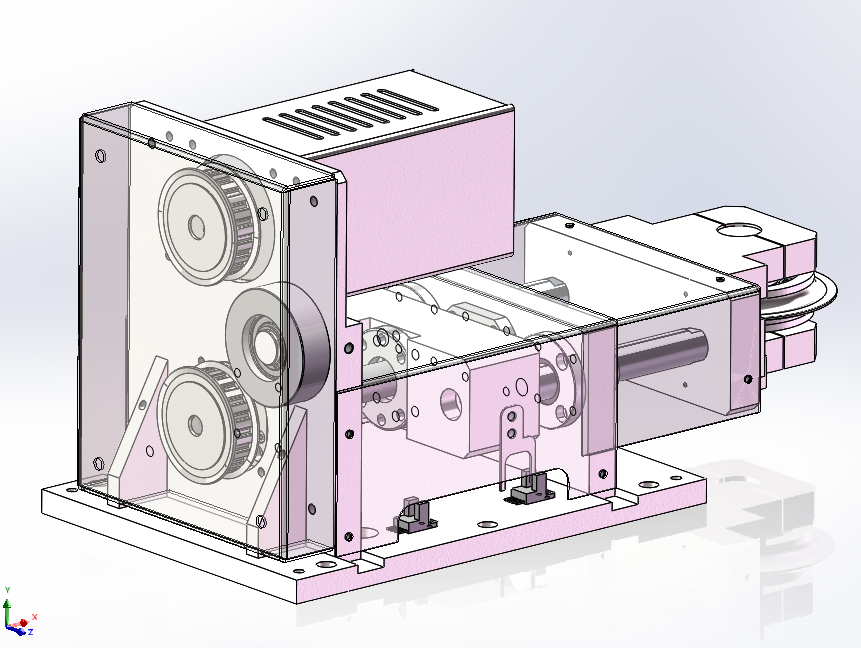

| 350 | 铆合台背面.png | 359.80K |
| 351 | 门把手[90尼龙].sldprt | 64.34K |
此图纸下载需要15金币
立即下载
发布者
奋斗的冬瓜
创作: 412
粉丝: 22
加入时间：2023-03-27
模型信息
图纸格式：step,sldprt,sldasm,x_t,pdf
文件大小：261.49M
所需金币：15
上传时间：2023-04-05 17:40:08
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2022
标签
图纸简介
版权说明
用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
QQ在线客服
官方QQ群
