桌上型贴标机（ID:568818）

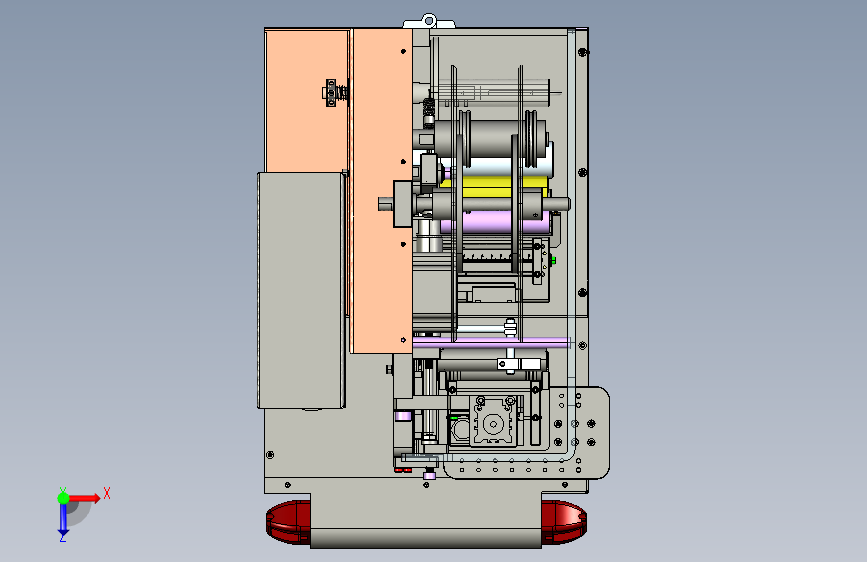

1.png)

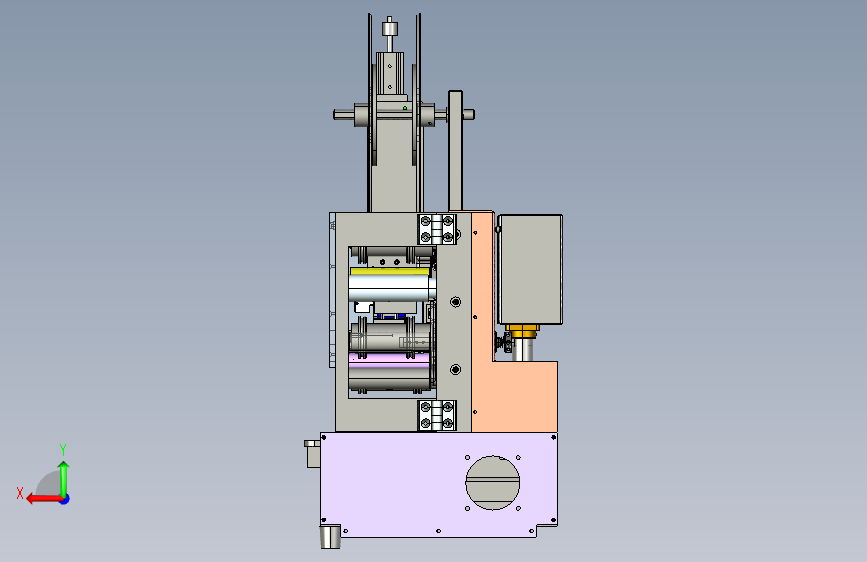

4.png)

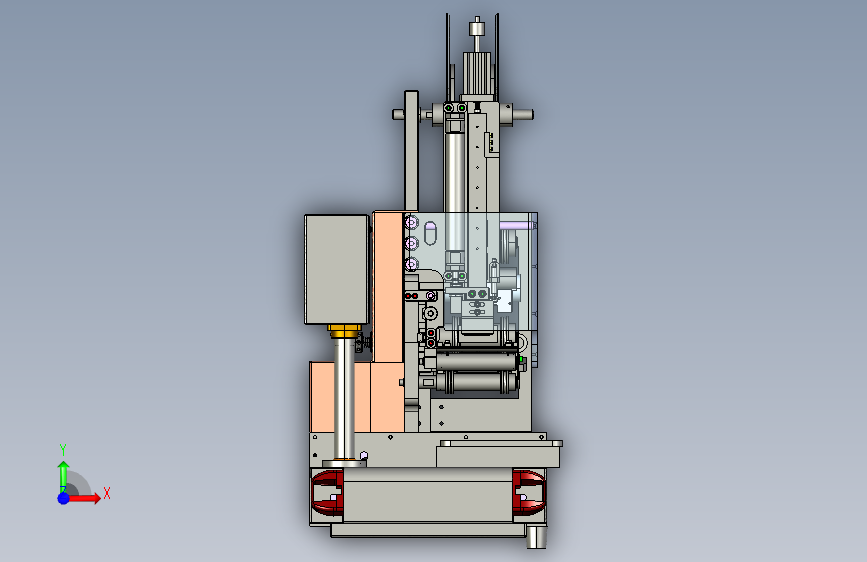

3.png)
2.png)

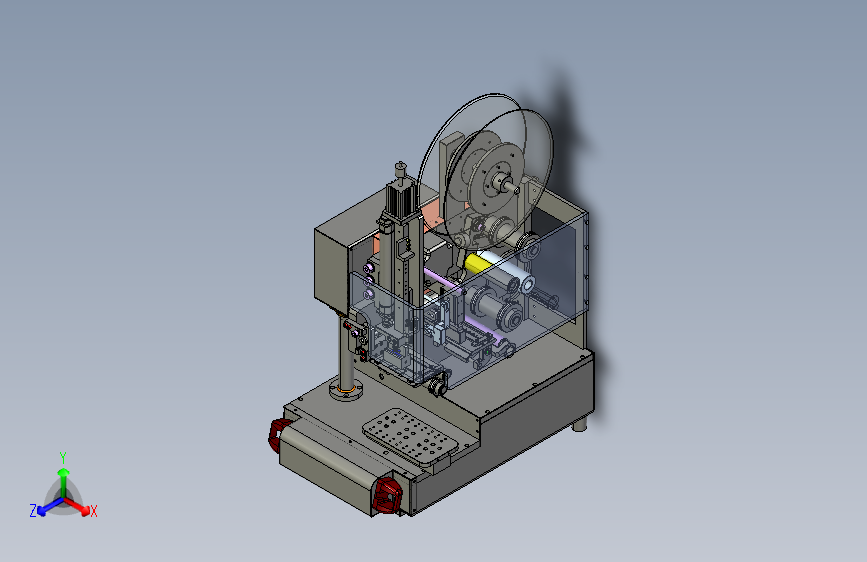

0.png)

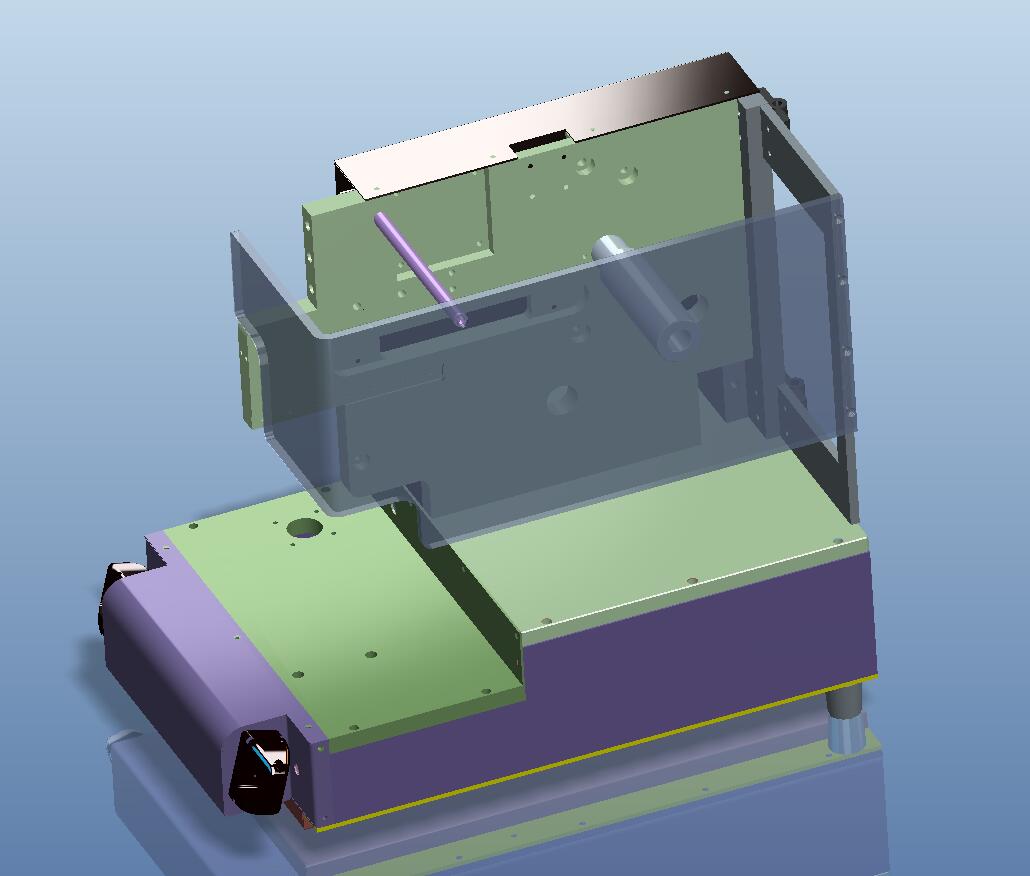

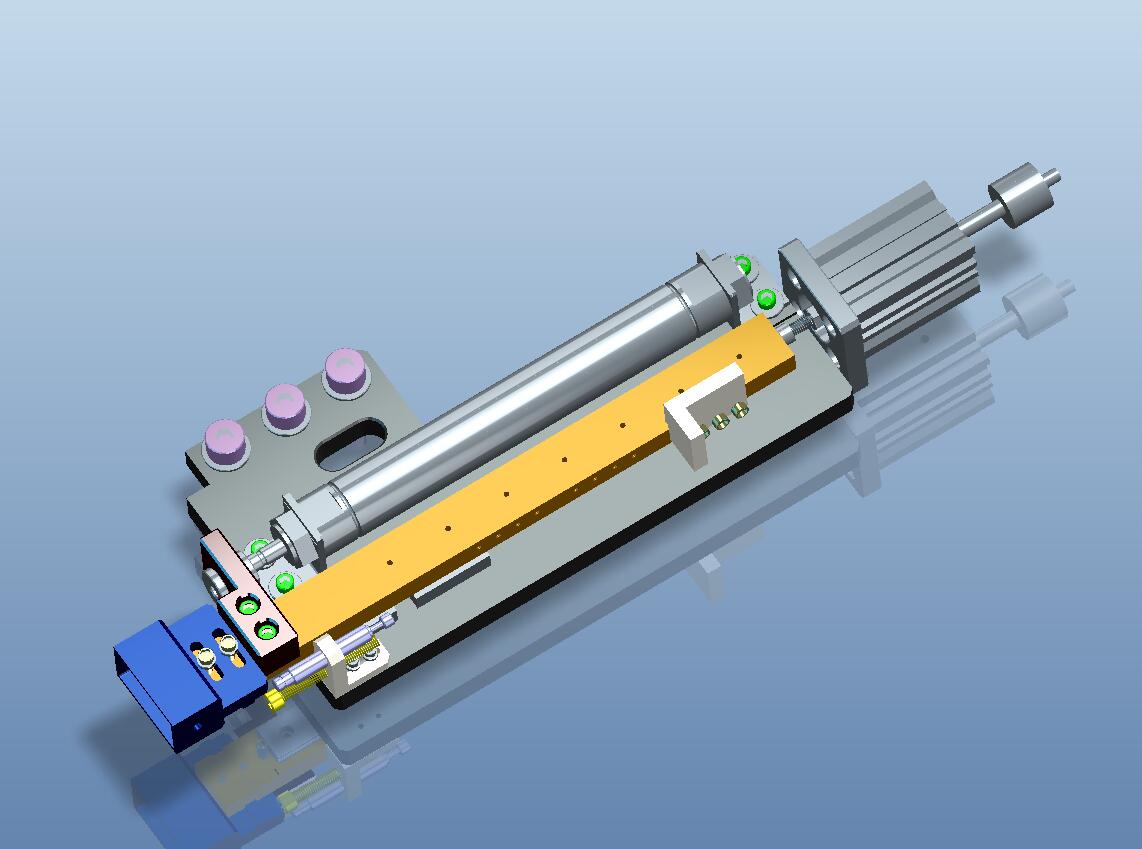

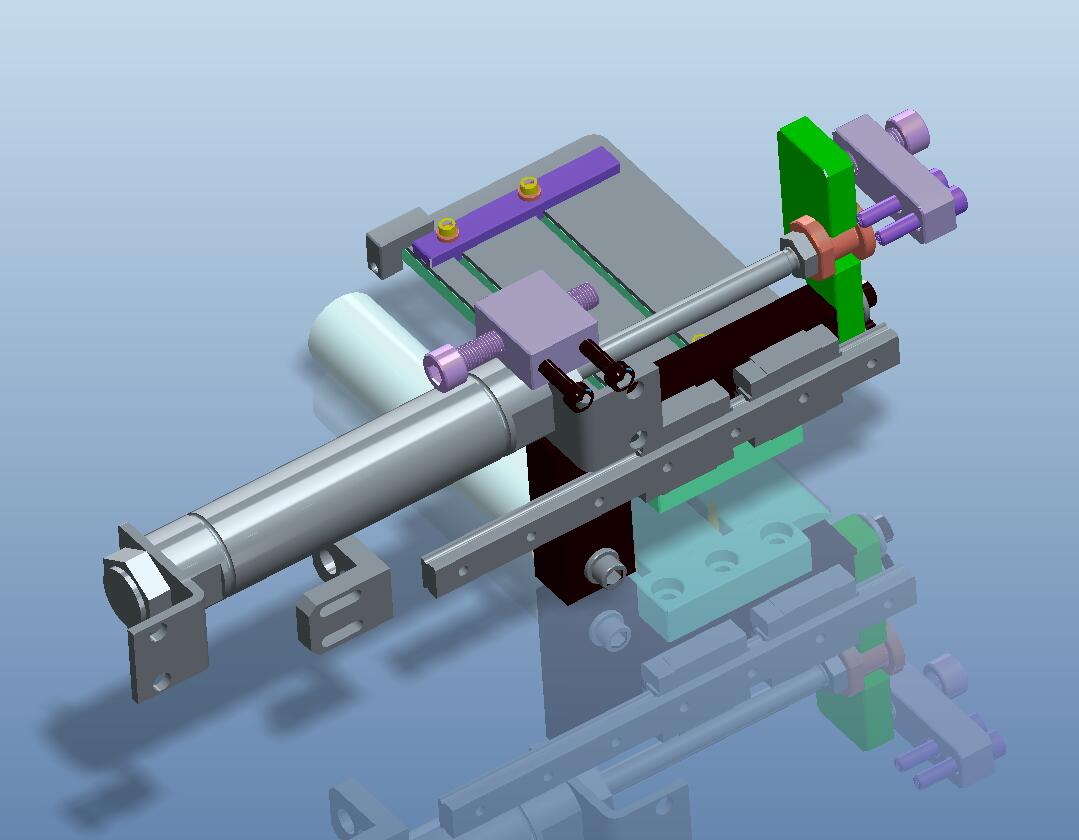

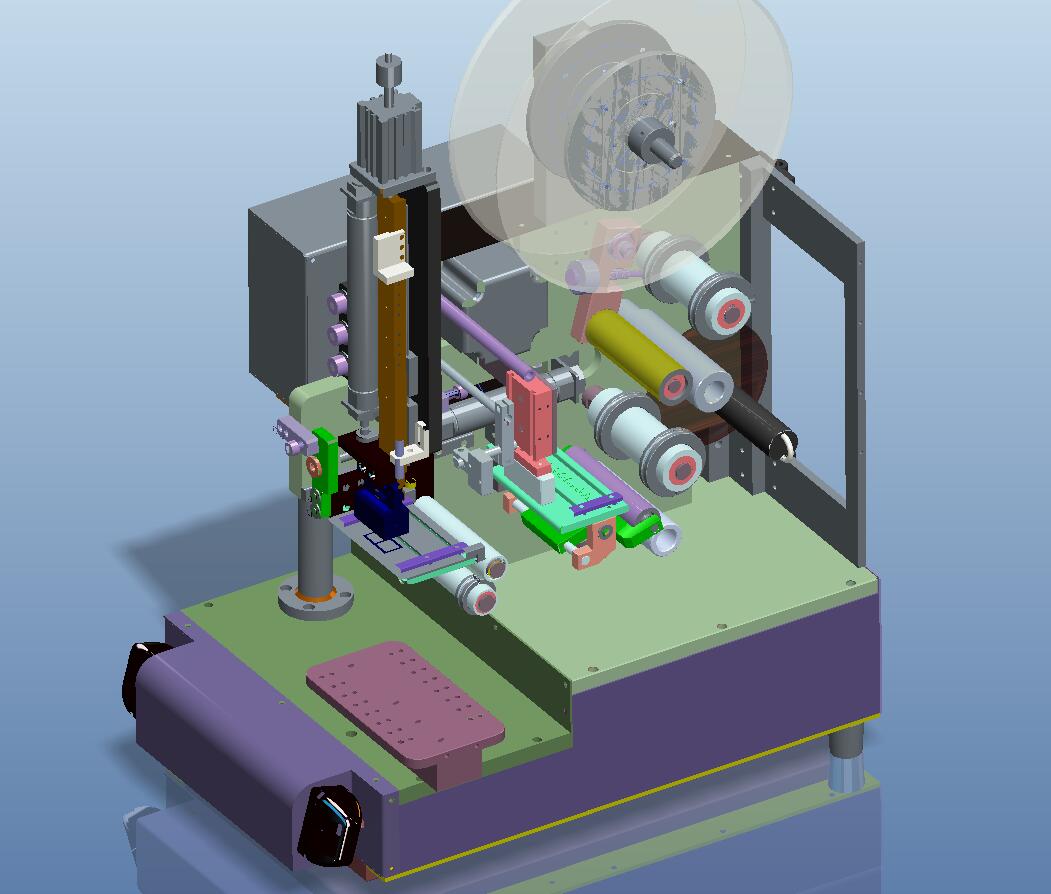

| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 16810385643782.zip | 50.63M |
| 2 | QQ截图20230409184430.jpg | 46.15K |
| 3 | QQ截图20230409190209.jpg | 61.34K |
| 4 | QQ截图20230409190233.jpg | 56.98K |
| 5 | QQ截图20230409190312.jpg | 70.58K |
| 6 | tiebiaoji_asm.stp | 27.39M |
| 7 | 装配图.jpg | 48.26K |
| 8 | 01.drw.2 | 14.23K |
| 9 | 05-04.drw.1 | 18.76K |
| 10 | 1-gunlun.asm.1 | 36.67K |
| 11 | 1-gunlun.prt.2 | 95.38K |
| 12 | 1-zhou.prt.5 | 126.30K |
| 13 | 2-gunlun.asm.3 | 45.30K |
| 14 | 2-gunlun.bom.1 | 352B |
| 15 | 2-gunlun.prt.8 | 79.08K |
| 16 | 2-gunlun.rep.1 | 16.91K |
| 17 | 2-zhou.drw.17 | 29.10K |
| 18 | 2-zhou.prt.7 | 165.71K |
| 19 | 2.prt.1 | 107.55K |
| 20 | 2_gunlun.drw.15 | 89.63K |
| 21 | 2_zhoucheng.prt.2 | 49.90K |
| 22 | 3-gunlun.asm.5 | 51.01K |
| 23 | 3-gunlun.drw.20 | 83.35K |
| 24 | 3-zhou.prt.3 | 142.43K |
| 25 | 3.prt.1 | 145.95K |
| 26 | 4-gunlun-al.prt.2 | 73.35K |
| 27 | 4-gunlun.prt.3 | 81.74K |
| 28 | 4-zhou.prt.2 | 127.79K |
| 29 | 5xiao20_ban3_.prt.1 | 55.31K |
| 30 | a016-40-03_switch_seat.prt.6 | 346.01K |
| 31 | acad_iso04w100.lsl.2 | 1.15K |
| 32 | asm0001.asm.3 | 63.28K |
| 33 | asm0004.asm.1 | 27.64K |
| 34 | asm0005.asm.1 | 30.73K |
| 35 | asm0005.asm.2 | 29.84K |
| 36 | asm0006.asm.1 | 29.04K |
| 37 | asm0007.asm.2 | 30.35K |
| 38 | asm0008.asm.1 | 27.33K |
| 39 | asm0009.asm.1 | 27.25K |
| 40 | atpa15l050-a-h12.prt.6 | 247.96K |
| 41 | atpa18l050-b-p12.prt.4 | 254.66K |
| 42 | aws12-60.prt.1 | 2.01M |
| 43 | boliao.asm.14 | 117.12K |
| 44 | boliao.bom.1 | 1.93K |
| 45 | boliao.drw | 223.81K |
| 46 | boliaoban.prt.7 | 378.98K |
| 47 | boliaobandangkuai-hou.prt.3 | 162.37K |
| 48 | boliaobandangkuai-qian.prt.2 | 160.15K |
| 49 | boliaobangudingkai.prt.9 | 363.97K |
| 50 | boliaogangxianweikuai.prt.4 | 179.30K |
| 51 | boliaohouxianweikuai.prt.2 | 176.97K |
| 52 | boliaoqigangfudongjietouban.prt.3 | 206.08K |
| 53 | bolidao.prt.6 | 368.54K |
| 54 | bolidao.prt.7 | 370.68K |
| 55 | bom1.tbl.1 | 11.53K |
| 56 | cdm2b-150.prt.1 | 360.94K |
| 57 | cdm2b20-75.prt.3 | 367.07K |
| 58 | chbs5-15.prt.1 | 112.05K |
| 59 | chumopingjia.asm.30 | 84.81K |
| 60 | chumopingjia.asm.31 | 92.97K |
| 61 | chumopingjia.drw.40 | 134.29K |
| 62 | cmpzhuangan.prt.5 | 127.28K |
| 63 | config.win.2 | 20.87K |
| 64 | cq225-u1i9-25.prt.1 | 361.00K |
| 65 | crnt12.prt.4 | 217.85K |
| 66 | dangliaobanyakeli.prt.4 | 107.16K |
| 67 | dangliaokuai01.prt.1 | 25.09K |
| 68 | dangliaopanluquan.prt.2 | 204.48K |
| 69 | dianban.prt.7 | 121.76K |
| 70 | dianban.prt.8 | 133.57K |
| 71 | dianji.asm.4 | 44.25K |
| 72 | diankonbeiban.drw.11 | 22.20K |
| 73 | diankongbeiban.prt.4 | 138.50K |
| 74 | diaoliaohuan.prt.4 | 251.59K |
| 75 | diaoliaohuan25.prt.2 | 263.72K |
| 76 | diban-you.prt.8 | 293.76K |
| 77 | diban-you.prt.9 | 315.71K |
| 78 | diban-zuo.prt.6 | 325.18K |
| 79 | diban-zuo.prt.7 | 247.77K |
| 80 | diban.prt.11 | 500.14K |
| 81 | diban.prt.12 | 482.83K |
| 82 | dibanzhikuai.prt.10 | 112.28K |
| 83 | dimo.prt.5 | 152.88K |
| 84 | dingdaoliaoquan.prt.4 | 159.75K |
| 85 | drw0001.drw.1 | 52.54K |
| 86 | fangtui.asm.13 | 101.08K |
| 87 | fangtui.drw.26 | 172.49K |
| 88 | fbudldianquan.prt.2 | 106.63K |
| 89 | feiliaozhou.prt.2 | 184.76K |
| 90 | fenkouji.drw.1 | 19.16K |
| 91 | fjcl8-10.prt.2 | 183.96K |
| 92 | fjuliaogan.prt.2 | 162.62K |
| 93 | fliaodaijigou.asm.5 | 59.10K |
| 94 | fliaodaijigou.drw.24 | 127.82K |
| 95 | fliaoka.prt.2 | 97.71K |
| 96 | fliaoyakeli.prt.2 | 69.81K |
| 97 | ganyinqi_zhijia.asm.5 | 42.08K |
| 98 | ganyinqi_zhijia.drw.21 | 78.71K |
| 99 | gunhualuomu-m8.prt.2 | 895.21K |
| 100 | gunhuatanhuangluomu.prt.3 | 106.93K |
| 101 | gunlunzhijia.prt.2 | 256.03K |
| 102 | gx007.prt.8 | 227.00K |
| 103 | gx007.prt.9 | 246.78K |
| 104 | gykgudinban.prt.5 | 254.20K |
| 105 | gyqzggdk.prt.8 | 153.38K |
| 106 | gyqzhijia100.prt.2 | 65.37K |
| 107 | gyqzhongjiangan.prt.3 | 64.07K |
| 108 | hbgs40-16.prt.2 | 151.67K |
| 109 | heyehy0645.asm.2 | 32.67K |
| 110 | heyehy0645.prt.3 | 130.92K |
| 111 | hhs40.prt.1 | 88.00K |
| 112 | hlb15.prt.7 | 193.46K |
| 113 | houbeixiang.prt.12 | 349.81K |
| 114 | jiban.prt.27 | 1.42M |
| 115 | jiban.prt.28 | 1.04M |
| 116 | jijia-asm00.drw.71 | 450.25K |
| 117 | jijia.asm.27 | 119.32K |
| 118 | juzhuzhou.prt.3 | 209.38K |
| 119 | liaodaidangpan.prt.5 | 261.85K |
| 120 | liaodaijia.asm.5 | 97.75K |
| 121 | liaodaijia.drw.36 | 141.15K |
| 122 | liaodaipangudingban.prt.3 | 145.30K |
| 123 | liaodaipanzhou.prt.3 | 138.70K |
| 124 | liaojia.prt.1 | 11.65K |
| 125 | liaopan.prt.1 | 11.66K |
| 126 | m10dianpian.prt.1 | 106.52K |
| 127 | m10l35.prt.1 | 857.96K |
| 128 | m3dianpian.prt.1 | 103.42K |
| 129 | m3l12.prt.1 | 822.73K |
| 130 | m3l15.prt.1 | 972.46K |
| 131 | m3l20.prt.1 | 1018.54K |
| 132 | m4dianpian.prt.1 | 104.64K |
| 133 | m4l6zf.prt.1 | 92.48K |
| 134 | m4pingdain.prt.1 | 48.26K |
| 135 | m4x12_screw_.prt.1 | 723.04K |
| 136 | m4x20.prt.1 | 1.07M |
| 137 | m4x35.prt.1 | 1.71M |
| 138 | m5dianpian.prt.1 | 103.83K |
| 139 | m5l20.prt.1 | 567.43K |
| 140 | m5l25.prt.1 | 260.05K |
| 141 | m5l30.prt.1 | 258.45K |
| 142 | m6dianpian.prt.1 | 104.71K |
| 143 | m6l35.prt.1 | 905.62K |
| 144 | m6l50.prt.1 | 1.18M |
| 145 | m6luomu.prt.1 | 289.59K |
| 146 | m8dianpian.prt.1 | 105.26K |
| 147 | m8l20.prt.1 | 542.02K |
| 148 | m8l35.prt.1 | 884.52K |
| 149 | m8l50.prt.1 | 1.20M |
| 150 | mac0806m.prt.1 | 155.61K |
| 151 | menban.prt.10 | 192.44K |
| 152 | menban.prt.9 | 172.55K |
| 153 | mpgz15-12.prt.3 | 134.45K |
| 154 | nfjn8-50.prt.7 | 55.04K |
| 155 | pk596-a.prt.1 | 263.97K |
| 156 | product_828.asm.1 | 25.78K |
| 157 | product_id_4_product_definition.prt.1 | 122.67K |
| 158 | product_id_5_product_definition.prt.1 | 330.60K |
| 159 | product_id_6_product_definition.prt.1 | 328.84K |
| 160 | prt0001.prt.8 | 1.80M |
| 161 | prt0002.prt.5 | 60.86K |
| 162 | prt0002.prt.6 | 76.55K |
| 163 | prt0005.prt.1 | 60.93K |
| 164 | prt0006.prt.2 | 49.57K |
| 165 | prt0007.prt.6 | 170.22K |
| 166 | prt0007.prt.7 | 187.39K |
| 167 | prt0011.prt.6 | 92.68K |
| 168 | prt0012.prt.8 | 281.69K |
| 169 | prt0012.prt.9 | 292.13K |
| 170 | prt0013.prt.6 | 348.50K |
| 171 | prt0013.prt.7 | 350.95K |
| 172 | prt0015.prt.31 | 521.76K |
| 173 | prt0015.prt.32 | 566.62K |
| 174 | prt0018.prt.5 | 129.90K |
| 175 | prt0019.prt.1 | 129.24K |
| 176 | prt0020.prt.1 | 168.59K |
| 177 | prt0021.prt.1 | 149.15K |
| 178 | prt0022.prt.1 | 66.36K |
| 179 | prt0023.prt.1 | 45.20K |
| 180 | prt0024.prt.1 | 31.42K |
| 181 | prt0025.prt.1 | 42.39K |
| 182 | prt0026.prt.6 | 82.18K |
| 183 | prt0028.prt.1 | 81.04K |
| 184 | prt0032.prt.6 | 226.54K |
| 185 | prt0033.prt.3 | 136.66K |
| 186 | qiganghuatai.prt.1 | 297.98K |
| 187 | qiguangzhijia.prt.3 | 167.76K |
| 188 | rep0001.rep.1 | 12.42K |
| 189 | s-dingban.prt.9 | 770.03K |
| 190 | s2d0001.sec.1 | 4.47K |
| 191 | s2d0002.sec.1 | 10.96K |
| 192 | s2d0011.sec.1 | 7.89K |
| 193 | s2d0017.sec.1 | 3.33K |
| 194 | sb6092zznr.prt.1 | 111.62K |
| 195 | sb6092zznr_misumi.prt.1 | 114.16K |
| 196 | sb6702zz.prt.1 | 1.06M |
| 197 | sb6702zz_p509.prt.1 | 48.42K |
| 198 | sb6901zz.prt.1 | 49.12K |
| 199 | sb6902zz.prt.1 | 950.36K |
| 200 | sb6902zznr.prt.1 | 1016.22K |
| 201 | sbb698zz.prt.1 | 1.10M |
| 202 | sbcb4-12.prt.1 | 108.23K |
| 203 | selbw-huagui.prt.1 | 319.89K |
| 204 | selbw-huakuai.prt.1 | 89.27K |
| 205 | shangmo.drw.5 | 43.03K |
| 206 | slw16.prt.1 | 57.91K |
| 207 | slw8.prt.1 | 56.61K |
| 208 | smc-cxsm10-10.prt.1 | 303.79K |
| 209 | songliao.asm.9 | 25.56K |
| 210 | sse2bwz.asm.3 | 41.21K |
| 211 | sse2bwz.drw.15 | 73.98K |
| 212 | std.out | 5.44K |
| 213 | stwn10.prt.7 | 71.22K |
| 214 | stwn14.prt.1 | 83.82K |
| 215 | stwn15.prt.3 | 96.85K |
| 216 | tanhuanglagan.prt.2 | 978.54K |
| 217 | tanhuanglakuai.prt.4 | 261.95K |
| 218 | tee-bom-mm-d.frm.5 | 49.74K |
| 219 | tee-part-mm-d.frm.6 | 47.01K |
| 220 | template.err.2 | 257B |
| 221 | tiabiaoji.frm.3 | 26.12K |
| 222 | tiebiaoji.asm.26 | 152.88K |
| 223 | tiebiaoji.asm.27 | 164.70K |
| 224 | tiebiaoji.asm.28 | 165.72K |
| 225 | tiebiaoji.crc | 805B |
| 226 | tiebiaoji00.drw.3 | 49.29K |
| 227 | tiemodaogunkuai.prt.8 | 321.87K |
| 228 | tiemofudongjietou.prt.4 | 152.01K |
| 229 | tiemojiban.prt.12 | 393.64K |
| 230 | tiemojiban.prt.13 | 399.34K |
| 231 | tiemoqgxianweikuai.prt.7 | 96.07K |
| 232 | tiemoxipangudingk.prt.26 | 287.27K |
| 233 | tiemoxipangudingk.prt.27 | 313.55K |
| 234 | trail.txt.7 | 2.23K |
| 235 | trail.txt.8 | 32.78K |
| 236 | treetool.txt.2 | 624B |
| 237 | tuoliaobantuokuai.prt.6 | 203.70K |
| 238 | wf16-20.prt.1 | 913.10K |
| 239 | xiangwei.prt.16 | 114.37K |
| 240 | xiliaohuaguidingweikuai.prt.6 | 87.85K |
| 241 | xiliaohuaguidingweikuai.prt.7 | 110.74K |
| 242 | xiliaoqiganggudingban.prt.3 | 433.91K |
| 243 | xiliaoyahe.asm.18 | 122.99K |
| 244 | xiliaoyahe.asm.19 | 142.77K |
| 245 | xiliaoyahe.drw.52 | 238.10K |
| 246 | xiton.prt.11 | 710.40K |
| 247 | xiton.prt.12 | 740.45K |
| 248 | yagansuojingan.prt.2 | 113.88K |
| 249 | yaliao.asm.7 | 136.92K |
| 250 | yaliao.asm.8 | 156.99K |
| 251 | yaliao.drw.34 | 229.38K |
| 252 | yaliaogkuai.prt.6 | 148.11K |
| 253 | yaliaoqiganggdk.prt.6 | 199.13K |
| 254 | ylgjgldian.prt.2 | 109.54K |
| 255 | ylguijiaogunlun.prt.3 | 80.58K |
| 256 | ylkzhou.prt.2 | 140.11K |
| 257 | ylzhouchdianpian.prt.2 | 105.85K |
| 258 | ylzhuanzhou.prt.3 | 68.02K |
| 259 | youjiboli.prt.5 | 199.20K |
| 260 | youjiboli.prt.6 | 216.10K |
| 261 | zhidongdianpian.prt.2 | 134.65K |
| 262 | zhikuai.prt.3 | 232.31K |
| 263 | zhuanzhou.prt.4 | 81.58K |
| 264 | zhudongjuanliao.asm.3 | 43.27K |
| 265 | zhudongjuanuliao.drw.16 | 54.24K |
| 266 | zhudongjuanuliao1.drw.6 | 55.45K |
| 267 | zijia.prt | 174.27K |
| 268 | zjl.prt | 143.05K |
| 269 | zjlgukuai.prt | 166.99K |
| 270 | zjlgukuai.prt.3 | 294.26K |
| 271 | zjljigou.asm | 37.94K |
| 272 | zjljigou.asm.2 | 48.44K |
| 273 | zjljigou.drw | 83.91K |
| 274 | zjlsb6000zz.prt | 48.99K |
| 275 | zjlsb6000zz.prt.1 | 48.99K |
| 276 | zjlzhou.prt | 131.77K |
| 277 | zjlzhou.prt.2 | 140.26K |
| 278 | _.asm.1 | 26.76K |
| 279 | ____-____2.prt.1 | 42.21K |
| 280 | 贴标机说明书.doc | 162B |
此图纸下载需要80金币
立即下载
发布者
机械师
创作: 1238
粉丝: 48
加入时间：2022-12-31
模型信息
图纸格式：prt
文件大小：51.85M
所需金币：80
上传时间：2023-04-09 19:09:40
是否可编辑：可修改，包括参数
版本：PROE
标签
贴标机
图纸简介

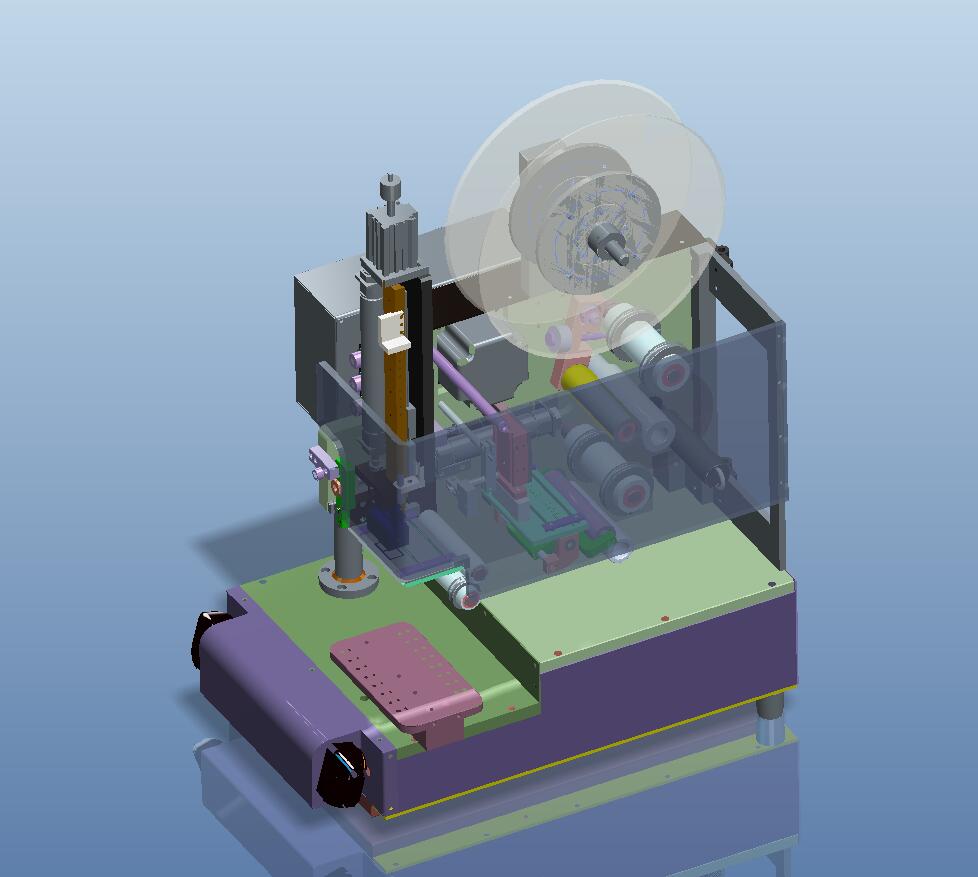

成熟量产型的贴标机，桌上型贴标机,生产过几百台了，所有零件齐全，零件均为源文件有特征，方便修改。不过不建议修改，因为我们先后做了好几年，几乎没有怎么修改过，可直接生产。PROE设计，现在平款机型已经被市面上抄袭得到处都有了，没什么技术门槛了，拿出来跟大家分享学习。
规格参数：
贴标范围: 标间距8-65mm,宽度小于85mm
贴标速度: 500-800PCS/H
重复精度:+/-0.03mm(不含物料)考虑物料和治具+/-0.15mm
操作方式:单人操作
辅助工具:吸嘴+治具
控制方式:触措屏+PLC
输入电源:220VAC 50HZ 2A
最大功率:200W
本体重量:30KG
贴标机工作原
