压燃式发动机油管残留测量装置设计（ID:571761）

交通运输 / 车辆相关 / 压燃式发动机油管残留测量装置设计

©原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	16813076596201.zip	2.58M
2	封面.doc	23.50K
3	摘要.doc	22.00K
4	毕业设计任务书.doc	35.50K
5	毕业设计说明书.doc	660.50K
6	调研报告.doc	27.00K
7	中文版.doc	30.00K
8	英中文版.doc	61.50K
9	英文版.doc	36.00K
10	封面.doc	23.50K
11	摘要.doc	22.00K
12	毕业设计任务书.doc	35.50K
13	毕业设计说明书.doc	660.50K
14	调研报告.doc	27.00K
15	中文版.doc	30.00K
16	英中文版.doc	61.50K
17	英文版.doc	36.00K
18	acad.sys	1.46K
19	plot.log	1.81K
20	T型块A420050017.dwg	33.55K
21	从动轴A320050005.dwg	42.75K
22	传动轴A221050008.dwg	114.43K
23	出油接头A420050012.dwg	59.58K
24	压板A420050007.dwg	38.57K
25	圆锥齿轮主动A420050014.dwg	41.75K
26	圆锥齿轮主动A420050014.dwl	36B
27	圆锥齿轮从动40CrA411050006.dwg	97.71K
28	圆锥齿轮从动40CrA411050006.dwl	36B
29	垫圈1A420050001.dwg	37.23K
30	垫圈2A420050002.dwg	54.76K
31	垫圈3A420050004.dwg	40.88K
32	垫圈4A420050011.dwg	37.08K
33	垫圈5A420050015.dwg	37.00K
34	壳体A020050018.dwg	93.89K
35	柱塞A420050102.dwg	89.30K
36	柱塞偶件A4200501.dwg	34.68K
37	柱塞偶件A4200501.dwl	36B
38	柱塞套A220050101.dwg	72.03K

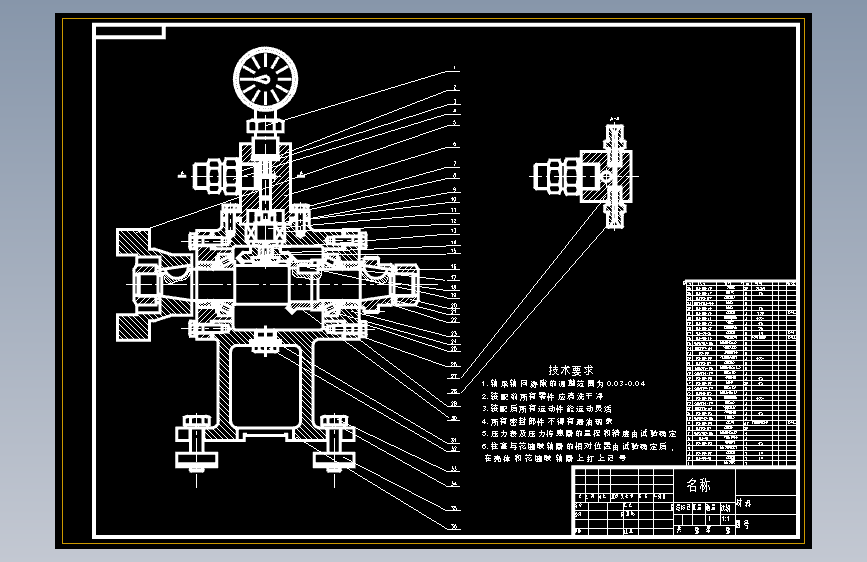

39	残压测量装置A1200500.dwg	113.87K

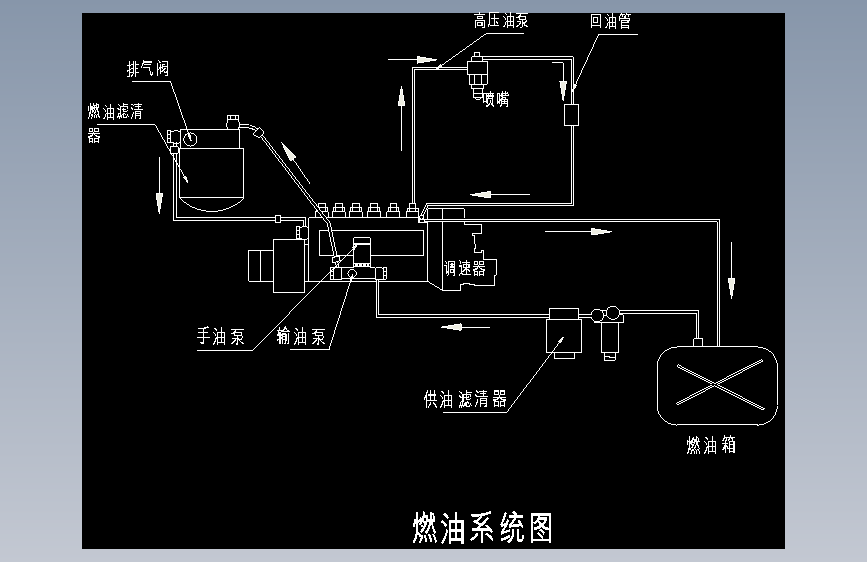

40	燃油系统图A0.dwg	133.53K
41	端盖部件A420050002.dwg	37.90K
42	联轴节A121050003.dwg	65.80K
43	联轴节A121050003.dwl	36B
44	花键联轴器A420050019.dwg	69.25K
45	花键联轴器A420050019.dwl	36B
46	螺塞A220050016.dwg	46.36K

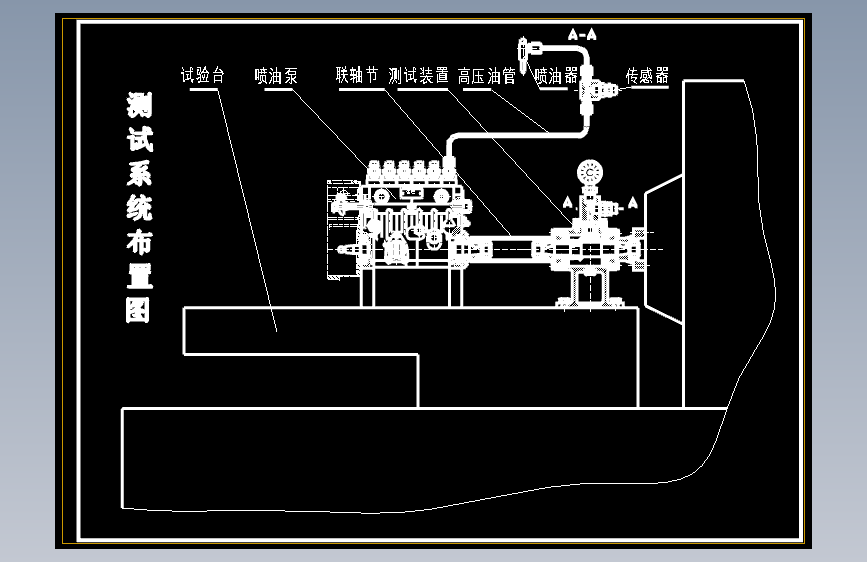

47	装置布置图A0.dwg	163.70K
48	调整垫片A4200050010.dwg	38.92K
49	轴套A320050013.dwg	33.65K
50	轴套A320050013.dwl	36B
51	acad.sys	1.46K
52	plot.log	1.81K
53	T型块A420050017.dwg	33.55K
54	从动轴A320050005.dwg	42.75K
55	传动轴A221050008.dwg	114.43K
56	出油接头A420050012.dwg	59.58K
57	压板A420050007.dwg	38.57K
58	圆锥齿轮主动A420050014.dwg	41.75K
59	圆锥齿轮主动A420050014.dwl	36B
60	圆锥齿轮从动40CrA411050006.dwg	97.71K
61	圆锥齿轮从动40CrA411050006.dwl	36B
62	垫圈1A420050001.dwg	37.23K
63	垫圈2A420050002.dwg	54.76K
64	垫圈3A420050004.dwg	40.88K
65	垫圈4A420050011.dwg	37.08K
66	垫圈5A420050015.dwg	37.00K
67	壳体A020050018.dwg	93.89K
68	柱塞A420050102.dwg	89.30K
69	柱塞偶件A4200501.dwg	34.68K
70	柱塞偶件A4200501.dwl	36B
71	柱塞套A220050101.dwg	72.03K
72	残压测量装置A1200500.dwg	113.87K
73	燃油系统图A0.dwg	133.53K
74	端盖部件A420050002.dwg	37.90K
75	联轴节A121050003.dwg	65.80K
76	联轴节A121050003.dwl	36B
77	花键联轴器A420050019.dwg	69.25K
78	花键联轴器A420050019.dwl	36B
79	螺塞A220050016.dwg	46.36K
80	装置布置图A0.dwg	163.70K
81	调整垫片A4200050010.dwg	38.92K
82	轴套A320050013.dwg	33.65K
83	轴套A320050013.dwl	36B
