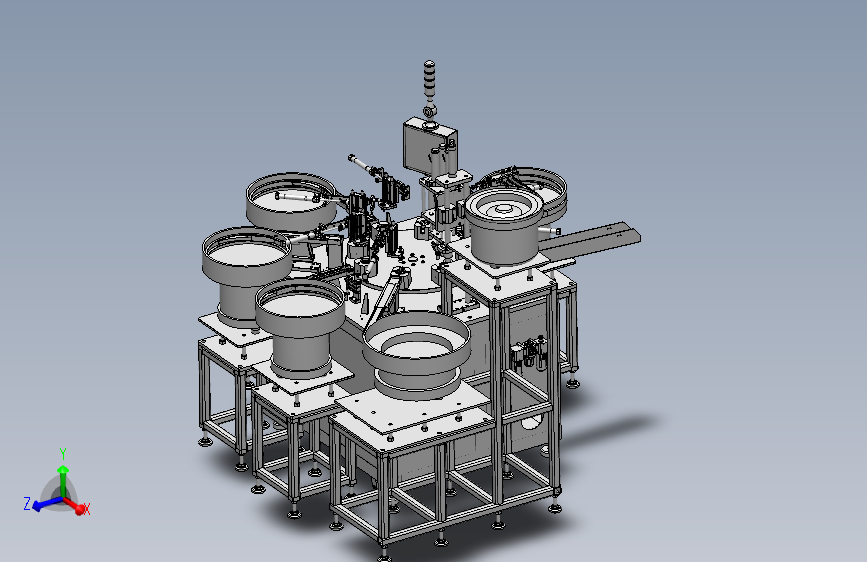

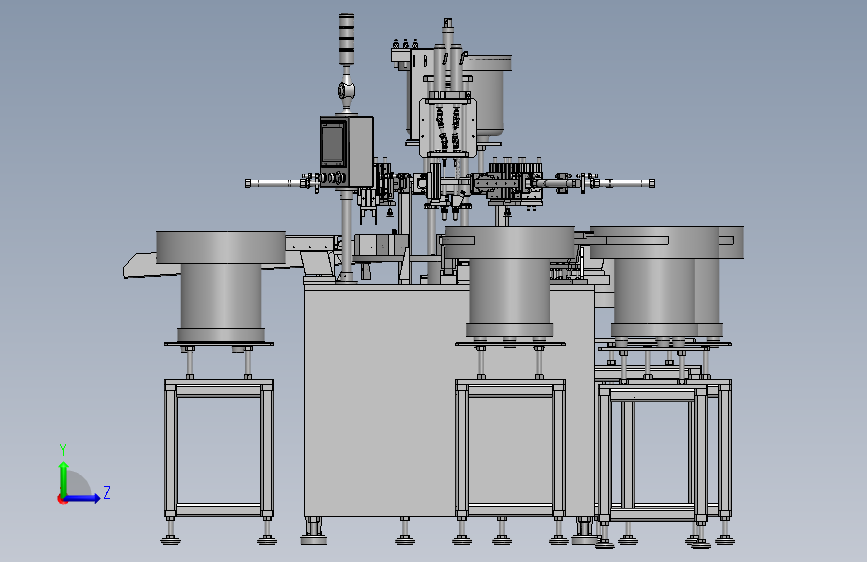

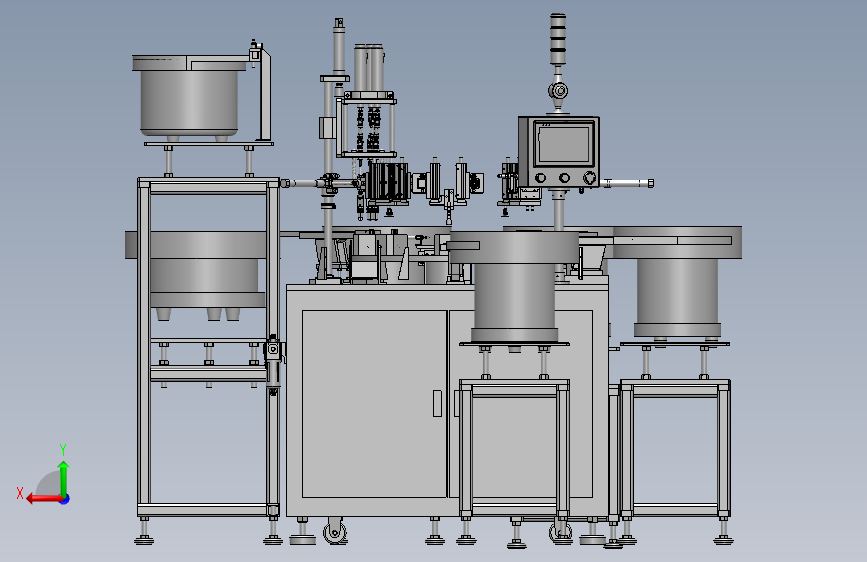

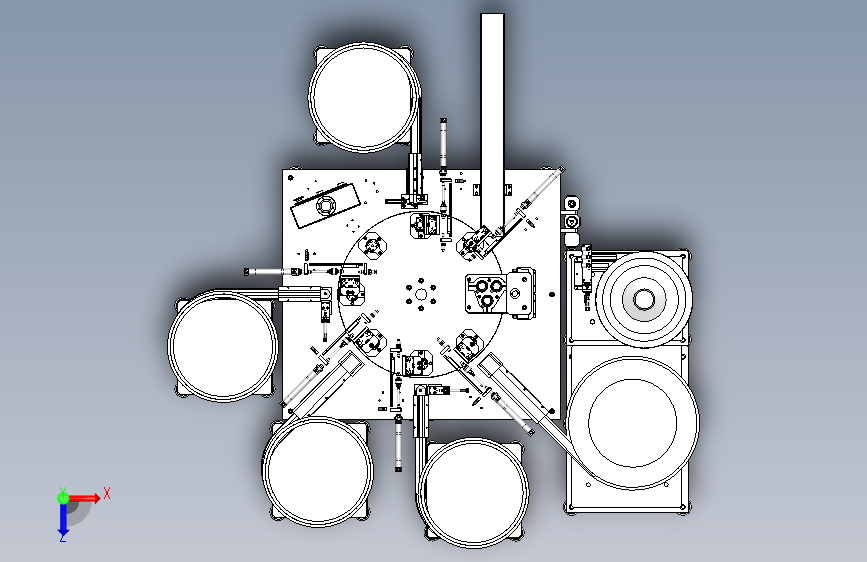

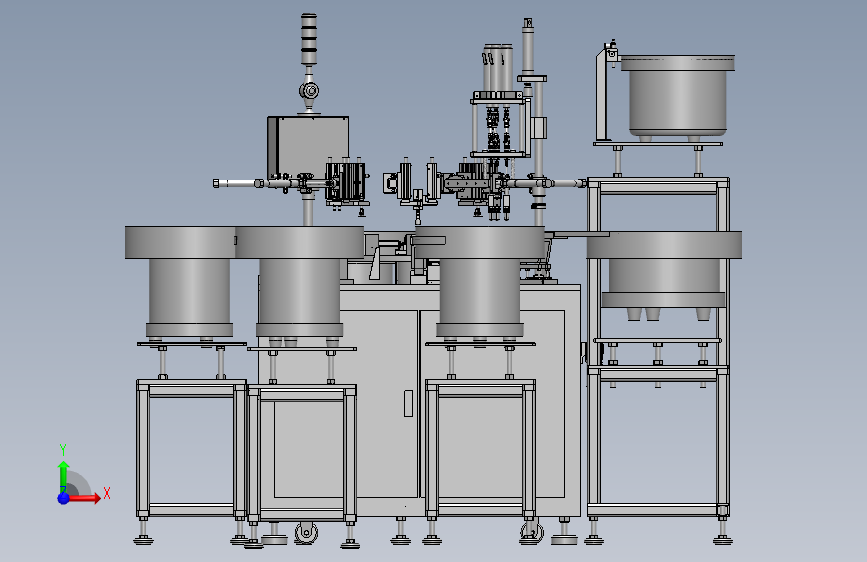

469 压板装配设备（ID:648043）

机械设备 / 非标机械 / 469 压板装配设备

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	1110DF.sldprt	73.50K
2	1124nut1.sldprt	61.50K
3	112nut.sldprt	61.50K
4	112PB20RBody.sldprt	78.50K
5	112PB20RRod.sldprt	64.50K
6	12联支架.sldasm	44.06K
7	12联支架上盖振盘调节板.sldprt	58.00K
8	12联支架螺丝振盘调节板.sldprt	58.50K
9	12连支架_Default_按加工_.sldprt	311.00K
10	1601000006.sldprt	115.00K
11	1601000019.sldprt	85.50K
12	16857561539793.zip	35.35M
13	1801-000-0023.sldprt	53.00K
14	1802-000-0027.sldprt	61.00K
15	1802-000-0028.sldprt	64.50K
16	1AS2201-01-F08S接气管.sldprt	60.50K
17	1AT-F-M10X1.25_32-M10X1.25.sldprt	55.50K
18	1AT-MA-32-75_32X75.sldprt	72.00K
19	1bAC300V3A急停开关小.sldprt	139.00K
20	1block_SELBWM14.sldprt	100.00K
21	1bSK501_三色灯A小.sldprt	69.50K
22	1B人机控制箱小.sldprt	94.50K
23	1b按钮开关小.sldprt	580.00K
24	1b按钮开关红小.sldprt	580.00K
25	1CDJP2B10_40D_0_0_0__CDJP2B10-40D000.sldasm	30.25K
26	1CDJP2B10_40D__0__BODY.sldprt	63.00K
27	1CDM2BZ20_125_0_0_0_.sldasm	29.53K
28	1CJ2B10_30_0_0_0_.sldasm	29.55K
29	1CJ2B10_30_0__ROD.sldprt	55.00K
30	1CJ2B10_30__0_0__BODY.sldprt	64.00K
31	1CJ2_NTJ_010A.sldprt	58.00K
32	1CJ2_SNJ_010B.sldprt	58.00K
33	1CJP2_10_40D_ROD.sldprt	54.50K
34	1CM220_125_ROD.sldprt	56.50K
35	1CM2BZ20_125_0__BODY.sldprt	64.00K
36	1CM2_NT_02_20_.sldprt	58.00K
37	1CM2_SN_020B_20_.sldprt	58.00K
38	1CS1_M_S12.sldprt	76.50K
39	1D42-d20-h12_B7004SU.sldprt	62.00K
40	1F_M08125F_F-M08125F-P.sldprt	76.50K
41	1KL焊接机架长900以上）_1000X700.sldprt	223.00K
42	1KR13002I003圆盘垫块.sldprt	60.50K
43	1KR13002I刹车离合固定板机构组装.sldprt	56.50K
44	1KR13002I桌面机构组装.sldasm	39.02K
45	1KR13002减速机支撑板.sldprt	56.00K
46	1KR13003C002支撑筋.sldprt	62.50K
47	1KR13003C006缓冲器固定块.sldprt	71.50K
48	1KR13003C007气缸固定板.sldprt	85.50K
49	1KR13003C008吸盘固定座.sldprt	66.50K
50	1KR13003C上盖齿轮上料机构.sldasm	37.42K
51	1KR13003D002支撑筋.sldprt	63.50K
52	1KR13003D006缓冲器固定块.sldprt	71.50K
53	1KR13003D007气缸固定板.sldprt	85.50K
54	1KR13003D008气爪固定架.sldprt	74.50K
55	1KR13003D009气爪垫块.sldprt	60.50K
56	1KR13003D外壳上料机构.sldasm	38.45K
57	1KR13003F001旋转轴底板.sldprt	70.00K
58	1KR13003F002风批固定座.sldprt	120.00K
59	1KR13003F003旋转轴.sldprt	55.50K
60	1KR13003F004固定底板.sldprt	78.50K
61	1KR13003F005铜套.sldprt	54.50K
62	1KR13003F006传动连接轴.sldprt	54.50K
63	1KR13003F007下套连接轴.sldprt	55.00K
64	1KR13003F008螺丝批上套.sldprt	72.50K
65	1KR13003F009螺丝批下套.sldprt	90.00K
66	1KR13003F010A上套连接轴.sldprt	54.50K
67	1KR13003F011夹嘴座.sldprt	103.50K
68	1KR13003F012直线轴承固定板.sldprt	71.00K
69	1KR13003F013批头入料咀.sldprt	55.50K
70	1KR13003F014导柱压块.sldprt	60.50K
71	1KR13003F015三锁螺丝气缸固定板.sldprt	65.50K
72	1KR13003F016划柱.sldprt	54.50K
73	1KR13003F017夹嘴.sldprt	63.00K
74	1KR13003F018批头连接轴.sldprt	60.50K
75	1KR13003F019橡胶垫圈_WRBN40-8-5.sldprt	54.00K
76	1KR13003F020夹嘴A.sldprt	63.00K
77	1KR13003F021夹嘴B.sldprt	64.00K
78	1KR13003F半圆批头锁螺丝头.sldasm	31.53K
79	1KR13003F型圈20.sldprt	53.00K
80	1KR13003F锁螺丝头.sldasm	31.27K
81	1KR13003F锁螺丝支架.sldasm	33.80K
82	1KR13003F锁螺丝装配体.sldasm	56.54K
83	1KR13003G002支撑筋.sldprt	63.00K
84	1KR13003G006缓冲器固定块.sldprt	71.50K
85	1KR13003G007气缸固定板.sldprt	85.50K
86	1KR13003G008吸盘固定座.sldprt	66.00K
87	1KR13003G下料机构.sldasm	37.81K
88	1KR13003I001把柄分料槽.sldprt	69.50K
89	1KR13003I002把柄分料槽固定板.sldprt	59.50K
90	1KR13003I003把柄分料槽支撑板.sldprt	67.00K
91	1KR13003I004把柄分料槽支撑底板.sldprt	68.50K
92	1KR13003I005把柄分料槽支撑筋.sldprt	61.50K
93	1KR13003I006把柄分料气缸支撑架.sldprt	67.00K
94	1KR13003I007把柄分料侧导板.sldprt	66.00K
95	1KR13003I008塑料导头.sldprt	76.00K
96	1KR13003I009把柄分料槽压板.sldprt	61.50K
97	1KR13003I010把柄直振料道.sldprt	62.00K
98	1KR13003I011把柄直振料道盖板.sldprt	55.00K
99	1KR13003I012把柄直振料道侧盖板.sldprt	57.00K
100	1KR13003I把柄上料机构.sldasm	33.67K
101	1KR13003I把柄分料机构.sldasm	35.05K
102	1KR13003I把柄料直振送料机构.sldasm	30.33K
103	1KR13003I把柄料道机构.sldasm	30.51K
104	1KR13003J001本体组装盖板.sldprt	87.00K
105	1KR13003J001治具装盘提.sldasm	28.84K
106	1KR13003J003大盘面.sldprt	67.00K
107	1KR13003K002支撑筋.sldprt	63.00K
108	1KR13003K006缓冲器固定块.sldprt	71.50K
109	1KR13003K007气缸固定板.sldprt	85.50K
110	1KR13003K008吸盘固定块.sldprt	68.50K
111	1KR13003K方形齿轮上料机构.sldasm	37.85K
112	1KR13003L001支撑板.sldprt	69.50K
113	1KR13003L002分导槽固定板.sldprt	71.00K
114	1KR13003L003分导槽.sldprt	84.50K
115	1KR13003L004压盖叉.sldprt	62.00K
116	1KR13003L005导正气缸支架.sldprt	74.50K
117	1KR13003L007压盖气缸支架.sldprt	59.00K
118	1KR13003L008方孔导柱.sldprt	137.00K
119	1KR13003L009压盖叉针.sldprt	53.50K
120	1KR13003L010导槽.sldprt	64.00K
121	1KR13003L011方孔直振料道盖板.sldprt	60.00K
122	1KR13003L014方孔导正垫块.sldprt	56.50K
123	1KR13003L方孔导正机构_1.sldasm	39.65K
124	1KR13003N001导送管道.sldprt	62.50K
125	1KR13003N004导送管道固定架.sldprt	63.50K
126	1KR13003N料道装配体.sldasm	30.30K
127	1KR13003P003中心支柱.sldprt	53.50K
128	1KR13003P产品固定装配体.sldasm	29.68K
129	1KR13003S001M6X60螺纹杆.sldprt	53.50K
130	1KR13003S001直振支撑底板薄.sldprt	55.50K
131	1KR13003S00直振支撑底板.sldprt	67.00K
132	1KR13003S直线振动.sldasm	33.76K
133	1KR13003T001惰轮支架.sldprt	62.50K
134	1KR13003T002惰轮止动块.sldprt	55.50K
135	1KR13003T003感应器固定支架.sldprt	60.00K
136	1KR13003T004光栅.sldprt	57.00K
137	1KR13003T惰轮机构.sldasm	31.55K
138	1KR13003T本体动力机构.sldasm	36.67K
139	1KR13003U001盖板架.sldprt	60.00K
140	1KR13003U002盖板输送槽.sldprt	57.00K
141	1KR13003U003盖板输送压板.sldprt	55.50K
142	1KR13003U平盖上料机构.sldasm	31.80K
143	1kr13003W001分料座.sldprt	103.00K
144	1kr13003W002滑块.sldprt	87.50K
145	1kr13003W003滑芯.sldprt	78.00K
146	1kr13003W004盖板.sldprt	63.50K
147	1kr13003W005弹簧5.0.sldprt	65.50K
148	1kr13003W007供料支架.sldprt	71.00K
149	1kr13003W008连接头.sldprt	55.50K
150	1KR13003W三螺丝供料机构_进料.sldasm	36.91K
151	1KR13003方孔振动盘400.sldprt	70.50K
152	1KR13003锁螺丝弹簧.sldprt	171.50K
153	1KR1300P001外壳治具.sldprt	60.50K
154	1LHBBN25.sldprt	67.50K
155	1M16X150螺纹柱.sldprt	53.00K
156	1MGPM16_75_A93_0_0_0__MGPM16-75-A930_0_0.sldasm	30.41K
157	1MGPM16_75_Body_0_0_5_5_.sldprt	110.00K
158	1MGPM16_75_Cyrod_0_0_.sldprt	62.00K
159	1MGP_D_A93_BMG2_012.sldprt	70.00K
160	1MHZ2_20C_16_3_0__kai.sldasm	30.01K
161	1MHZ2_20C_Body_0_.sldprt	98.00K
162	1MHZ2_20C_Finger_0_.sldprt	60.50K
163	1MXH16_20_0_0_0__MXH16-200_0_0.sldasm	29.03K
164	1MXH16_20_0_0__BODY.sldprt	84.00K
165	1MXH16_20_0_0__TABLE.sldprt	65.50K
166	1NTP_010_0_.sldprt	62.00K
167	1PB_12x20_S_U__0__PB-12x20-S-R-MN-10.sldasm	31.14K
168	1PTPA32P8M250_A_H16.sldprt	169.00K
169	1PTPA32P8M250_A_H30.sldprt	169.50K
170	1r_SELBWM14_190.sldprt	61.00K
171	1SELBWM14_190_SELBWM14-190.sldasm	29.25K
172	1SNP_010_0_.sldprt	61.50K
173	1STWN11-卡簧_STWN11.sldprt	58.50K
174	1ZPT06UNK6-B3-A8.sldprt	64.50K
175	1ZPT20UNJ10-B5-A10.sldprt	71.50K
176	1万向节.sldasm	30.29K
177	1万字节B件.sldprt	69.50K
178	1万字节C件.sldprt	56.50K
179	1三出位螺丝振动盘.sldprt	73.00K
180	1上盖600X600震动盘.sldprt	63.50K
181	1人机固定块小.sldprt	58.00K
182	1人机操作箱小.sldasm	33.71K
183	1人机支柱小.sldprt	53.50K
184	1人机箱小.sldasm	30.52K
185	1人机箱盖板小.sldprt	57.50K
186	1充电枪.sldasm	32.74K
187	1充电枪_2.sldasm	28.76K
188	1充电枪_3.sldasm	29.82K
189	1充电枪_4.sldasm	30.97K
190	1充电枪_5.sldasm	31.64K
191	1充电枪_6.sldasm	32.27K
192	1充电枪_7.sldasm	33.31K
193	1充电枪密封板组装方案图.sldasm	89.60K
194	1减速机传动轴.sldprt	53.00K
195	1分割器送料装配体.sldasm	51.70K
196	1卡子SCS25_12b.sldprt	62.00K
197	1卡子SCS25_12_SCS25-12.sldasm	29.06K
198	1卡子Slotted_head_cap_screw_ISO_4762___M5x16.sldprt	66.50K
199	1地脚FJSM16nut.sldprt	57.00K
200	1地脚FJSN16_70pad.sldprt	60.50K
201	1地脚FJSN16_70_FJSN16-70.sldasm	28.64K
202	1小螺钉_GUTBJ4-3-6.sldprt	67.50K
203	1感应器.sldprt	69.00K
204	1把柄分料光电固定A.sldprt	56.00K
205	1把柄振动盘400.sldprt	69.00K
206	1把柄方齿振动盘支架_Default_按加工_.sldprt	202.50K
207	1把柄方齿振动盘调节板.sldprt	64.00K
208	1振盘支撑架.sldasm	34.23K
209	1振盘支撑架_2.sldasm	34.83K
210	1方孔102_2nut1.sldprt	62.00K
211	1方孔10nut.sldprt	61.50K
212	1方孔10PB40UBody.sldprt	81.50K
213	1方孔10PB40URod.sldprt	61.50K
214	1方孔PB_10x40_U__0__PB-10x40-U0.sldasm	30.95K
215	1气阀GC300-08-F11.sldprt	164.00K
216	1气阀GC300-08-F110.sldprt	54.50K
217	1气阀GC300-08-F111.sldprt	56.00K
218	1气阀GC300-08-F112.sldprt	56.00K
219	1气阀GC300-08-F113.sldprt	56.00K
220	1气阀GC300-08-F114.sldprt	56.00K
221	1气阀GC300-08-F115.sldprt	78.50K
222	1气阀GC300-08-F116.sldprt	222.50K
223	1气阀GC300-08-F117.sldprt	110.00K
224	1气阀GC300-08-F118.sldprt	56.00K
225	1气阀GC300-08-F119.sldprt	56.00K
226	1气阀GC300-08-F12.sldprt	123.50K
227	1气阀GC300-08-F120.sldprt	56.00K
228	1气阀GC300-08-F121.sldprt	79.00K
229	1气阀GC300-08-F122.sldprt	85.00K
230	1气阀GC300-08-F123.sldprt	53.50K
231	1气阀GC300-08-F124.sldprt	75.50K
232	1气阀GC300-08-F125.sldprt	150.50K
233	1气阀GC300-08-F126.sldprt	56.00K
234	1气阀GC300-08-F127.sldprt	56.00K
235	1气阀GC300-08-F128.sldprt	56.00K
236	1气阀GC300-08-F13.sldprt	55.50K
237	1气阀GC300-08-F14.sldprt	55.50K
238	1气阀GC300-08-F15.sldprt	126.50K
239	1气阀GC300-08-F16.sldprt	66.50K
240	1气阀GC300-08-F17.sldprt	54.50K
241	1气阀GC300-08-F18.sldprt	54.50K
242	1气阀GC300-08-F19.sldprt	54.50K
243	1气阀GC300-08-F1GC300-08-F1.sldasm	34.96K
244	1直线轴承LFCA25_LFCA25.sldprt	61.00K
245	1直线震动.sldprt	71.00K
246	1缓冲器RBC1007-J.sldprt	63.00K
247	1螺丝批.sldprt	82.50K
248	1风批3.sldprt	64.00K
249	CDM2BZ20_125_0_0_0_.sldasm	29.93K
250	circlipsforshaft--typebgb_PreviewCfg.sldprt	57.50K
251	CM220_125_ROD.sldprt	56.50K
252	CM2BZ20_125_0__BODY.sldprt	64.00K
253	CM2_NT_02_20_.sldprt	58.00K
254	CM2_SN_020B_20_.sldprt	58.00K
255	crossrecessedpanheadscrewsgb_GB_CROSS_SCREWS_TYPE1M3X4-4Htype-N.sldprt	63.00K
256	F_M08125F_F-M08125F-P.sldprt	76.50K
257	hexagonsocketheadcapscrewsgb_GB_FASTENER_SCREWS_HSHCSM6X40-C.sldprt	60.50K
258	hexagonsocketheadcapscrewsgb_螺钉M8X12.sldprt	60.50K
259	hexnutgradec_iso_HexagonNutISO-4034-M6-N.sldprt	62.00K
260	hexnutsstyle1-gradesabgbsSx_PreviewCfg.sldprt	58.00K
261	M16_PreviewCfg.sldprt	57.50K
262	MT6070iH_預設.sldprt	4.44M

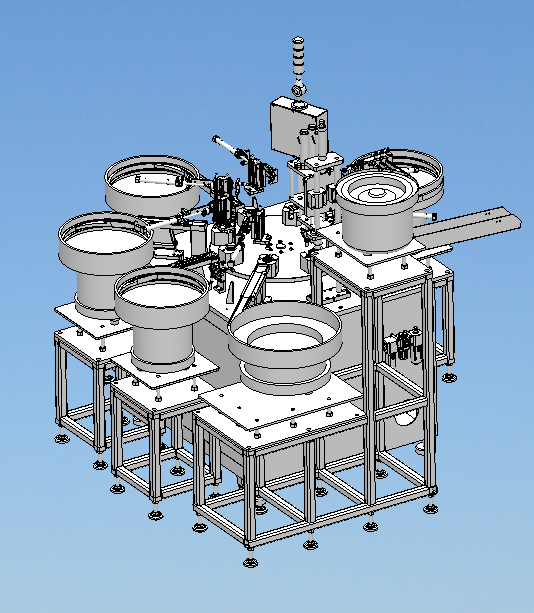

263	免费图纸-压板装配设备.PNG	343.37K
264	免费图纸-压板装配设备.SLDASM	12.78M
265	免费图纸-压板装配设备.STEP	47.17M
266	套筒LFZB10_10_LFZB10-10.sldprt	57.00K
267	皮带1-3^1KR13002I桌面机构组装.sldprt	55.50K
268	直线震动.sldprt	71.00K
