DAC2-ITC-JMRM-直升机。_SOLIDWORKS 2016_模型图纸免费下载

首页

图库

工程师

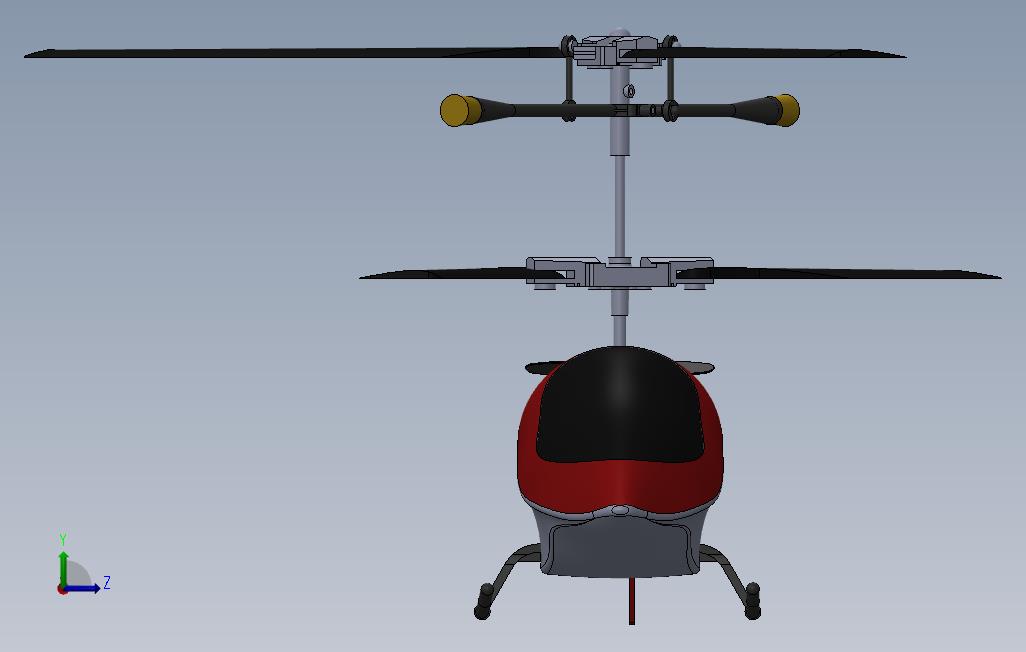

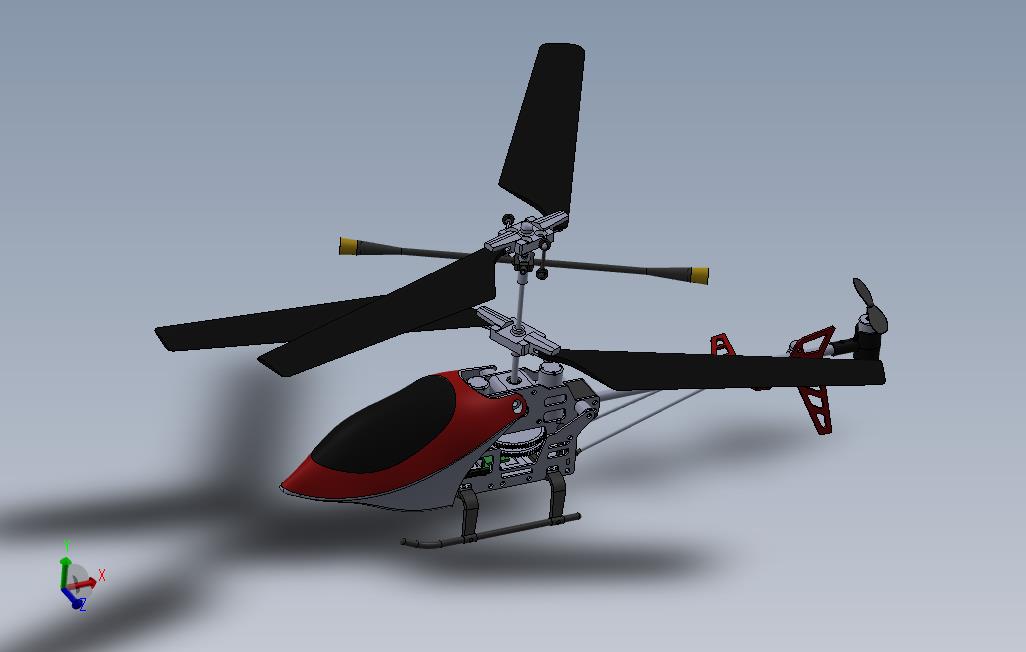

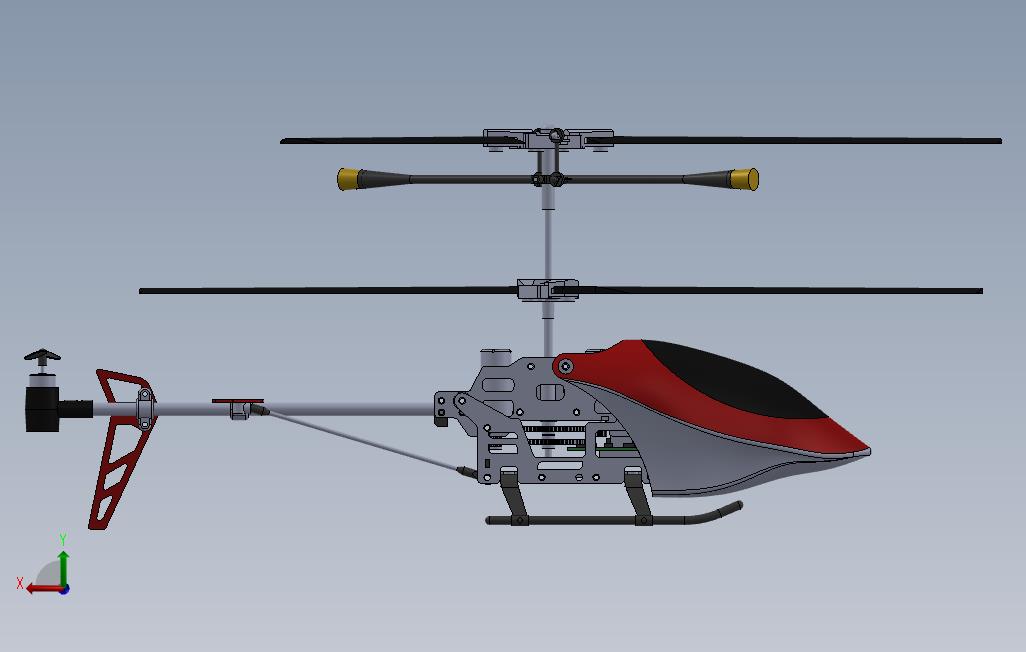

DAC2-ITC-JMRM-直升机。（ID:65876）

交通运输 / 航空航天 / DAC2-ITC-JMRM-直升机。

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	1. Blade1-A3.x_t	18.27K
2	10. Shaft 3.x_t	2.50K
3	10. Shaft 4.x_t	3.32K
4	13. Motor1.x_t	28.41K
5	13. Motor2.x_t	28.39K
6	14. Motors Holder- Housing.PDF	63.11K
7	14. Motors Holder- Housing.x_t	69.40K
8	15. Gear1.x_t	539.28K
9	16. Gear2.x_t	539.33K
10	17. Gear 3.x_t	51.50K
11	18. Bearing.PDF	65.98K
12	18. Bearing.x_t	15.38K
13	19. Bearing Holder-Housing.x_t	16.28K
14	2. Blades1 Holder.PDF	40.22K
15	2. Blades1 Holder.x_t	115.41K
16	21. Chassis-frame support1 - side.x_t	43.70K
17	22. Chassis-frame support2-buttom.PDF	43.67K
18	22. Chassis-frame support2-buttom.x_t	115.46K
19	23. Landing arm.x_t	56.20K
20	24. Landing leg.x_t	3.63K
21	26. PCB- electronic circuit.x_t	51.90K
22	27. Charger Socket.x_t	44.82K
23	29. Chassis Support panel 1.x_t	86.56K
24	3. Blades stabiliser.x_t	72.89K
25	30. chassis support panel 2.x_t	97.94K
26	31. Panels Spacer.x_t	3.98K
27	32. Tail connector - expand Support.PDF	47.90K
28	32. Tail connector - expand Support.x_t	34.56K
29	34. Tail-shaft.x_t	3.09K
30	35. Back Motor.x_t	28.37K
31	36. back motor holder - housing.x_t	18.26K
32	37. Back Propeller.x_t	53.87K
33	38. Fin- Side wing.x_t	56.49K
34	39. Fin mount-holder.x_t	27.33K
35	4. Stabeliser stem, 'connector'.x_t	21.89K
36	40. Back Wing.x_t	55.84K
37	41. Back wing mount-connector.x_t	42.87K
38	42. Back Rod..x_t	14.12K
39	43. The front panel.x_t	13.17K
40	44. Body.x_t	235.48K
41	5. Balance weight for blades stabeliser.x_t	7.12K
42	6. Blade 2- B3.x_t	18.36K
43	7. Blades Holder 2 - blades2.x_t	77.22K
44	8. Shaft1.x_t	3.95K
45	9. Shaft2.x_t	23.12K
46	Blades stabiliser.PDF	41.87K
47	Charger Socket.PDF	26.34K
48	Chassis-frame support1 - side.PDF	48.69K
49	Fin mount-holder.PDF	63.75K
50	Final.SLDASM	1.81M
51	Landing arm.PDF	31.65K
52	Sub. Assmb. 1.SLDASM	280.25K
53	Sub. Assmb. 2.SLDASM	825.58K
54	sub. Assmb. 3.SLDASM	348.74K
