GT2正时惰轮带齿皮带轮162，孔3458mm，GT2皮带宽度61mm（ID:67113）

设备部件 / 传动部件 / GT2正时惰轮带齿皮带轮162，孔3458mm，GT2皮带宽度61mm

©非原创

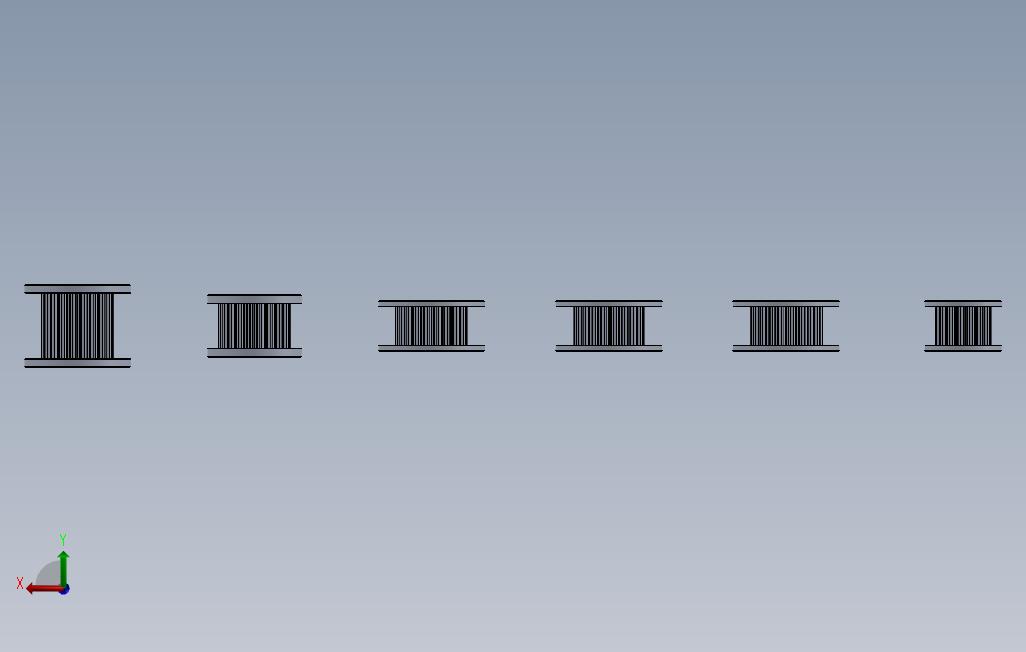

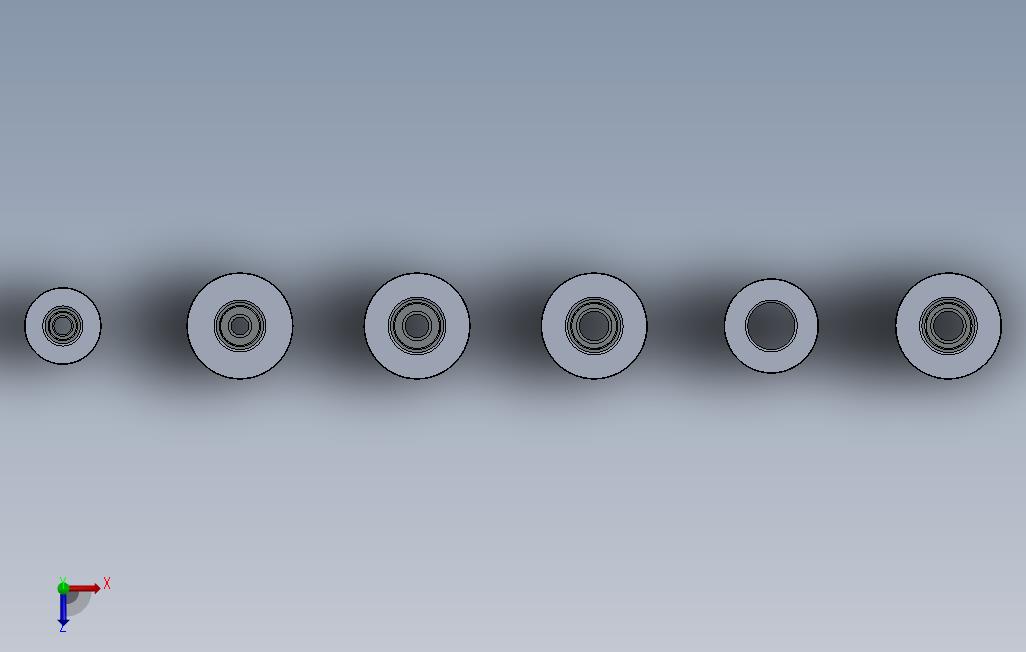

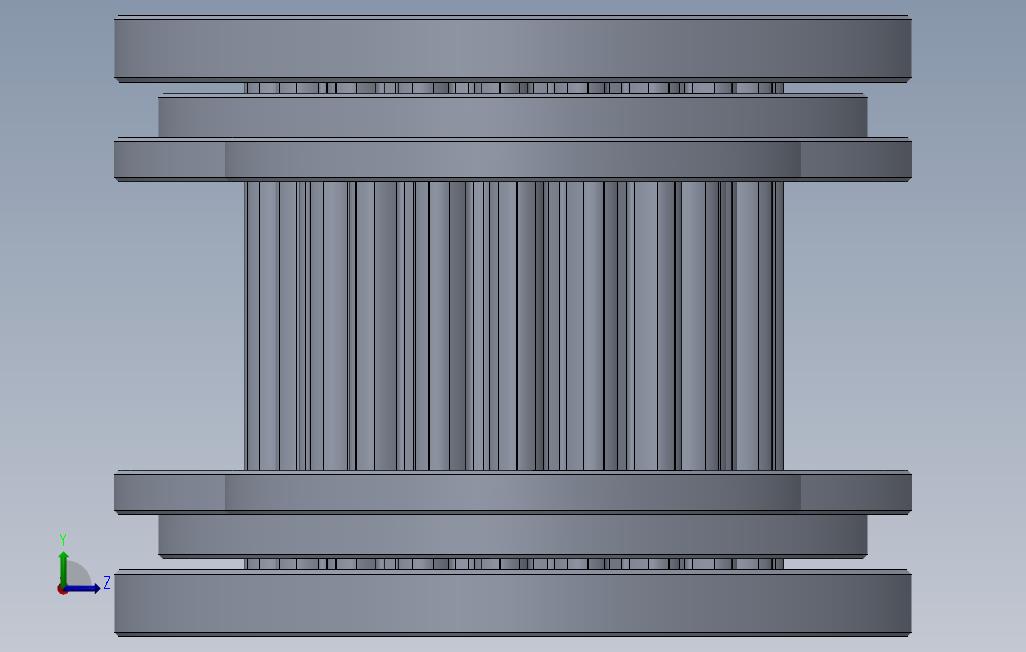

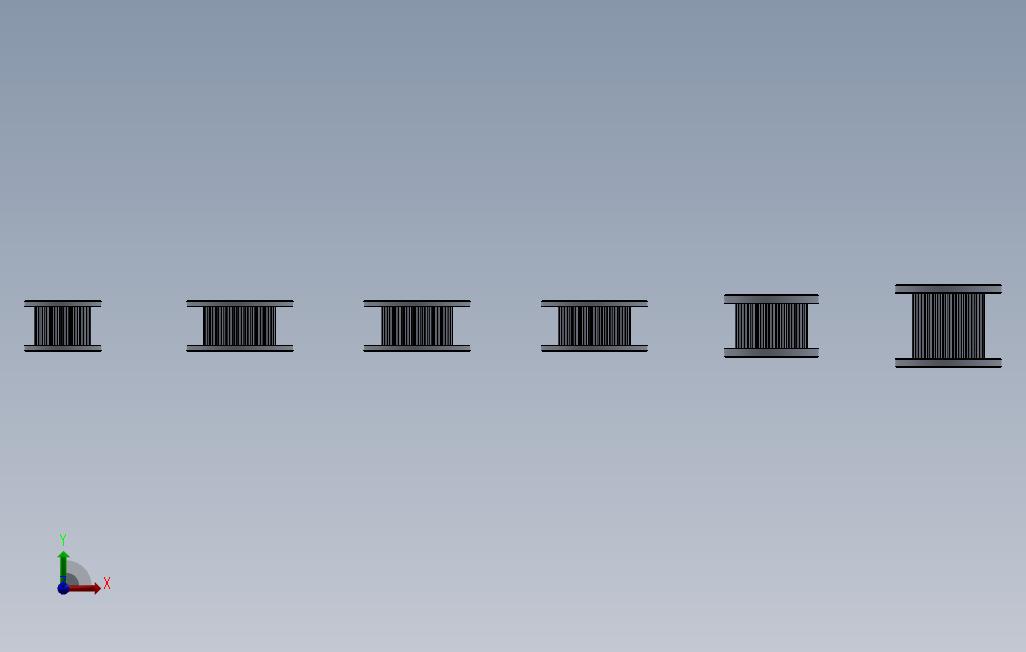

平面图

3D视图

文件列表

#	文件名称	文件大小
1	Bearing Ball, GT2 Timing Idler Pulley, Configurable.SLDPRT	258.28K
2	Bearing Inner Ring, GT2 Timing Idler Pulley, Configurable.SLDPRT	210.96K
3	Bearing Outer Ring, GT2 Timing Idler Pulley, Configurable.SLDPRT	204.33K
4	Bearing Seal, GT2 Timing Idler Pulley, Configurable.SLDPRT	392.93K
5	Bearing Subassy, GT2 Timing Idler Pulley, Configurable.SLDASM	529.17K
6	Body, GT2 Timing Idler Pulley, Configurable.SLDPRT	1.40M
7	EXPORT ALL CONFIGS AS PARASOLID.swp	28.00K
8	EXPORT ALL CONFIGS AS .STEP FILE.swp	28.00K
9	GT2 Timing Idler Pulley, Configurable, 16T W6 B3 With T.x_b	123.06K
10	GT2 Timing Idler Pulley, Configurable, 20T W10 B5 With T.x_b	150.85K
11	GT2 Timing Idler Pulley, Configurable, 20T W6 B3 With T.x_b	159.06K
12	GT2 Timing Idler Pulley, Configurable, 20T W6 B4 With T.x_b	149.51K
13	GT2 Timing Idler Pulley, Configurable, 20T W6 B5 With T.x_b	150.83K
14	GT2 Timing Idler Pulley, Configurable, 20T W6 B8 With T.x_b	133.73K

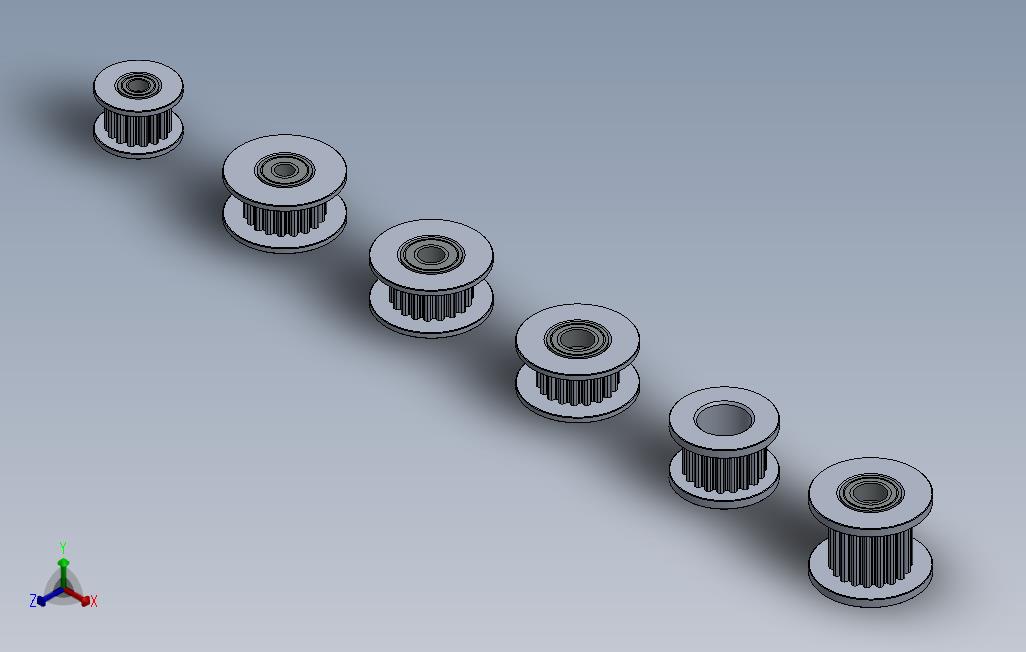

15	GT2 Timing Idler Pulley, Configurable, Pulleys Lined Up in Assembly.JPG	128.13K
16	GT2 Timing Idler Pulley, Configurable, Pulleys Lined Up in Assembly.SLDASM	1.21M
17	GT2 Timing Idler Pulley, Configurable, 16T W6 B3 With T.STEP	504.96K
18	GT2 Timing Idler Pulley, Configurable, 20T W10 B5 With T.STEP	596.62K
19	GT2 Timing Idler Pulley, Configurable, 20T W6 B3 With T.STEP	688.64K
20	GT2 Timing Idler Pulley, Configurable, 20T W6 B4 With T.STEP	593.31K
21	GT2 Timing Idler Pulley, Configurable, 20T W6 B5 With T.STEP	596.56K
22	GT2 Timing Idler Pulley, Configurable, 20T W6 B8 With T.STEP	486.05K
23	重复_GT2 Timing Idler Pulley, Configurable.SLDASM	815.90K
