刹车制动系统盘式制动器三维CATIA（ID:798693）

交通运输 / 车辆相关 / 刹车制动系统盘式制动器三维CATIA

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17004228062925.zip	72.08M
2	CHASSIS-BRAKE-SYSTEM-00.CATProduct	103.60K
3	Copy10of3506021-B01.CATPart	74.53K
4	Copy11of3506021-B01.CATPart	74.53K
5	Copy12of3506021-B01.CATPart	74.53K
6	Copy13of3506021-B01.CATPart	74.53K
7	Copy14of3506021-B01.CATPart	74.53K
8	Copy1of3001101-B01.CATPart	6.74M
9	Copy1of3001201-B01.CATPart	11.82M
10	Copy1of3103110-B01.CATPart	538.06K
11	Copy1of3301101-B01.CATPart	14.85M
12	Copy1of3301201-B01.CATPart	6.52M
13	Copy1of3501011-B01.CATPart	270.53K
14	Copy1of3501021-B01.CATPart	472.14K
15	Copy1of3501101-B01.CATPart	353.99K
16	Copy1of3501102-B01.CATPart	1.48M
17	Copy1of3501110-B01.CATPart	3.86M
18	Copy1of3501202-B01.CATPart	1.86M
19	Copy1of3501210-B01.CATPart	2.92M
20	Copy1of3502011-B01.CATPart	772.78K
21	Copy1of3502021-B01.CATPart	1.39M
22	Copy1of3502101-B01.CATPart	103.44K
23	Copy1of3502102-B01.CATPart	3.55M
24	Copy1of3502110-B01.CATPart	3.87M
25	Copy1of3502202-B01.CATPart	1.63M
26	Copy1of3502210-B01.CATPart	3.83M
27	Copy1of3504100-B01.CATPart	6.53M
28	Copy1of3506011-B01.CATPart	220.02K
29	Copy1of3506021-B01.CATPart	74.20K
30	Copy1of3506022-B01.CATPart	174.75K
31	Copy1of3506031-B01.CATPart	532.80K
32	Copy1of3506032-B01.CATPart	69.78K
33	Copy1of3506033-B01.CATPart	241.97K
34	Copy1of3506034-B01.CATPart	216.04K
35	Copy1of3506100-B01.CATPart	454.22K
36	Copy1of3506200-B01.CATPart	426.62K
37	Copy1of3506300-B01.CATPart	431.36K
38	Copy1of3506400-B01.CATPart	606.39K
39	Copy1of3506500-B01.CATPart	1.18M
40	Copy1of3506600-B01.CATPart	1015.65K
41	Copy1of3506810-B01.CATPart	588.79K
42	Copy1of3506820-B01.CATPart	760.79K
43	Copy1of3506830-B01.CATPart	674.75K
44	Copy1of3506840-B01.CATPart	793.92K
45	Copy1of3540011-B01.CATPart	473.37K
46	Copy1of3540100-B01.CATPart	16.13M
47	Copy1of3565100-B01.CATPart	4.28M
48	Copy1of3630100-B01.CATPart	143.27K
49	Copy1of3630200-B00.CATPart	143.81K
50	Copy1of3636010-B01.CATPart	3.99M
51	Copy1of3636020-B01.CATPart	4.01M
52	Copy1of3636030-B01.CATPart	327.51K
53	Copy1of3636040-B01.CATPart	547.63K
54	Copy1of3636050-B01.CATPart	658.82K
55	Copy2of3103110-B01.CATPart	538.06K
56	Copy2of3501101-B01.CATPart	353.68K
57	Copy2of3502101-B01.CATPart	103.12K
58	Copy2of3506011-B01.CATPart	220.33K
59	Copy2of3506021-B01.CATPart	74.21K
60	Copy2of3506022-B01.CATPart	174.75K
61	Copy2of3506034-B01.CATPart	216.04K
62	Copy2of3630100-B01.CATPart	143.46K
63	Copy2of3630200-B00.CATPart	144.12K

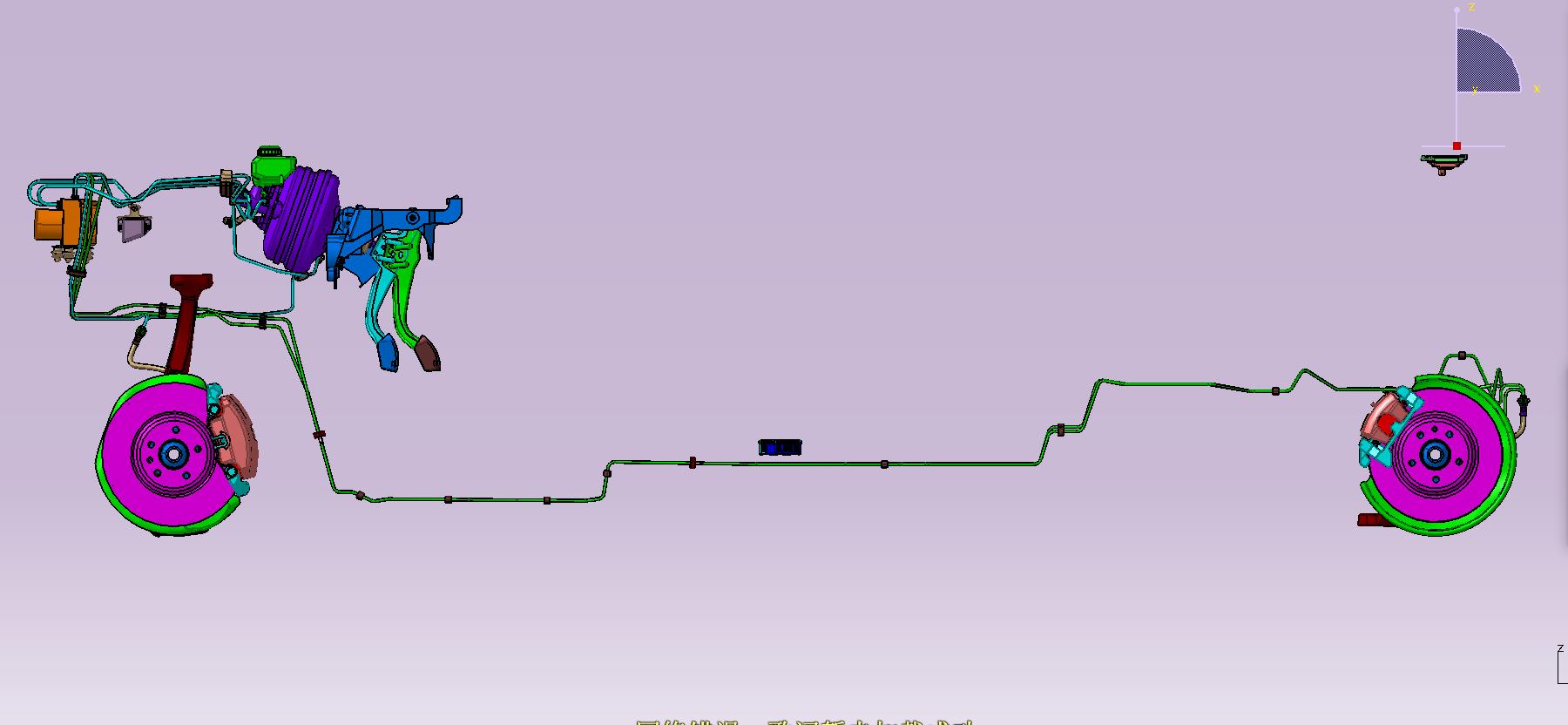

64	Copy3of3103110-B01.CATPart	537.74K

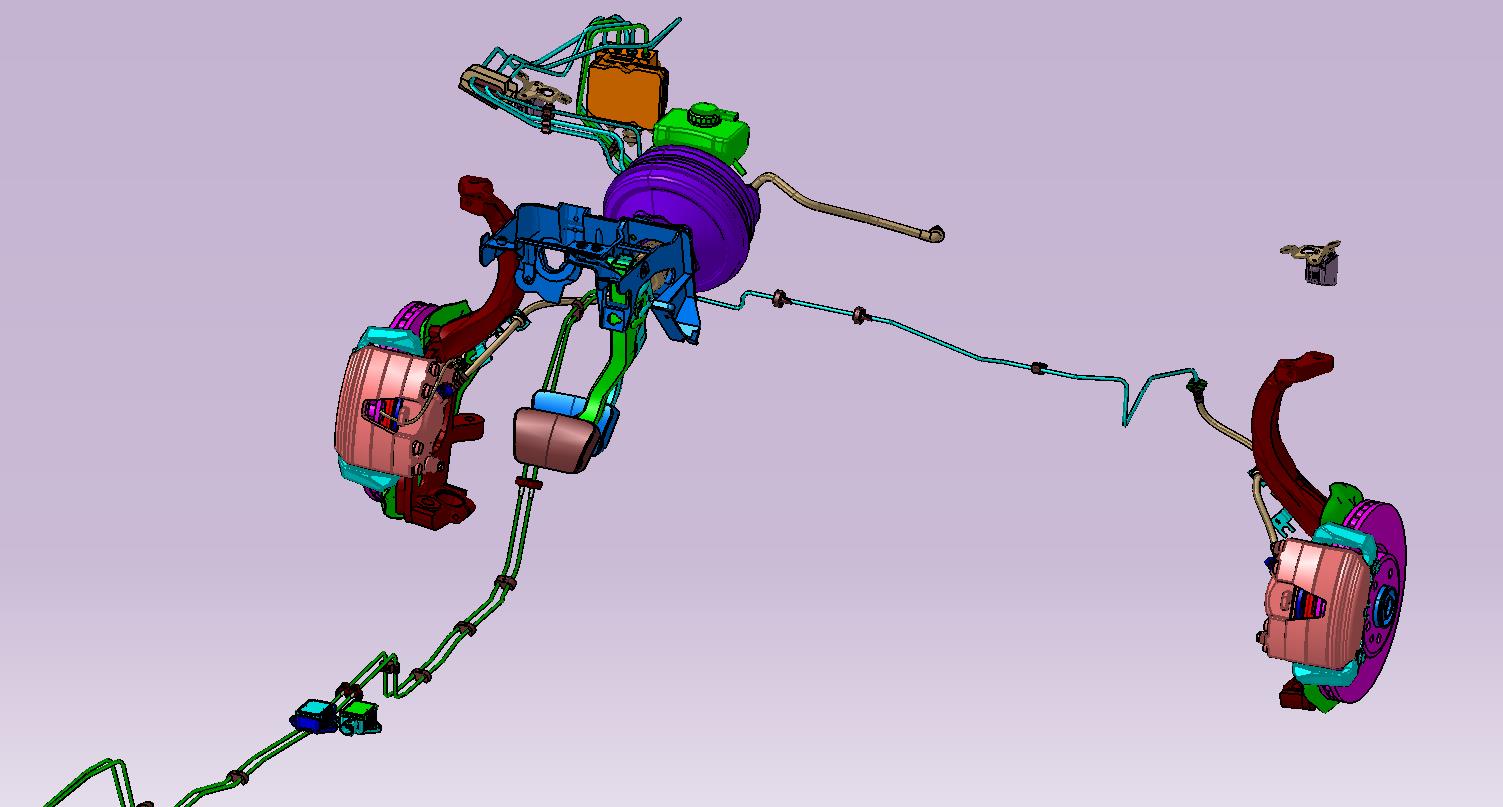

65	Copy3of3506021-B01.CATPart	74.21K

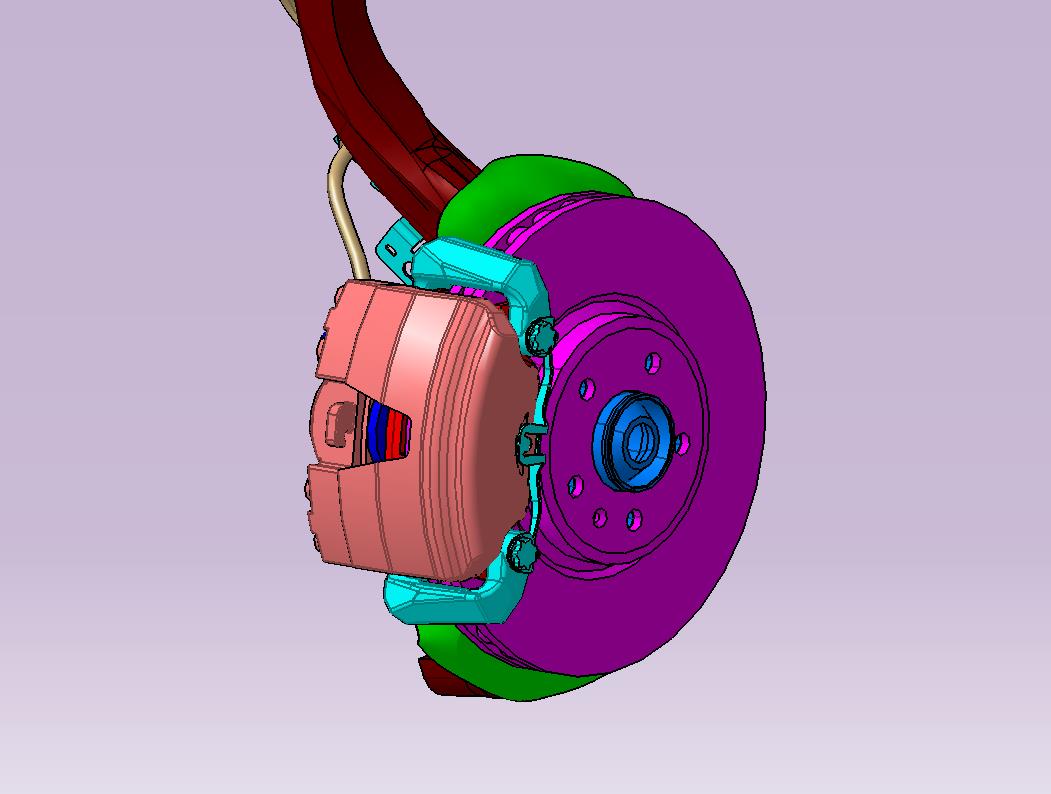

66	Copy3of3506034-B01.CATPart	216.04K

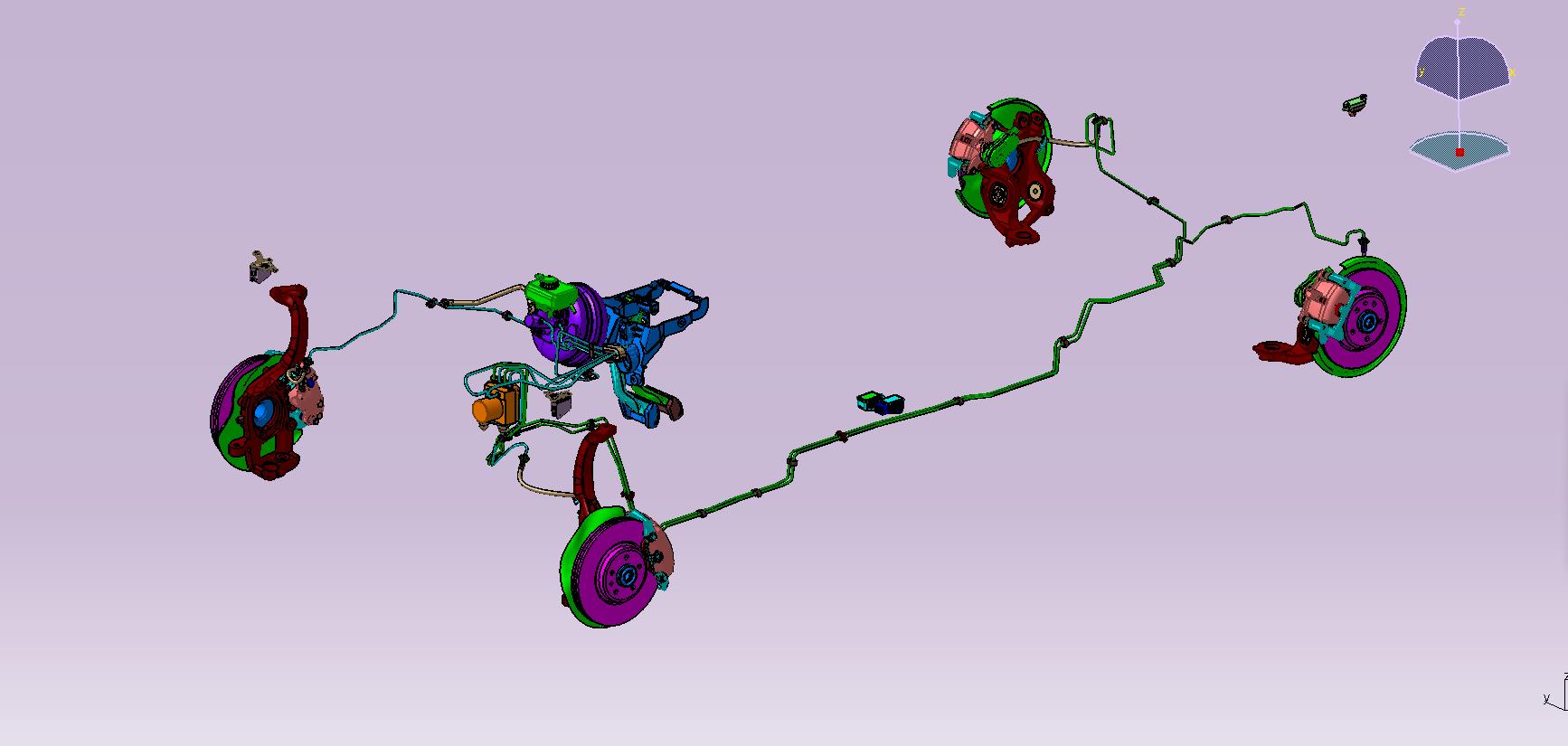

67	Copy4of3103110-B01.CATPart	537.75K

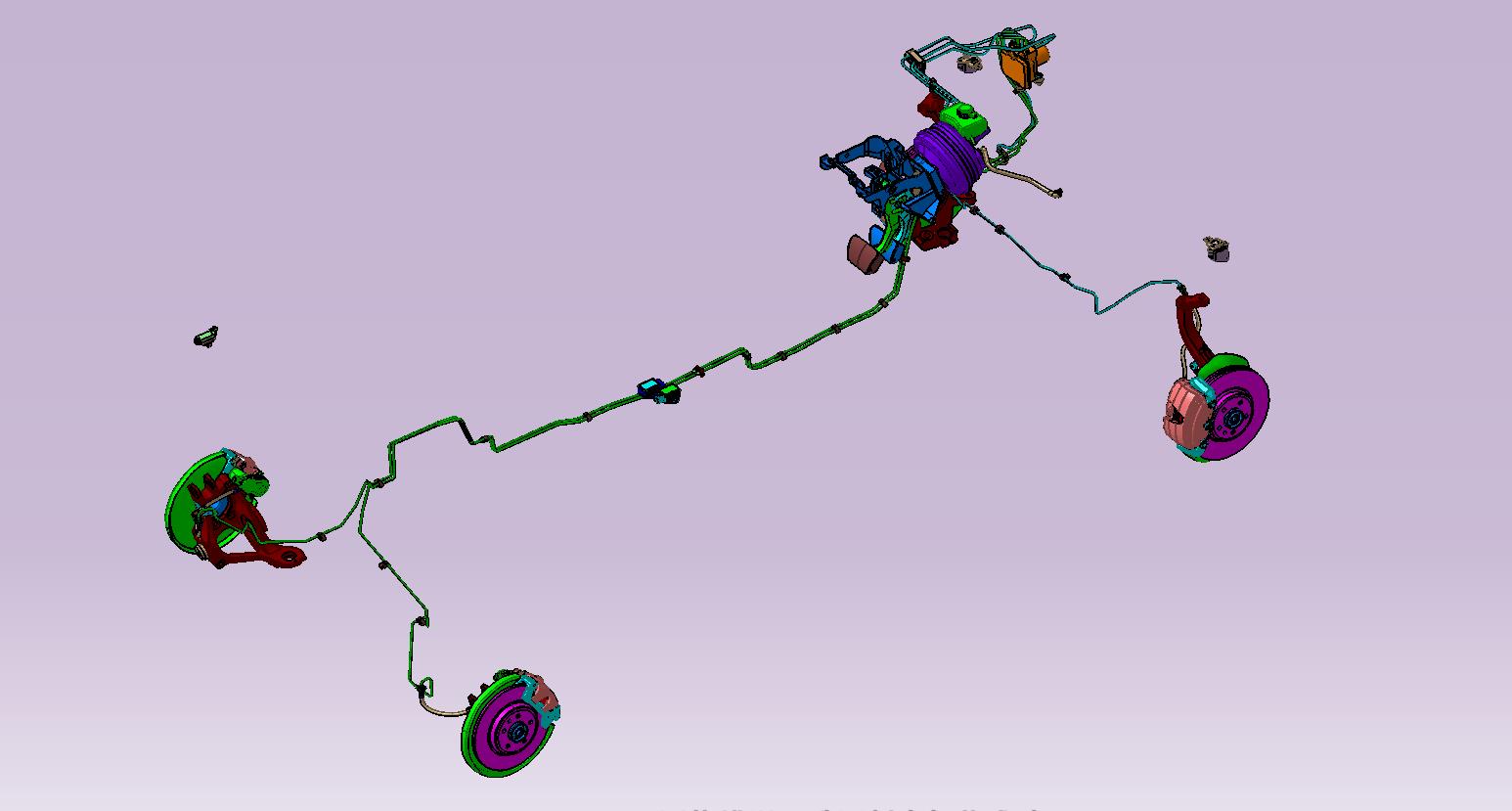

68	Copy4of3506021-B01.CATPart	74.21K

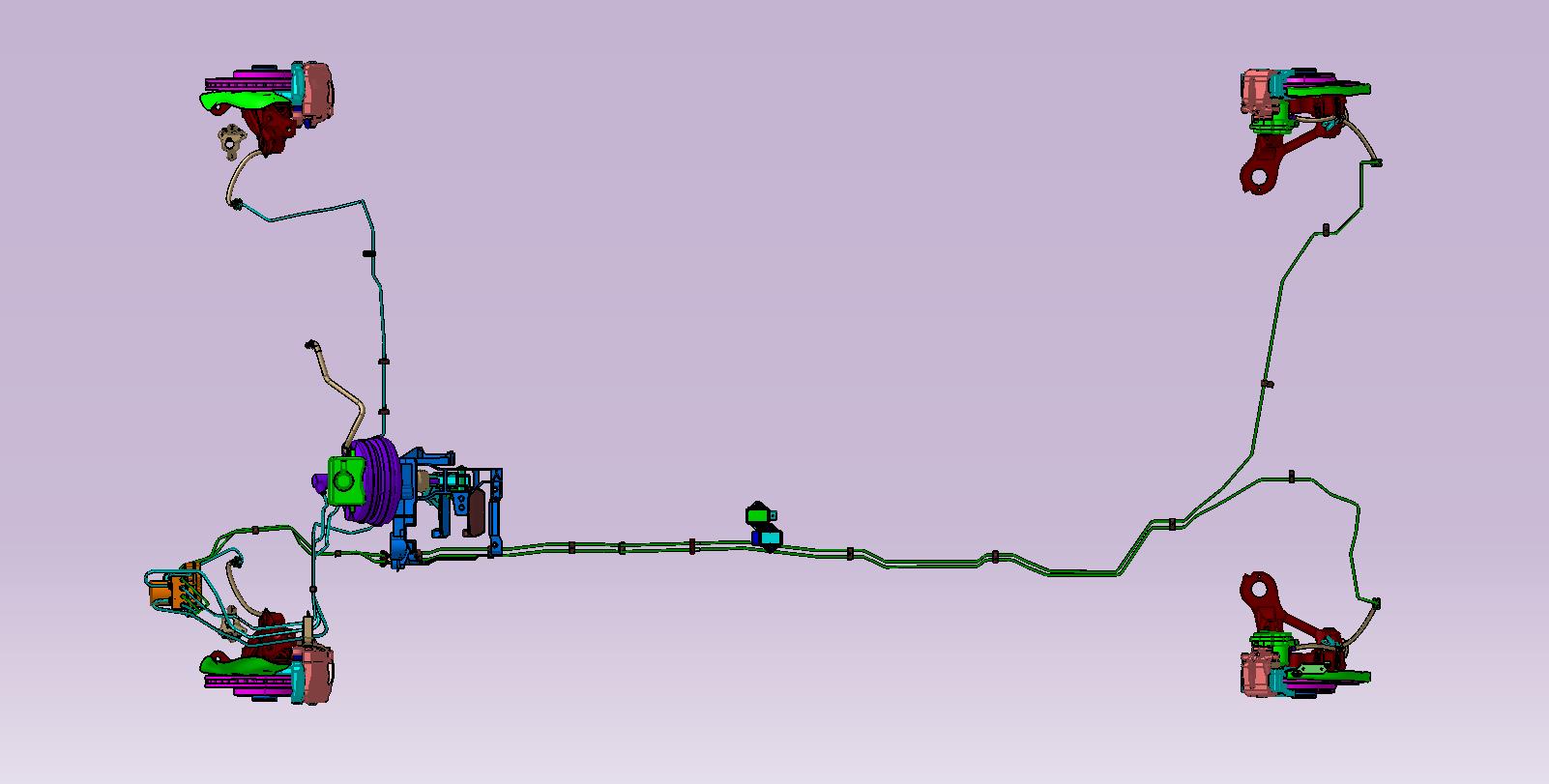

69	Copy4of3506034-B01.CATPart	216.04K
70	Copy5of3506021-B01.CATPart	74.21K
71	Copy6of3506021-B01.CATPart	74.21K
72	Copy7of3506021-B01.CATPart	74.21K
73	Copy8of3506021-B01.CATPart	74.21K
74	Copy9of3506021-B01.CATPart	74.21K
75	制动系统侧面结构.jpg	87.20K
76	制动踏板机构.jpg	91.39K
77	前制动器结构.jpg	57.79K
78	前部真空助力器与ESC装置.jpg	84.98K
79	液压制动形式.jpg	62.27K
80	电子驻车功能配置.jpg	70.72K
