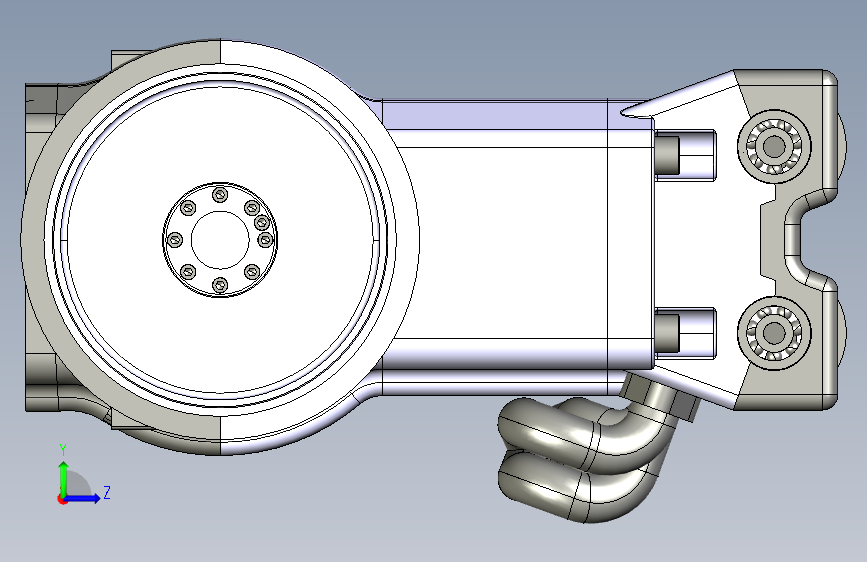

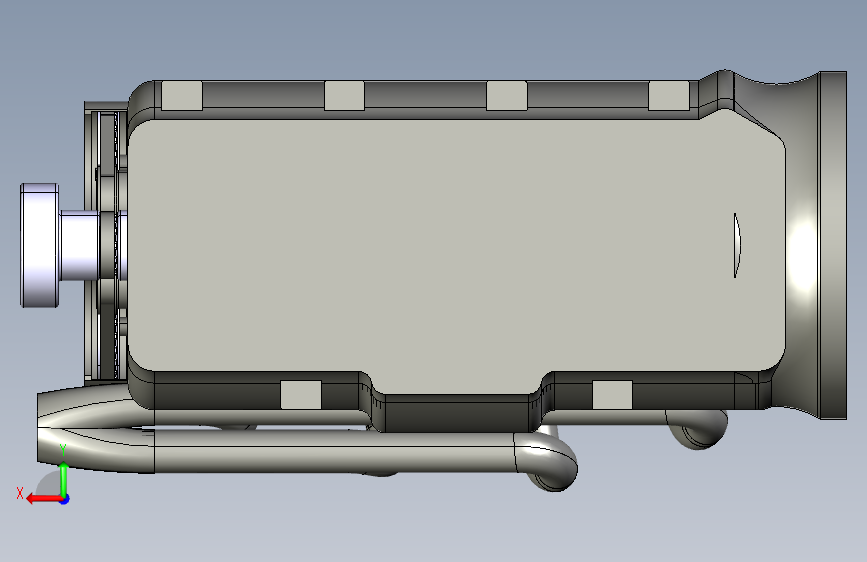

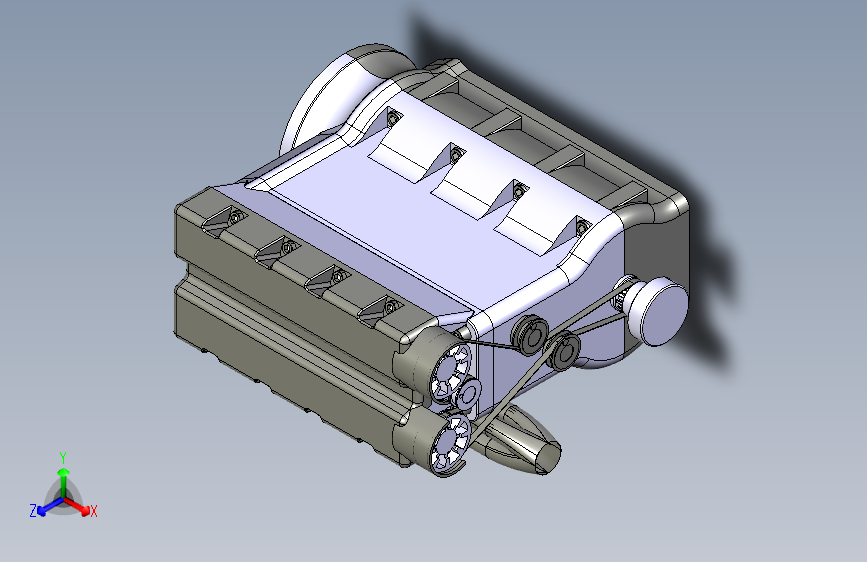

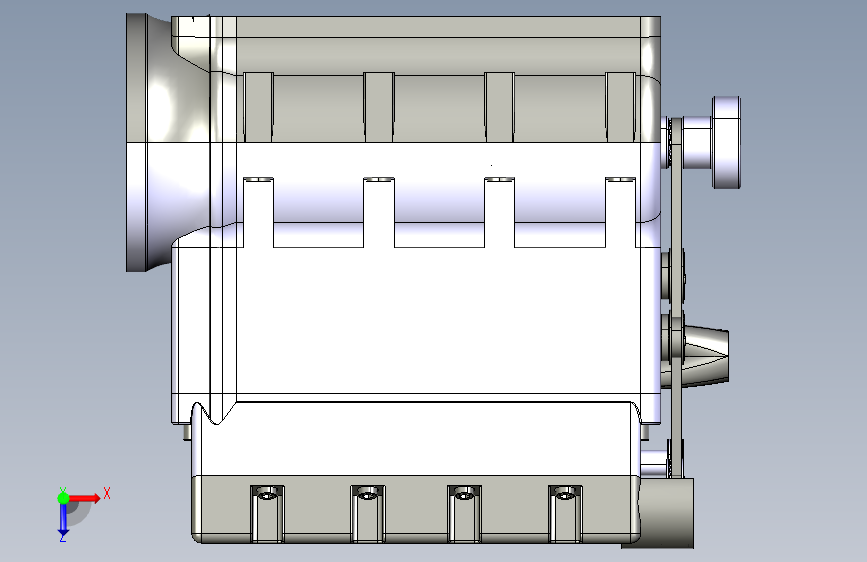

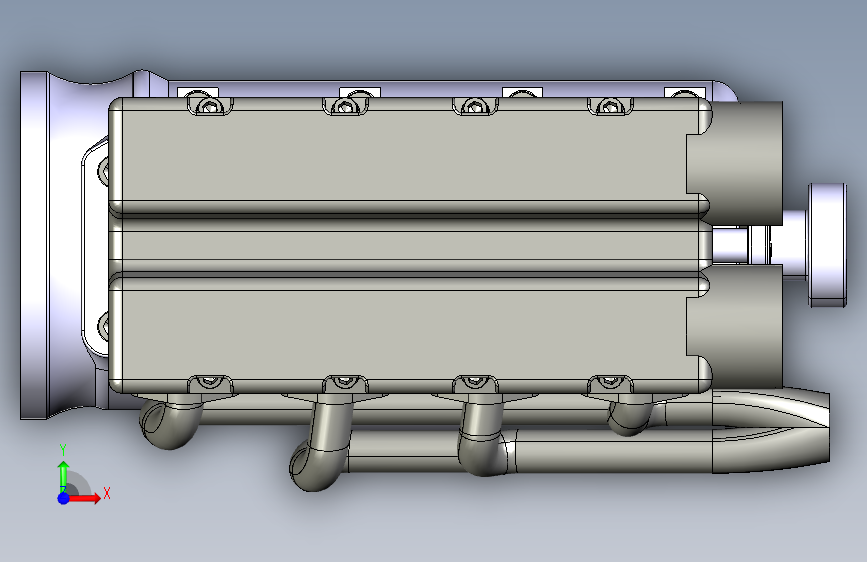

Y5784-四缸16活门发动机20150324（ID:805898）

交通运输 / 车辆相关 / Y5784-四缸16活门发动机20150324

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17005683213534.zip	14.09M
2	4CylinderEngine_Mechanism.stp	14.85M
3	EngineCAD.rar	11.39M
4	4CylinderEngine_DeAssemble.CATProduct	1.75M
5	4CylinderEngine_Mechanism.CATProduct	1.89M
6	BallBearing1.CATPart	847.76K
7	Block.CATPart	3.81M
8	CamShaft.CATPart	1.70M
9	Chamber.CATPart	3.18M
10	ChamberTop.CATPart	1.70M
11	ConnectingRod.CATPart	806.55K
12	Crank.CATPart	2.79M
13	EngineCarter.CATPart	7.08M
14	ExhaustManifold.CATPart	3.29M
15	Flywheel.CATPart	5.11M
16	gasket.CATPart	752.86K
17	ISO_4762_M8x30_STEEL_HEXAGON_SOCKET_HEAD_CAP_SCREW.CATPart	484.60K
18	M12x40STEELHEXAGONSOCKETHEADCAP.CATPart	491.64K
19	M16x55STEELHEXAGONSOCKETHEADCAP.CATPart	492.65K
20	M6x20STEELHEXAGONSOCKETHEADCAP.CATPart	480.51K
21	PISTONHEAD.CATPart	2.79M
22	Pulley-1.CATPart	1018.49K
23	SparkPlug.CATPart	572.02K
24	TimingBelt.CATPart	421.85K
25	Timingpulley.CATPart	1.11M
26	Valve.CATPart	1.27M
