F0165-摆轮分拣机（ID:809563）

机械设备 / 输送提升设备 / F0165-摆轮分拣机

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17006569245887.zip	9.65M
2	BMP15.SLDPRT	19.67K
3	Braslessmotor-60W.SLDPRT	22.27K
4	curvedspringlockwasher_dinSpringwasherDIN128-A8.SLDPRT	24.64K
5	DSO-02-00-00.JPG	126.86K
6	DSO-02-01-01.SLDPRT	23.47K
7	DSO-02-01-02.SLDPRT	22.69K
8	DSO-02-01-03.SLDPRT	36.30K
9	DSO-02-01-04.SLDPRT	33.26K
10	DSO-02-01-05.SLDPRT	28.66K
11	DSO-02-01-06.SLDPRT	26.78K
12	DSO-02-01-07.SLDPRT	31.58K
13	DSO-02-01-08.SLDPRT	49.70K
14	DSO-02-01-09.SLDPRT	33.40K
15	DSO-02-01-10.SLDPRT	28.05K
16	DSO-02-01-11.SLDPRT	795.34K
17	DSO-02-01-12.SLDPRT	21.28K
18	DSO-02-01-13.SLDPRT	17.93K
19	DSO-02-01-14.SLDPRT	18.11K
20	DSO-02-02-00-1.SLDASM	48.84K
21	DSO-02-02-00-2.SLDASM	49.55K
22	DSO-02-02-00-3.SLDASM	48.81K
23	DSO-02-02-00-4.SLDASM	49.28K
24	DSO-02-02-00-5.SLDASM	49.15K
25	DSO-02-02-00-6.SLDASM	48.79K
26	DSO-02-02-00-7.SLDASM	48.66K
27	DSO-02-02-00-8.SLDASM	48.59K
28	DSO-02-02-00-9.SLDASM	49.03K
29	DSO-02-02-00.SLDASM	49.55K
30	DSO-02-02-01.SLDPRT	25.18K
31	DSO-02-02-02.SLDPRT	42.36K
32	DSO-02-02-03.SLDPRT	20.31K
33	DSO-02-02-04.SLDPRT	18.89K
34	DSO-02-02-05.SLDPRT	22.43K
35	DSO-02-02-06.SLDPRT	17.57K
36	DSO-02-02-07.SLDPRT	22.83K
37	DSO-02-02-08.SLDPRT	19.65K
38	DSO-02-02-09.SLDPRT	20.75K
39	DSO-02-02-10.SLDPRT	22.55K
40	DSO-02-02-11.SLDPRT	18.88K
41	DSO-02-02-12.SLDPRT	25.19K
42	DSO-02-02-13.SLDPRT	19.10K
43	DSO-02-02-14.SLDPRT	25.71K
44	DSO-02-02-15.SLDPRT	24.95K
45	DSO-02-02-16.SLDPRT	26.31K
46	DSO-02-02-17.SLDPRT	18.24K
47	DSO-02-02-18.SLDPRT	22.39K
48	DSO-02-02-19.SLDPRT	18.23K
49	Fanar-14-1.5-35.SLDPRT	31.50K
50	hemjointM10.SLDPRT	89.52K
51	hexboltgradec_dinDINEN24016-M8x50x22-WN.SLDPRT	24.64K
52	hexthinnutfinegradeab_dinHexagonNutISO8675-M8x1-N.SLDPRT	25.67K
53	Joint10-150.SLDPRT	32.39K
54	motor_ecma-c20602bs.SLDPRT	192.92K
55	PHS1080-1.SLDASM	35.46K
56	PHS1080.SLDASM	35.23K
57	plainwashercoarse_dinWasherDIN1441-9.SLDPRT	17.72K
58	prevailingtorquenutstyle1insert_dinDINENISO7040-M8-N.SLDPRT	26.01K
59	prevailingtorquenutstyle2_dinDINENISO7042-M8-N.SLDPRT	26.58K
60	prevailingtorquenutthininsert_dinDINENISO10511-M8-N.SLDPRT	27.23K
61	radialballbearing_68_skfSKF-6000-8SINC8_68.SLDPRT	19.85K
62	Skf608-22-8-7.SLDPRT	19.63K
63	Skf6265-52-25-15.SLDPRT	19.38K

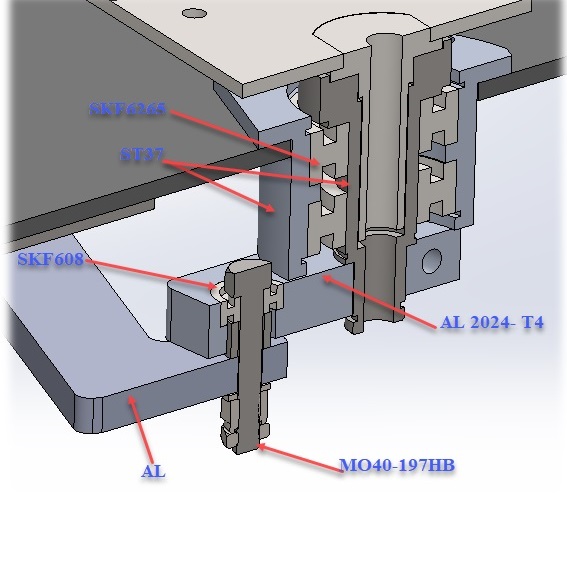

64	介绍.jpg	70.68K

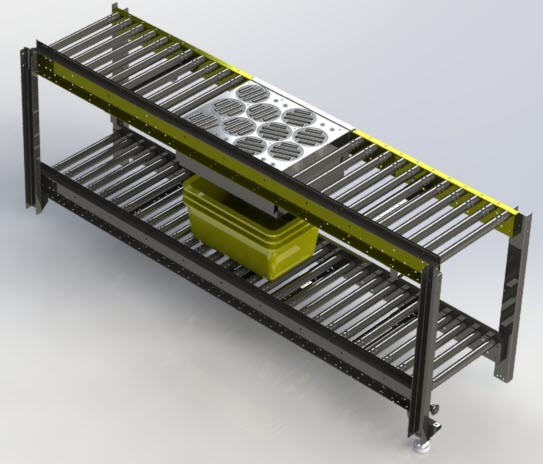

65	使用方案.JPG	45.15K

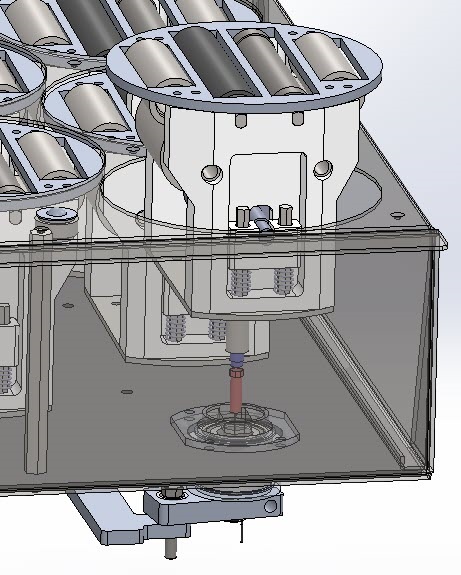

66	单个滚轮.jpg	96.66K

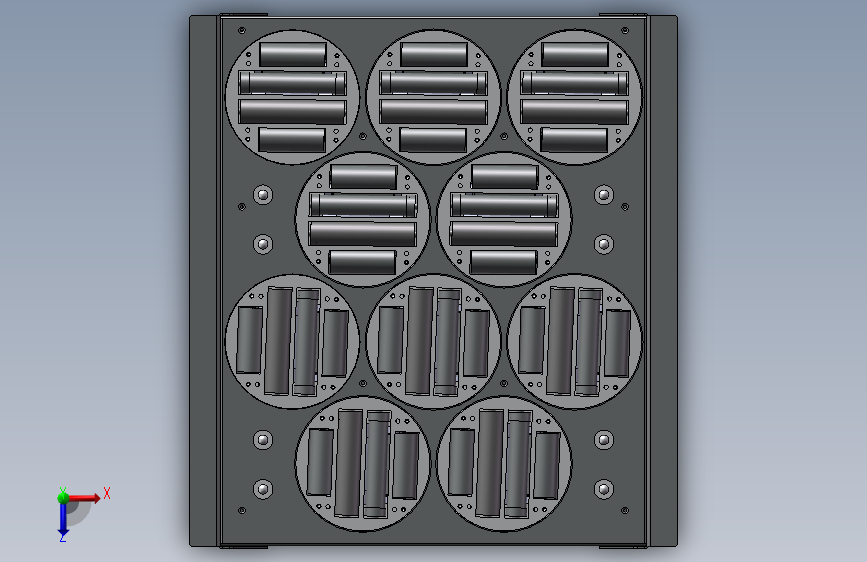

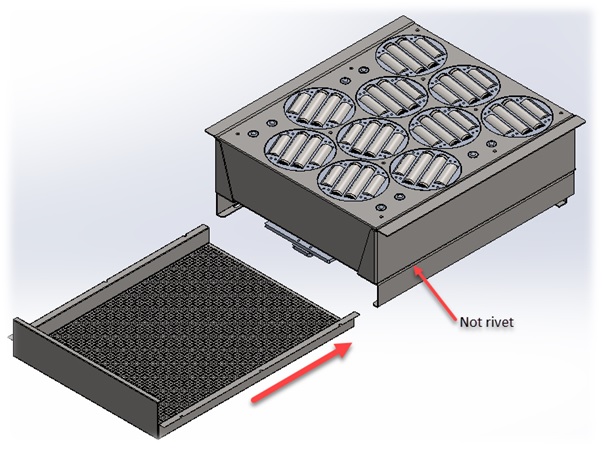

67	摆轮分拣机.jpg	80.22K

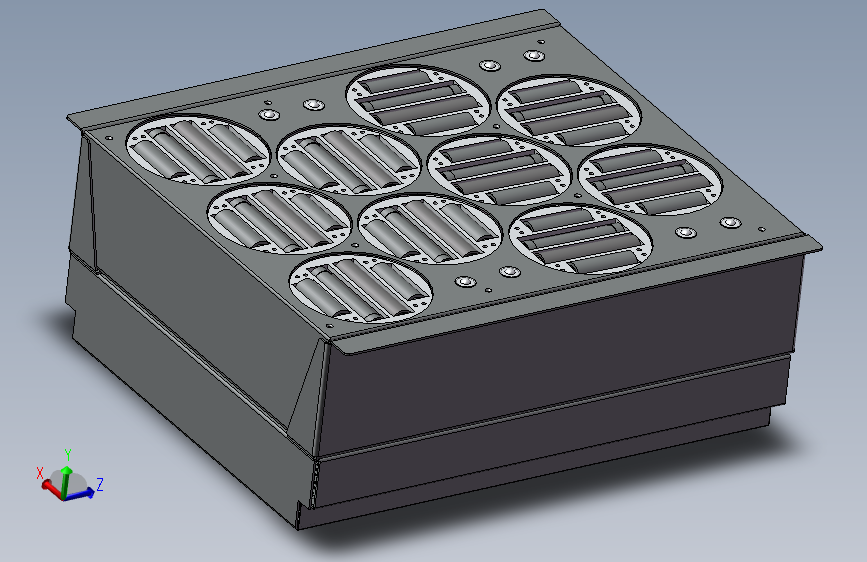

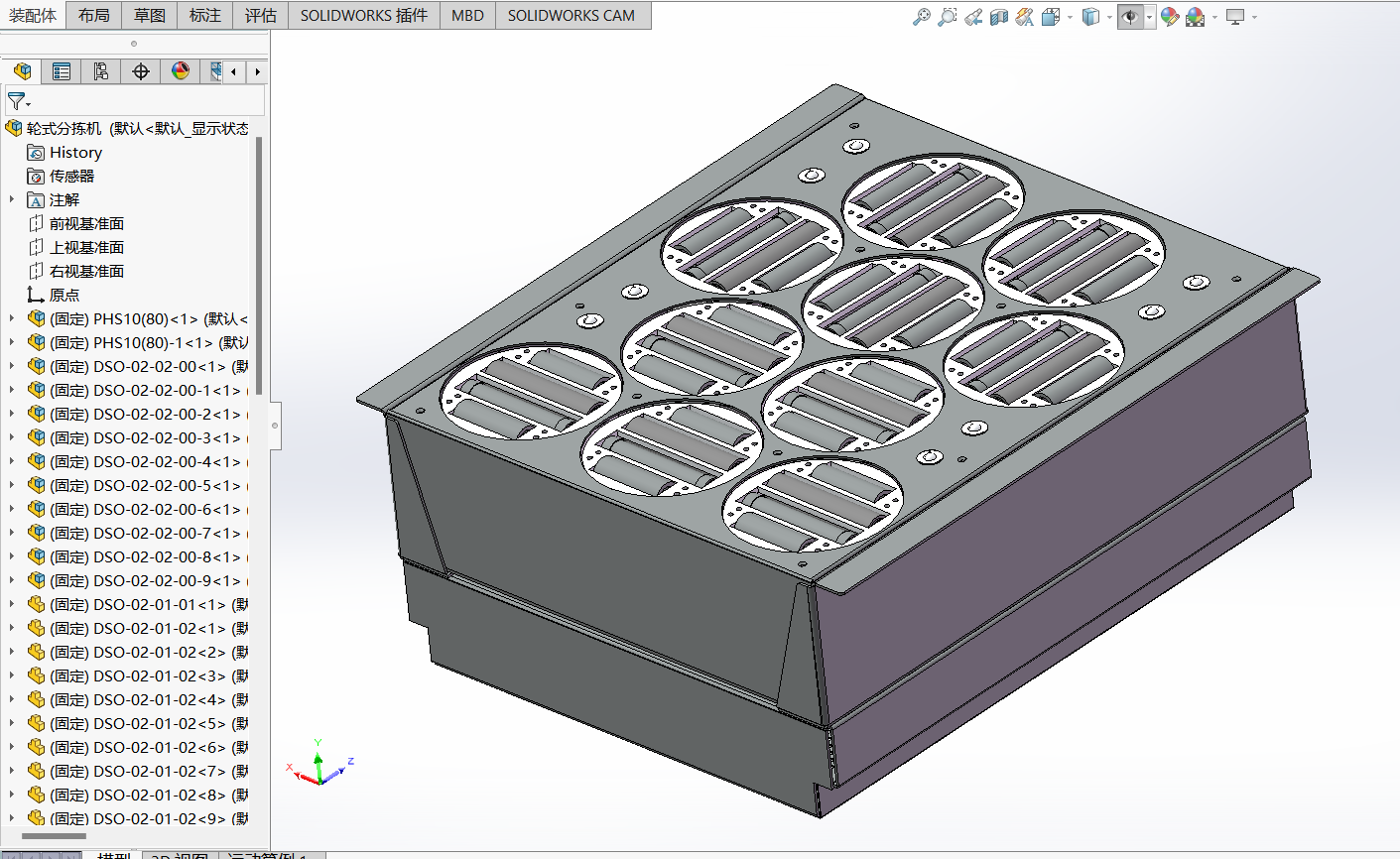

68	摆轮分拣机.png	251.94K
69	摆轮分拣机内部结构.png	355.21K

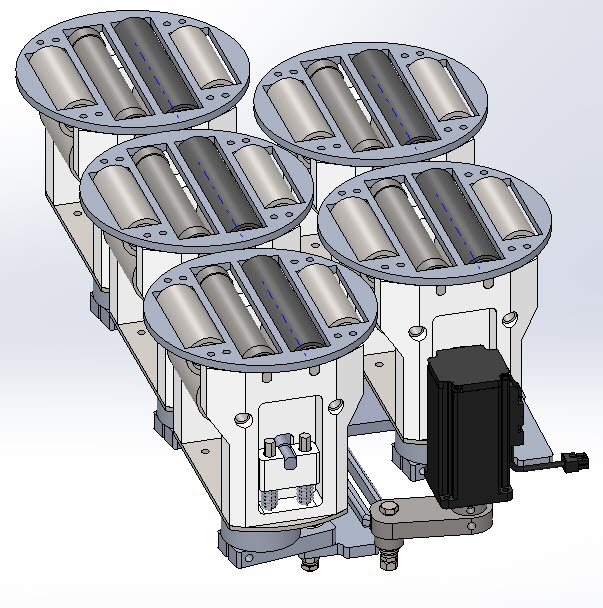

70	摆轮结构.jpg	94.76K

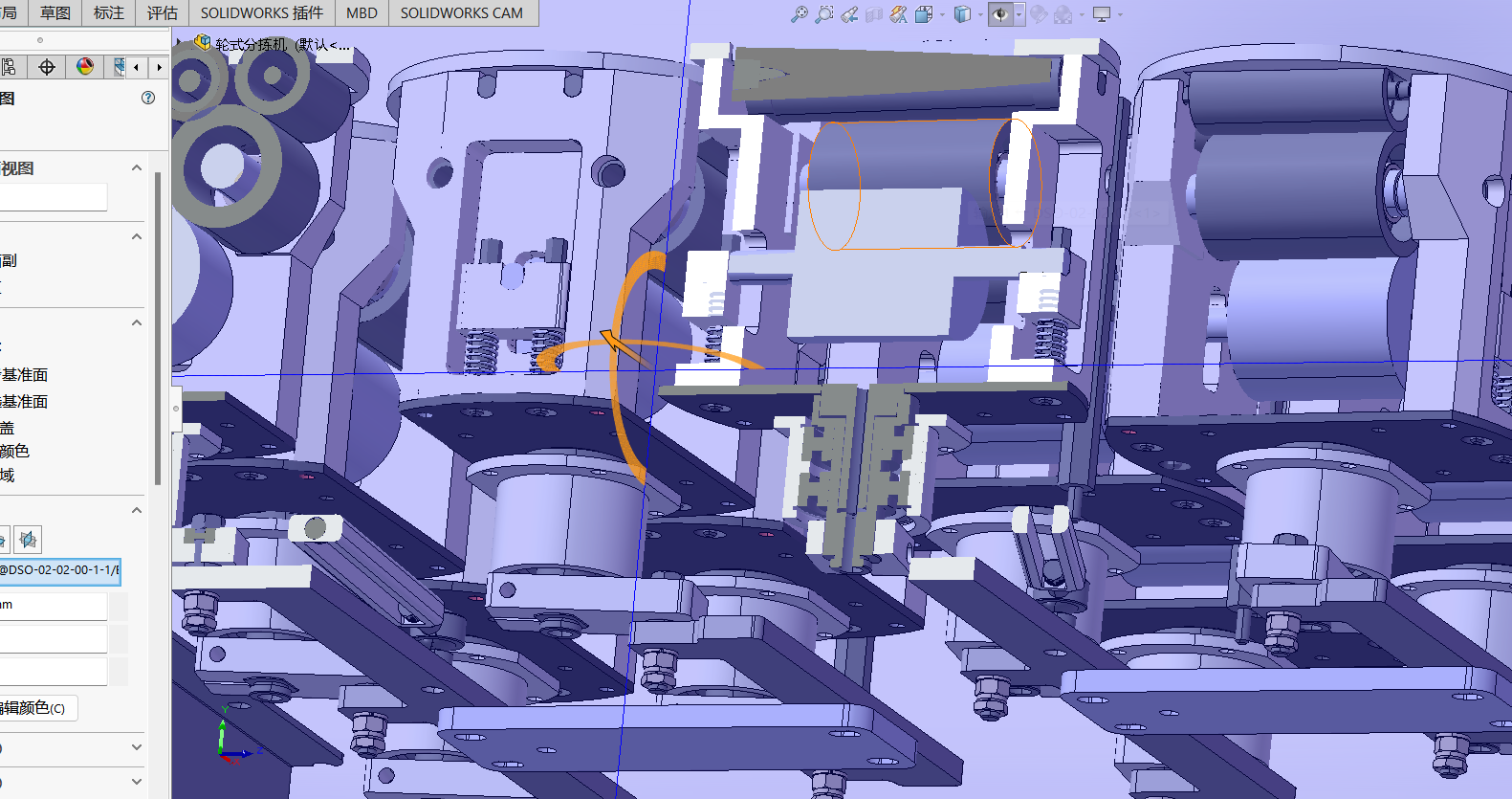

71	旋转轴承结构.png	323.86K

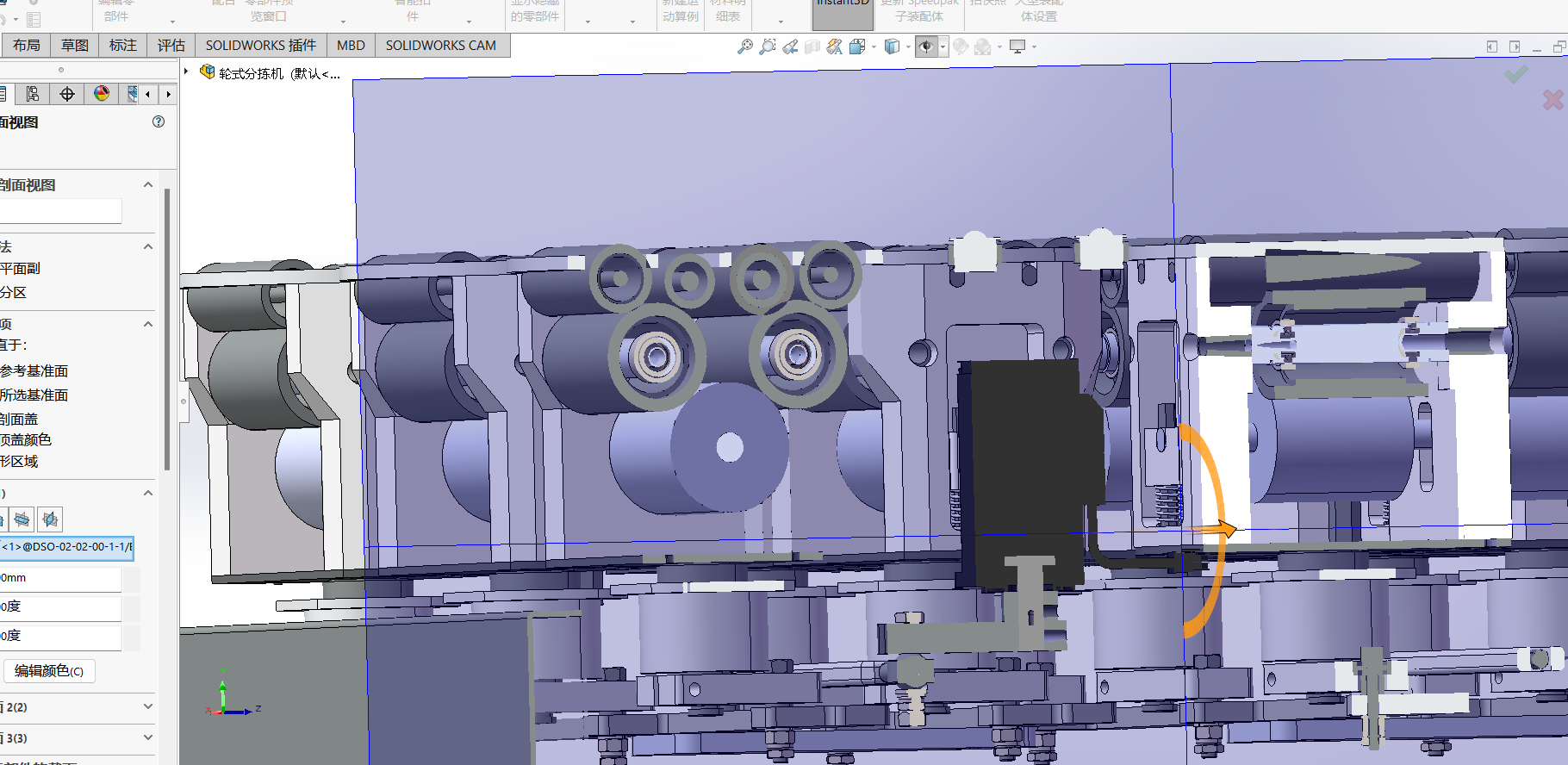

72	滚筒结构.png	293.59K

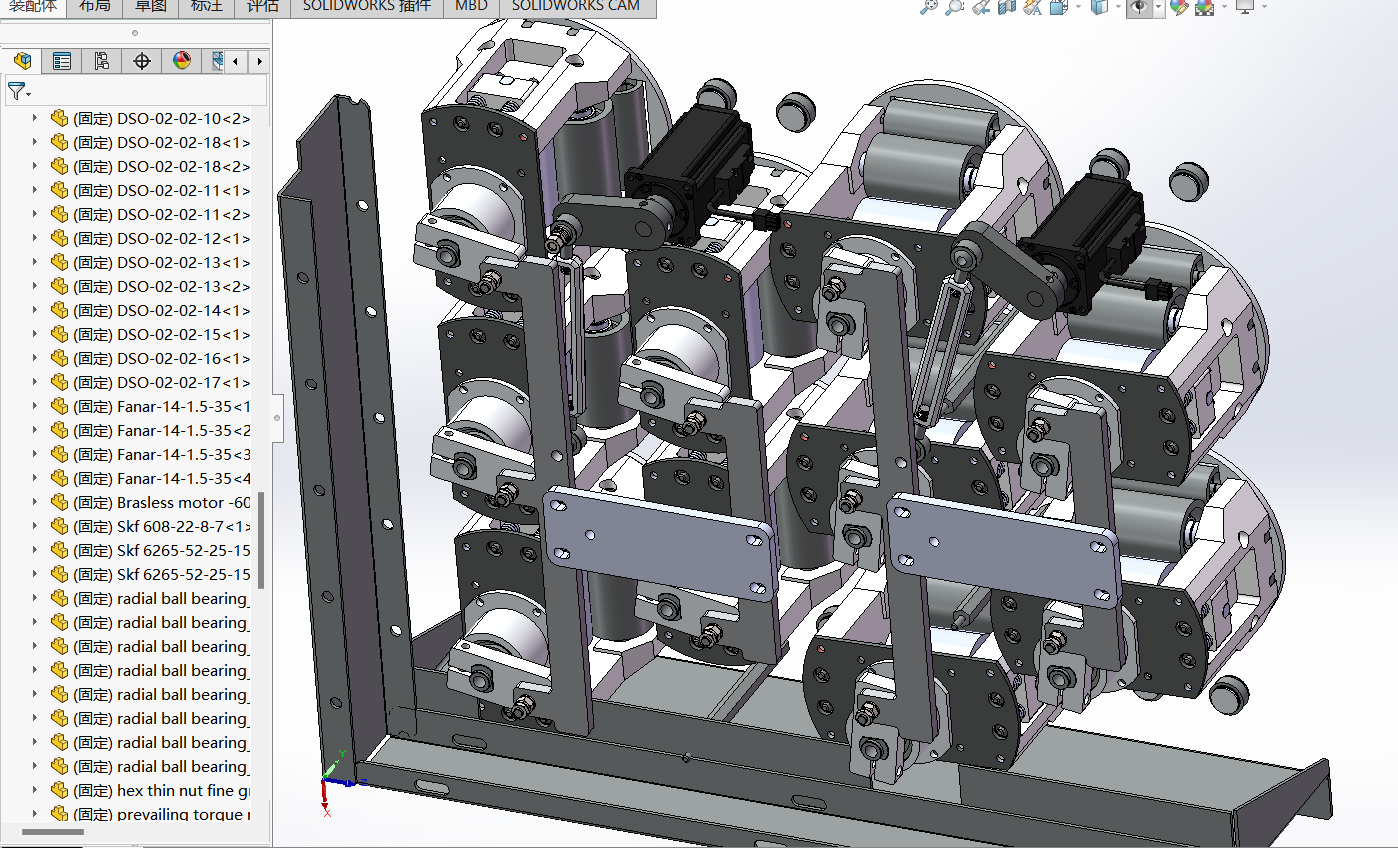

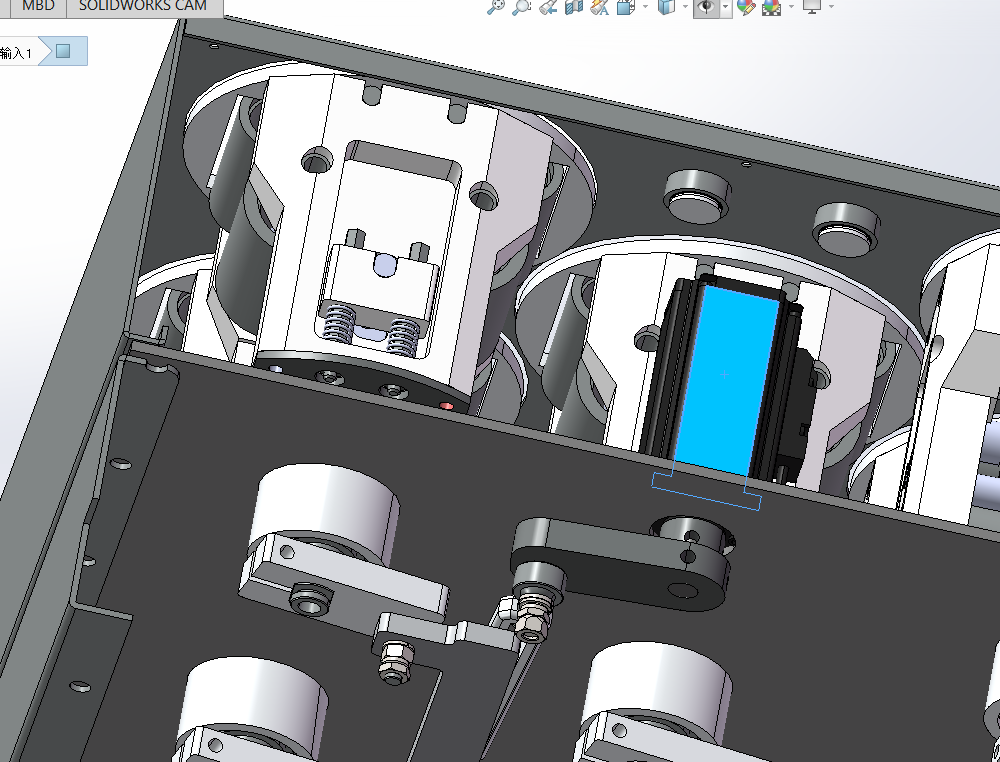

73	电机驱动连杆摆动转位结构.png	184.01K

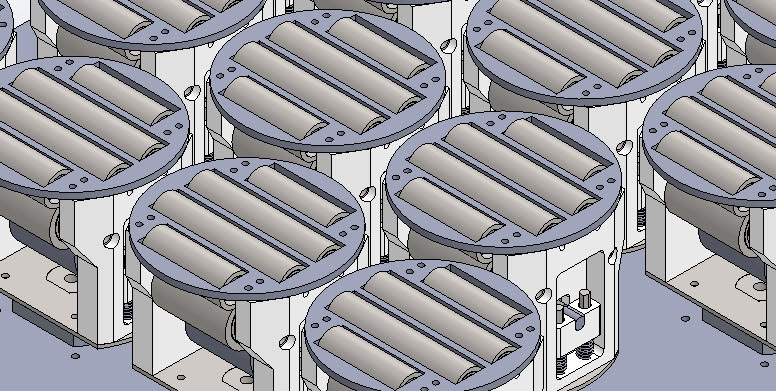

74	蜂窝式结构排版.jpg	130.73K
75	轮式分拣机.SLDASM	4.38M
76	轮式分拣机.x_t	5.55M

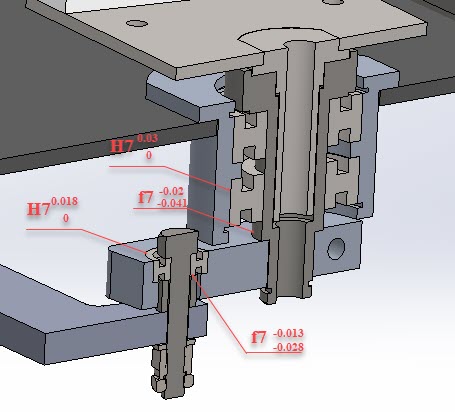

77	部分介绍.jpg	35.81K
78	零件体.png	207.54K
