T0950-DK7725电火花线切割机床（ID:824706）

机械设备 / 机加工设备 / T0950-DK7725电火花线切割机床

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17014941973090.zip	5.38M
2	25下线架.dwg	606.44K
3	6203.dwg	352.72K
4	6203.dxf	23.65K
5	7005保持架.dwg	351.99K
6	7005保持架.dxf	21.40K
7	7005内圈.dwg	352.21K
8	7005内圈.dxf	22.20K
9	7005外圈.dwg	352.21K
10	7005外圈.dxf	22.20K
11	7005钢球.dwg	351.87K
12	7005钢球.dxf	21.04K
13	DK77-02T-01.00工作台驱动组合.dwg	787.63K
14	DK77-02T-01.01齿轮箱（25-100）.dwg	518.33K
15	DK77-02T-01.02-00滚珠丝杠副.dwg	439.41K
16	DK77-02T-01.02-00滚珠丝杠副I.dwg	499.79K
17	DK77-02T-01.03丝杠轴承座.dwg	433.74K
18	DK77-02T-01.04隔圈.dwg	396.23K
19	DK77-02T-01.05刻度盖.dwg	412.85K
20	DK77-02T-01.05刻度盖D.dwg	413.42K
21	DK77-02T-01.06丝杠锁紧螺母-I.dwg	409.08K
22	DK77-02T-01.06丝杠锁紧螺母.dwg	409.08K
23	DK77-02T-01.07刻度盘.dwg	409.13K
24	DK77-02T-01.07刻度盘D.dwg	409.72K
25	DK77-02T-01.08-00拖板手轮.dwg	437.99K
26	DK77-02T-01.08-01手轮用螺钉.dwg	398.77K
27	DK77-02T-01.08-02手轮用手柄.dwg	393.05K
28	DK77-02T-01.09锁紧螺钉.dwg	398.86K
29	DK77-02T-01.10小齿轮.dwg	419.53K
30	DK77-02T-01.11大齿轮.dwg	421.48K
31	DK77-02T-03导轨端面挡板I.dwg	397.84K
32	DK77-02T-04导轨端面挡板II.dwg	397.84K
33	DK7725-00总装示意图.dwg	1.27M

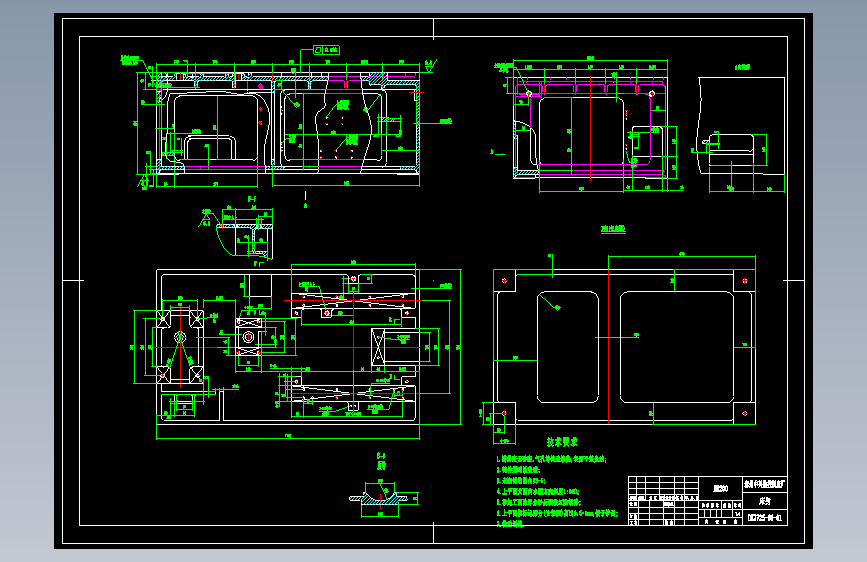

34	DK7725-01-01床身.dwg	2.18M

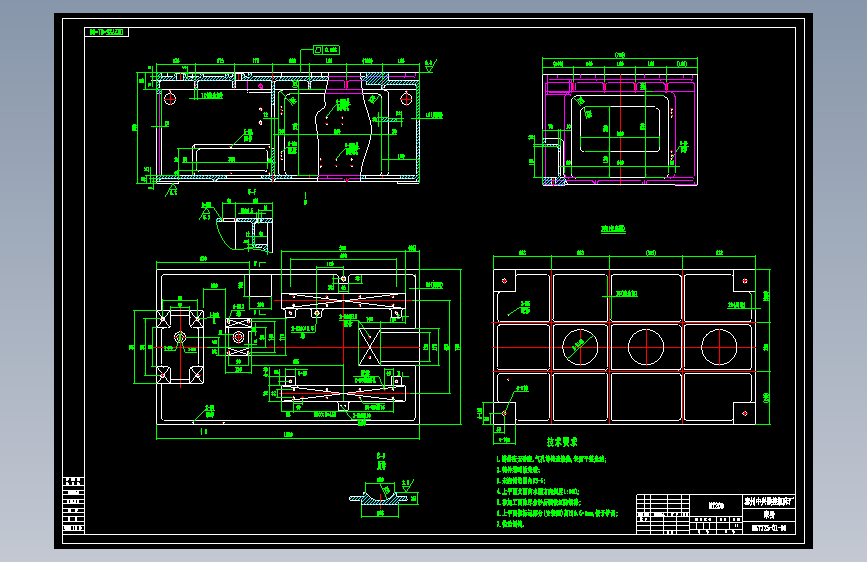

35	DK7725-01-01床身460.dwg	1.83M

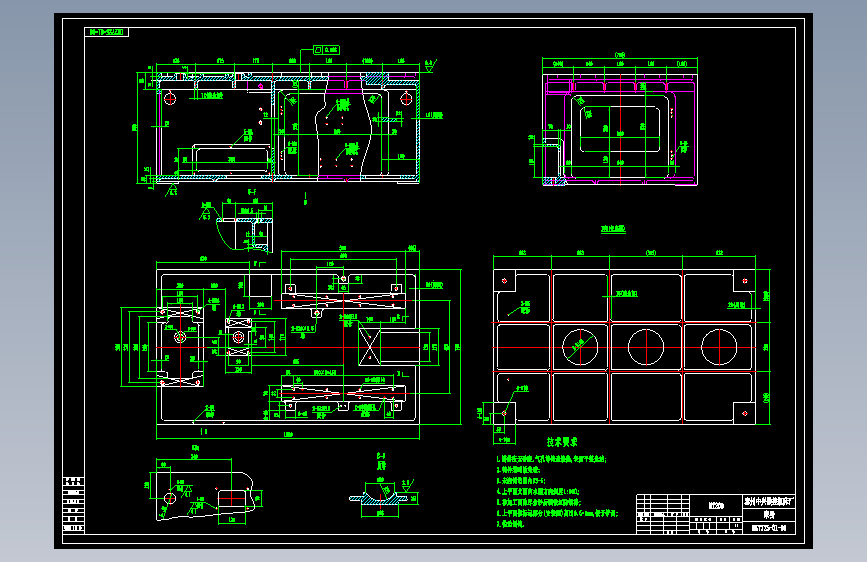

36	DK7725-01-01床身I.dwg	2.07M

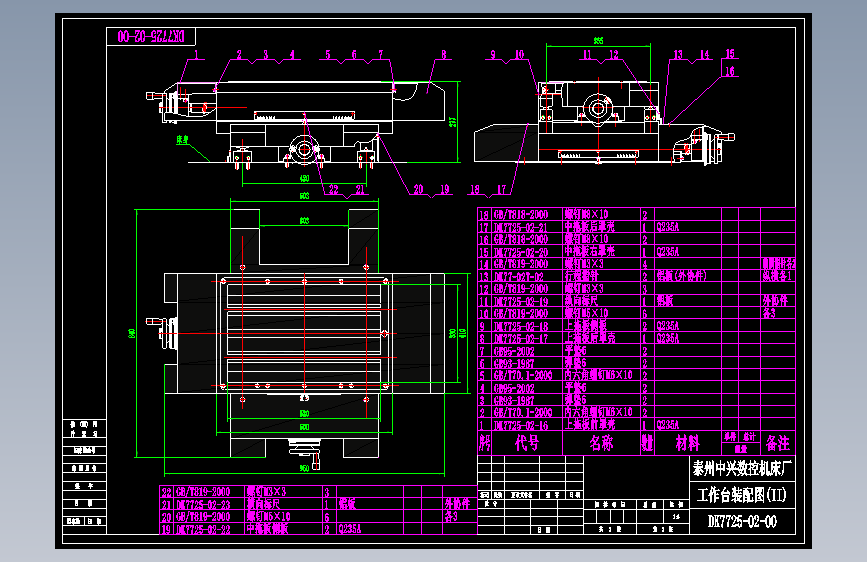

37	DK7725-02-00工作台装配图I.dwg	1.34M
38	DK7725-02-00工作台装配图II.dwg	1.42M
39	DK7725-02-01上拖板.dwg	746.71K
40	DK7725-02-02丝母座.dwg	412.98K
41	DK7725-02-03平导轨滚柱保持架.dwg	405.80K
42	DK7725-02-04上拖板导轨P.dwg	517.75K

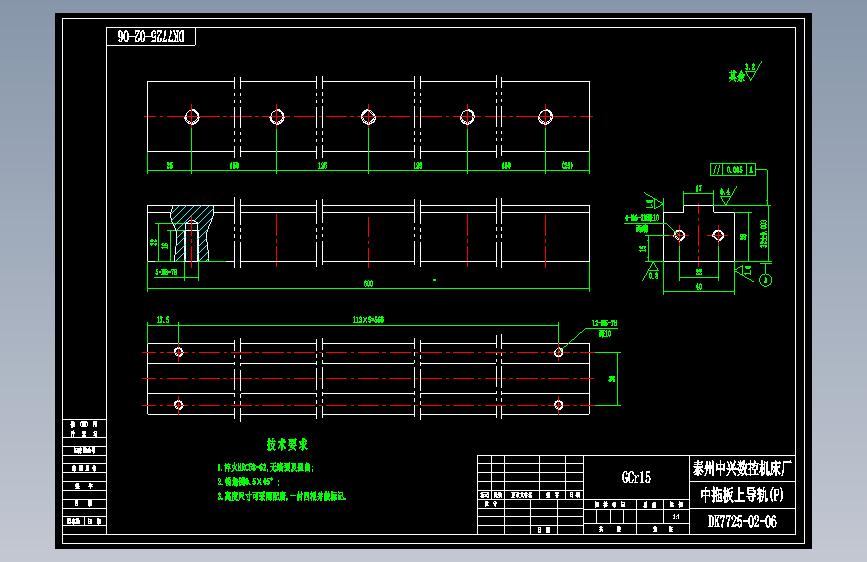

43	DK7725-02-06中拖板上导轨P.dwg	657.66K
44	DK7725-02-07上拖板导轨V.dwg	541.59K
45	DK7725-02-08V导轨滚柱保持架.dwg	403.41K
46	DK7725-02-09中拖板上导轨V.dwg	588.98K
47	DK7725-02-10中拖板.dwg	775.39K
48	DK7725-02-10中拖板I.dwg	767.12K
49	DK7725-02-11中拖板下导轨V.dwg	517.80K
50	DK7725-02-12床身导轨V.dwg	470.18K
51	DK7725-02-13中拖板下导轨P.dwg	491.60K
52	DK7725-02-14床身导轨P.dwg	605.40K
53	DK7725-03-00运丝装配图I.dwg	1.30M
54	DK7725-03-01运丝底座II.dwg	802.96K

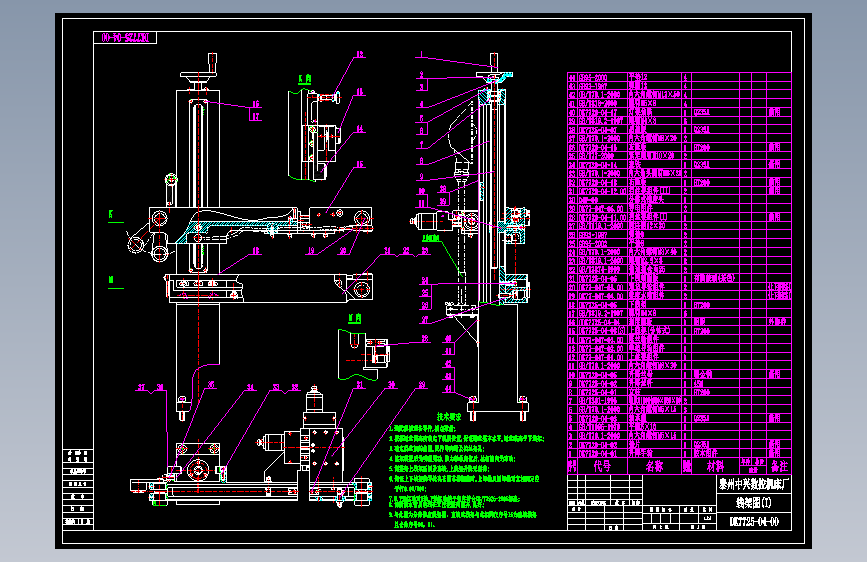

55	DK7725-04-00线架图I.dwg	1.79M
56	DK7725-04-00线架图II.dwg	1.04M
57	DK7725-04-01立柱.dwg	628.62K
58	DK7725-04-02升降丝杠.dwg	0B
59	DK7725OutlineofCNCWireCuttingMahcine.doc	216.50K
60	DK7725零件明细表.doc	261.50K
61	DK77系列机床通用件.doc	262.50K
62	s.dwg	371.17K
63	s.dxf	77.77K
64	使用说明书.doc	83.50K
65	刻度盘.dwg	352.60K
66	刻度盘.dxf	23.31K
67	滚珠丝杆I.dwg	363.89K
68	滚珠丝杆I.dxf	60.15K
69	轴承座.dwg	353.13K
70	轴承盖.dwg	352.29K
71	轴承盖.dxf	22.38K
