WREN MW54涡轮喷气发动机（ID:853235）

交通运输 / 车辆相关 / WREN MW54涡轮喷气发动机

©非原创

106

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17031476604335.zip	44.25M
2	MW54TurboJet.iam	3.70M
3	MW54TurboJet.stp	7.46M
4	Part1.CompressorNut.ipt	259.50K
5	Part10.Spring.ipt	486.00K
6	Part11.ShaftTunnel.ipt	422.50K
7	Part12.Shaft.iam	215.50K
8	Part13.CombustionChamberSub-Assy.iam	3.90M
9	Part14.CombustionChamberFront.ipt	338.00K
10	Part15.GlowPlugBoss.ipt	206.00K
11	Part16.Combustor-InnerWrapper.ipt	1.03M
12	Part17.Combustor-OuterWrapper.ipt	1.17M
13	Part18.VaporiserTube.ipt	372.50K
14	Part19.CombustorRear.ipt	521.00K
15	Part2.FrontSpacer.ipt	200.50K
16	Part20.FuelPipeAssy.ipt	1.16M
17	Part21.CaseOuter.ipt	452.50K
18	Part22.CaseRear.ipt	291.00K
19	Part23.NGVOuter.ipt	579.50K
20	Part24.NGVInner.ipt	283.50K
21	Part25.TurbineWheel.ipt	838.50K
22	Part26.RearSpacer.ipt	194.00K
23	Part27.TurbineNut.ipt	244.50K
24	Part28.ExhaustConeSubAssy.iam	289.50K
25	Part29.ConeOuter.ipt	556.00K
26	Part3.Compressor.ipt	949.50K
27	Part30.ConeInner.ipt	419.00K
28	Part31.OutletVane.ipt	336.00K
29	Part32.Adaptor.ipt	270.00K
30	Part33.LubricationPipe.ipt	350.00K
31	Part33a.LubricationPipeTab.ipt	226.50K
32	Part34.GasPipe.ipt	434.00K
33	Part36.TubeEndFitting1.7.ipt	236.00K
34	Part36.TubeEndFitting2.5.ipt	245.00K
35	Part38.Tube.ipt	209.00K
36	Part39.SwirlJet.ipt	243.50K
37	Part4.Intake.ipt	358.50K
38	Part40.RollingbearingGB_T5800-2003-638_8.ipt	220.50K
39	Part41.ISO4762-M25x5ISO.ipt	196.50K
40	Part42.CapScrewM2.5x7.ipt	254.00K
41	Part43.CapScrewM3x4.ipt	266.50K
42	Part44.Skthd.Csk.ScrewM3x12.ipt	259.00K
43	Part45.O-ring16x1.5.ipt	228.00K
44	Part46.Spark.ipt	419.50K
45	Part47.Seal.ipt	189.50K
46	Part49.ISO4762-M25x6ISO.ipt	195.50K
47	Part5.ShaftSeal.ipt	382.00K
48	Part6.CaseFront.ipt	526.00K
49	Part7.Diffuser.ipt	1.09M
50	Part8.Filter.ipt	198.00K
51	Part9.FilterCover.ipt	233.00K
52	Вал1.ipt	141.50K

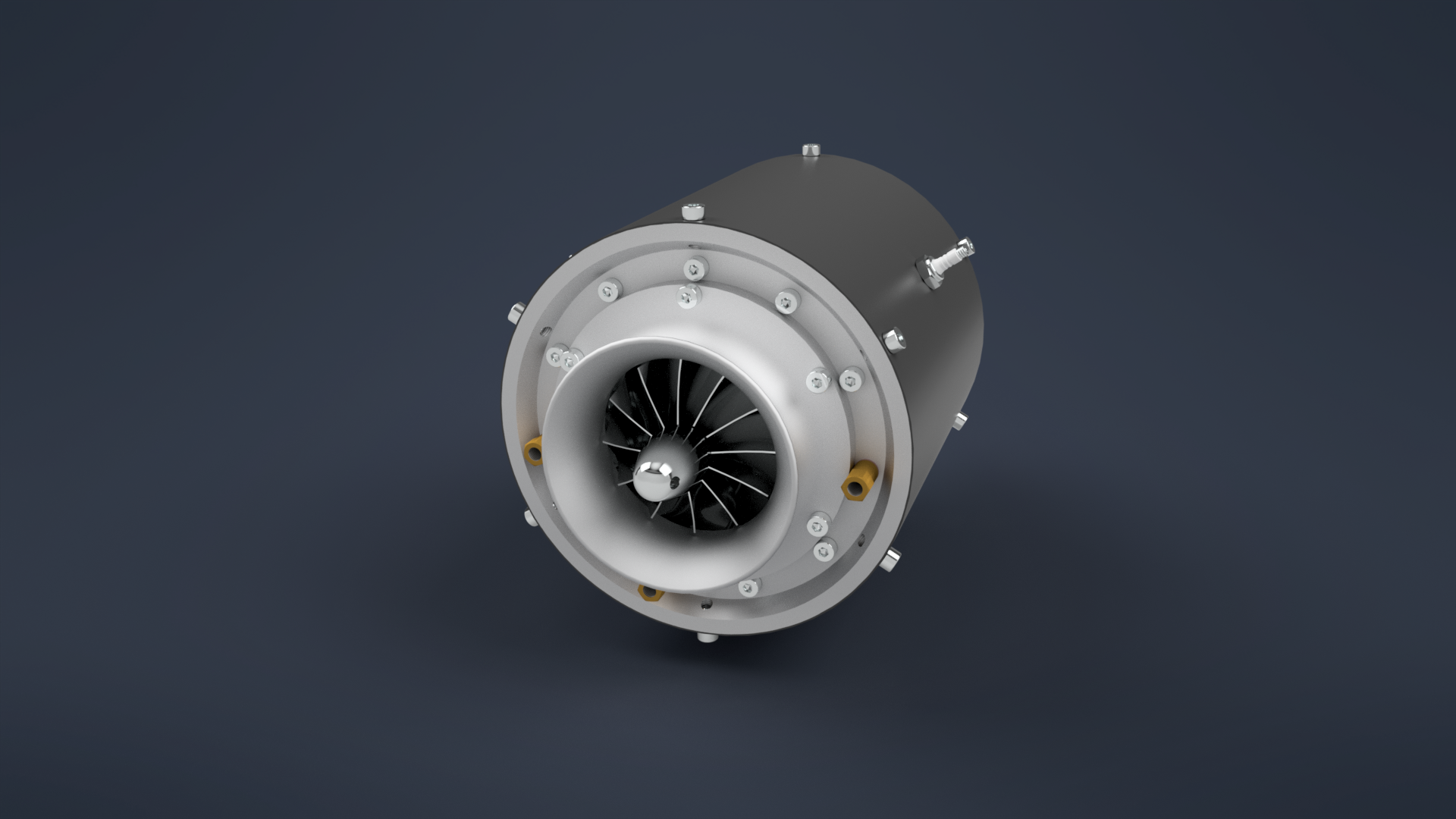

53	TurboJet1.png	1.46M

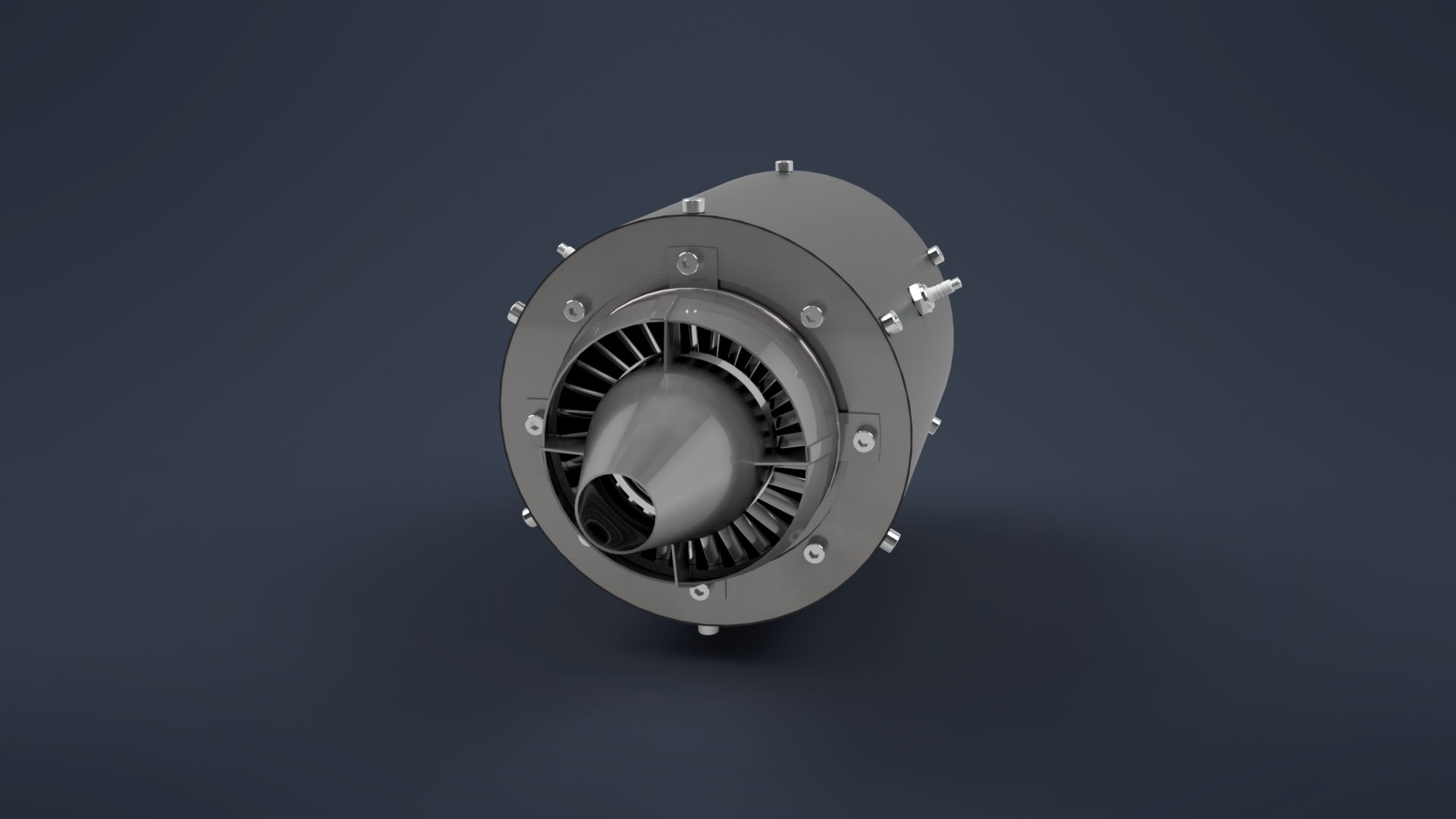

54	TurboJet2.png	1.25M

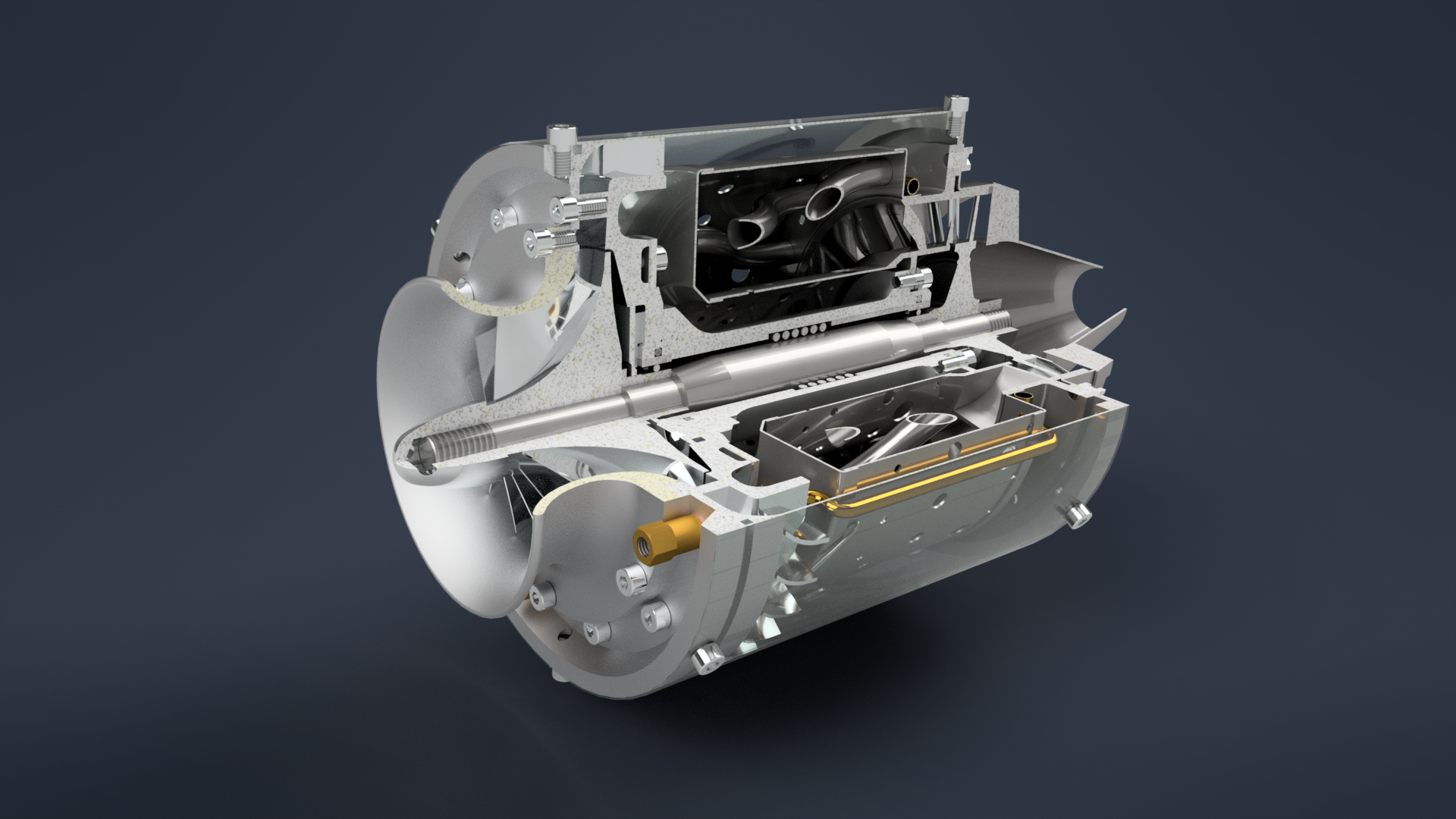

55	TurboJet3.png	2.02M

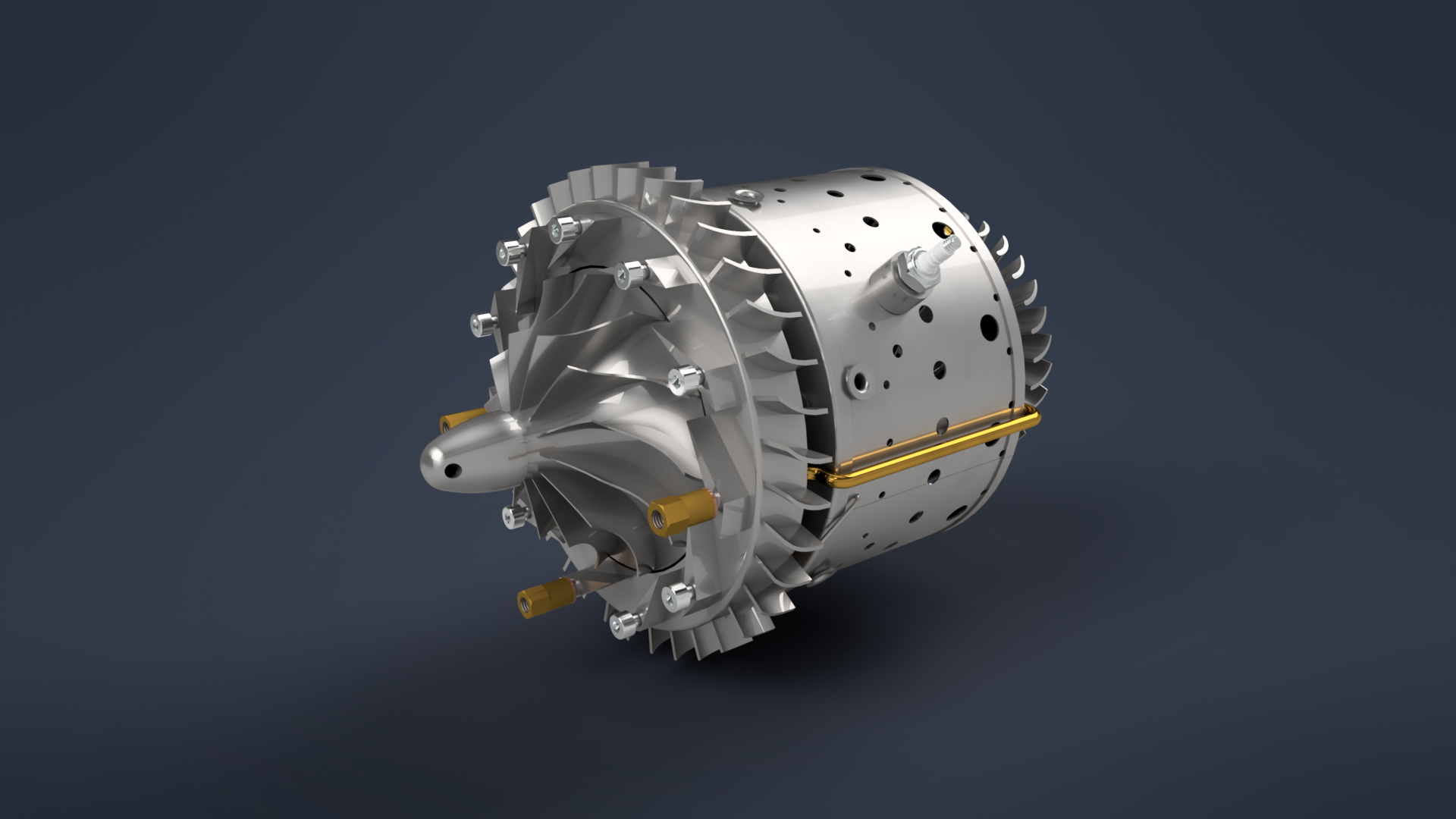

56	TurboJet4.png	1.48M
57	TurboJet5.png	1.82M
58	TurboJet6.png	2.31M
