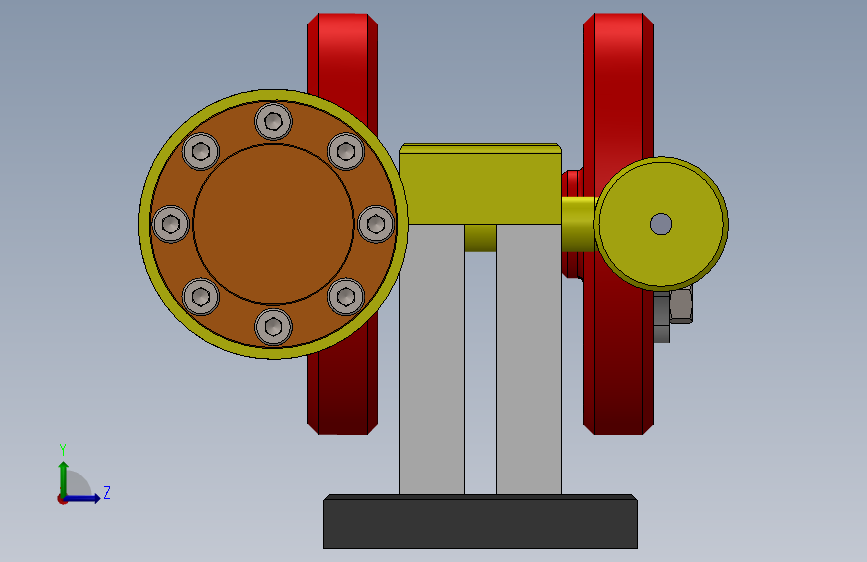

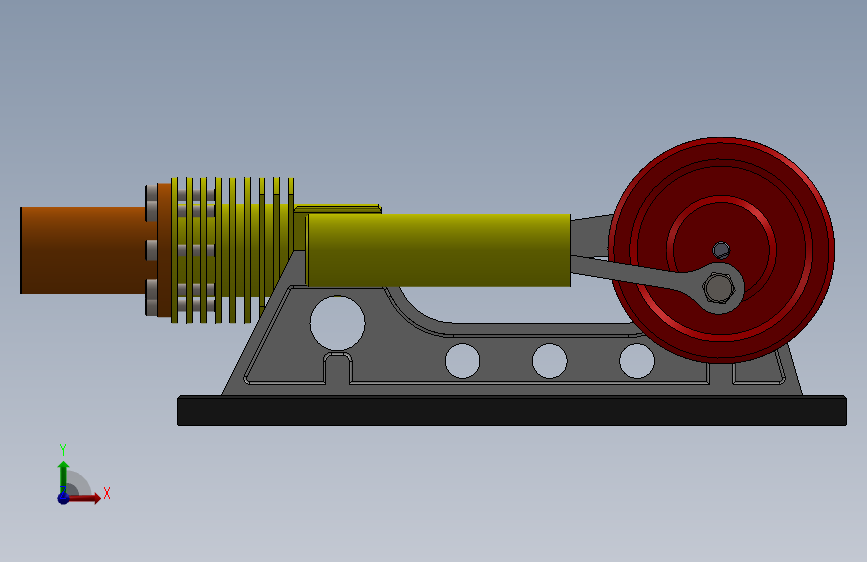

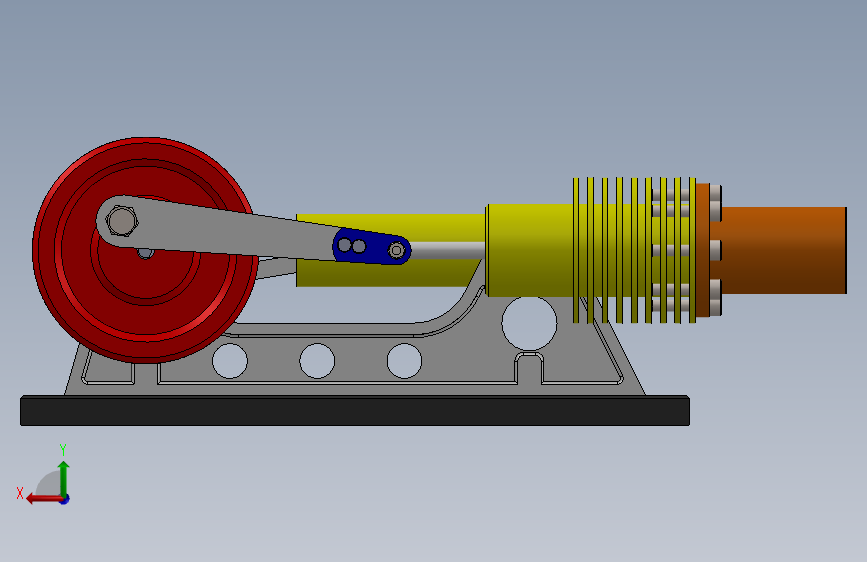

斯特林发动机(36)(ID:869734)
# | 文件名称 | 文件大小 |
---|---|---|
1 | 17036792179164.zip | 4.09M |
2 | assemblybase.CATProduct | 46.60K |
3 | assemblyfinal.CATProduct | 107.29K |
4 | assemblyheatexchangecylender.CATProduct | 28.49K |
5 | assemblyheatexchangepiston.CATProduct | 44.64K |
6 | base.CATPart | 261.16K |
7 | bearingsupport.CATPart | 106.90K |
8 | counterweightA.CATPart | 153.90K |
9 | counterweightB.CATPart | 112.98K |
10 | crankrod.CATPart | 216.46K |
11 | crankshaft.CATPart | 108.92K |
12 | crosshead.CATPart | 193.88K |
13 | cylender.CATPart | 127.56K |
14 | cylendercover.CATPart | 90.15K |
15 | cylenderpackings.CATPart | 71.72K |
16 | flywheel.CATPart | 250.79K |
17 | flywheelshaft.CATPart | 87.49K |
18 | heat exchange piston.CATPart | 83.15K |
19 | heatexchangecylender.CATPart | 63.26K |
20 | heatexchangecylendernew.CATPart | 191.32K |
21 | heatexchangepiston.CATPart | 95.09K |
22 | heatexchangepistonshaft.CATPart | 88.26K |
23 | heatexchangepistontube.CATPart | 70.58K |
24 | piston.CATPart | 119.27K |
25 | pistonbearing.CATPart | 63.84K |
26 | pistonpin.CATPart | 66.18K |
27 | slide.CATPart | 77.46K |
28 | standard.CATPart | 231.24K |
29 | support.CATPart | 158.54K |
30 | AM-M3-N.sldprt | 131.28K |
31 | Assem1.SLDASM | 721.11K |
32 | B18.2.3.2M-FormedhexscrewM6x1.0x16--16CN.sldprt | 130.55K |
33 | B18.3.1M-4x0.7x16HexSHCS--16NHX.sldprt | 144.10K |
34 | B18.3.1M-4x0.7x20HexSHCS--20NHX.sldprt | 142.33K |
35 | B18.3.1M-6x1.0x10HexSHCS--10NHX.sldprt | 144.97K |
36 | B18.6.7M-M3x0.5x16SlottedPHMS--16N.sldprt | 112.03K |
37 | BallBearing.SLDPRT | 162.59K |
38 | BigEndBush.SLDPRT | 49.88K |
39 | COLDCYLINDER.SLDPRT | 180.45K |
40 | Cont-rodclamp.SLDPRT | 71.84K |
41 | COUNTERBORED.SLDPRT | 64.09K |
42 | CROSSCYLINDERSUPPORT.SLDPRT | 84.14K |
43 | CROSSCYLINDERSUPPORTPIPE.SLDPRT | 44.73K |
44 | cylinder.SLDPRT | 91.86K |
45 | DIN661-3X16.SLDPRT | 42.95K |
46 | DISPLACEMENTPISTONBODY.SLDPRT | 63.63K |
47 | DISPLACEMENTPISTONCAP.SLDPRT | 67.09K |
48 | DISPLACEMENTPISTONSHAFT.SLDPRT | 49.29K |
49 | Displacercont-rod.SLDPRT | 62.42K |
50 | Flywheel.SLDPRT | 114.33K |
51 | FLYWHEELSHAFT.SLDPRT | 52.49K |
52 | HOTCYLINDER.SLDPRT | 74.04K |
53 | PISTONPIN.SLDPRT | 36.45K |
54 | PowerCon-Rod.SLDPRT | 56.58K |
55 | POWERPISTON.SLDPRT | 60.37K |
56 | Rightsideframe.sldprt | 151.96K |
57 | RIGHTSIDEFRAME1.SLDPRT | 154.61K |
58 | SmallendBush.SLDPRT | 44.05K |
此图纸下载需要20金币
立即下载
发布者
机械设计师
创作: 9719
粉丝: 62
加入时间:2020-01-22

模型信息
图纸格式:catproduct,catpart,sldprt,sldasm
文件大小:4.19M
所需金币:20
上传时间:2023-12-27 20:13:38
是否可编辑:可修改,包括参数
版本:SOLIDWORKS 2015
