1发动机（ID:9812）

交通运输 / 车辆相关 / 1发动机

©非原创

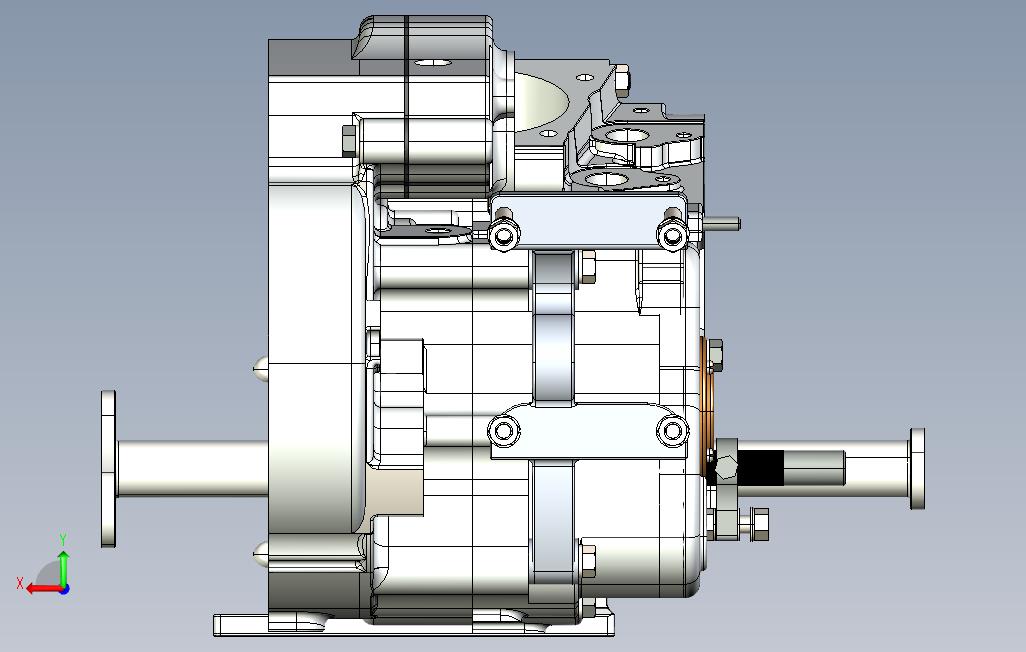

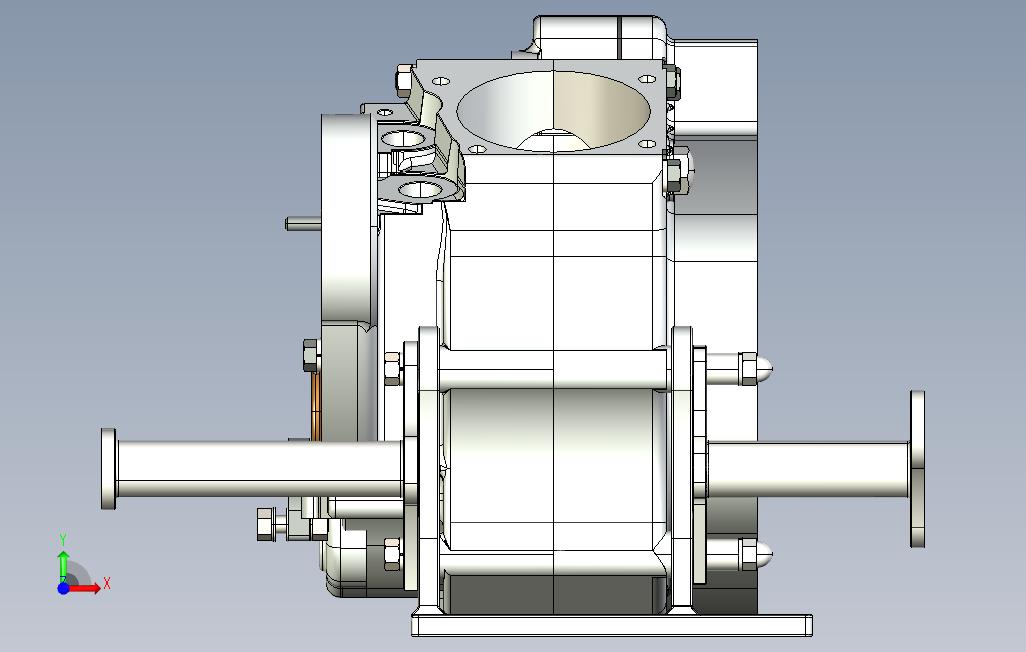

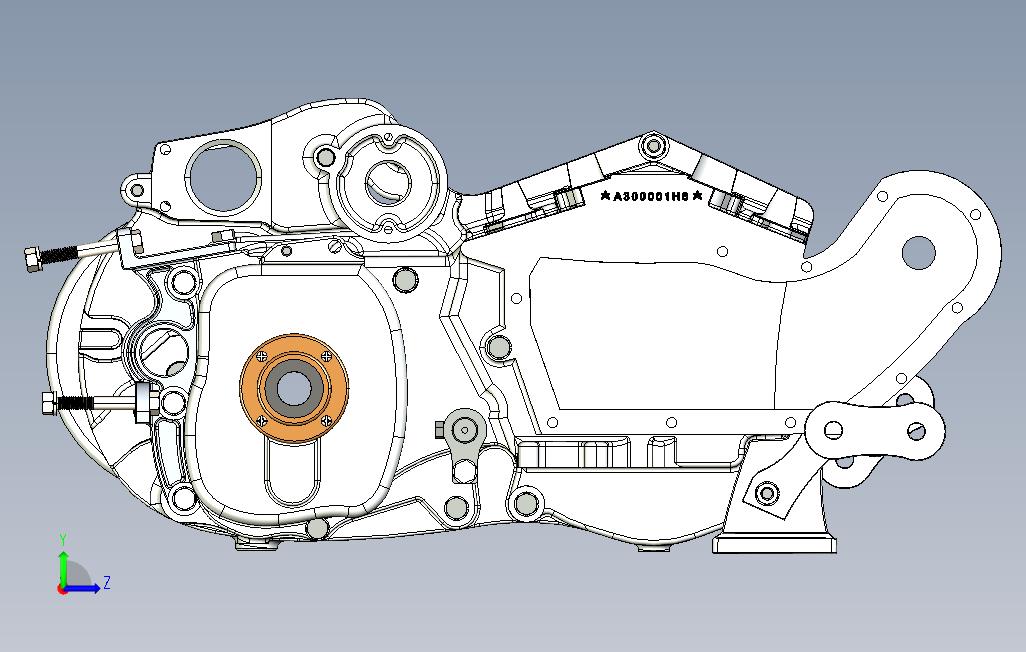

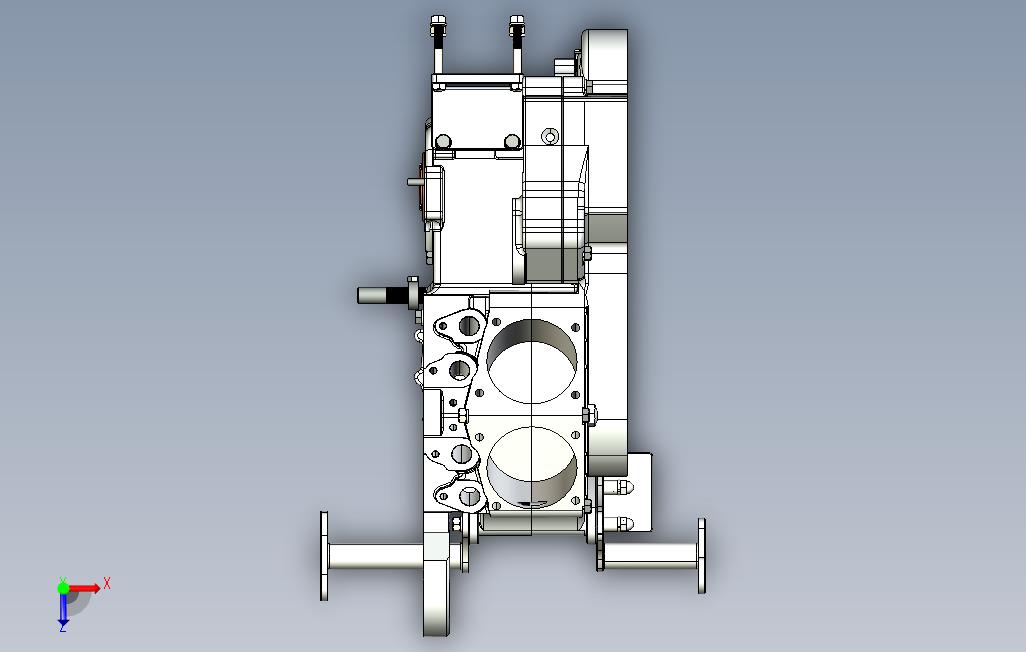

平面图

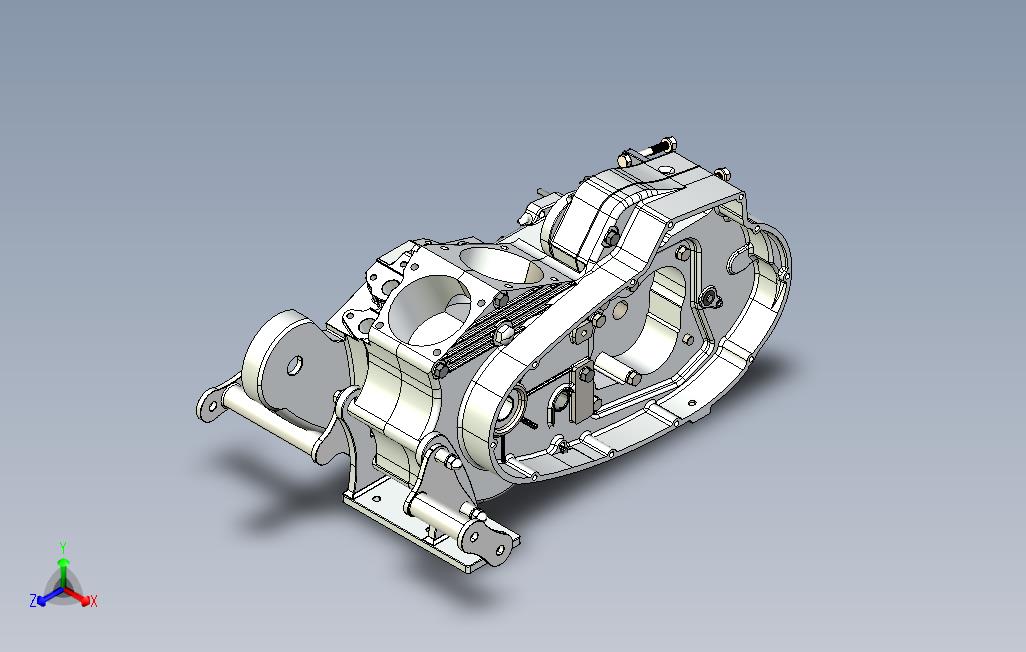

3D视图

文件列表

#	文件名称	文件大小
1	00C-Engine Casing-LEFT.prt	3.06M
2	00G-Engine Casing-RIGHT.prt	5.52M
3	00P-GASKET-Starter_Solenoid Gearcase Cover.prt	176.00K
4	00Q-Starter_Solenoid Gearcase Cover.prt	516.00K
5	00R13-Engine Casing Bolt-HBOLT 0.3125-18x4.5x0.875-S_HBOLT 0.3125-18x4.5x0.875-S.prt	248.00K
6	00R14-Engine Casing Bolt-HBOLT 0.3125-18x3x0.875-S_HBOLT 0.3125-18x4.5x0.875-S.prt	252.00K
7	00R15-Lockwasher-Engine Mounting Bolts-Regular LW 0.3125_Regular LW 0.3125.prt	96.00K
8	00R16-Hex Nut-Engine Mounting Bolt-HNUT 0.3125-18-D-S_HNUT 0.3125-18-D-S.prt	168.00K
9	00R17-Engine Casing Bolt-HBOLT 0.3125-18x4.75x0.875-S_HBOLT 0.3125-18x4.5x0.875-S.prt	248.00K
10	00R21-Front Mounting and Casing Bolt_Rods.prt	1.18M
11	00R22-HEX BOLT-Rear Engine Mounting Bracket-HBOLT 0.3125-18x2.5x2.5-S_HBOLT 0.3125-18x2.5x2.5-S.prt	504.00K
12	00R22b-HEX BOLT-Rear Engine Mounting Bracket-HBOLT 0.3125-18x2.25x.875-S_HBOLT 0.3125-18x2.25x0.875-S.prt	256.00K
13	00R23-HEX BOLT-Front Engine Mount Plate-HBOLT 0.3125-18x1.25x0.875-S_HBOLT 0.3125-18x1.25x0.875-S.prt	260.00K
14	00R7-Solenoid Housing Bolt-LEFT-HBOLT 0.3125-18x1.75x1.75-S_HBOLT 0.3125-18x1.75x1.75-S.prt	384.00K
15	00S5-Rear Engine Mounting Bracket.prt	944.00K
16	00S6-Front Engine Mounting Bracket.prt	428.00K
17	01-Mounting Acorn Nut-x4-ALCNUT 0.3125-18-S_ALCNUT 0.3125-18-S.prt	188.00K
18	01a-Lockwasher-Forward Control mounts-Regular LW 0.3125_Regular LW 0.3125.prt	96.00K
19	02-Mounting Small Spacer-X2.prt	96.00K
20	04-Left Forward Control Mount.prt	252.00K
21	12-Right Forward Control Mount.prt	216.00K
22	Engine Casing Assembly.STEP	25.65M
23	fadongjiwaike.prt	192.00K
