B2000反V型鼓形调心托辊组整套图纸CAD_AutoCAD 2004_模型图纸下载

首页

图库

工程师

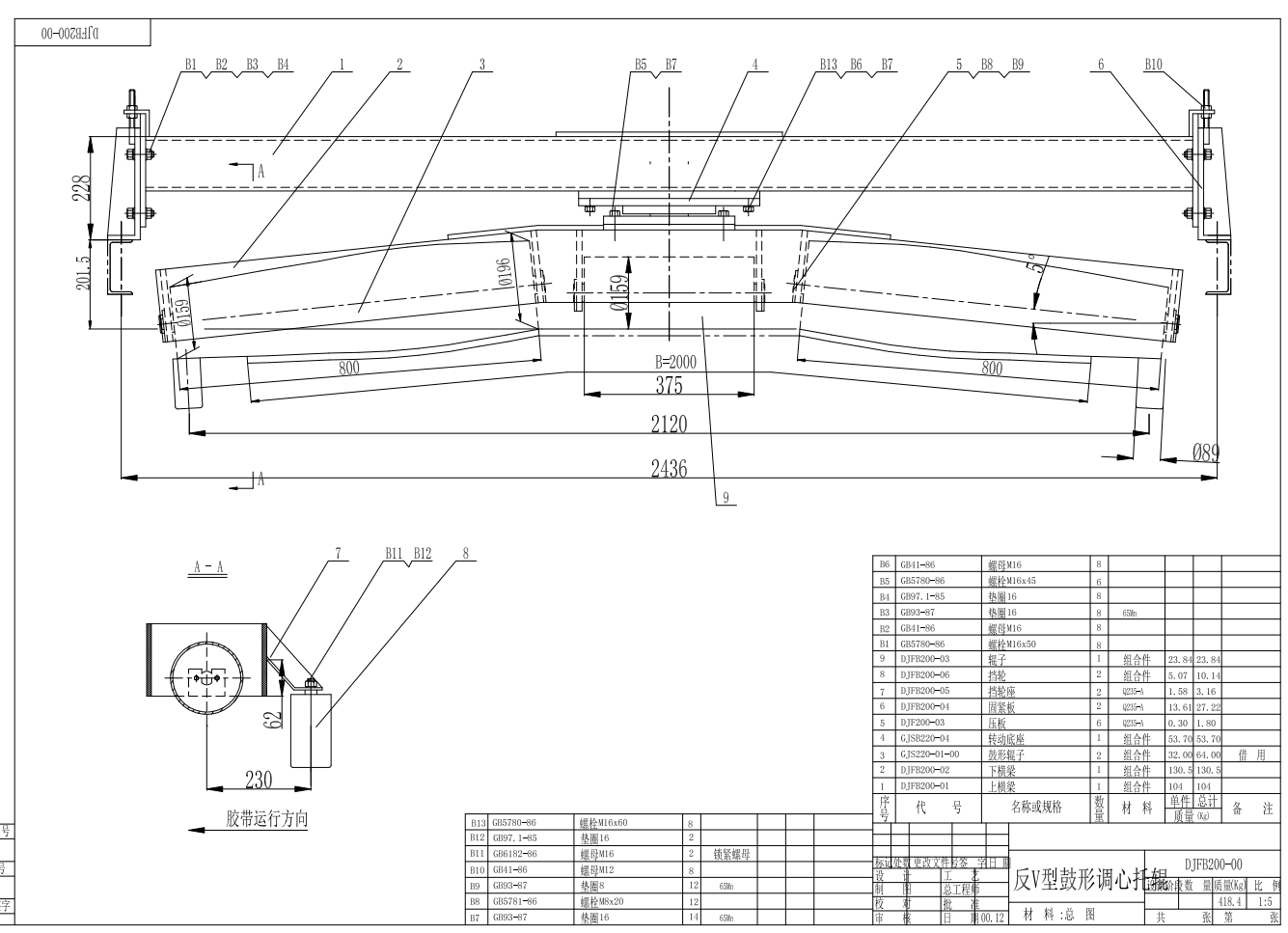

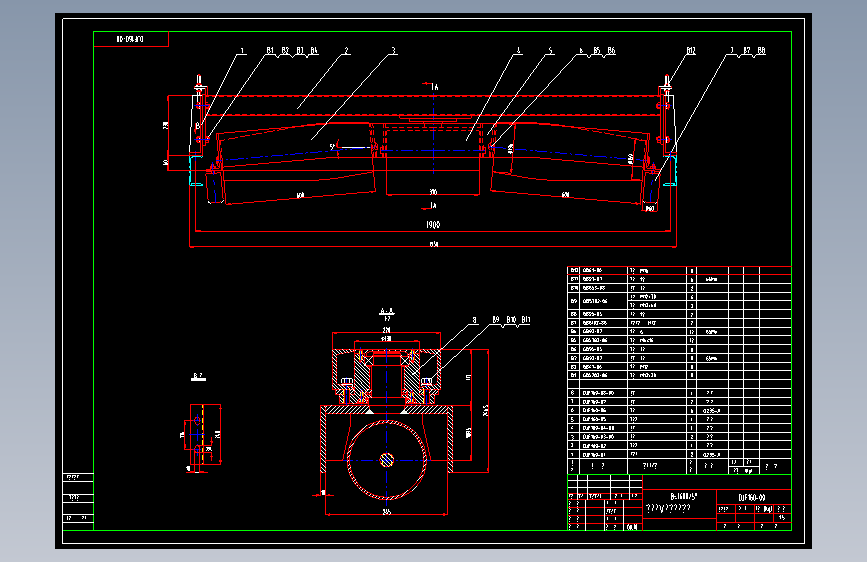

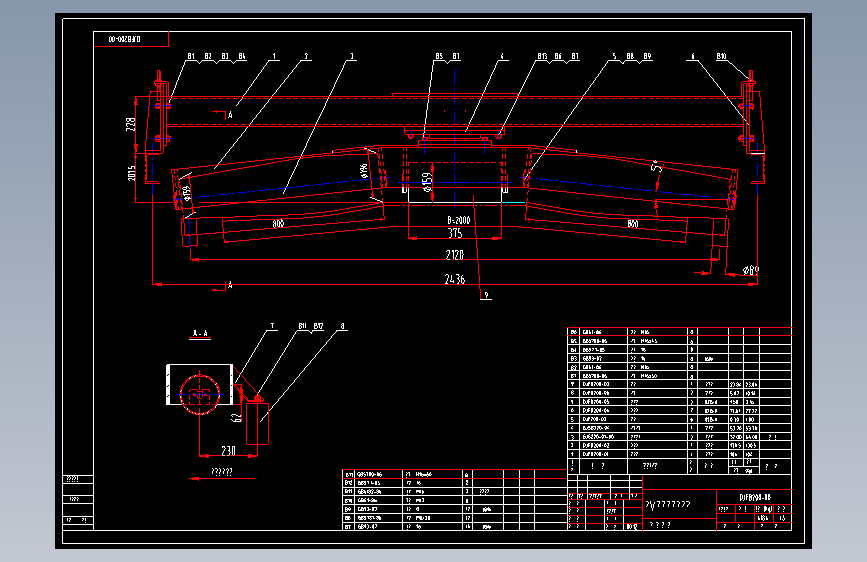

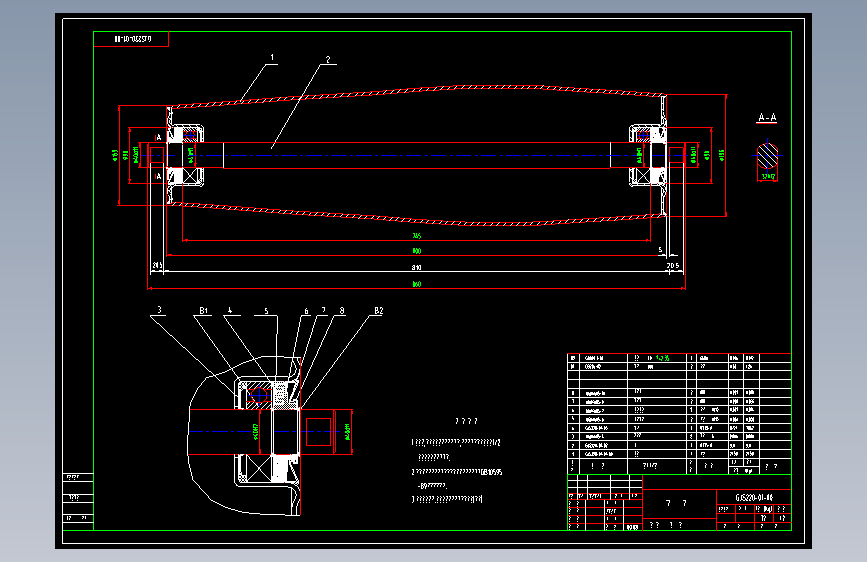

B2000反V型鼓形调心托辊组整套图纸CAD（ID:989704）

机械设备 / 非标机械 / B2000反V型鼓形调心托辊组整套图纸CAD

©非原创

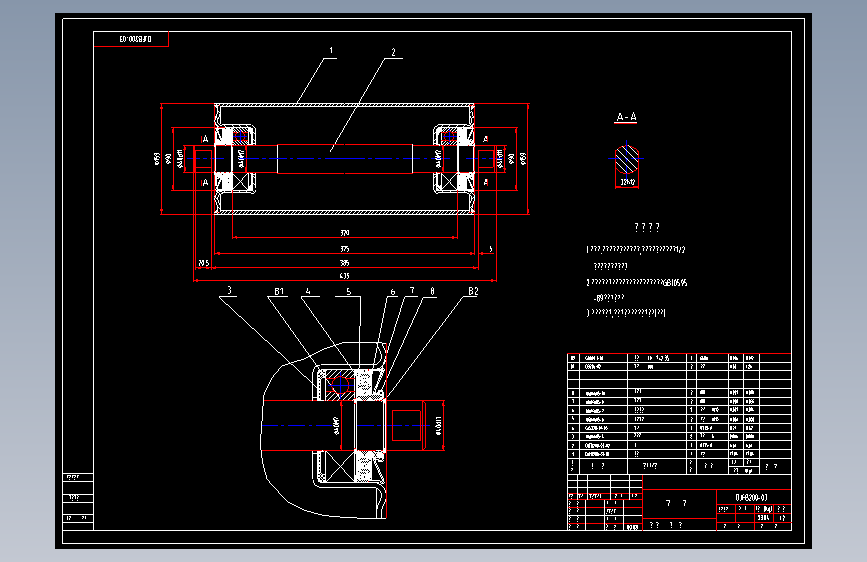

平面图

3D视图

文件列表

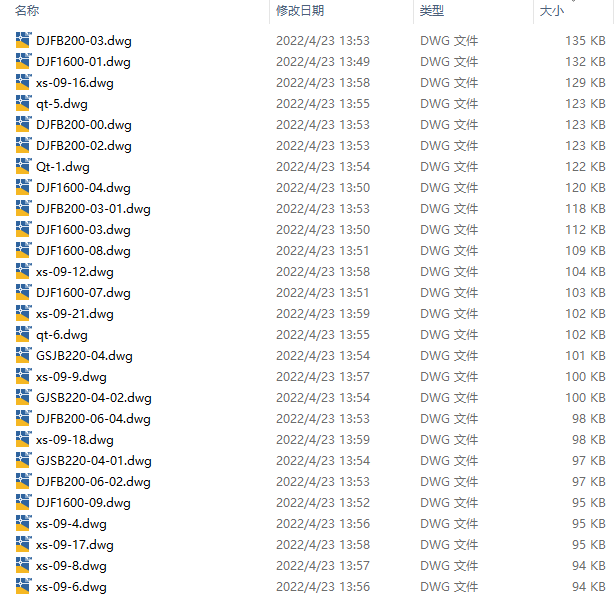

#	文件名称	文件大小
1	17094716613868.zip	4.40M

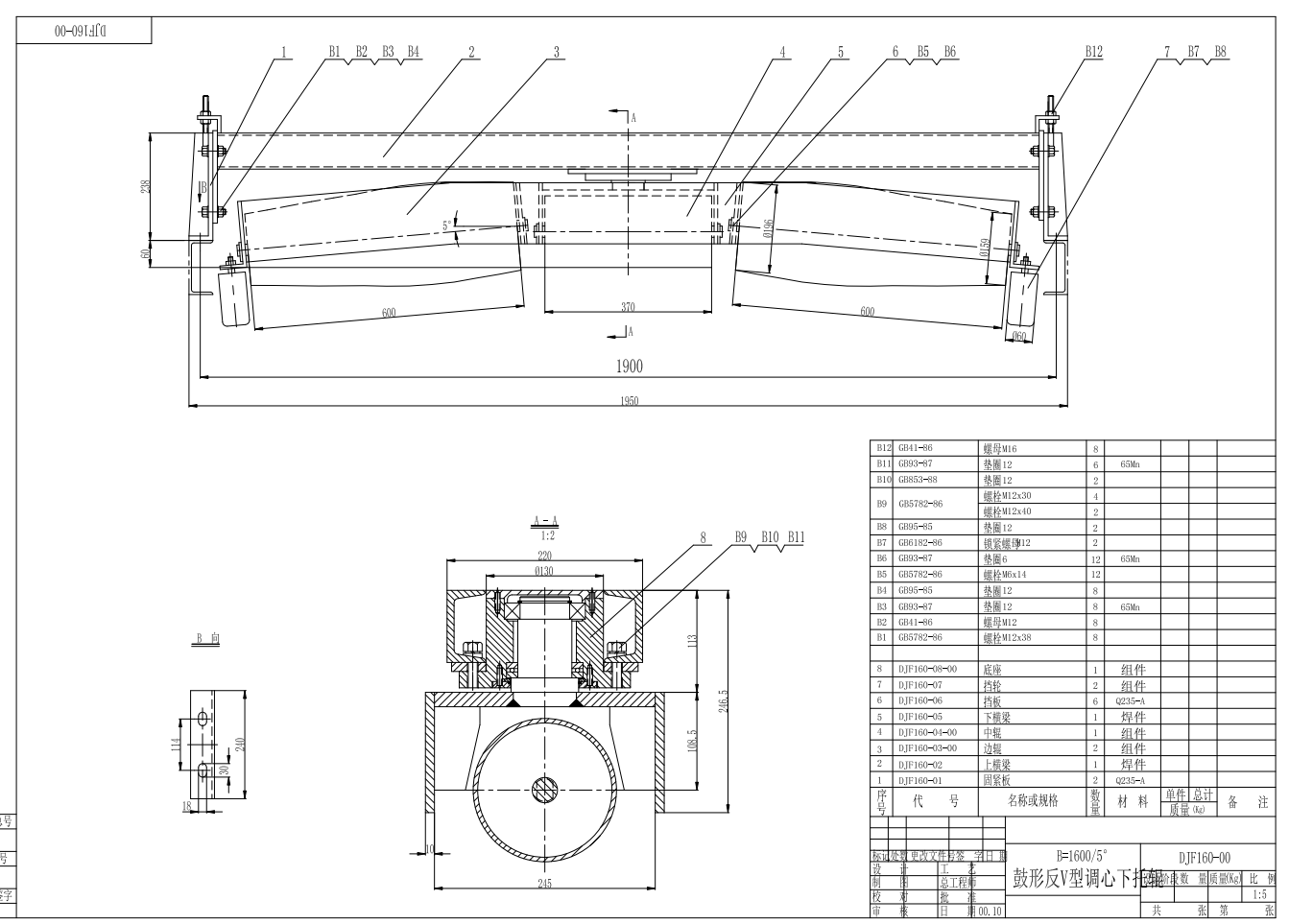

2	下托辊.png	175.35K
3	微信截图_20230825203420.png	49.08K

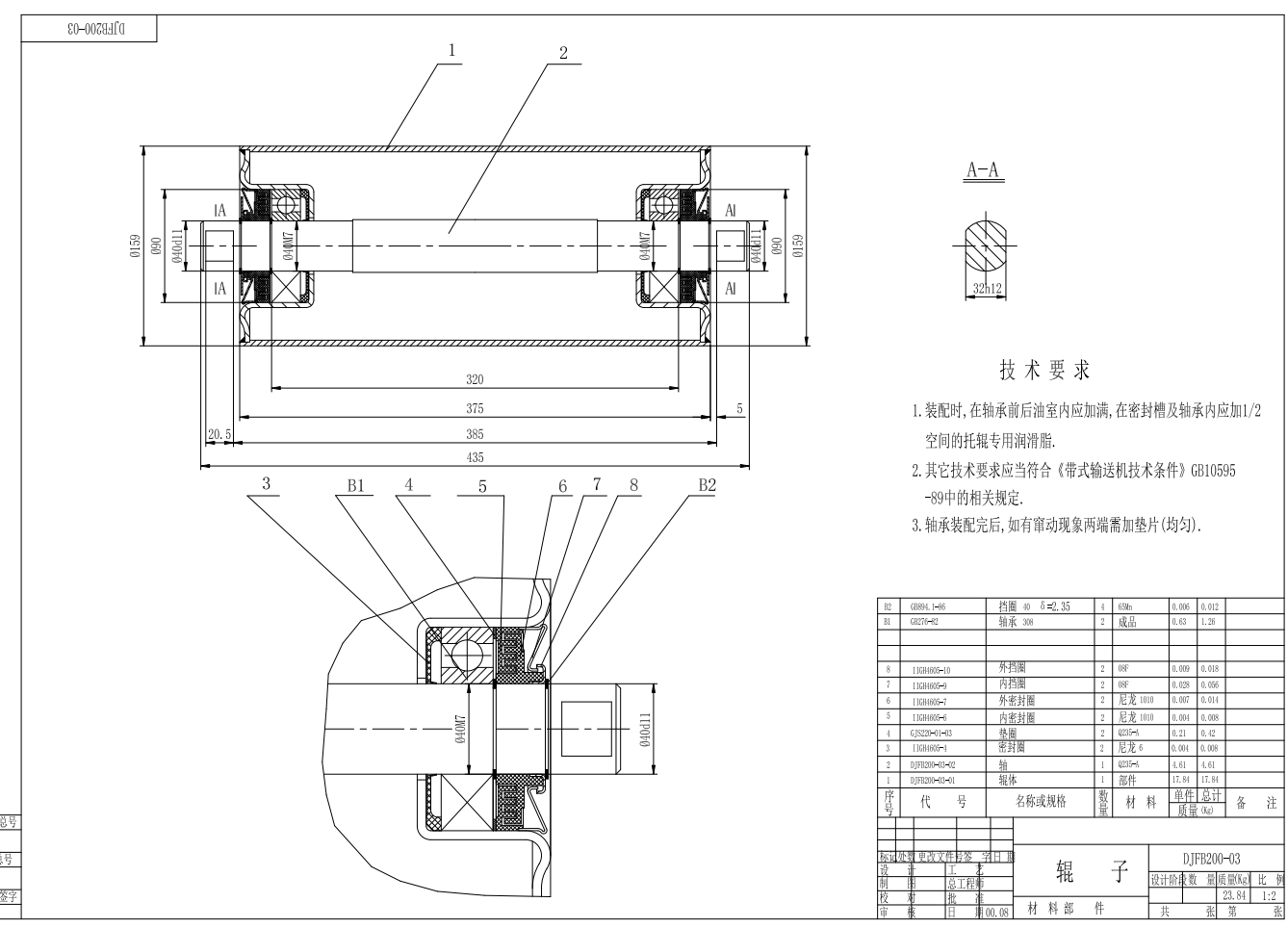

4	棍子.png	169.20K
5	调心托辊.png	185.40K

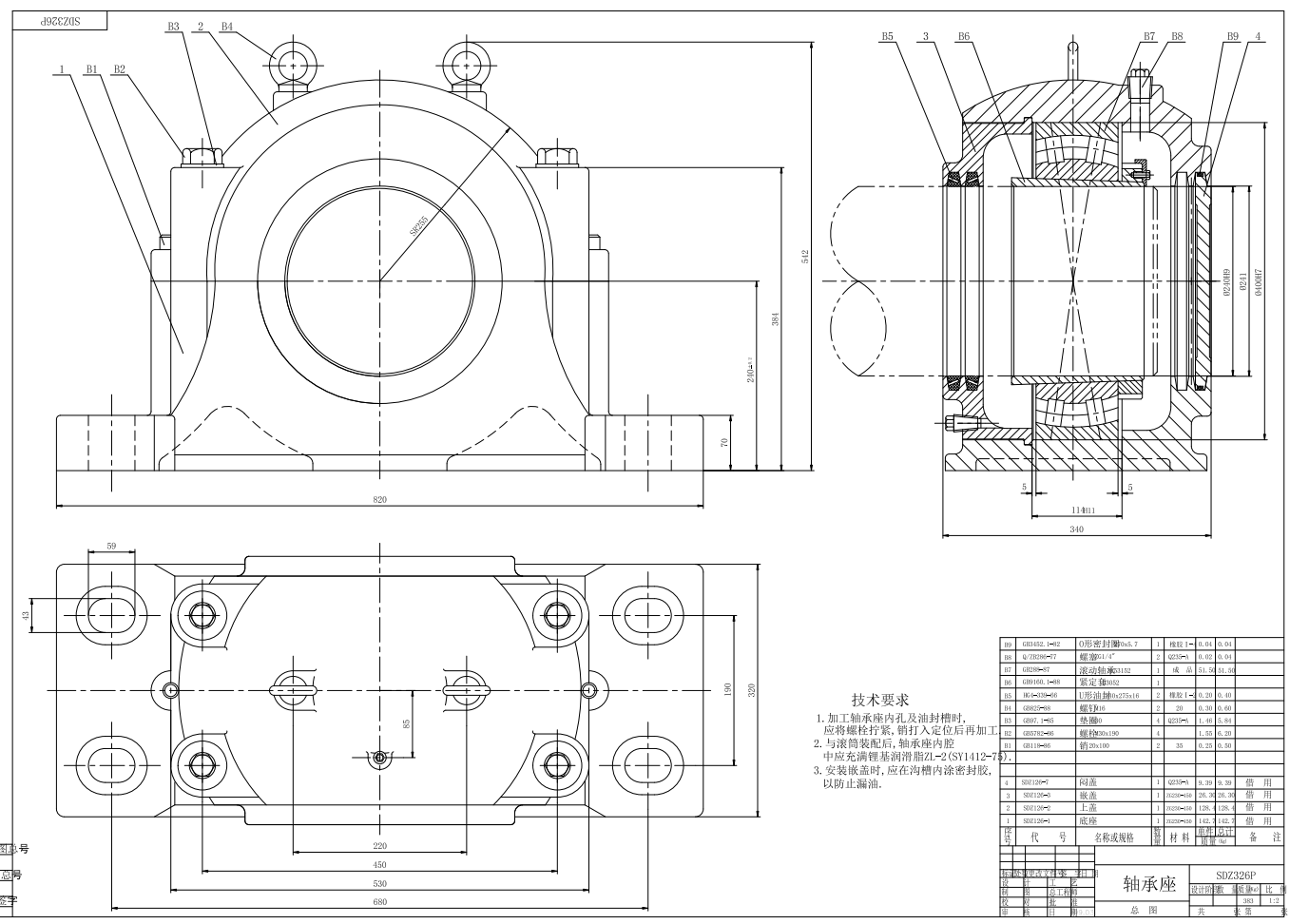

6	轴承座.png	204.49K
7	220-1.dwg	72.21K
8	DJA200-00.dwg	67.10K
9	DJA200-01.dwg	84.53K
10	DJA200-02.dwg	49.16K
11	DJA200-03-01.dwg	44.64K
12	DJA200-03-02.dwg	59.76K
13	DJA200-03-03.dwg	43.83K
14	DJA200-03-04.dwg	60.97K
15	DJA200-03.dwg	71.04K
16	DJF1600-01.dwg	131.00K
17	DJF1600-02.dwg	90.35K
18	DJF1600-03.dwg	111.25K
19	DJF1600-04.dwg	119.00K
20	DJF1600-05.dwg	92.03K
21	DJF1600-06.dwg	86.62K
22	DJF1600-07.dwg	102.75K
23	DJF1600-08.dwg	108.91K
24	DJF1600-09.dwg	94.81K
25	DJF1600-10.dwg	71.28K
26	dJF1600-11.dwg	88.24K
27	dJF1600-12.dwg	43.36K
28	dJF1600-13.dwg	56.14K
29	DJF1600-14.dwg	55.25K
30	dJF1600-15.dwg	46.28K
31	DJFB200-00.dwg	122.42K
32	DJFB200-01.dwg	48.52K
33	DJFB200-02.dwg	122.32K
34	DJFB200-03-01.dwg	117.06K
35	DJFB200-03-02.dwg	81.45K
36	DJFB200-03.dwg	134.67K
37	DJFB200-04.dwg	83.39K
38	DJFB200-05.dwg	85.38K
39	DJFB200-06-01.dwg	81.39K
40	DJFB200-06-02.dwg	96.25K
41	DJFB200-06-03.dwg	81.46K
42	DJFB200-06-04.dwg	97.62K
43	DJFB200-06.dwg	92.29K
44	GJSB220-04-01.dwg	96.84K
45	GJSB220-04-02.dwg	99.83K
46	GSJB220-04.dwg	100.59K
47	Qt-1.dwg	121.69K
48	qt-2.dwg	78.80K
49	qt-3.dwg	65.04K
50	qt-4.dwg	44.12K
51	qt-5.dwg	122.50K
52	qt-6.dwg	101.05K
53	xs-09-1.dwg	56.50K
54	xs-09-10.dwg	89.09K
55	xs-09-11.dwg	86.58K
56	xs-09-12.dwg	103.28K
57	xs-09-13.dwg	79.23K
58	xs-09-16.dwg	128.52K
59	xs-09-17.dwg	94.50K
60	xs-09-18.dwg	97.28K
61	xs-09-19.dwg	82.85K
