排插收纳盒注模具设计-一模两腔-模流三维+CAD+说明（ID:993740）

生活办公 / 生活用品 / 排插收纳盒注模具设计-一模两腔-模流三维+CAD+说明

©非原创

平面图

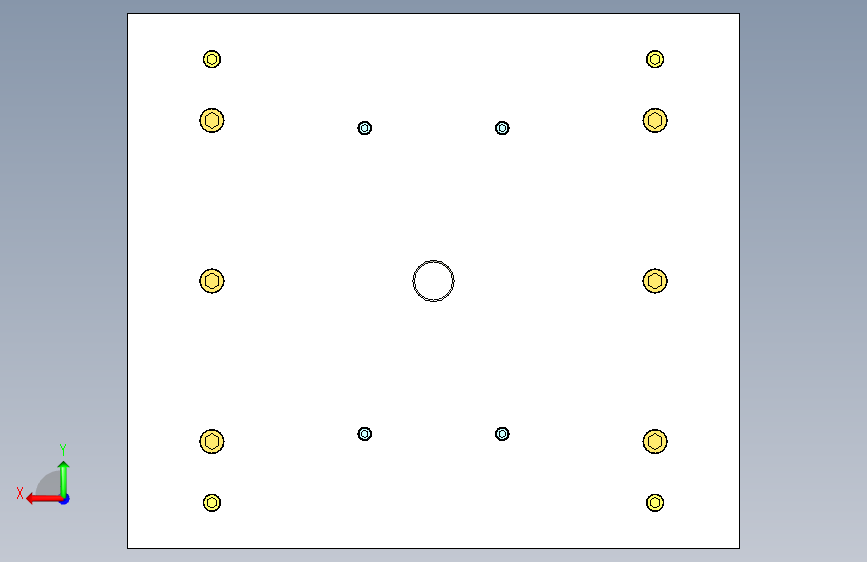

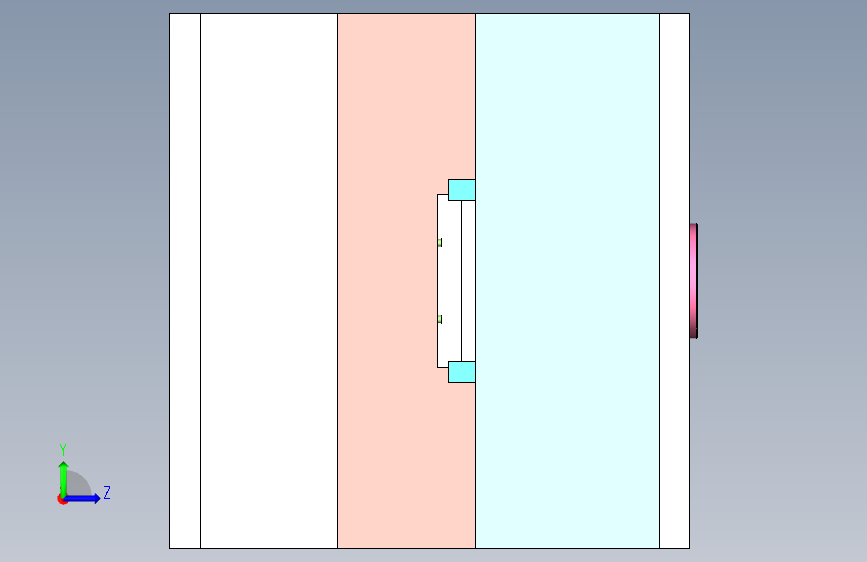

3D视图

文件列表

#	文件名称	文件大小
1	17094815714584.zip	180.37M

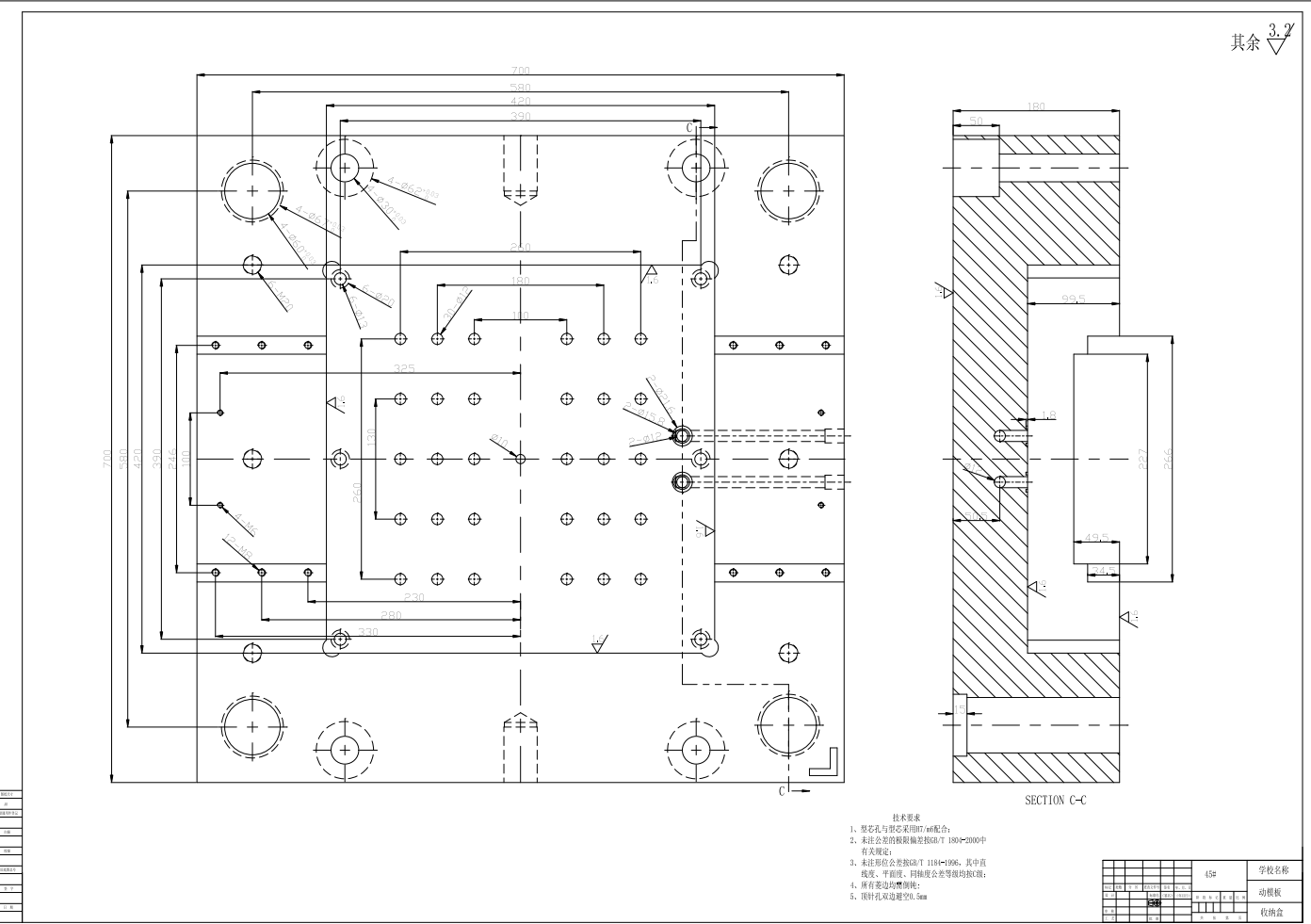

2	A-动模板.png	137.74K

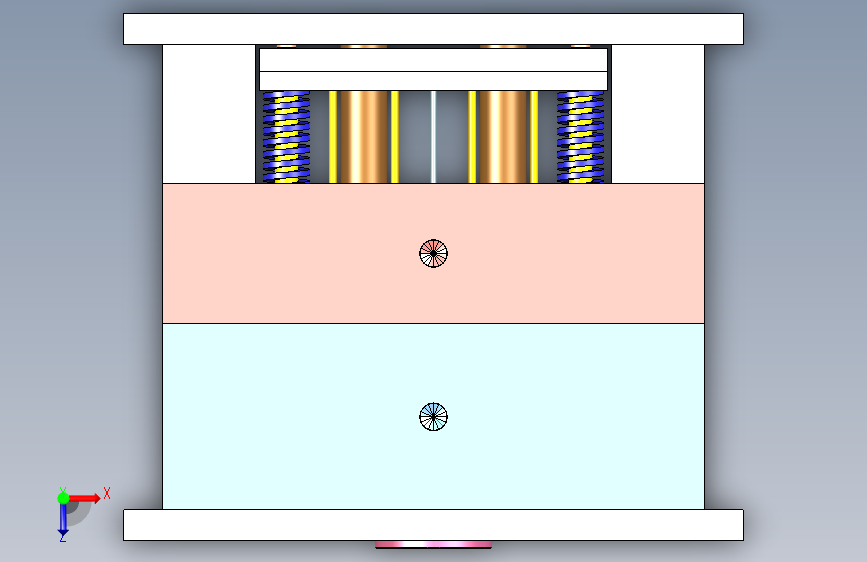

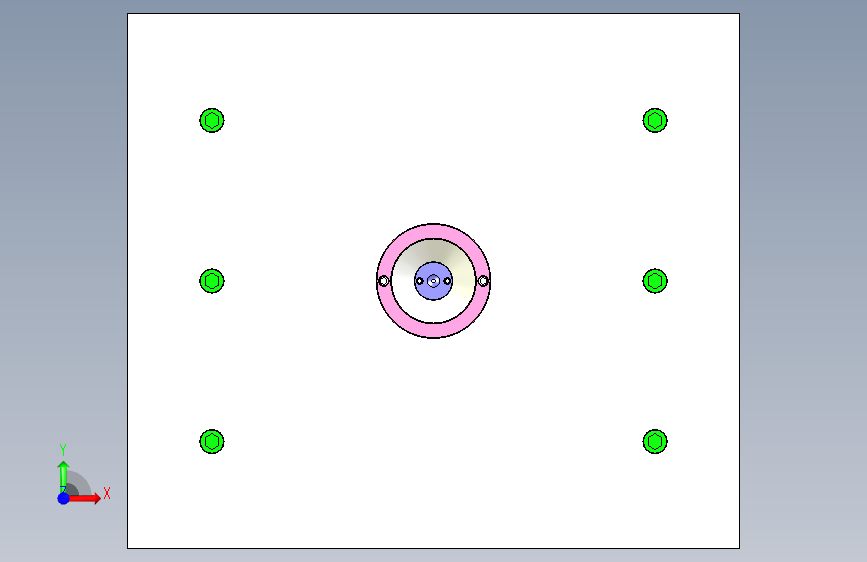

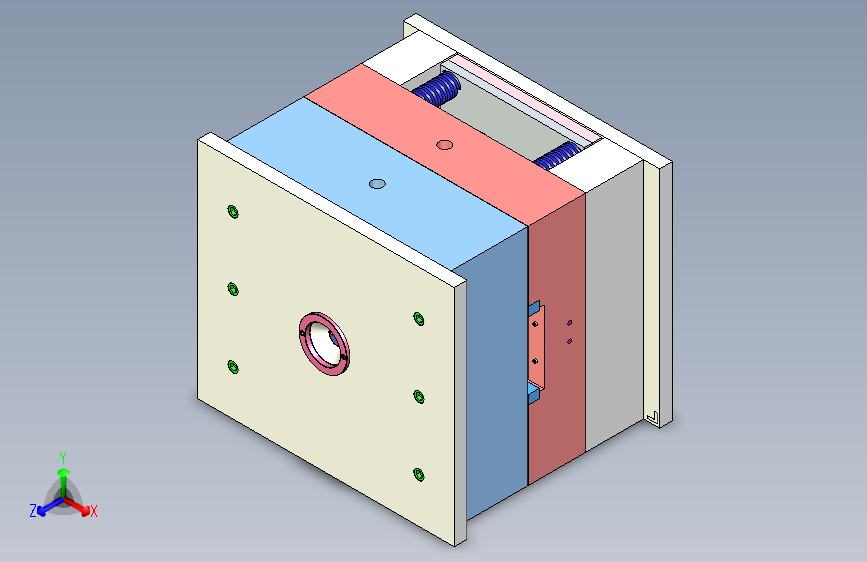

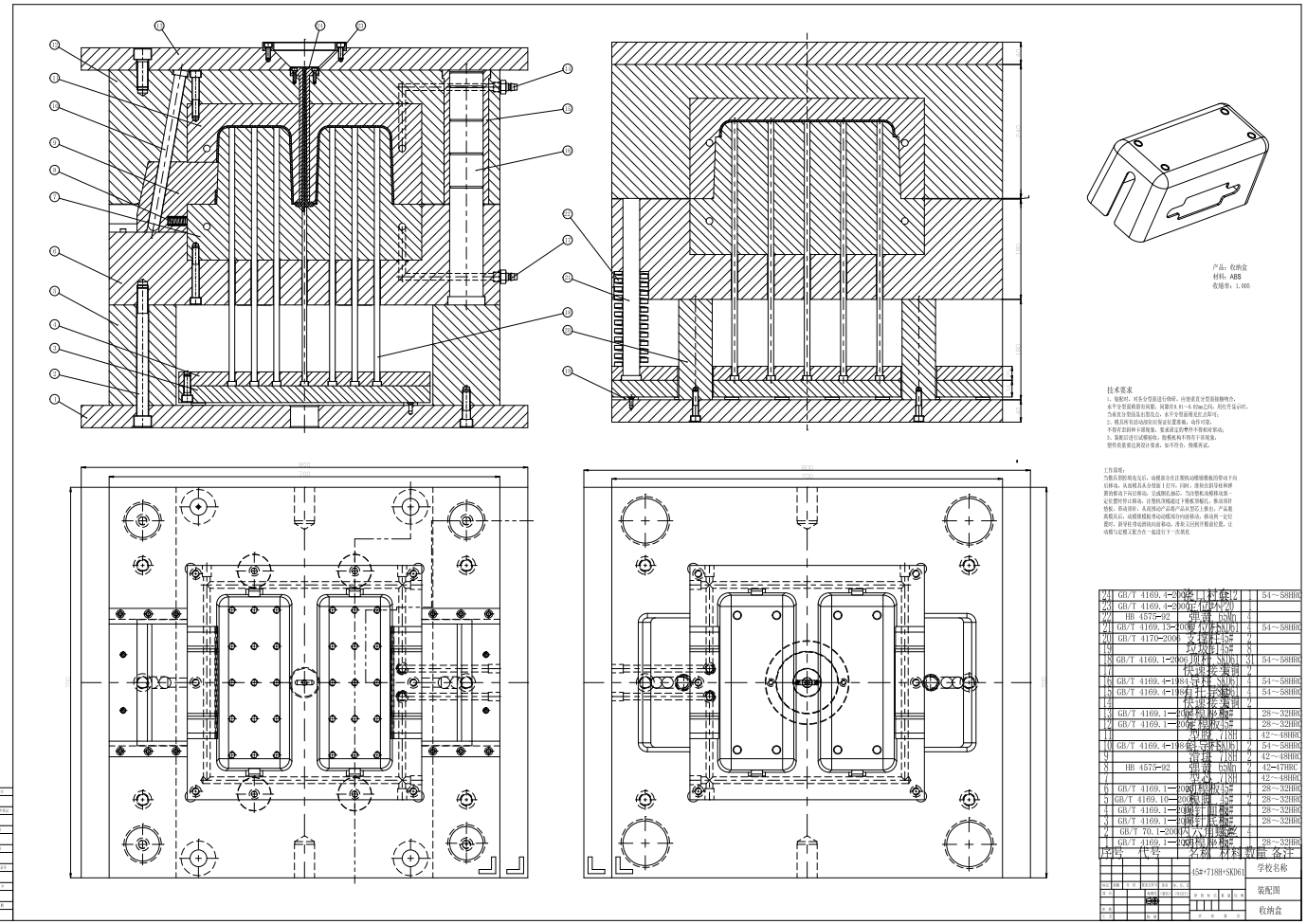

3	A-装配图.png	326.30K

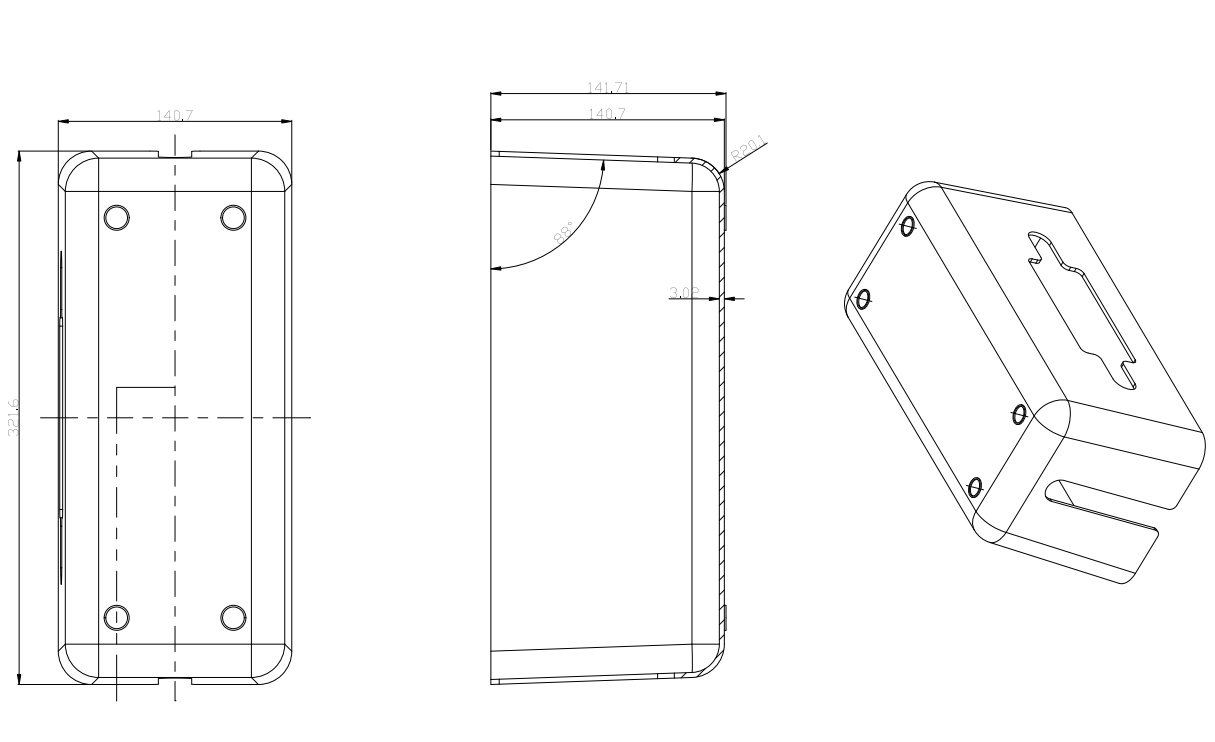

4	产品.png	70.43K

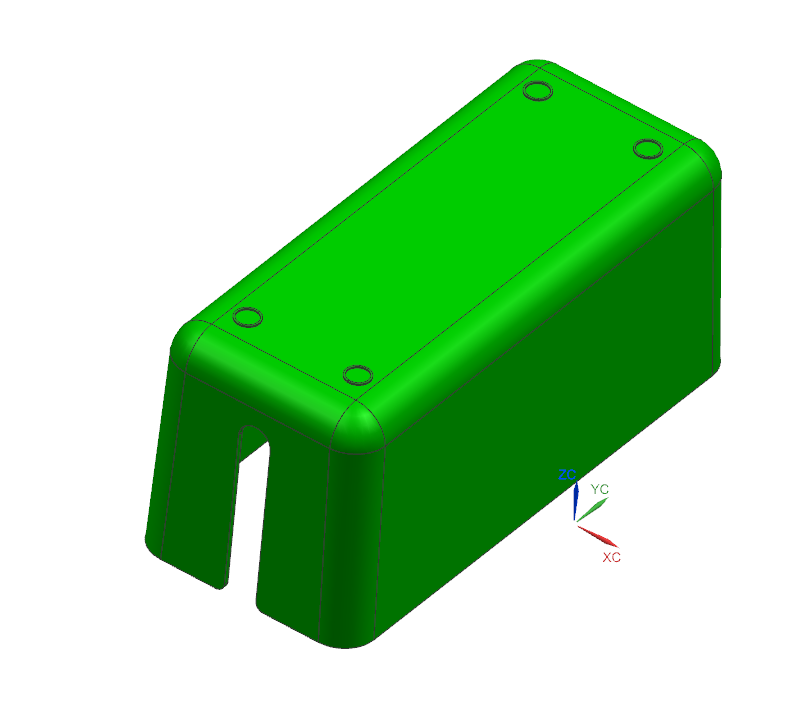

5	产品前面.png	52.91K
6	微信截图_20230816200256.png	29.22K
7	微信截图_20230816200310.png	3.43K

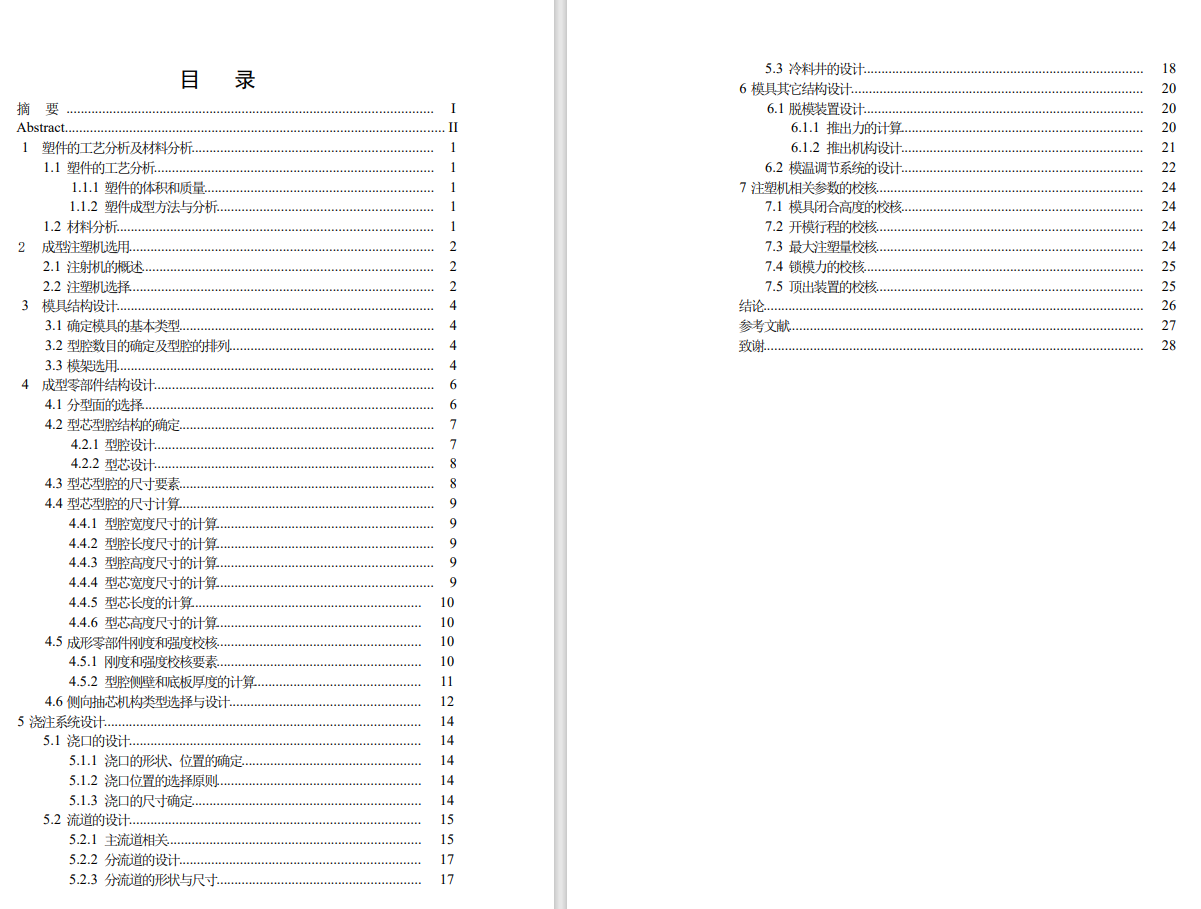

8	说明书目录.png	193.90K
9	上模板.dwg	74.50K
10	下模板.dwg	80.75K
11	全部图纸.dwg	458.22K
12	动模板.dwg	95.94K
13	型腔.dwg	100.19K
14	型芯.dwg	85.75K
15	塑件图-排插收纳盒模具设计-一模两腔-模流分析.dwg	77.13K
16	定位环.dwg	68.53K
17	定模板.dwg	94.19K
18	模具设计答辩.ppt	785.00K
19	滑块.dwg	76.63K
20	装配图.dwg	208.94K
21	说明书.docx	1.02M
22	UG三维图.prt	6.40M
23	shounahe_study.sdy	2.58M
24	shounahe_study1.crc	740B
25	shounahe_study1.die	695B
26	shounahe_study1.err	25B
27	shounahe_study1.fpo	2.71K
28	shounahe_study1.lsp	17.76M
29	shounahe_study1.of1	56.69M
30	shounahe_study1.of2	12.07K
31	shounahe_study1.op2	51.11M
32	shounahe_study1.out	10.47K
33	shounahe_study1.ppc	3.71M
34	shounahe_study1.rfn	1B
35	shounahe_study1.rsp	242.85M
36	shounahe_study1.smk	259.55K
37	shounahe_study2Check.rfn	1B
38	shounahe_study3User.rfn	1B
39	shounahe_study4Doe.rfn	1B
40	shounahe_study5Mesh.crc	163B
41	shounahe_study5Mesh.of1	2.95K
42	shounahe_study5Mesh.out	874B
43	shounahe_study5Mesh.rfn	1B
44	shounahe_study6.crc	151B
45	shounahe_study6.lsp	17.76M
46	shounahe_study6.out	1.06K
47	shounahe_study6.ow3	3.12M
48	shounahe_study6.rfn	1B
49	shounahe_study7Check.rfn	1B
50	____.rpt	5.23K
51	收纳盒.mpi	155B
52	anim_item_template.htm	197B
53	avi_item_template.htm	265B
54	background.gif	185B
55	bullet.gif	36B
56	coverpic.gif	3.55K
57	filelist.htm	410B
58	image_item_template.htm	170B
59	item_layout_template.htm	161B
60	logo.gif	5.70K
61	logo_autodesk.gif	1.10K
62	report.htm	650B
63	reports.css	1.66K
64	report_bkgd.jpg	1.13K
65	report_contents.htm	14.77K
66	report_cover.htm	1.13K
67	report_logo.gif	3.55K
68	report_mso_sum.htm	85B
69	report_sample.gif	949B
70	report_toc.htm	4.81K
71	summary_item_template.htm	235B
72	text_item_template.htm	183B
73	toc_item_template.htm	124B

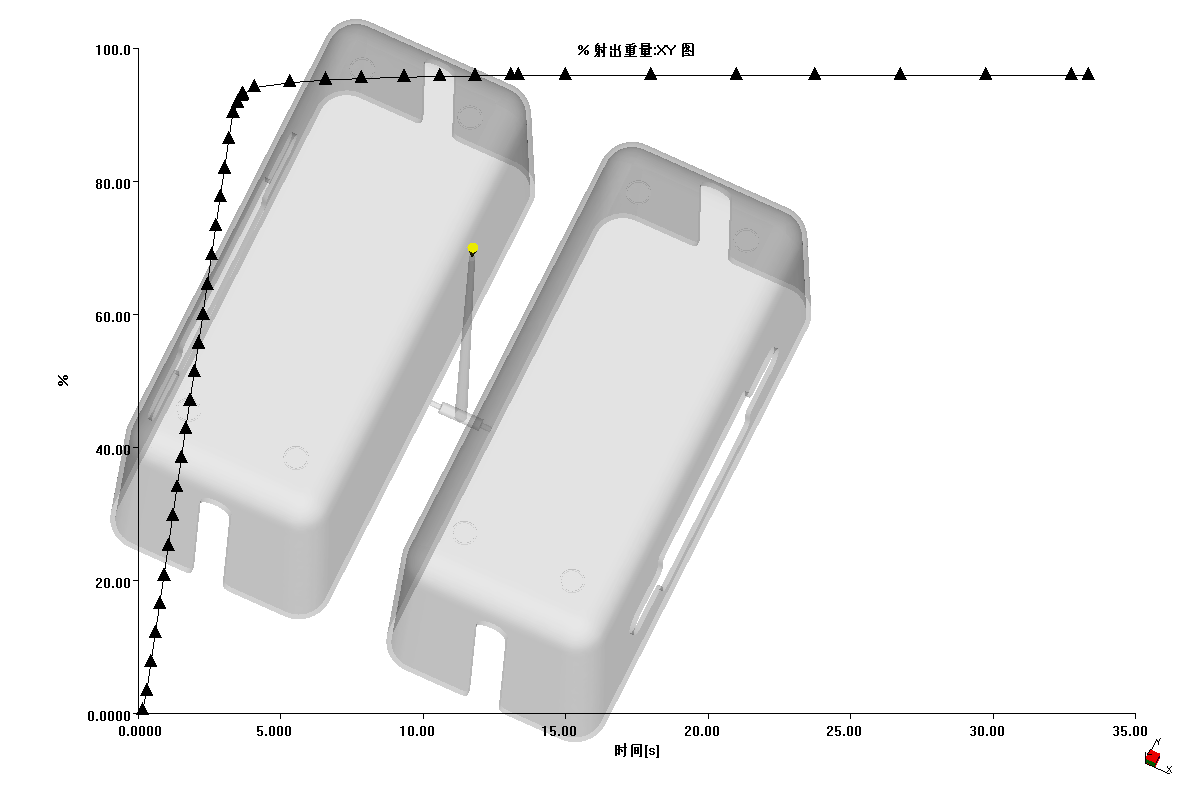

74	shounahe_study_射出重量XY_图1.gif	69.06K

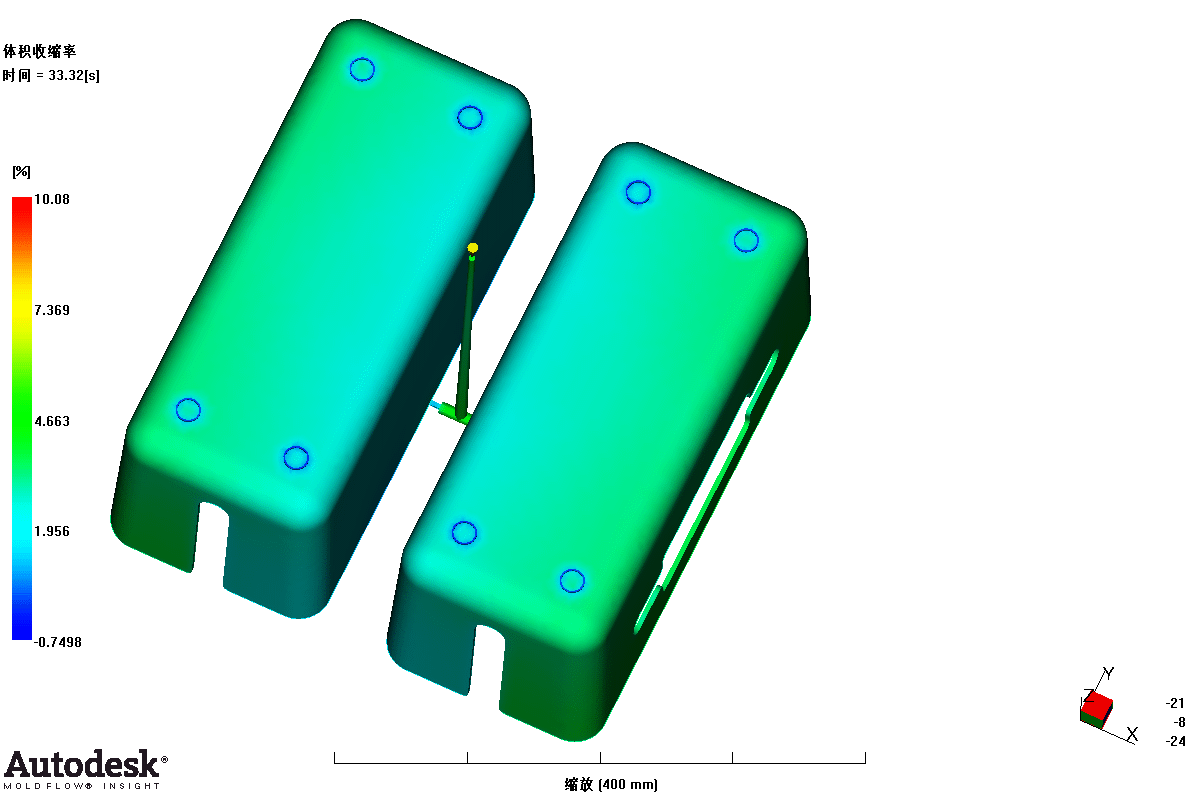

75	shounahe_study体积收缩率1.gif	131.21K

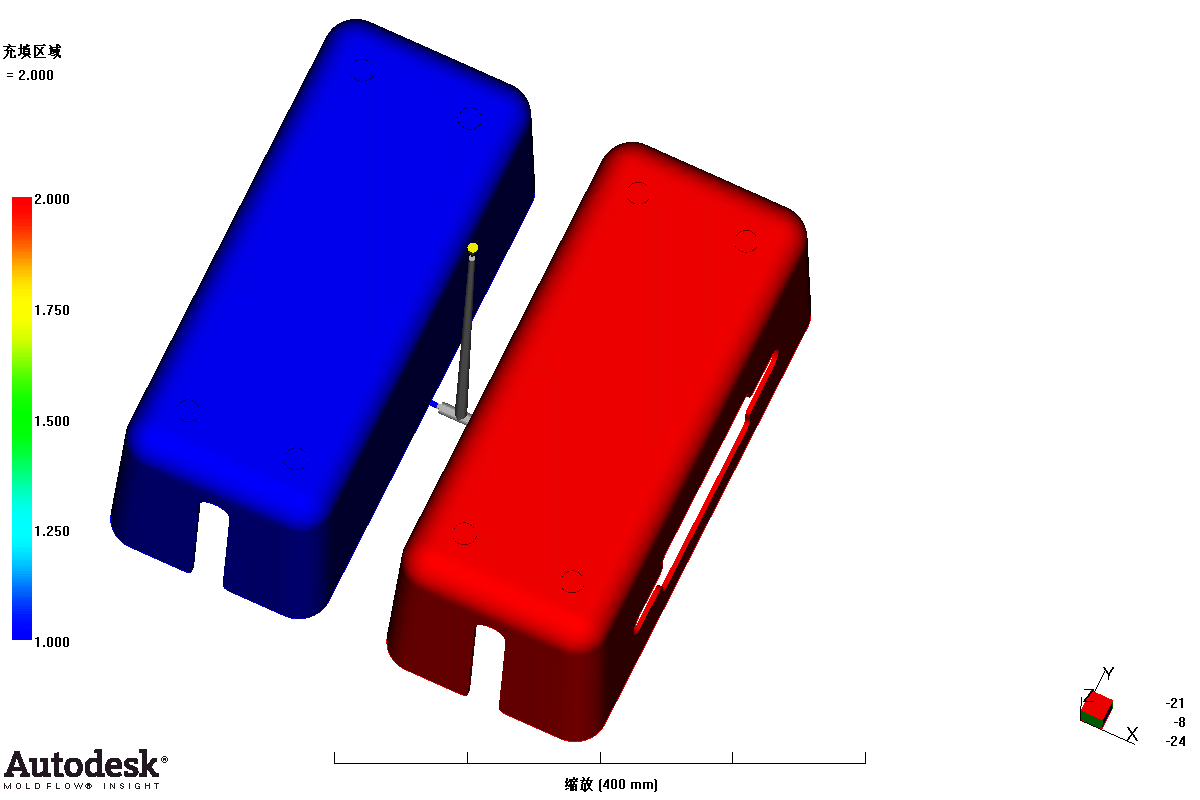

76	shounahe_study充填区域1.gif	87.03K
77	shounahe_study充填区域2.gif	1.80M

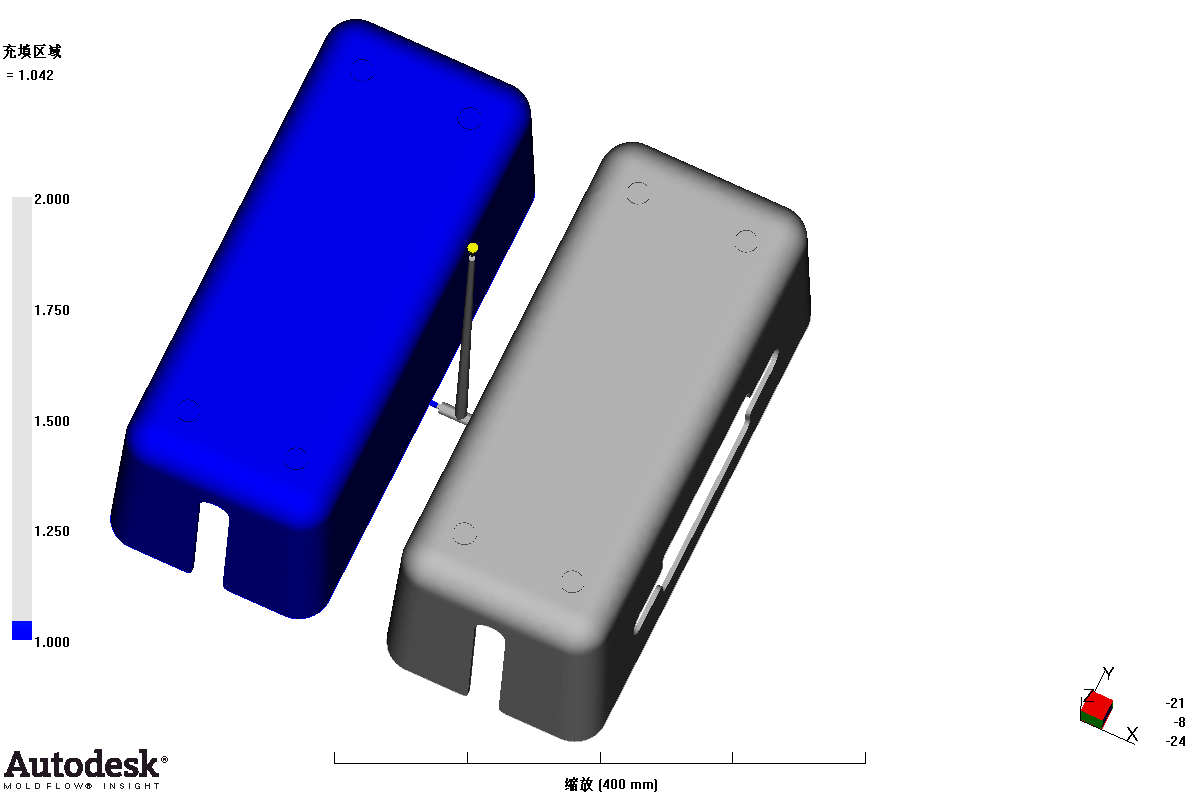

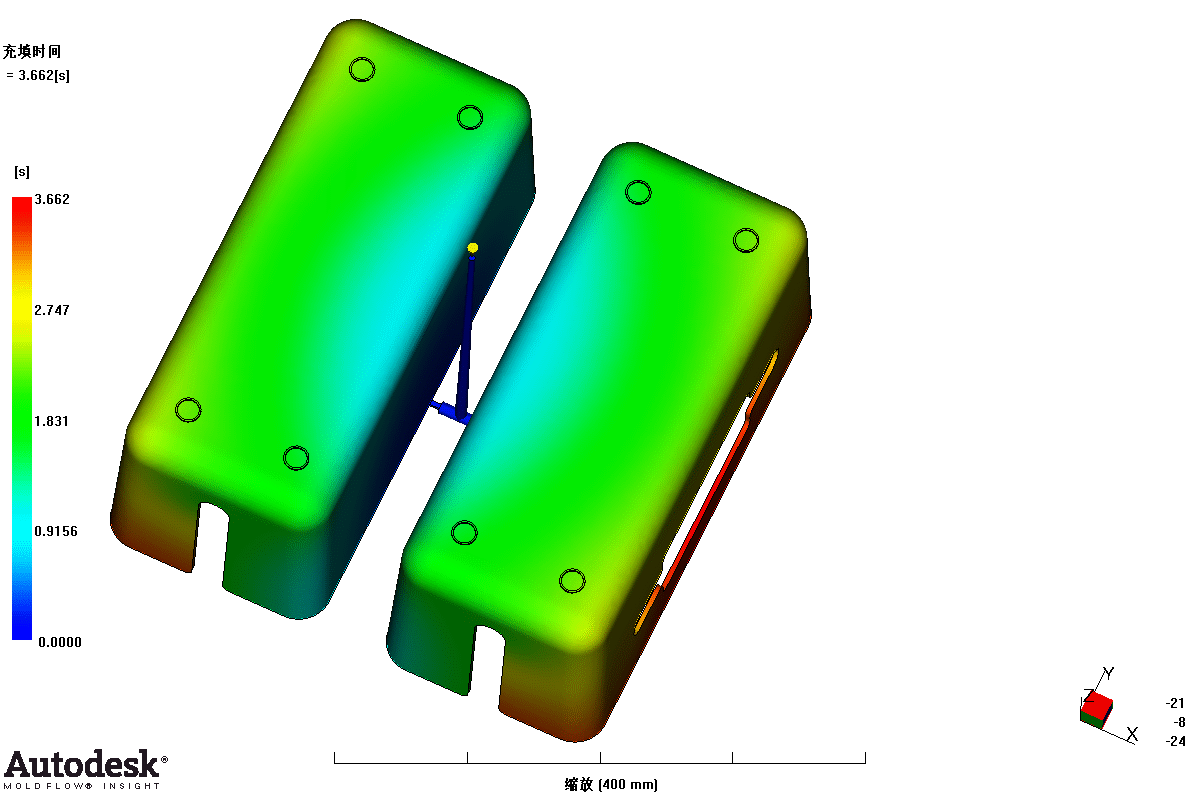

78	shounahe_study充填时间1.gif	131.75K
79	shounahe_study充填时间2.gif	2.37M
80	shounahe_study冻结层因子1.gif	79.32K
81	shounahe_study分析日志.txt	740B
82	shounahe_study剪切速率，体积1.gif	80.64K
83	shounahe_study压力1.gif	79.87K

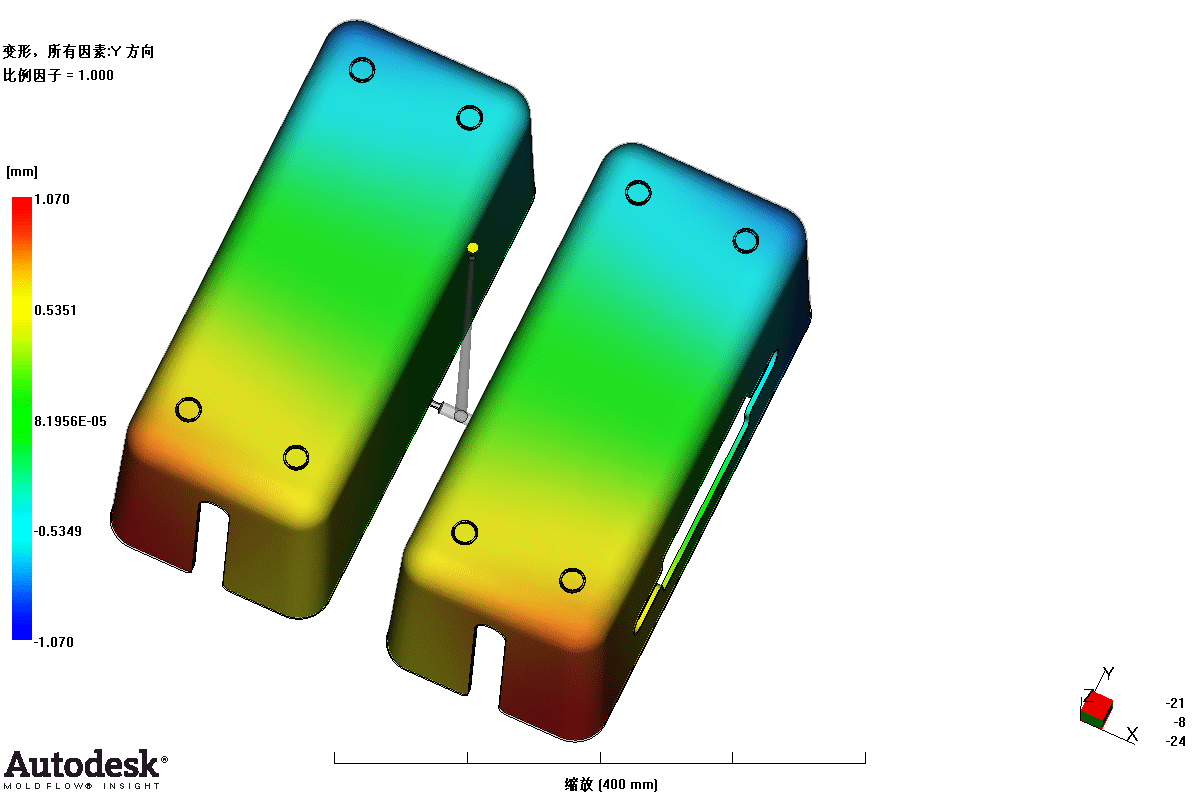

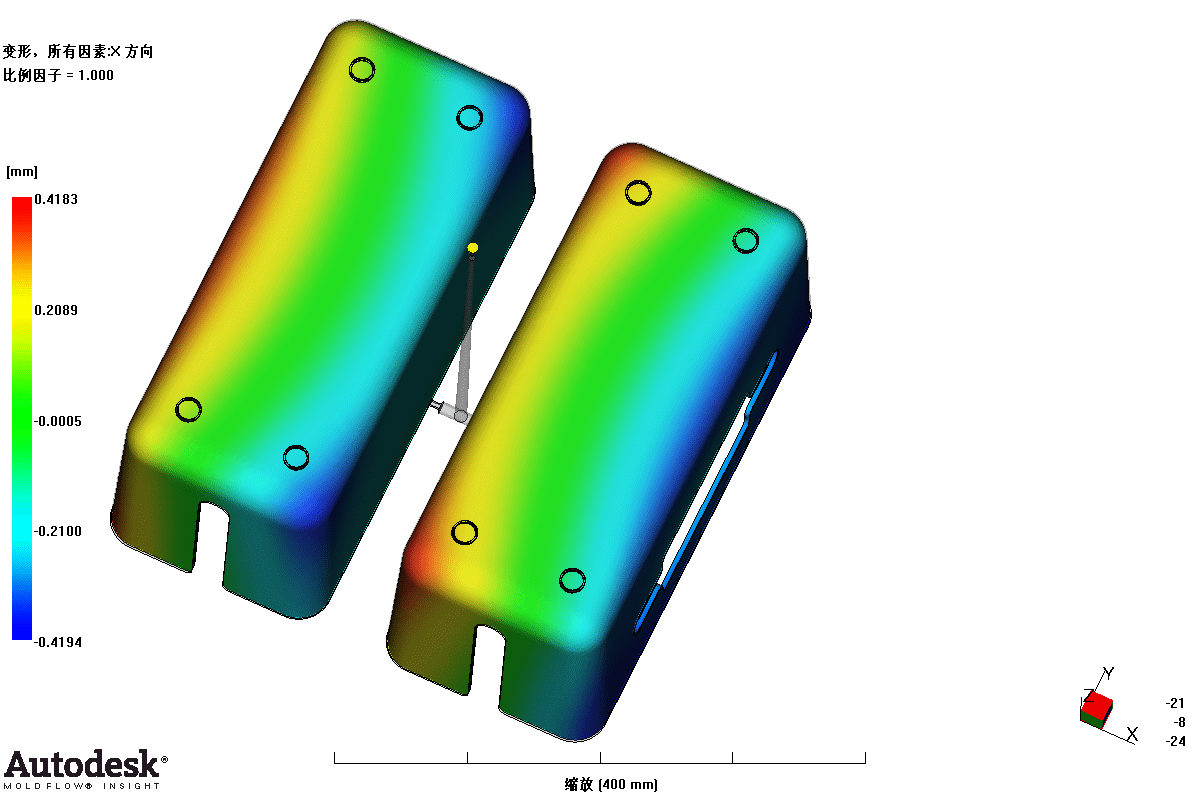

84	shounahe_study变形，所有因素X_方向1.gif	136.65K
85	shounahe_study变形，所有因素Y_方向1.gif	125.86K

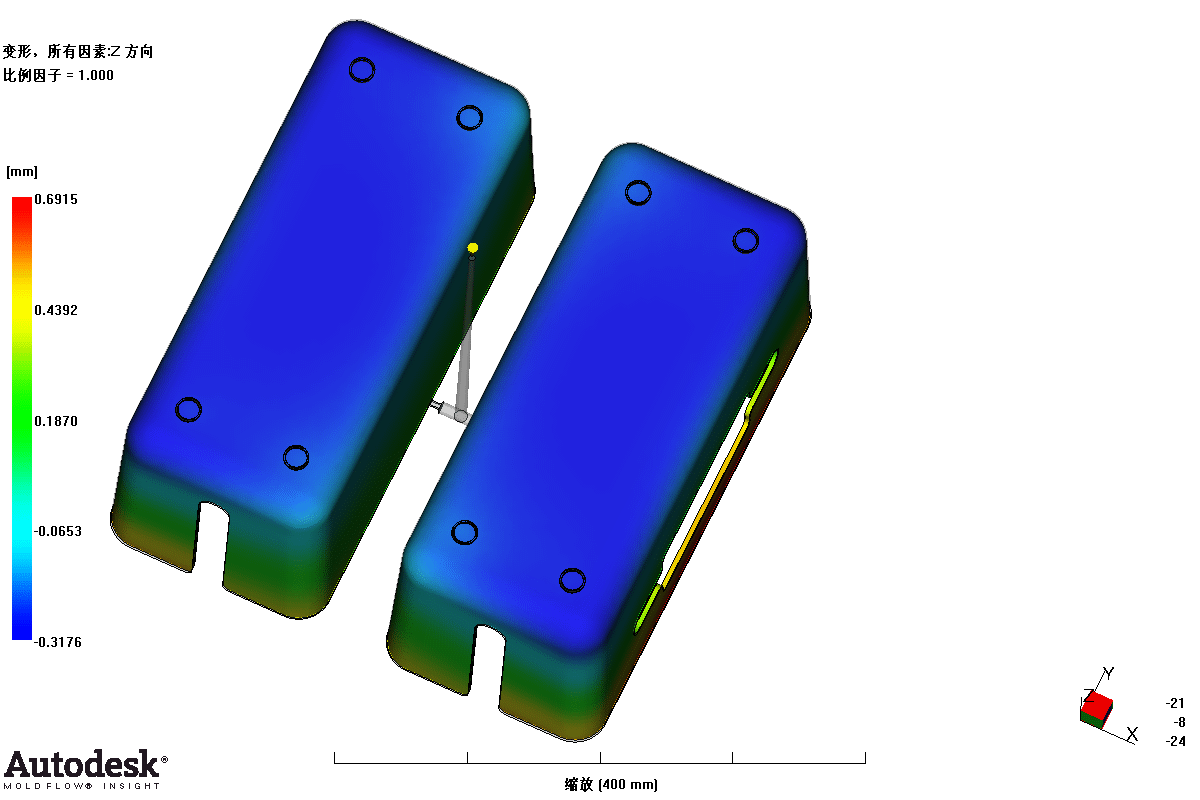

86	shounahe_study变形，所有因素Z_方向1.gif	120.83K

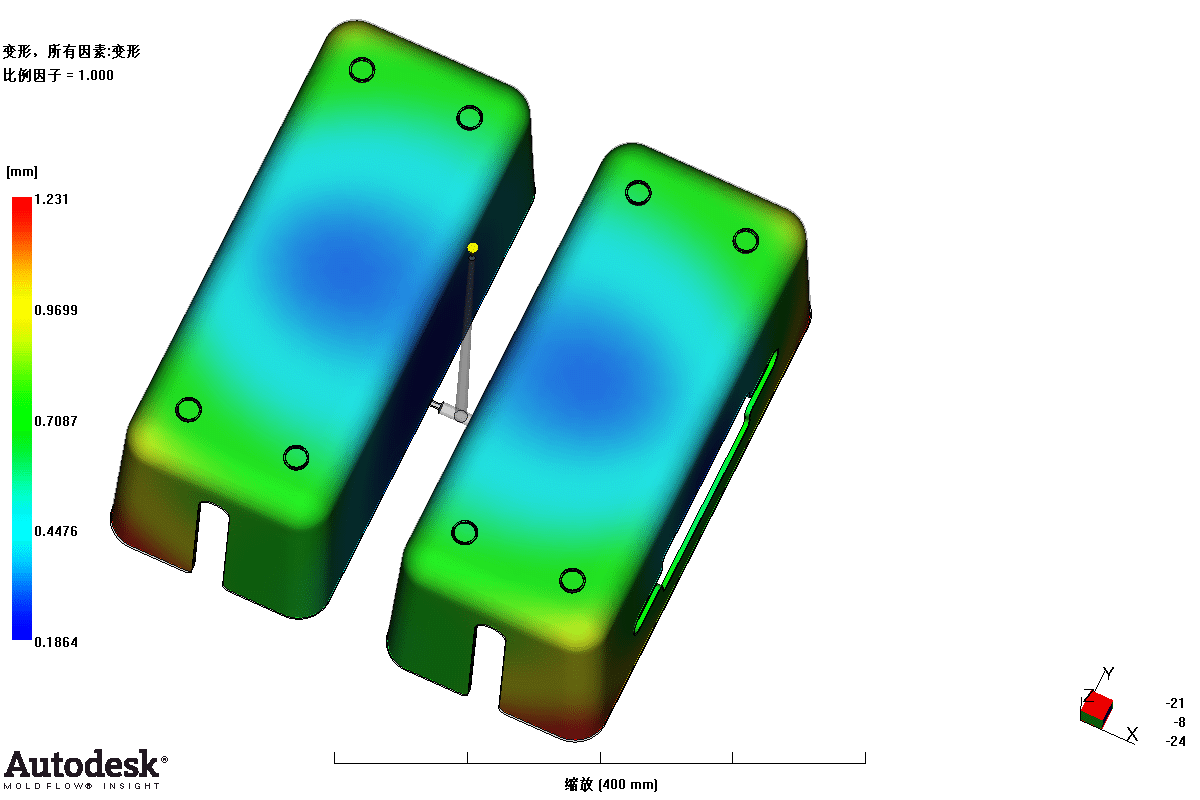

87	shounahe_study变形，所有因素变形1.gif	132.38K
88	shounahe_study填充末端冻结层因子1.gif	103.47K

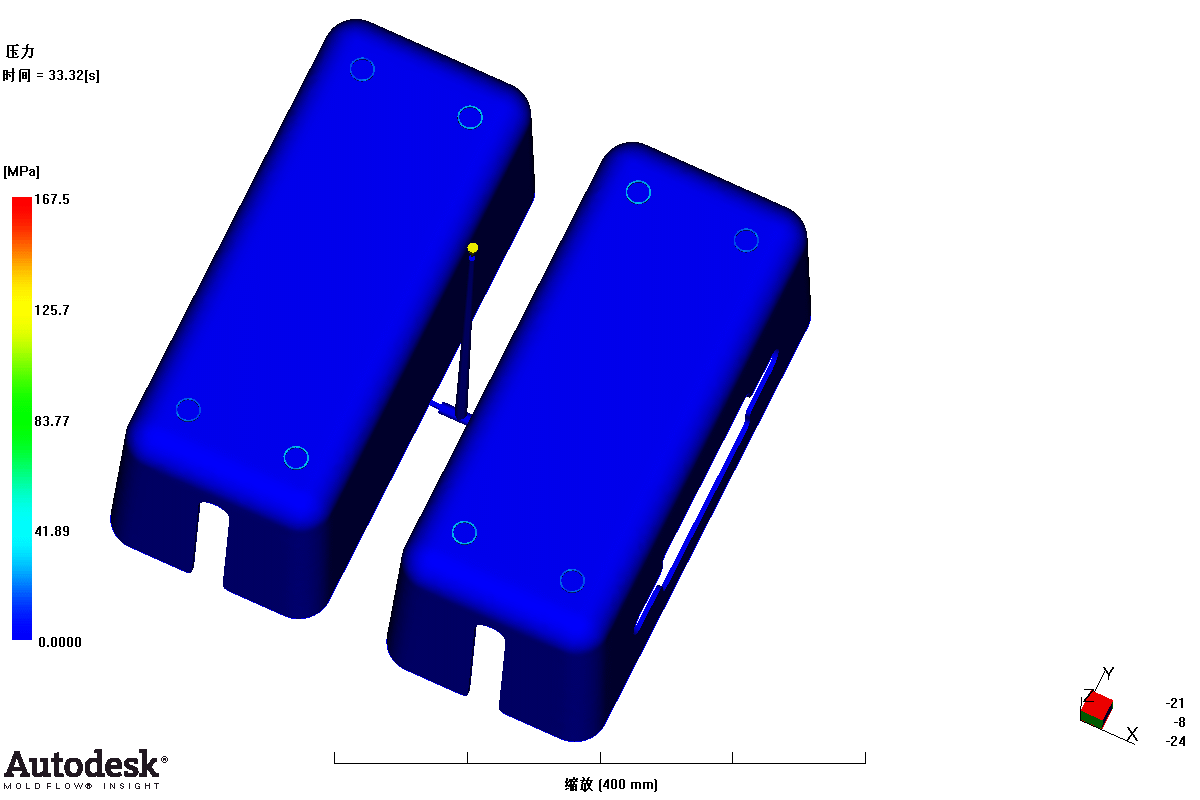

89	shounahe_study填充末端压力1.gif	127.61K

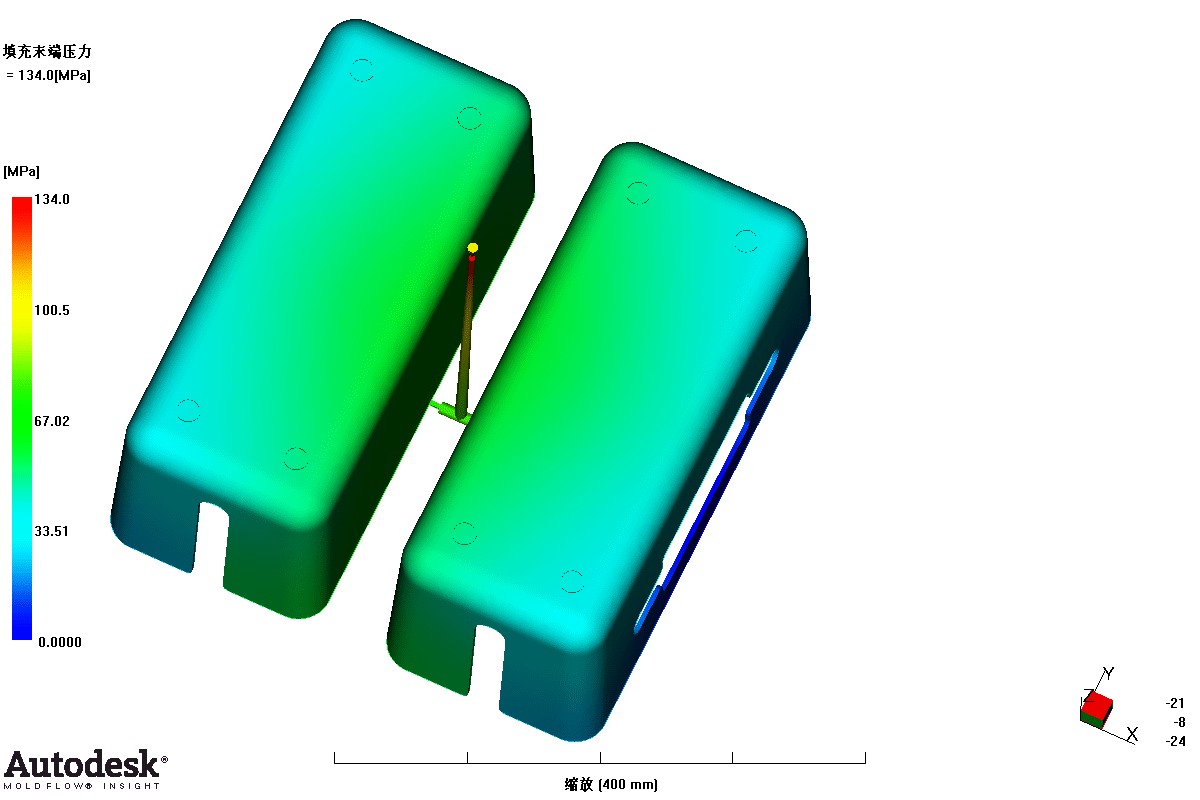

90	shounahe_study填充末端压力2.gif	2.52M

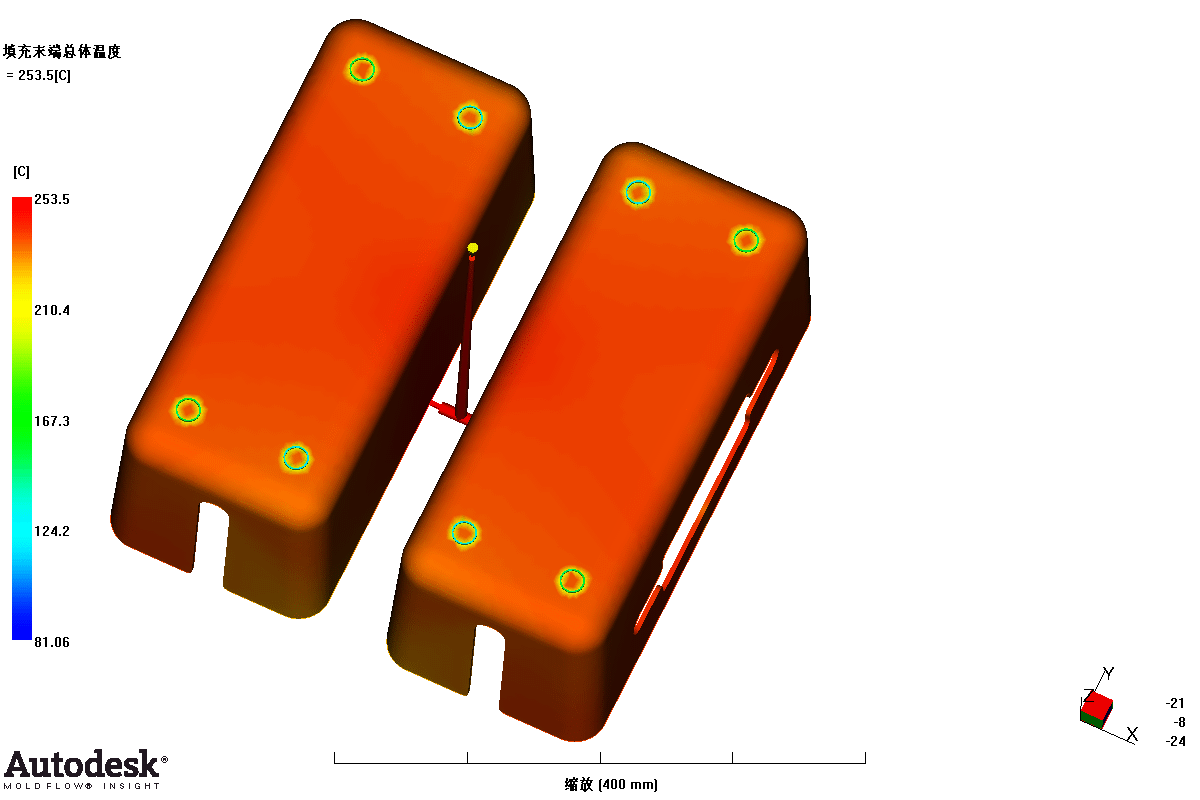

91	shounahe_study填充末端总体温度1.gif	103.17K

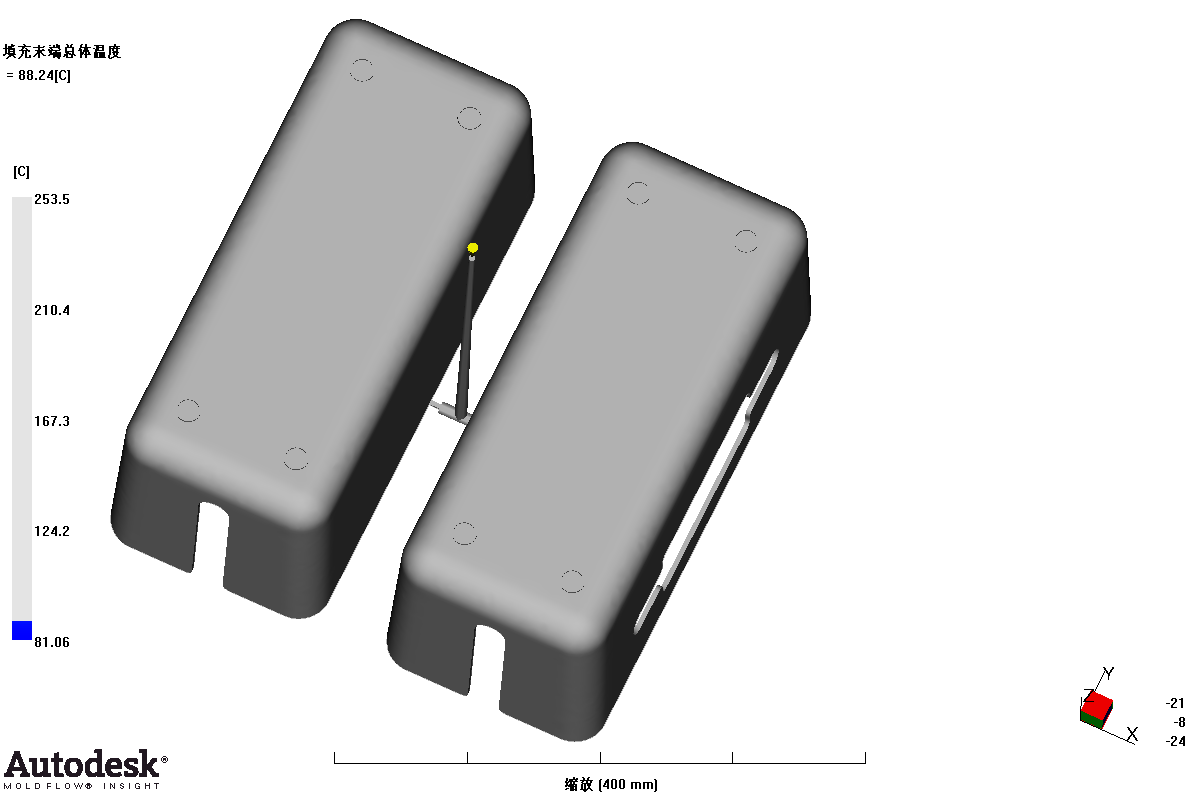

92	shounahe_study填充末端总体温度2.gif	1.70M
93	shounahe_study壁上剪切应力1.gif	81.82K
94	shounahe_study平均速度1.gif	65.62K

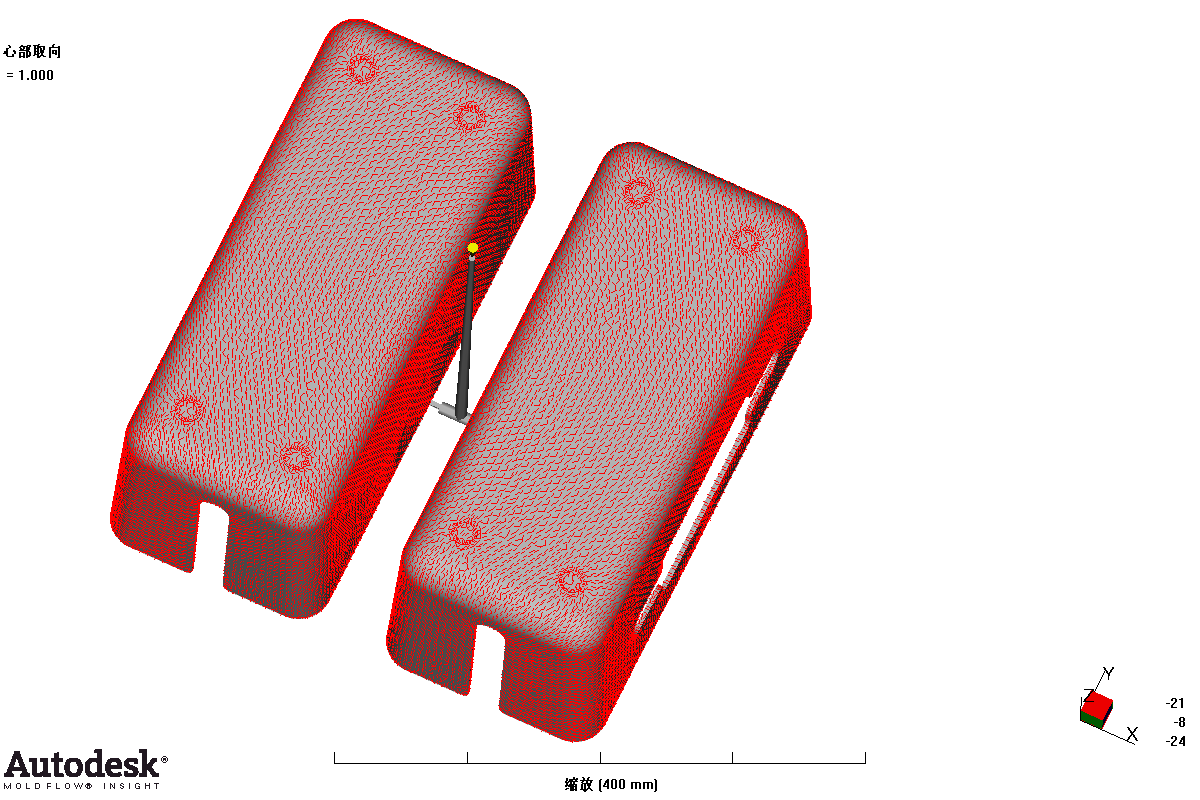

95	shounahe_study心部取向1.gif	112.69K
96	shounahe_study总体温度1.gif	102.62K
97	shounahe_study总体温度2.gif	4.24M

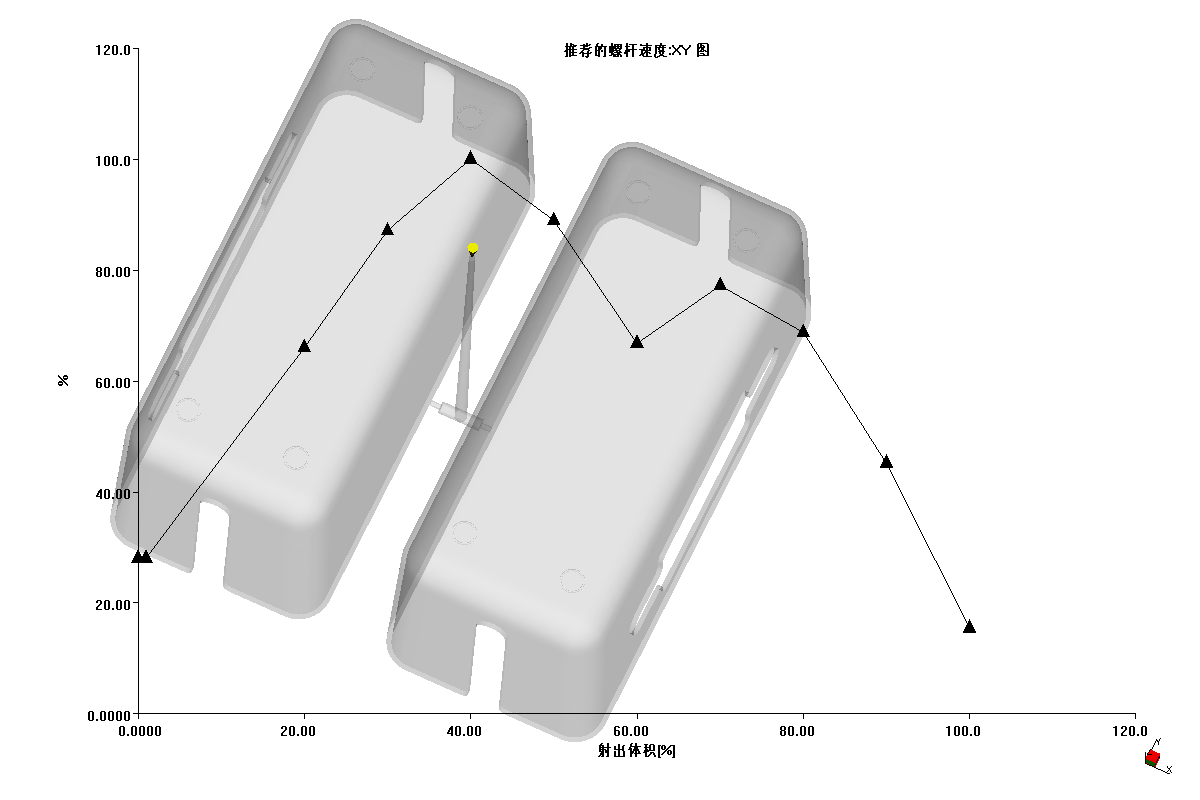

98	shounahe_study推荐的螺杆速度XY_图1.gif	70.05K
99	shounahe_study料流量1.gif	62.35K
100	shounahe_study机器设置.txt	1.96K

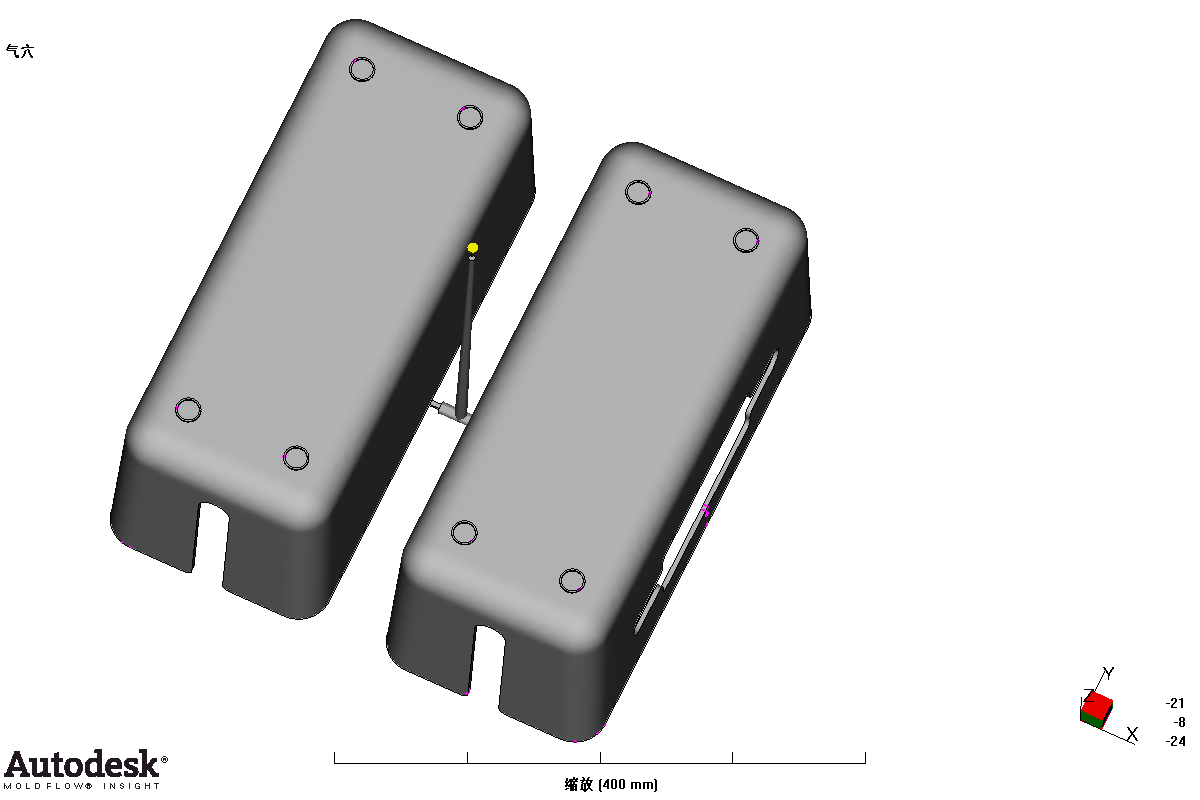

101	shounahe_study气穴1.gif	84.68K

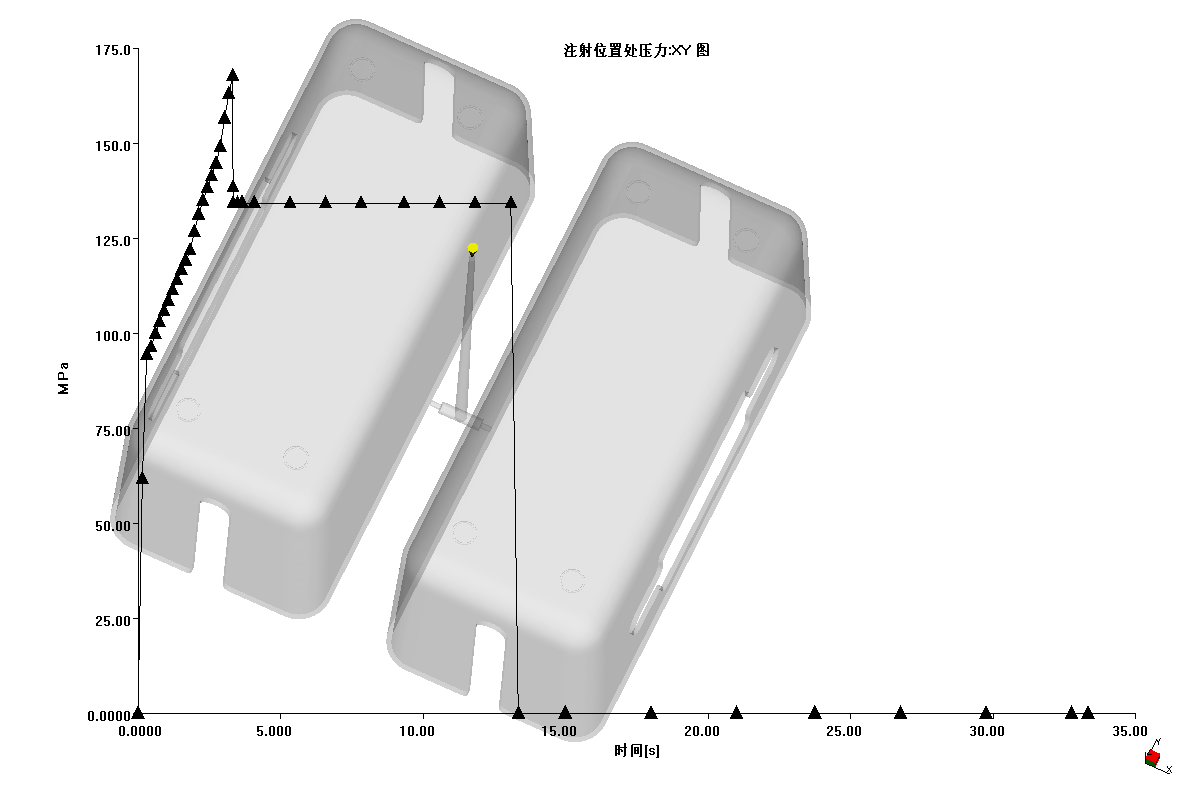

102	shounahe_study注射位置处压力XY_图1.gif	70.72K

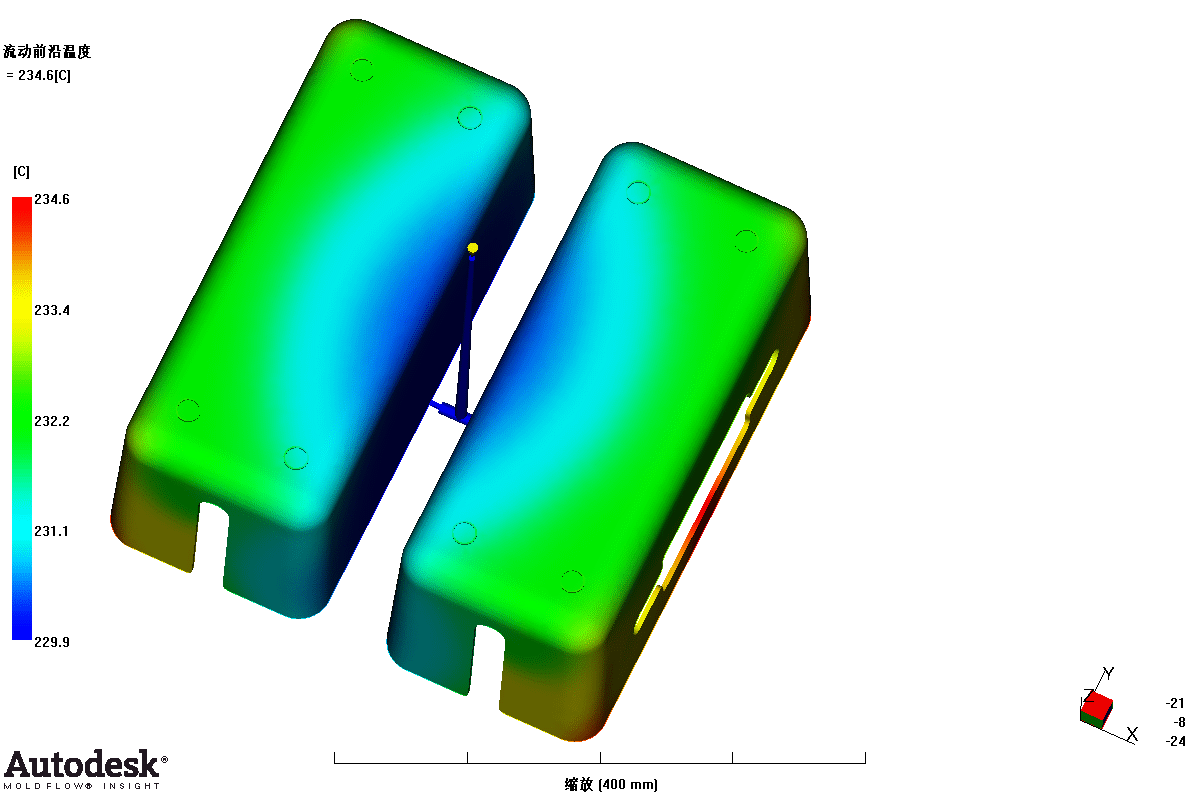

103	shounahe_study流动前沿温度1.gif	133.20K
104	shounahe_study流动前沿温度2.gif	2.54M
105	shounahe_study流动速率，柱体1.gif	62.66K
106	shounahe_study熔接线1.gif	54.47K

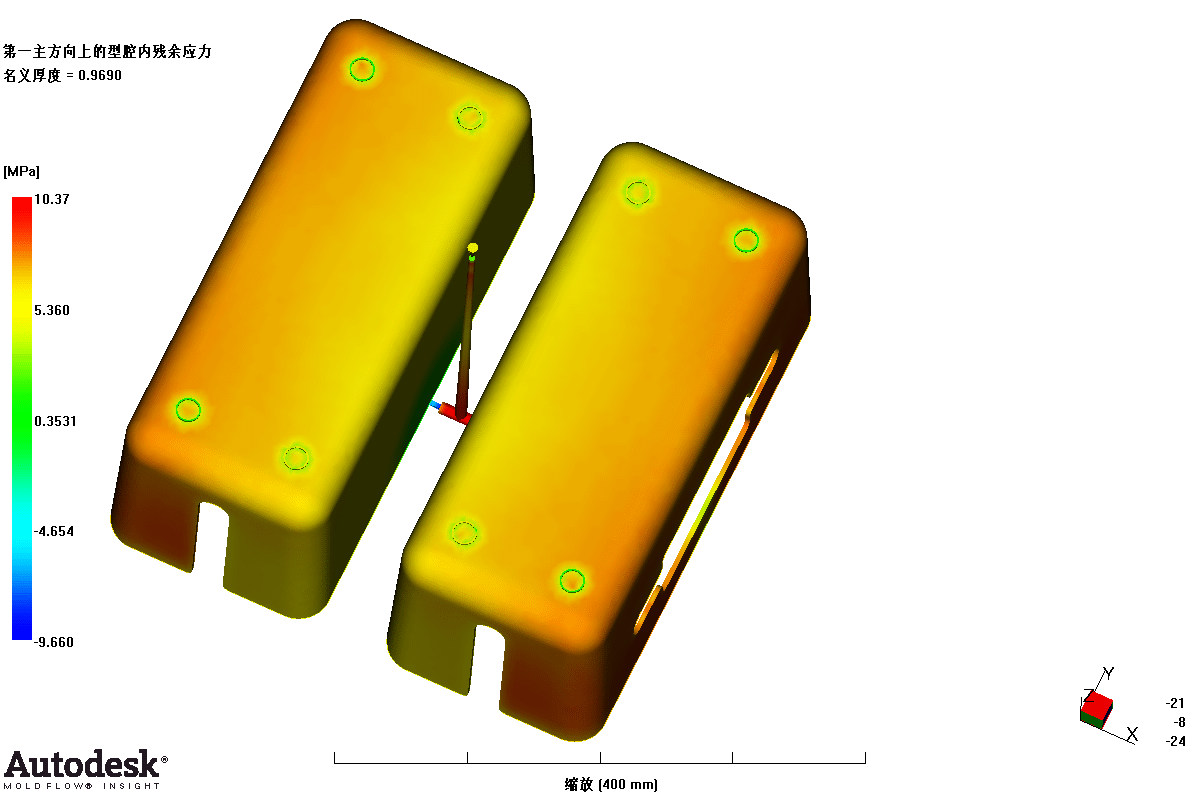

107	shounahe_study第一主方向上的型腔内残余应力1.gif	128.70K

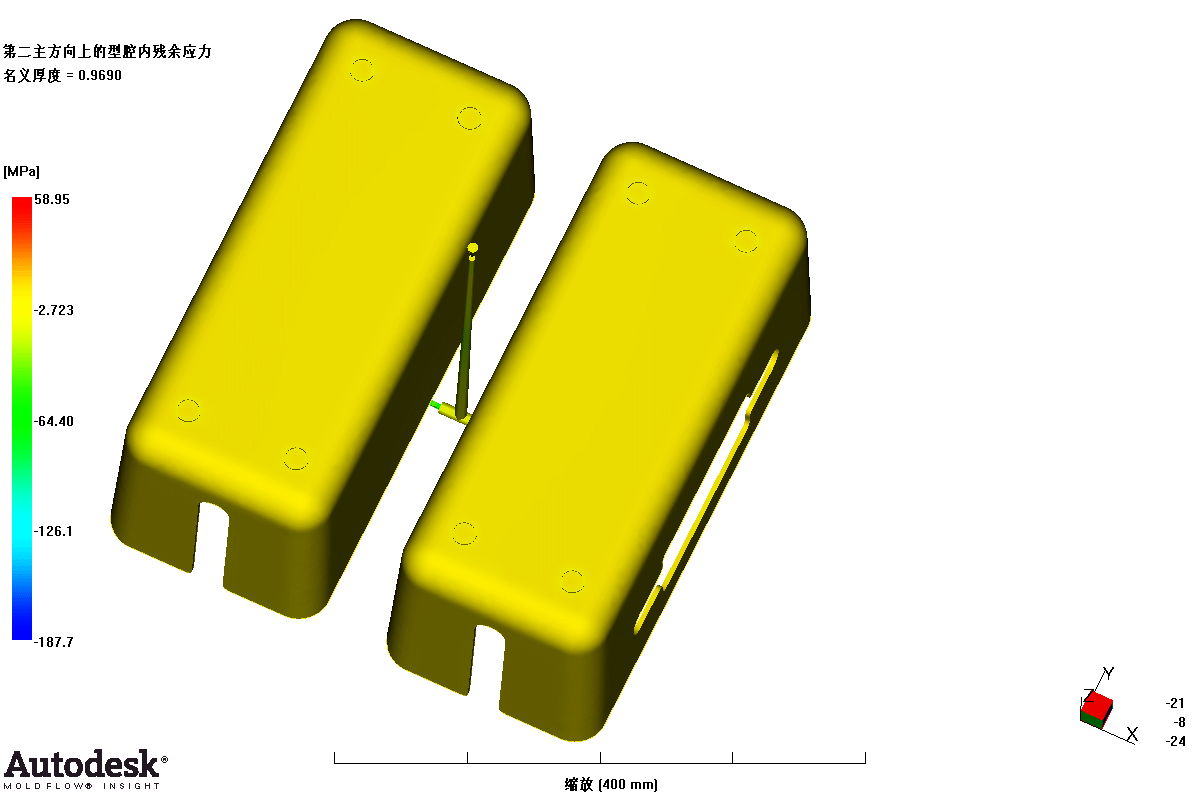

108	shounahe_study第二主方向上的型腔内残余应力1.gif	102.35K
109	shounahe_study结果摘要.txt	608B

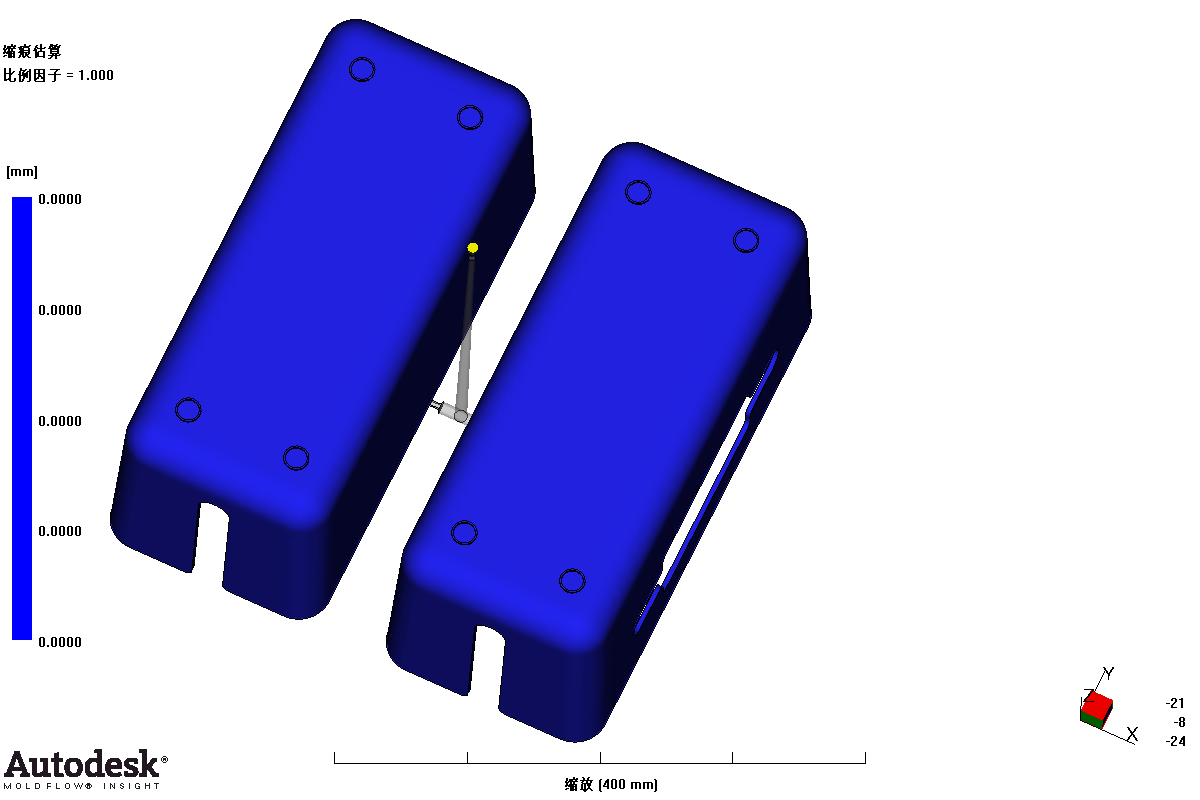

110	shounahe_study缩痕估算1.gif	76.23K
111	shounahe_study缩痕阴影1.gif	76.23K

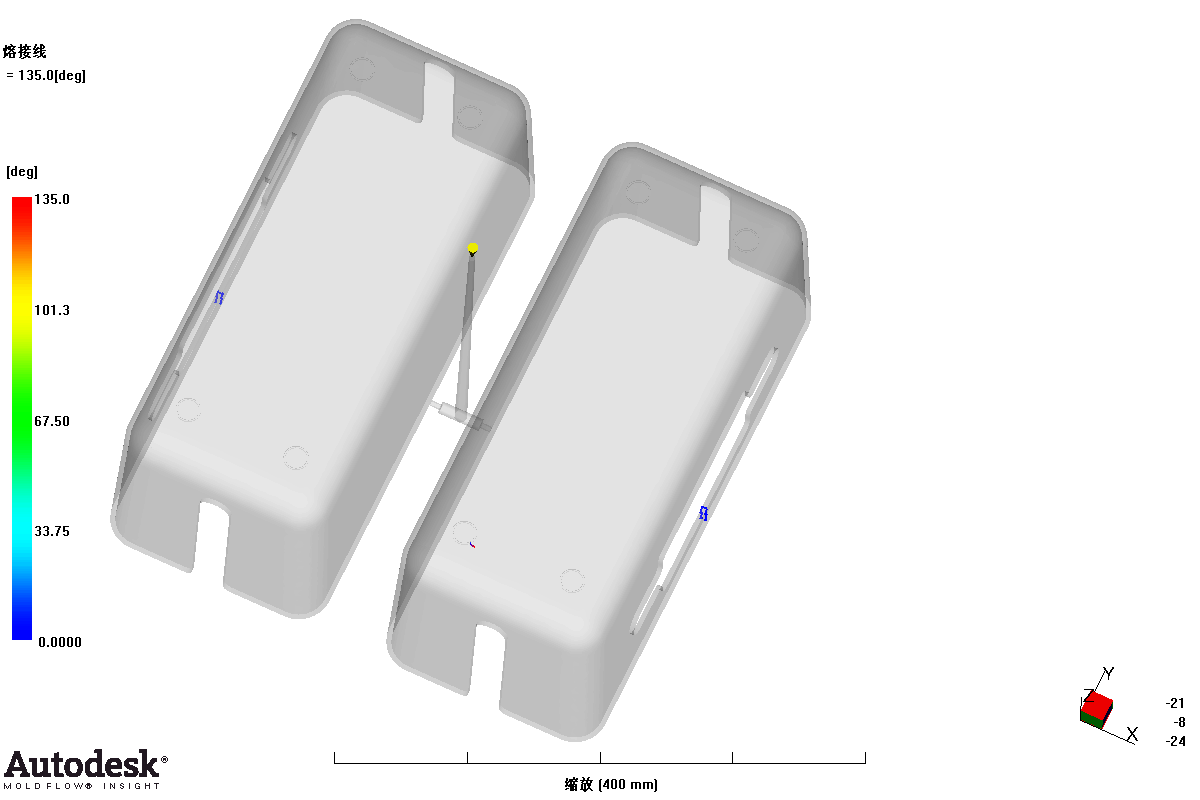

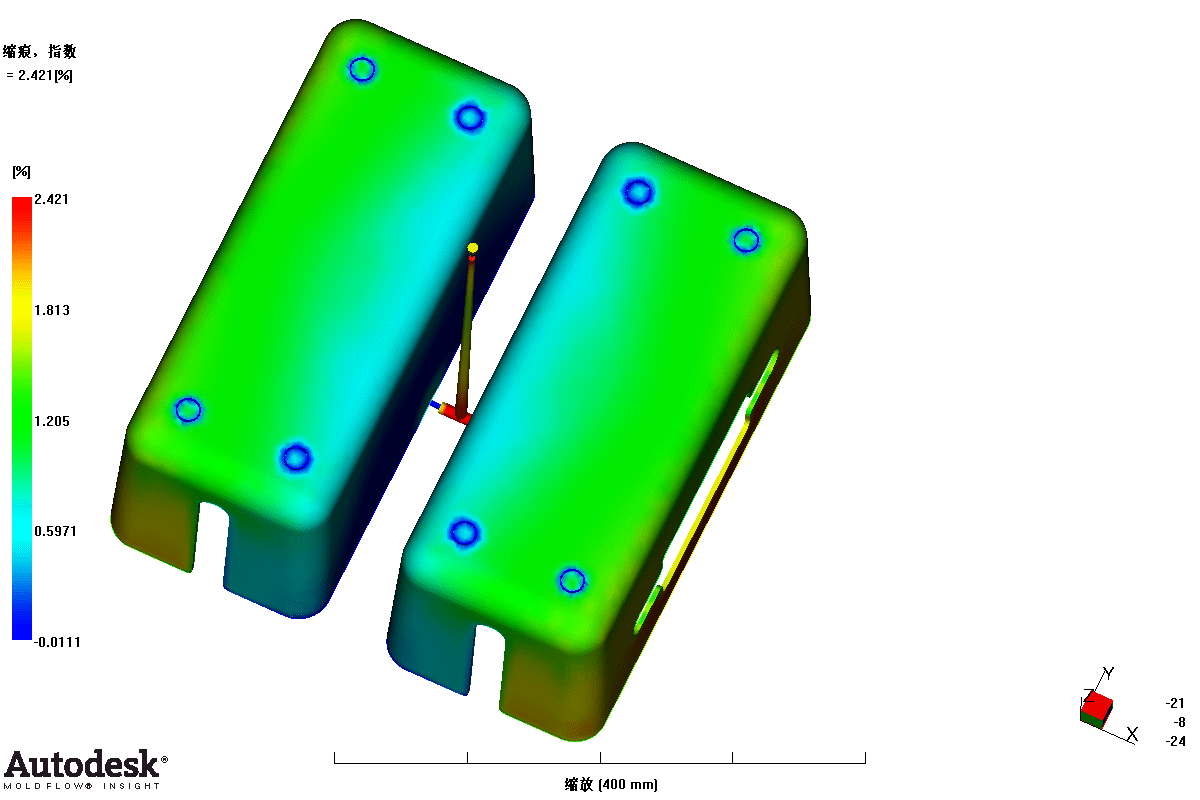

112	shounahe_study缩痕，指数1.gif	142.26K

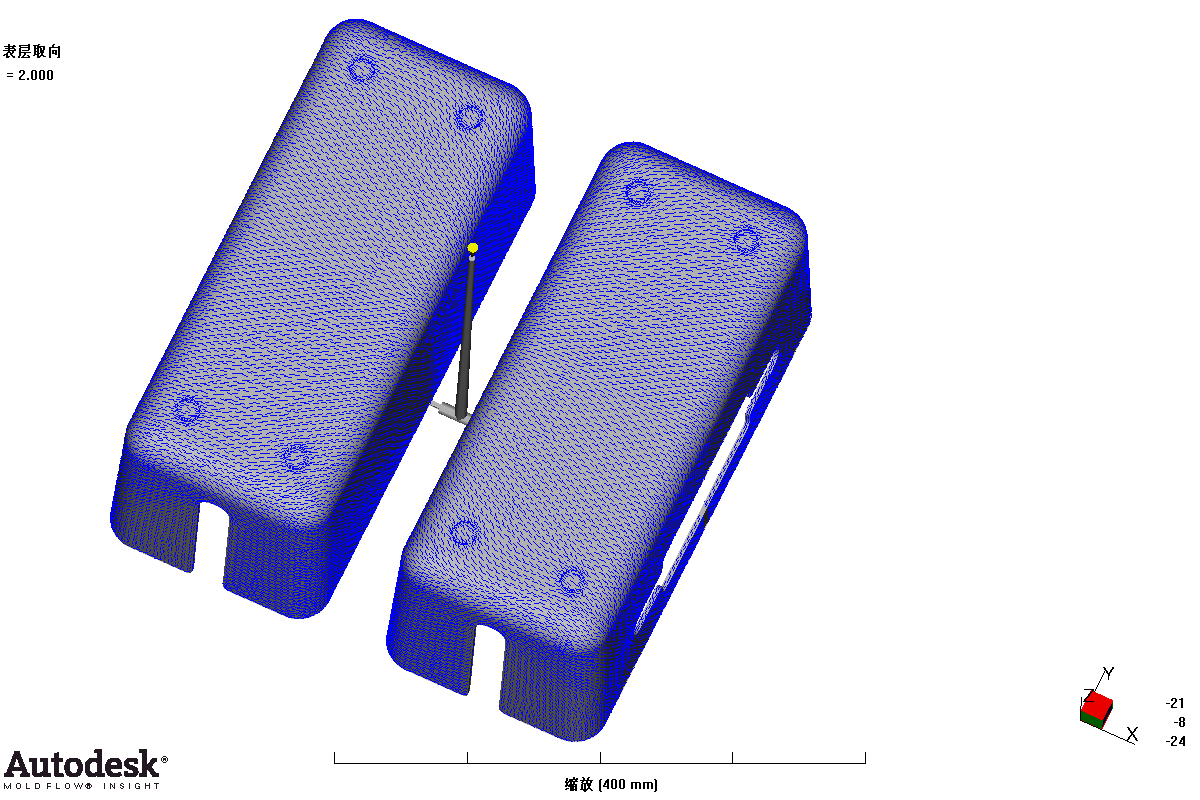

113	shounahe_study表层取向1.gif	112.28K

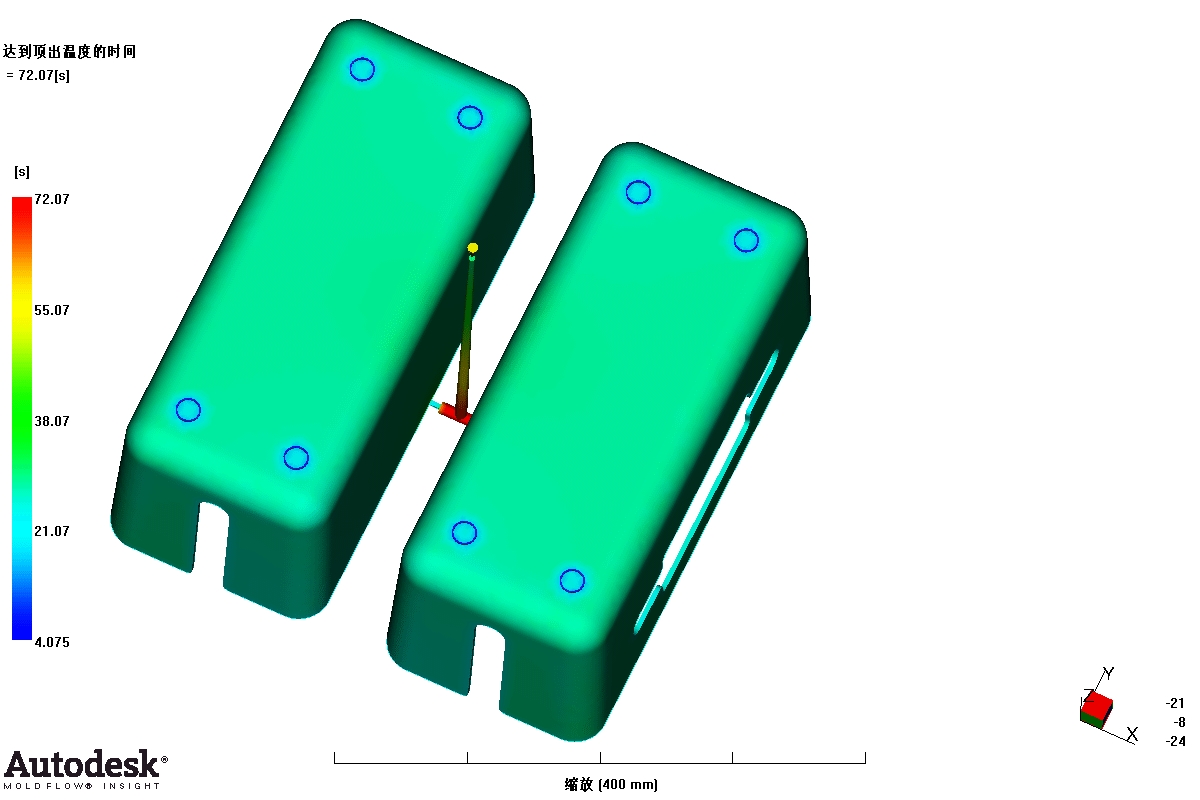

114	shounahe_study达到顶出温度的时间1.gif	109.15K
115	shounahe_study速度压力切换时的压力1.gif	126.00K

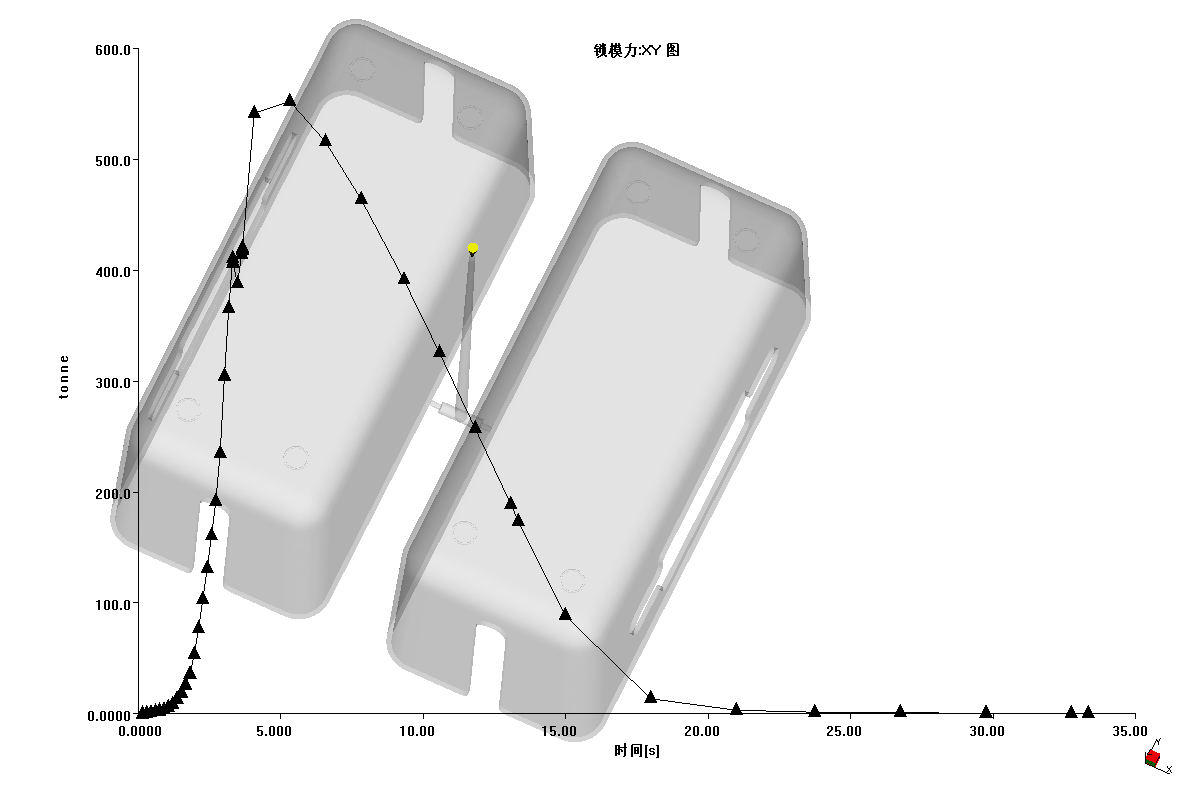

116	shounahe_study锁模力XY_图1.gif	70.32K

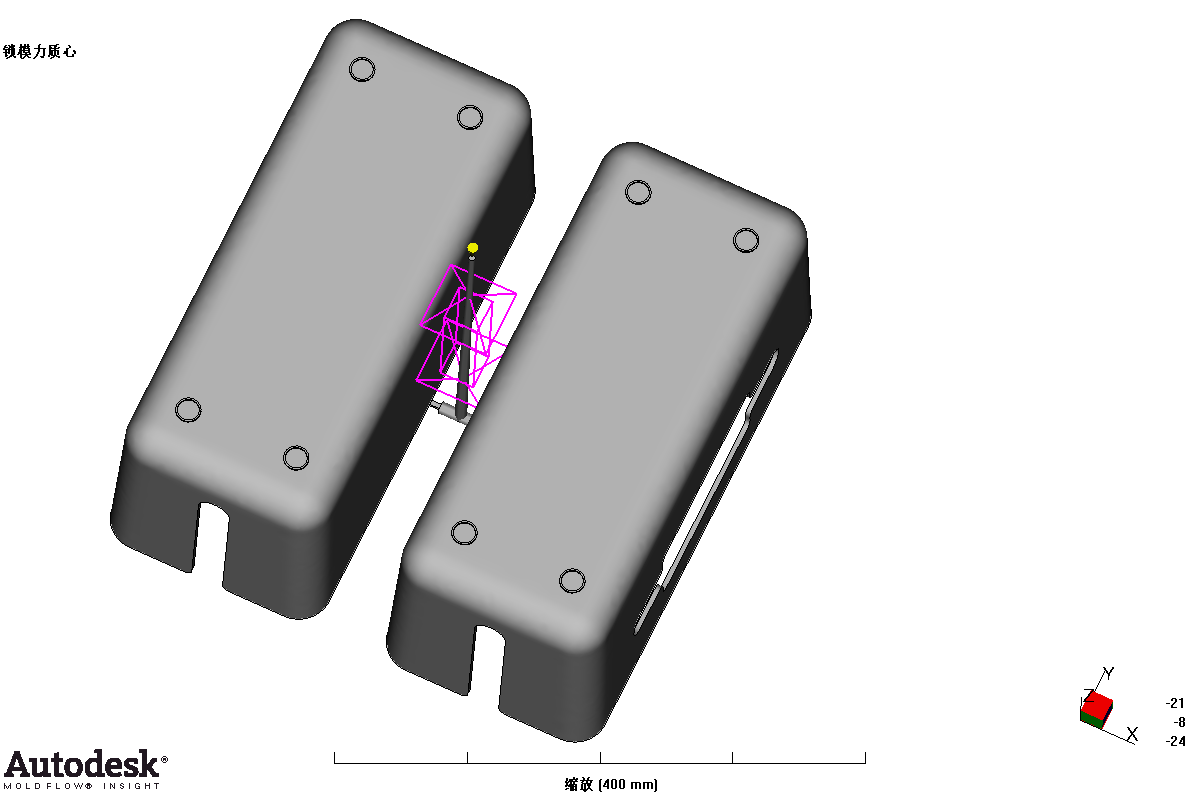

117	shounahe_study锁模力质心1.gif	85.59K

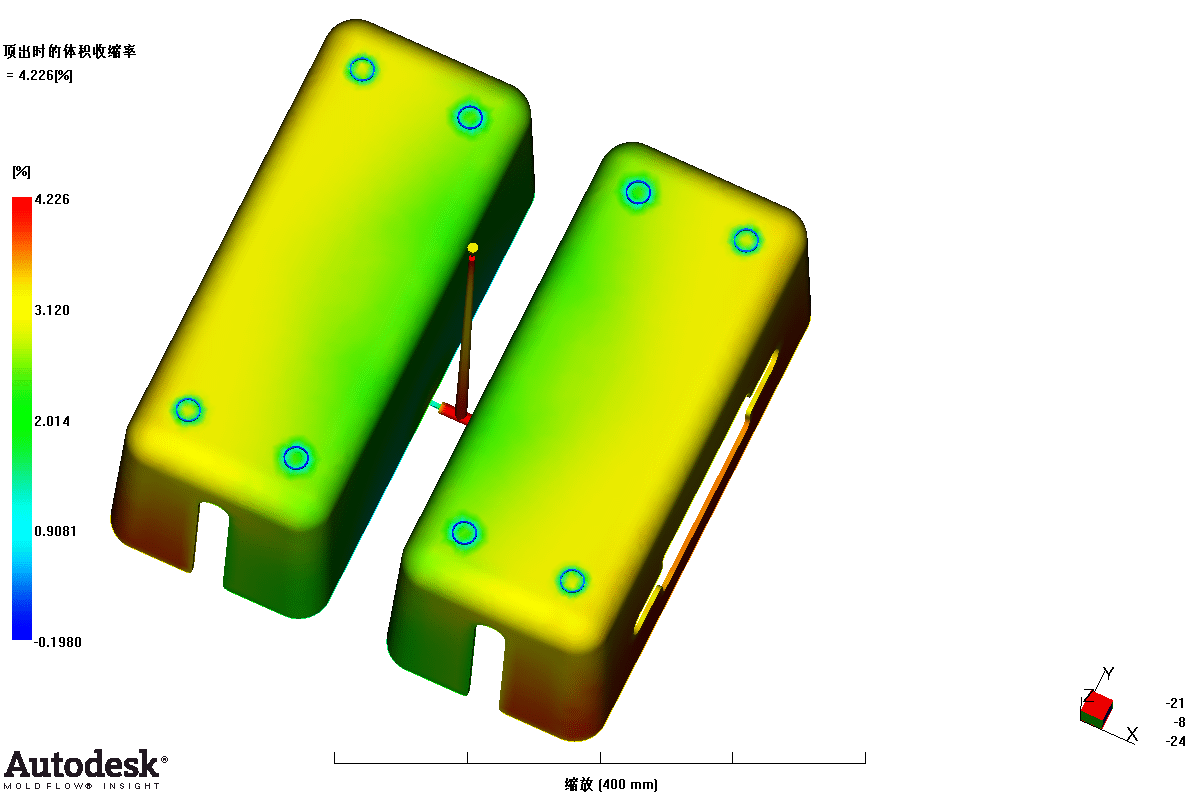

118	shounahe_study顶出时的体积收缩率1.gif	138.36K
