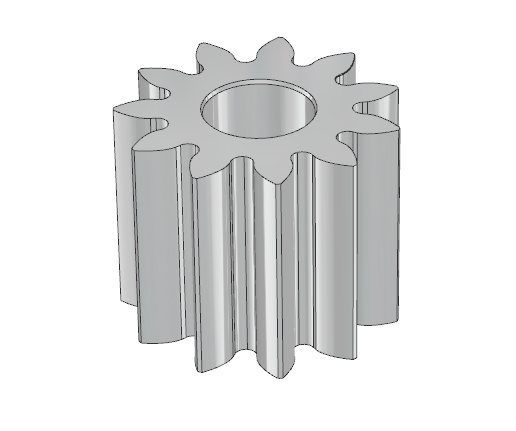

JX413-基于3D打印的齿轮油泵的设计与制作【渐开线内啮合齿轮油泵】（ID:1236663）

设备部件 / 传动部件 / JX413-基于3D打印的齿轮油泵的设计与制作【渐开线内啮合齿轮油泵】

©非原创

平面图

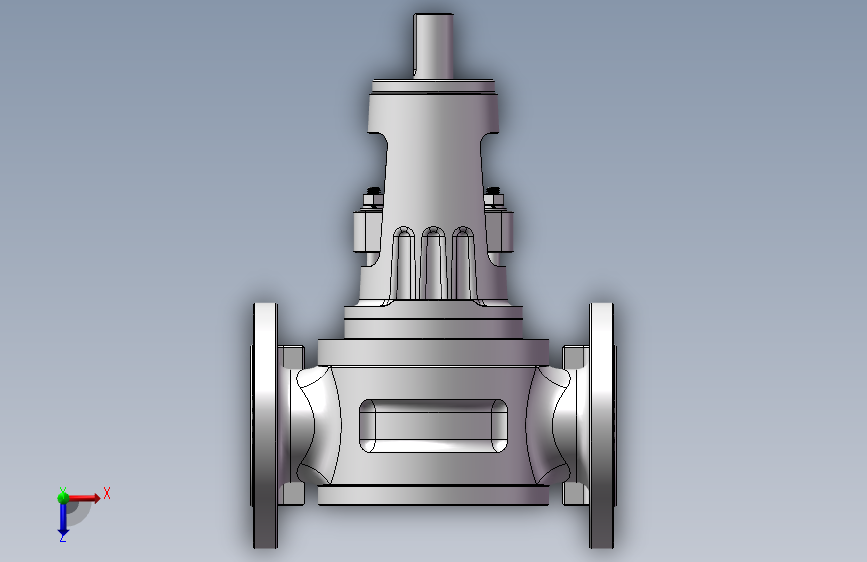

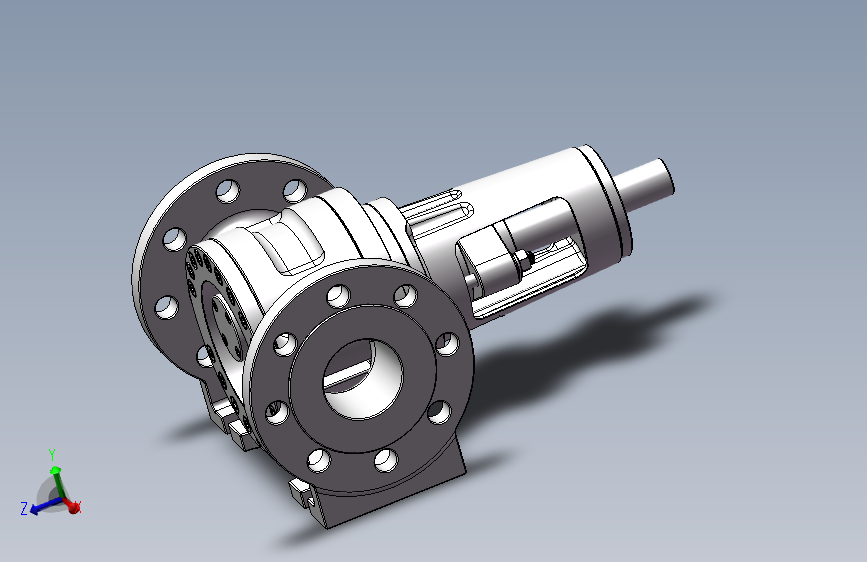

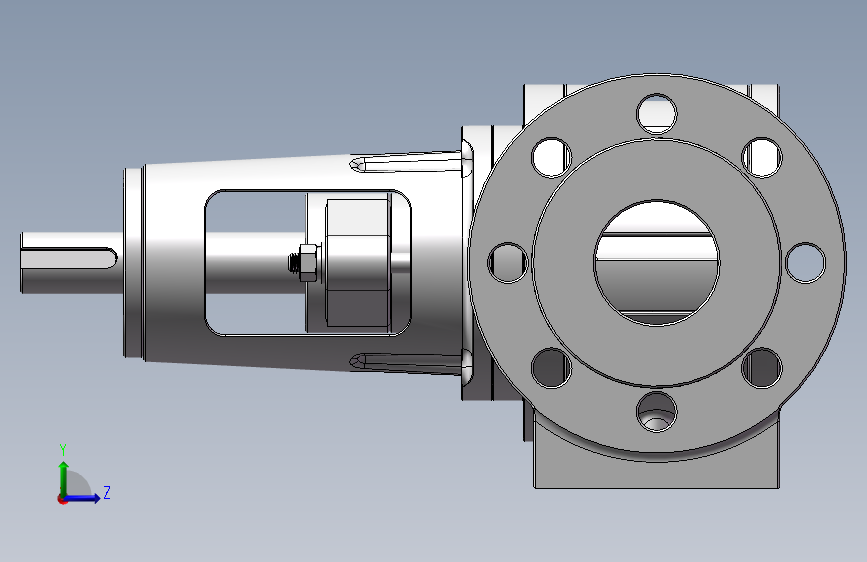

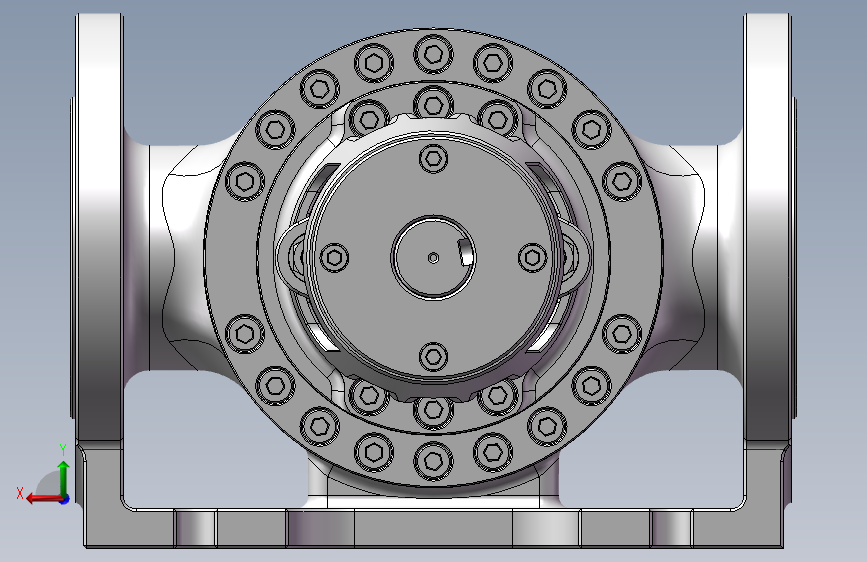

3D视图

文件列表

#	文件名称	文件大小
1	17125772272202.zip	21.95M
2	A0内啮合齿轮泵总装图.dwg	452.20K
3	A1底座.dwg	121.48K
4	A2后支架.dwg	93.38K
5	A3油封座.dwg	86.90K
6	A3轴承座.dwg	83.96K
7	任务书.doc	29.50K
8	开题报告.doc	30.50K
9	文献综述.docx	24.06K
10	说明书.doc	4.59M
11	3D.x_t	5.29M
12	3D_x_t.prt	98.38K
13	60062RSC3_id22_x_t.prt	193.92K
14	backbearingdial_id17_x_t.prt	116.01K
15	backdeck_id223_x_t.prt	383.30K
16	bearing2_id100_x_t.prt	1.06M
17	cover_id206_x_t.prt	432.90K
18	gearinner2axisfix_id121_x_t.prt	134.31K
19	gearinner2axis_id201_x_t.prt	89.93K
20	gearinner2bearing_id105_x_t.prt	90.39K
21	gearinner2_id213_x_t.prt	745.29K
22	gearouter1axis_id48_x_t.prt	119.88K
23	gearouter1_id218_x_t.prt	866.60K
24	M10washerISO7091_id39_x_t.prt	89.17K
25	M10Washer_s_DIN7980_id34_x_t.prt	141.04K
26	M10_aS_id53_x_t.prt	945.38K
27	M10_nut_id27_x_t.prt	232.96K
28	M5_5_imbus_id110_x_t.prt	531.25K
29	M6_20_imbus_id6_x_t.prt	164.09K
30	M8_25_imbus_id126_x_t.prt	178.93K
31	M8_40_imbus_id85_x_t.prt	179.46K
32	Part1b_id228_x_t.prt	1.11M
33	SEALfix_id60_x_t.prt	131.11K
34	SEAL_id65_x_t.prt	143.23K
35	SEAL_id70_x_t.prt	352.23K
36	SEAL_id75_x_t.prt	103.35K
37	SEAL_id80_x_t.prt	81.43K
38	UG打开教程.txt	476B
39	3D装配.SLDASM	4.85M
40	3D装配.STEP	14.04M
41	60062RSC3.sldprt	34.60K
42	backbearingdial.sldprt	30.05K
43	backdeck.sldprt	61.45K
44	bearing2.sldprt	449.50K
45	cover.sldprt	80.98K
46	gearinner2.sldprt	212.06K
47	gearinner2axis.sldprt	27.21K
48	gearinner2axisfix.sldprt	31.97K
49	gearinner2bearing.sldprt	26.93K
50	gearouter1.sldprt	273.20K
51	gearouter1axis.sldprt	34.61K
52	M10washerISO7091.sldprt	26.73K
53	M10Washer_s_DIN7980.sldprt	45.12K
54	M10_aS.sldprt	91.30K
55	M10_nut.sldprt	82.06K
56	M5_5_imbus.sldprt	84.24K
57	M6_20_imbus.sldprt	41.77K
58	M8_25_imbus.sldprt	46.44K
59	M8_40_imbus.sldprt	46.14K
60	Part1b.sldprt	346.29K
61	SEAL.sldprt	96.65K
62	SEALfix.sldprt	38.69K

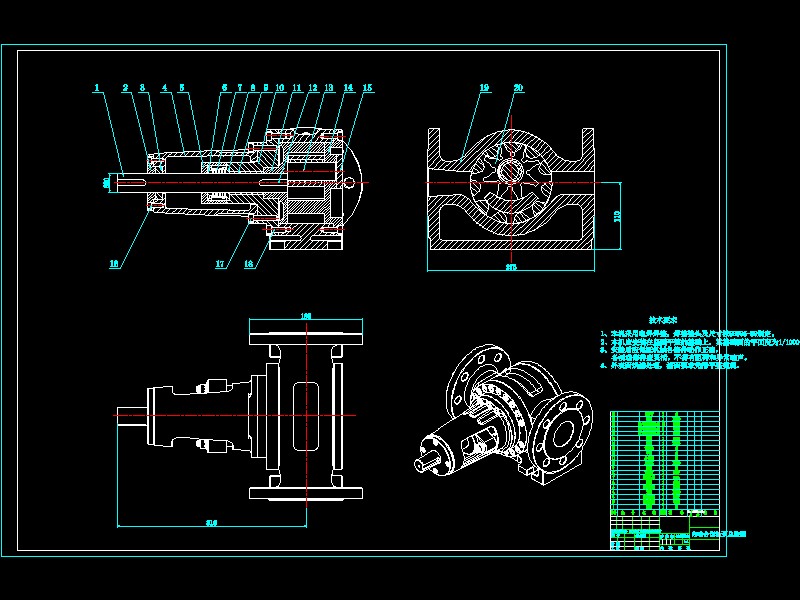

63	A0内啮合齿轮泵总装图.jpg	112.80K

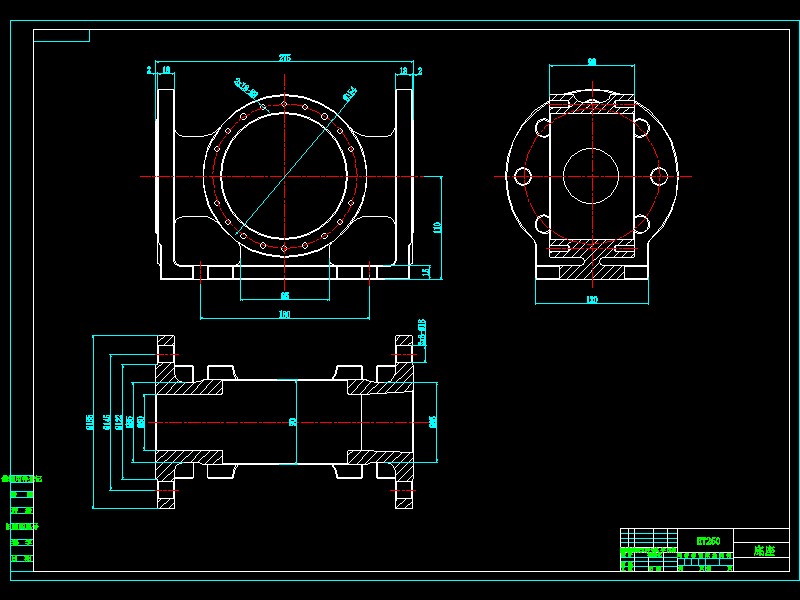

64	A1底座.jpg	90.30K

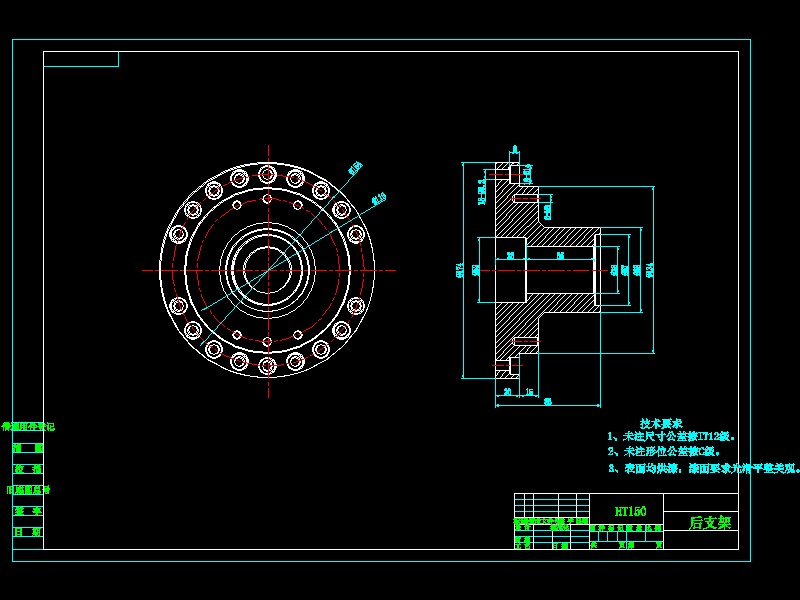

65	A2后支架.jpg	89.16K

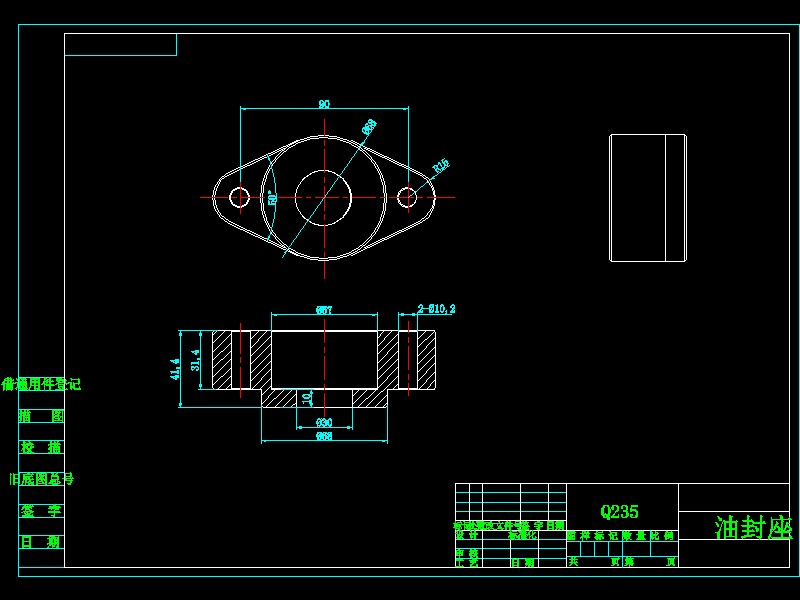

66	A3油封座.jpg	71.76K
67	A3轴承座.jpg	62.04K

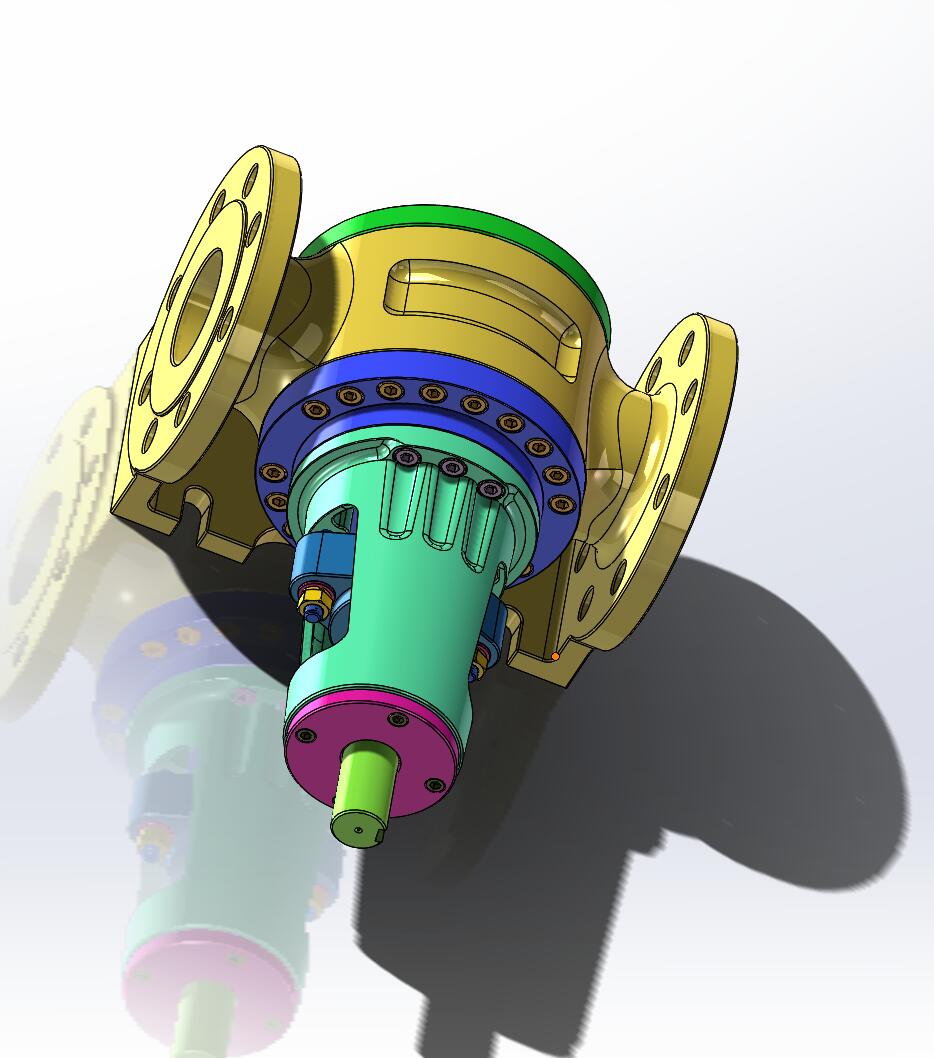

68	三维.jpg	113.41K

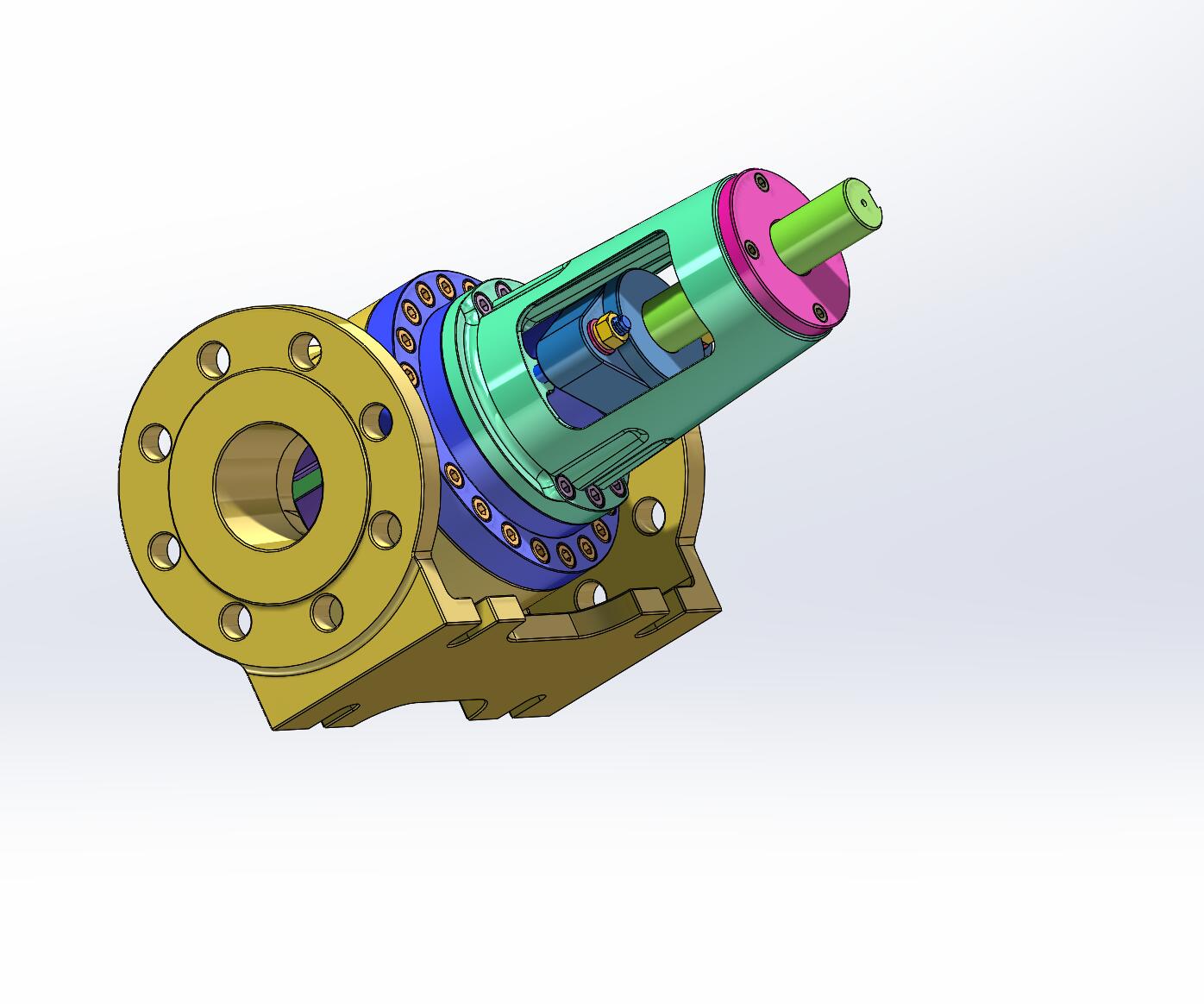

69	仰视图.jpg	88.40K
