20螺钉收集配置器（ID:212254）

设备部件 / 连接与密封 / 20螺钉收集配置器

©非原创

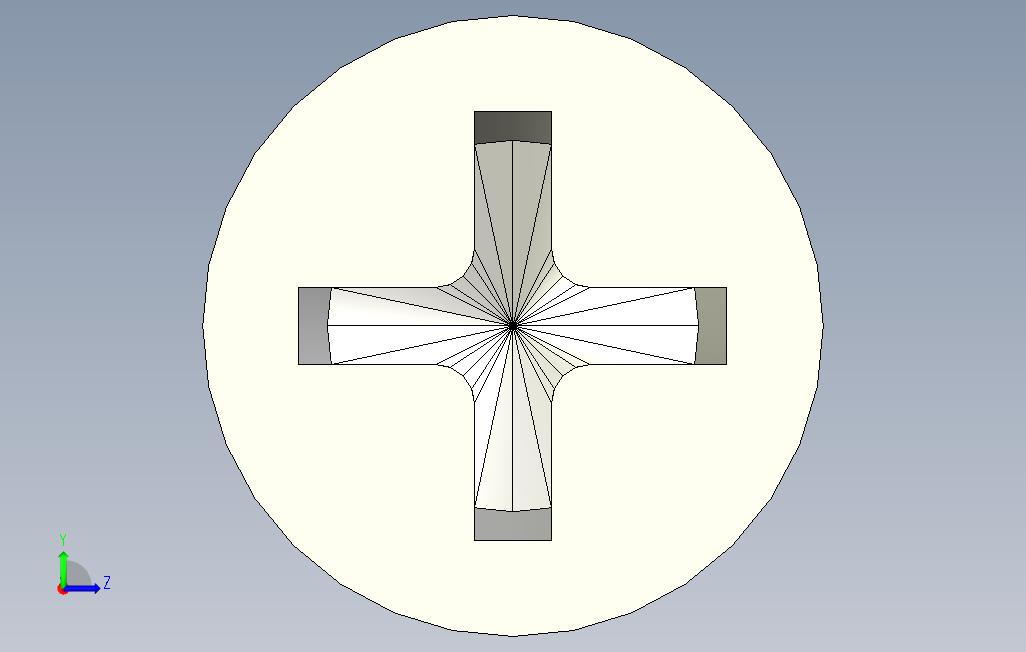

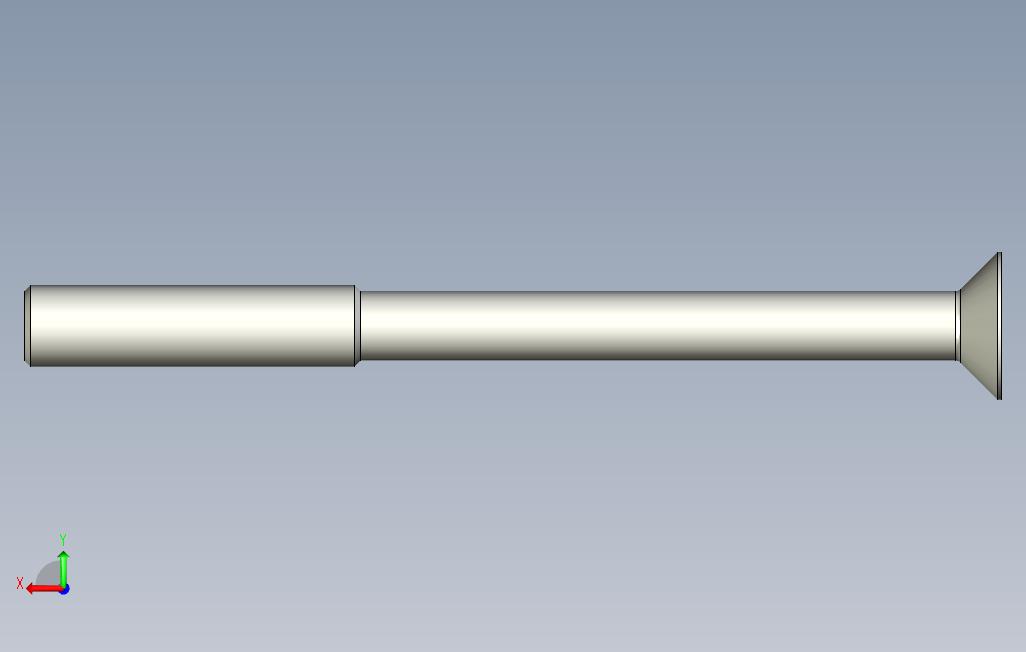

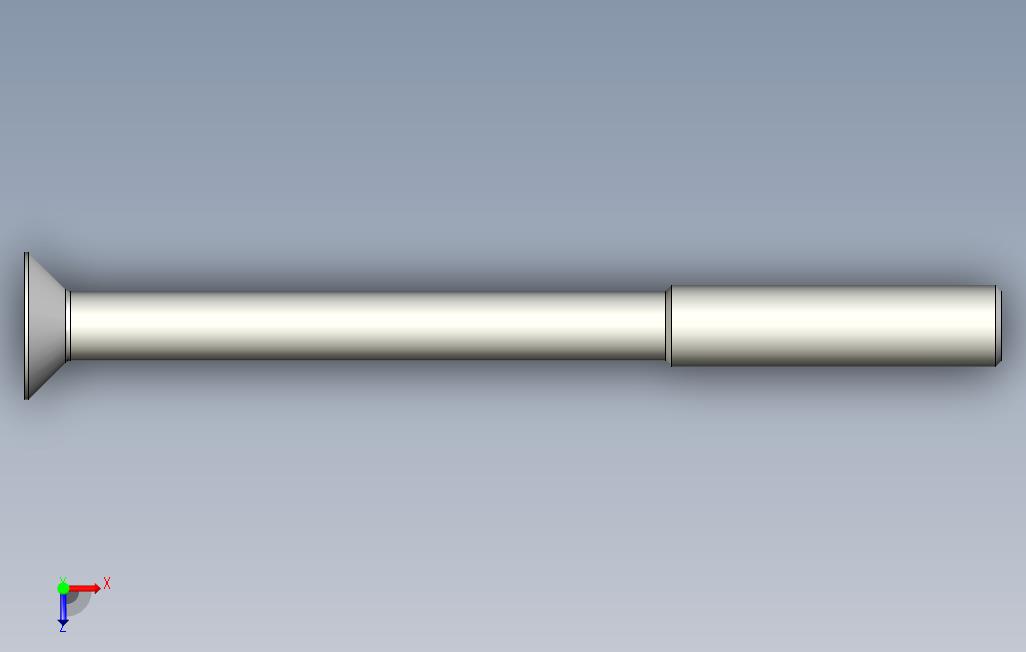

平面图

3D视图

文件列表

#	文件名称	文件大小
1	Screw_-M10-L110_30-17-12-45_-Cross_Countersunk.stl	5.44M
2	Screw_-M10-L110_30-17-8-45_-Cross_Countersunk.stp	75.45K
3	Screw_-M10-L50_33-20-14-45_-Cross_Countersunk.stl	5.18M
4	Screw_-M10-L50_33-20-14-45_-Cross_Countersunk.stp	79.54K
5	Screw_-M10-L70_62-17-12-45_-Cross_Countersunk.stl	8.99M
6	Screw_-M10-L70_62-17-12-45_-Cross_Countersunk.stp	78.66K
7	Screw_-M12-L140_60-20-12-45_-Cross_Countersunk.stl	9.08M
8	Screw_-M12-L140_60-20-12-45_-Cross_Countersunk.stp	77.77K
9	Screw_-M12-L40_28-24-12-45_-Cross_Countersunk.stl	4.10M
10	Screw_-M12-L40_28-24-12-45_-Cross_Countersunk.stp	75.19K
11	Screw_-M12-L50_33-24-17-45_-Cross_Countersunk.stl	4.59M
12	Screw_-M12-L50_33-24-17-45_-Cross_Countersunk.stp	79.54K
13	Screw_-M14-L150_103-24-12-45_-Cross_Countersunk.stl	12.56M
14	Screw_-M14-L150_103-24-12-45_-Cross_Countersunk.stp	76.06K
15	Screw_-M14-L50_33-28-20-45_-Cross_Countersunk.stl	4.18M
16	Screw_-M14-L50_33-28-20-45_-Cross_Countersunk.stp	80.34K
17	Screw_-M14-L55_28-24-12-45_-Cross_Countersunk.stl	3.63M
18	Screw_-M14-L55_28-24-12-45_-Cross_Countersunk.stp	76.05K
19	Screw_-M16-L192_66-29-20-45_-Cross_Countersunk.stl	11.23M
20	Screw_-M16-L192_66-29-20-45_-Cross_Countersunk.stp	80.35K
21	Screw_-M16-L55_40-29-20-45_-Cross_Countersunk.stl	4.91M
22	Screw_-M16-L55_40-29-20-45_-Cross_Countersunk.stp	80.34K
23	Screw_-M18-L216_202-29-20-45_-Cross_Countersunk.stl	19.55M
24	Screw_-M18-L216_202-29-20-45_-Cross_Countersunk.stp	79.50K
25	Screw_-M18-L70_40-29-20-45_-Cross_Countersunk.stl	4.04M
26	Screw_-M18-L70_40-29-20-45_-Cross_Countersunk.stp	79.49K
27	Screw_-M20-L216_70-36-25-45_-Cross_Countersunk.stl	9.24M
28	Screw_-M20-L216_70-36-25-45_-Cross_Countersunk.stp	80.29K
29	Screw_-M20-L50_33-36-25-45_-Cross_Countersunk.stl	3.67M
30	Screw_-M20-L50_33-36-25-45_-Cross_Countersunk.stp	80.29K
31	Screw_-M6-L43_28-11-6-45_-Cross_Countersunk.stl	6.47M
32	Screw_-M6-L43_28-11-6-45_-Cross_Countersunk.stp	74.54K
33	Screw_-M6-L70_28-11-6-45_-Cross_Countersunk.stl	7.03M
34	Screw_-M6-L70_28-11-6-45_-Cross_Countersunk.stp	74.54K
35	Screw_-M8-L25_18-14-6.4-45_-Cross_Countersunk.stl	3.73M
36	Screw_-M8-L25_18-14-6.4-45_-Cross_Countersunk.stp	74.59K
37	Screw_-M8-L50_28-14-6.4-45_-Cross_Countersunk.stl	5.30M
38	Screw_-M8-L50_28-14-6.4-45_-Cross_Countersunk.stp	74.59K
39	Screw_-M8-L50_33-16-11-45_-Cross_Countersunk.stl	6.13M
40	Screw_-M8-L50_33-16-11-45_-Cross_Countersunk.stp	78.04K
41	Screw_cross_cs.png	402.86K
