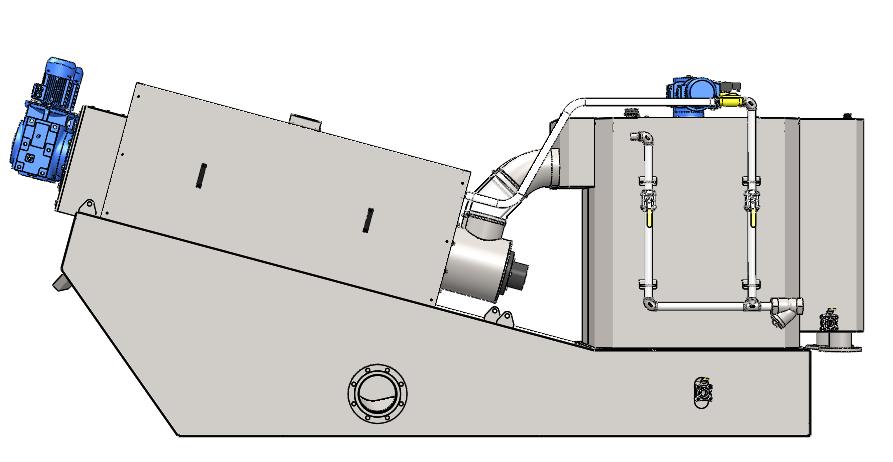

DL402叠螺污泥脱水机3d（ID:456171）

机械设备 / 环保设备 / DL402叠螺污泥脱水机3d

©原创

154

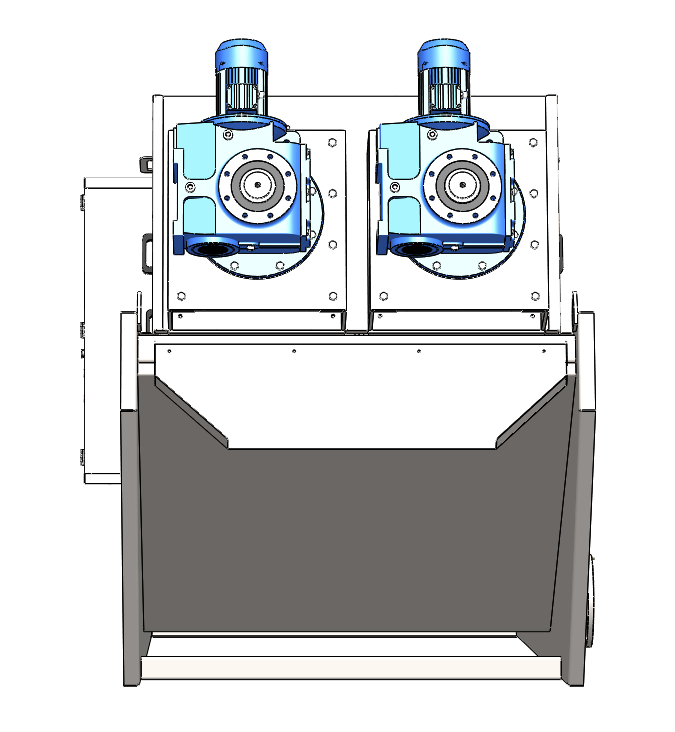

平面图

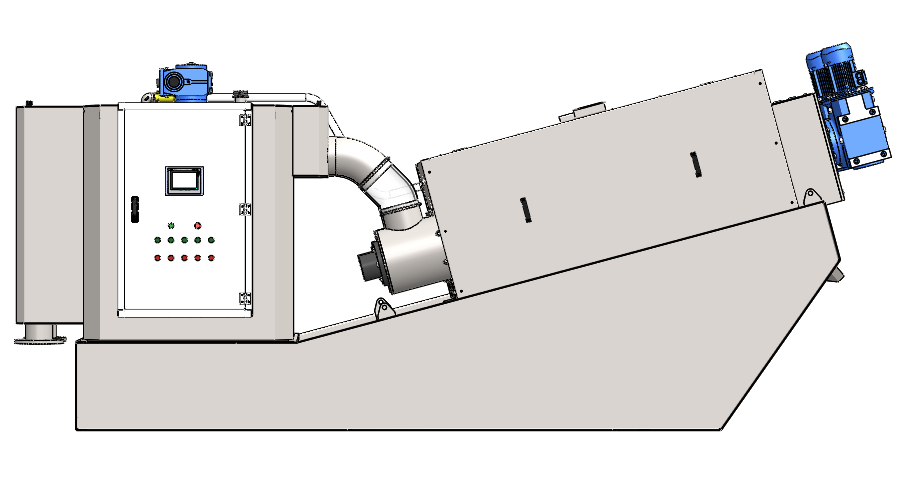

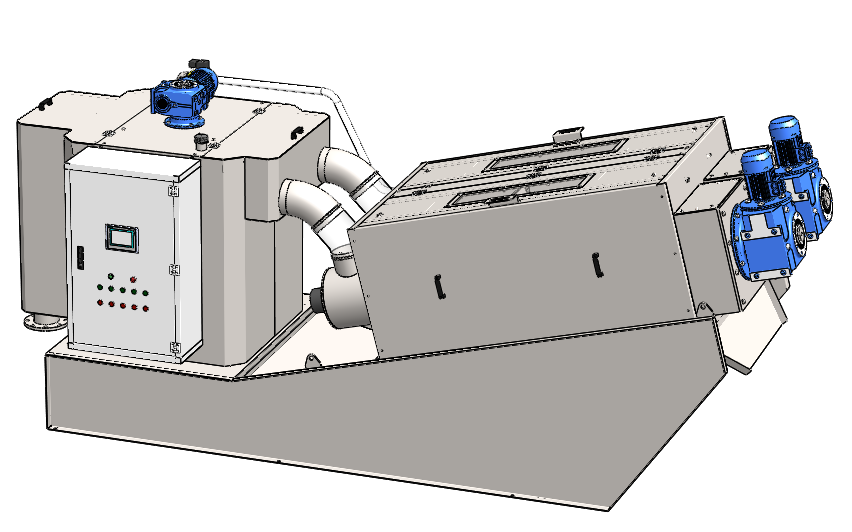

3D视图

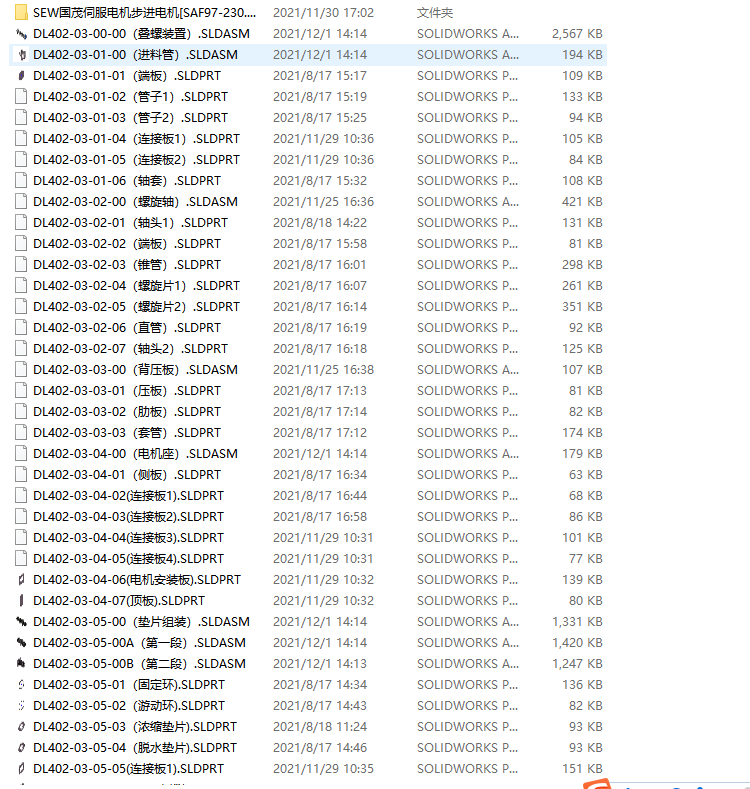

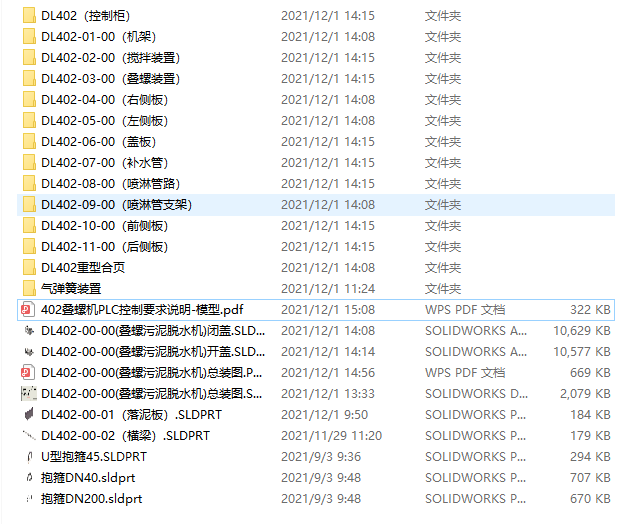

文件列表

截图

AI截图渲染

✨AI图片渲染

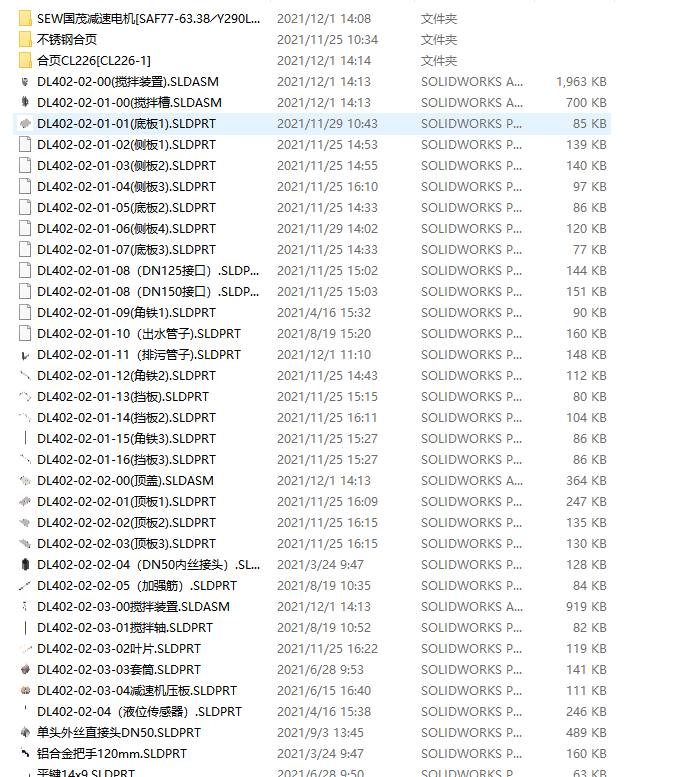

#	文件名称	文件大小
1	16729688105232.zip	166.58M

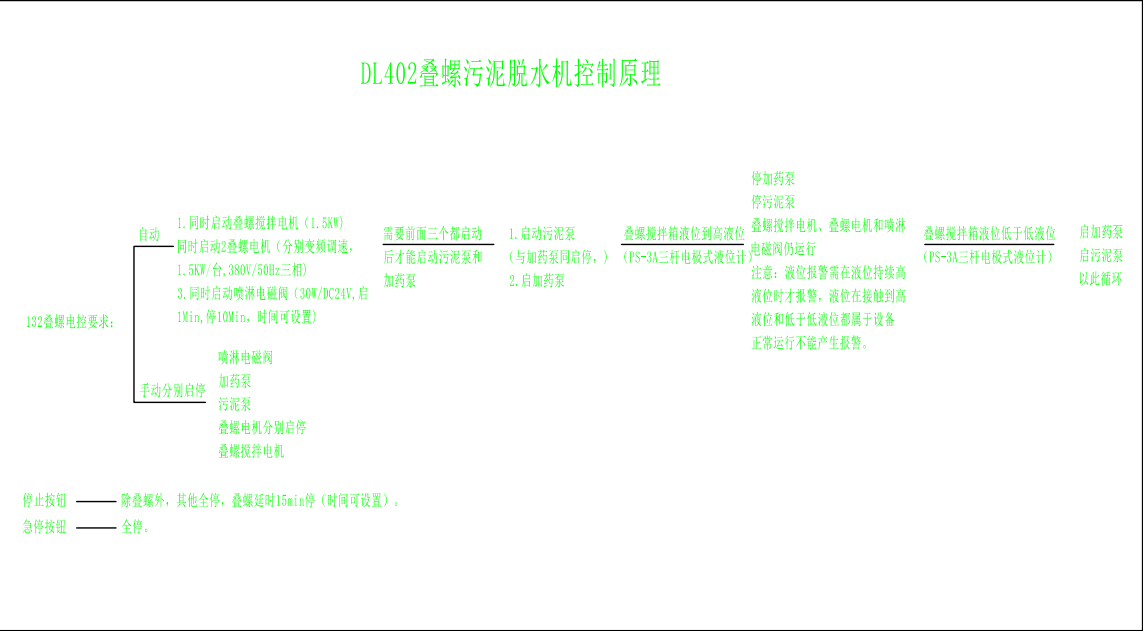

2	402叠螺机PLC控制要求说明-模型.pdf	321.44K
3	DL402-00-00叠螺污泥脱水机开盖.SLDASM	10.33M

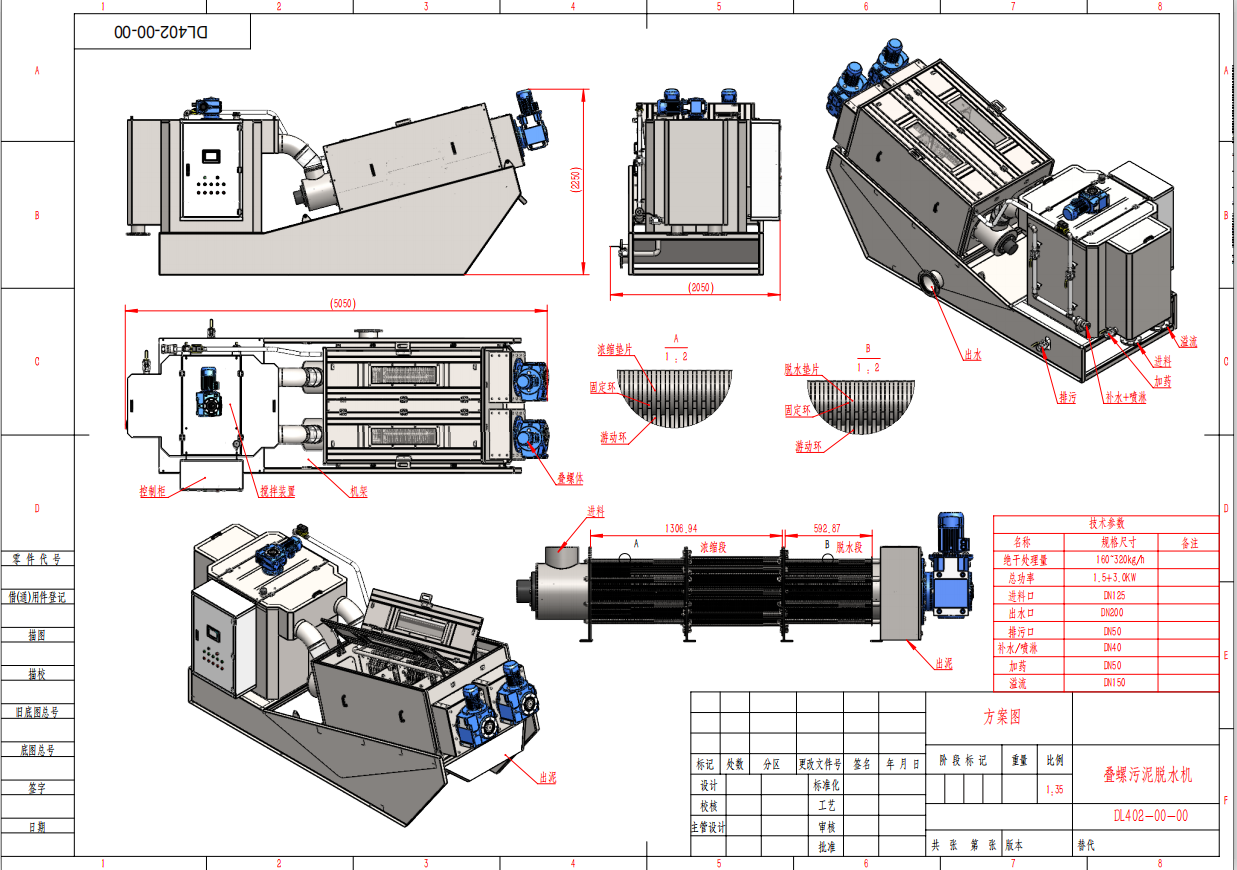

4	DL402-00-00叠螺污泥脱水机总装图.PDF	668.83K
5	DL402-00-00叠螺污泥脱水机总装图.SLDDRW	21.93M
6	DL402-00-00叠螺污泥脱水机闭盖.SLDASM	10.38M
7	DL402-00-01（落泥板）.SLDPRT	183.16K
8	DL402-00-02（横梁）.SLDPRT	178.39K
9	U型抱箍45.SLDPRT	293.30K
10	抱箍DN200.sldprt	669.29K
11	抱箍DN40.sldprt	706.53K
12	DL402-01-00机架.SLDPRT.SLDASM	278.42K
13	DL402-01-01左侧板.SLDPRT	193.76K
14	DL402-01-02右侧板.SLDPRT	182.73K
15	DL402-01-03围板.SLDPRT	96.85K
16	DL402-01-04C型槽1.SLDPRT	85.69K
17	DL402-01-05C型槽2.SLDPRT	122.95K
18	DL402-01-06C型槽3.SLDPRT	153.52K
19	DL402-01-07（DN200接口）.SLDPRT	167.66K
20	DL402-01-08（吊耳）.SLDPRT	80.74K
21	DL402-01-09C型槽4.SLDPRT	88.16K
22	DL303-02-01-01底板1.SLDPRT	7B
23	DL303-02-01-02侧板1.SLDPRT	7B
24	DL303-02-01-03侧板2.SLDPRT	7B
25	DL303-02-01-04侧板3.SLDPRT	7B
26	DL303-02-01-05底板2.SLDPRT	7B
27	DL303-02-01-06侧板4.SLDPRT	7B
28	DL303-02-01-07底板3.SLDPRT	7B
29	DL303-02-01-08（DN125接口）.SLDPRT	7B
30	DL303-02-01-09角铁1.SLDPRT	7B
31	DL303-02-01-12角铁2.SLDPRT	7B
32	DL303-02-02-01顶板1.SLDPRT	7B
33	DL303-02-02-02顶板2.SLDPRT	7B
34	DL303-02-02-03顶板3.SLDPRT	7B
35	DL303-02-02-04（DN50内丝接头）.SLDPRT	7B
36	DL303-02-02-05（加强筋）.SLDPRT	7B
37	DL303-02-03-01搅拌轴.SLDPRT	7B
38	DL303-02-03-02叶片.SLDPRT	7B
39	DL303-02-03-03套筒.SLDPRT	7B
40	DL303-02-03-04减速机压板.SLDPRT	7B
41	DL303-02-04（液位传感器）.SLDPRT	7B

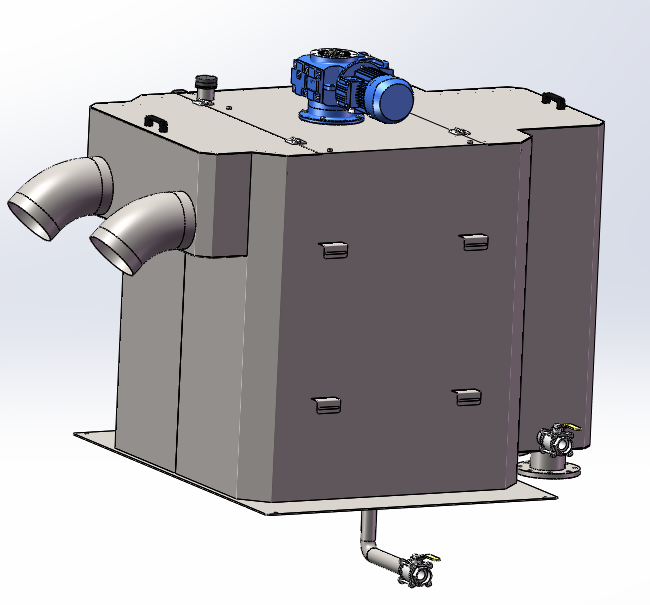

42	DL402-02-00搅拌装置.SLDASM	1.92M
43	DL402-02-01-00搅拌槽.SLDASM	699.40K
44	DL402-02-01-01底板1.SLDPRT	84.18K
45	DL402-02-01-02侧板1.SLDPRT	138.66K
46	DL402-02-01-03侧板2.SLDPRT	139.68K
47	DL402-02-01-04侧板3.SLDPRT	96.03K
48	DL402-02-01-05底板2.SLDPRT	85.73K
49	DL402-02-01-06侧板4.SLDPRT	119.91K
50	DL402-02-01-07底板3.SLDPRT	76.60K
51	DL402-02-01-08（DN125接口）.SLDPRT	143.67K
52	DL402-02-01-08（DN150接口）.SLDPRT	150.87K
53	DL402-02-01-09角铁1.SLDPRT	89.48K
54	DL402-02-01-10（出水管子.SLDPRT	159.64K
55	DL402-02-01-11（排污管子.SLDPRT	147.58K
56	DL402-02-01-12角铁2.SLDPRT	111.45K
57	DL402-02-01-13挡板.SLDPRT	79.93K
58	DL402-02-01-14挡板2.SLDPRT	103.27K
59	DL402-02-01-15角铁3.SLDPRT	85.66K
60	DL402-02-01-16挡板3.SLDPRT	85.41K
61	DL402-02-02-00顶盖.SLDASM	363.47K
62	DL402-02-02-01顶板1.SLDPRT	246.35K
63	DL402-02-02-02顶板2.SLDPRT	134.09K
64	DL402-02-02-03顶板3.SLDPRT	129.92K
65	DL402-02-02-04（DN50内丝接头）.SLDPRT	127.68K
66	DL402-02-02-05（加强筋）.SLDPRT	83.42K
67	DL402-02-03-00搅拌装置.SLDASM	918.43K
68	DL402-02-03-01搅拌轴.SLDPRT	81.26K
69	DL402-02-03-02叶片.SLDPRT	118.01K
70	DL402-02-03-03套筒.SLDPRT	140.75K
71	DL402-02-03-04减速机压板.SLDPRT	110.05K
72	DL402-02-04（液位传感器）.SLDPRT	245.25K
73	单头外丝直接头DN50.SLDPRT	488.06K
74	平键14x9.SLDPRT	62.30K
75	搅拌电机.sldprt	7B
76	球阀50.SLDPRT	517.43K
77	铝合金把手120mm.SLDPRT	159.53K
78	SAF..Y..斜齿轮-蜗轮减速电机SEW国茂泰隆通力杰牌东力减速机同款模型可以配刹车电机变频电机制动电机防爆电机伺服电机步进电机[SAF77-63.38╱Y290L-4╱M5╱T╱A╱φ50╱φ250].sldasm	894.56K
79	SAF..Y..斜齿轮-蜗轮减速电机SEW国茂泰隆通力杰牌东力减速机同款模型可以配刹车电机变频电机制动电机防爆电机伺服电机步进电机[SAF77-63.38╱Y290L-4╱M5╱T╱A╱φ50╱φ250]_SAF47-97.sldprt	2.12M
80	SAF..Y..斜齿轮-蜗轮减速电机SEW国茂泰隆通力杰牌东力减速机同款模型可以配刹车电机变频电机制动电机防爆电机伺服电机步进电机[SAF77-63.38╱Y290L-4╱M5╱T╱A╱φ50╱φ250]_电机.sldprt	1.15M
81	SAF37.SLDPRT	2.77M
82	SAF47-97.SLDPRT	2.04M
83	电机.SLDPRT	1.15M
84	不锈钢合页1.SLDPRT	99.62K
85	不锈钢合页2.SLDPRT	99.58K
86	不锈钢重型合页.SLDASM	118.93K
87	CL226-1.SLDPRT	191.09K
88	CL226-销子.SLDPRT	70.73K
89	CL226[CL226-1].sldasm	164.13K
90	CL226[CL226-1]_CL226-1.sldprt	262.16K
91	CL226[CL226-1]_CL226-销子.sldprt	71.78K
92	~$CL226[CL226-1]_CL226-1.sldprt	7B
93	~$CL226[CL226-1]_CL226-销子.sldprt	7B
94	DL401-03-00-00（叠螺装置）.SLDDRW	7B
95	DL402-03-00-00（叠螺装置）.SLDASM	2.51M
96	DL402-03-01-00（进料管）.SLDASM	193.29K
97	DL402-03-01-01（端板）.SLDPRT	108.21K
98	DL402-03-01-02（管子1）.SLDPRT	132.90K
99	DL402-03-01-03（管子2）.SLDPRT	93.45K
100	DL402-03-01-04（连接板1）.SLDPRT	104.96K
101	DL402-03-01-05（连接板2）.SLDPRT	83.39K
102	DL402-03-01-06（轴套）.SLDPRT	107.28K
103	DL402-03-02-00（螺旋轴）.SLDASM	420.61K
104	DL402-03-02-01（轴头1）.SLDPRT	130.49K
105	DL402-03-02-02（端板）.SLDPRT	80.98K
106	DL402-03-02-03（锥管）.SLDPRT	297.34K
107	DL402-03-02-04（螺旋片1）.SLDPRT	260.74K
108	DL402-03-02-05（螺旋片2）.SLDPRT	350.34K
109	DL402-03-02-06（直管）.SLDPRT	91.45K
110	DL402-03-02-07（轴头2）.SLDPRT	124.35K
111	DL402-03-03-00（背压板）.SLDASM	106.55K
112	DL402-03-03-01（压板）.SLDPRT	80.02K
113	DL402-03-03-02（肋板）.SLDPRT	81.84K
114	DL402-03-03-03（套管）.SLDPRT	173.20K
115	DL402-03-04-00（电机座）.SLDASM	179.34K
116	DL402-03-04-01（侧板）.SLDPRT	62.61K
117	DL402-03-04-02连接板1.SLDPRT	67.56K
118	DL402-03-04-03连接板2.SLDPRT	85.21K
119	DL402-03-04-04连接板3.SLDPRT	100.56K
120	DL402-03-04-05连接板4.SLDPRT	76.25K
121	DL402-03-04-06电机安装板.SLDPRT	138.01K
122	DL402-03-04-07顶板.SLDPRT	79.03K
123	DL402-03-05-00A（第一段）.SLDASM	1.39M
124	DL402-03-05-00B（第二段）.SLDASM	1.22M
125	DL402-03-05-00（垫片组装）.SLDASM	1.30M
126	DL402-03-05-01（固定环.SLDPRT	135.55K
127	DL402-03-05-02（游动环.SLDPRT	81.44K
128	DL402-03-05-03（浓缩垫片.SLDPRT	92.30K
129	DL402-03-05-04（脱水垫片.SLDPRT	92.68K
130	DL402-03-05-05连接板1.SLDPRT	150.97K
131	DL402-03-05-06-00（支撑板1）.SLDASM	117.41K
132	DL402-03-05-06-01板1.SLDPRT	166.83K
133	DL402-03-05-06-02板2.SLDPRT	83.07K
134	DL402-03-05-07丝杆.SLDPRT	921.95K
135	DL402-03-05-08阻泥环.SLDPRT	90.28K
136	DL402-03-05-09阻泥垫片.SLDPRT	105.80K
137	DL402-03-05-10阻泥管.SLDPRT	99.73K
138	DL402-03-05-11连接板2.SLDPRT	146.42K
139	DL402-03-05-12-00（支撑板2）.SLDASM	119.24K
140	DL402-03-05-12-01板1.SLDPRT	168.45K
141	DL402-03-06锥度板.SLDPRT	79.64K
142	DL402-03-07电机挡板.SLDPRT	85.08K
143	平键14x9.SLDPRT	63.25K
144	DL401-03-00-00（叠螺装置）.SLDDRW	2.42M
145	SAF..Y..斜齿轮-蜗轮减速电机SEW国茂泰隆通力杰牌东力减速机同款模型可以配刹车电机变频电机制动电机防爆电机伺服电机步进电机[SAF97-230.48╱Y290L-4╱M4╱L╱A╱φ70╱φ450].sldasm	889.89K
146	SAF..Y..斜齿轮-蜗轮减速电机SEW国茂泰隆通力杰牌东力减速机同款模型可以配刹车电机变频电机制动电机防爆电机伺服电机步进电机[SAF97-230.48╱Y290L-4╱M4╱L╱A╱φ70╱φ450]_SAF47-97.sldprt	2.12M
147	SAF..Y..斜齿轮-蜗轮减速电机SEW国茂泰隆通力杰牌东力减速机同款模型可以配刹车电机变频电机制动电机防爆电机伺服电机步进电机[SAF97-230.48╱Y290L-4╱M4╱L╱A╱φ70╱φ450]_电机.sldprt	1.17M
148	SAF37.SLDPRT	2.77M
149	SAF47-97.SLDPRT	2.05M
150	电机.SLDPRT	1.17M
151	DL402-04-00右侧板.SLDASM	141.73K
152	DL402-04-01（右侧侧板）.SLDPRT	236.00K
153	DL402-05-00左侧板.SLDASM	137.63K
154	DL402-05-01（左侧侧板）.SLDPRT	229.05K
155	DL402-06-00盖板.SLDPRT.SLDASM	316.16K
156	DL402-06-01（盖板面板）.SLDPRT	248.30K
157	DL402-06-02（有机玻璃）.SLDPRT	84.76K
158	DL402-06-03（压板）.SLDPRT	90.17K
159	DL402-06-04（加筋条1）.SLDPRT	93.30K
160	DL402-06-05（把手）.SLDPRT	140.97K
161	DL402-06-06（连接板）.SLDPRT	121.06K
162	DL402-06-07（加筋条2）.SLDPRT	130.71K
163	90°弯头DN40（304）.SLDPRT	401.78K
164	DL402-07-00补水管路.SLDASM	2.87M
165	DL402-07-01（管子1）.SLDPRT	253.65K
166	DL402-07-02（管子2）.SLDPRT	295.81K
167	DL402-07-03（管子3）.SLDPRT	409.84K
168	DL402-07-04（管子4）.SLDPRT	590.93K
169	PU225电磁阀[DN40].sldprt	546.84K
170	SY11C-A150Y型过滤器[40].sldprt	282.91K
171	WT三通DN40.SLDPRT	297.38K
172	内丝接头DN40.sldprt	1.36M
173	宝塔嘴内丝接头DN40.SLDPRT	663.77K
174	球阀DN40.SLDPRT	506.34K
175	DL402-00-00叠螺污泥脱水机开盖.SLDDRW	0B
176	DL402-00-00叠螺污泥脱水机开盖_Perf_Eval_SW_Report.txt	445B
177	DL402-08-00喷淋管路.SLDASM	879.50K
178	DL402-08-01（喷淋管）.SLDPRT	362.62K
179	DL402-08-02（连接管）.SLDPRT	115.09K
180	DL402-08-03（法兰）.SLDPRT	109.60K
181	DN40三通.SLDPRT	162.27K
182	DN40弯头.SLDPRT	180.37K
183	喷嘴（Φ2-1-8）.SLDPRT	253.07K
184	DL402-09-00（喷淋管支架）.SLDPRT.SLDASM	290.31K
185	DL402-09-01（板1）.SLDPRT	89.22K
186	DL402-09-02（板2）.SLDPRT	77.47K
187	U型抱箍.SLDPRT	294.04K
188	DL402-10-00（前侧板）.SLDASM	185.99K
189	DL402-10-01（前侧面板）.SLDPRT	495.25K
190	DL402-10-02（肋板）.SLDPRT	62.92K
191	DL402-10-03（连接板）.SLDPRT	135.08K
192	DL402-11-00（后侧板）.SLDASM	176.07K
193	DL402-11-01（后侧面板）.SLDPRT	464.82K
194	不锈钢重型合页1（80x65）.SLDPRT	106.50K
195	不锈钢重型合页2（80x65）.SLDPRT	108.63K
196	不锈钢重型合页（80x65）.SLDASM	111.02K
197	DL402-00控制柜.SLDPRT.SLDASM	1.02M
198	DL402-01底板.SLDPRT	189.58K
199	DL402-02顶板.SLDPRT	153.85K
200	DL402-03侧板.SLDPRT	194.42K
201	DL402-04门板.SLDPRT	303.08K
202	停止按钮.SLDPRT	104.33K
203	启动按钮.SLDPRT	101.49K
204	急停开关.SLDPRT	283.70K
205	电源指示灯.sldprt	1.29M
206	西门子触摸屏模型.SLDPRT	1.31M
207	触摸屏.SLDPRT	114.66K
208	CL226-1.SLDPRT	191.09K
209	CL226-销子.SLDPRT	70.73K
210	CL226[CL226-1].sldasm	163.92K
211	CL226[CL226-1]_CL226-1.sldprt	262.16K
212	CL226[CL226-1]_CL226-销子.sldprt	71.78K
213	90°门锁.sldasm	109.75K
214	压板.sldprt	39.54K
215	门锁.sldprt	66.09K
216	门锁片.sldprt	36.78K
217	angularcontactballbearingsgb.sldprt	312.31K
218	cylindricalrollerbearingsgb.sldprt	240.25K
219	cylindricalthrustrollerbearingsgb.sldprt	260.67K
220	d-rowcylindricalrollerbearingsnngb.sldprt	407.75K
221	d-rowcylindricalrollerbearingsnnugb.sldprt	374.28K
222	deepgrooveballbearingsgb.sldprt	467.94K
223	doublerowangularcontactballbearingsgb.sldprt	414.53K
224	miniatureradialballbearingsgb.sldprt	341.05K
225	needlerollerbearingslmseriesgb.sldprt	512.78K
226	outerself-aligningthrustballbearingsgb.sldprt	265.99K
227	self-aligningballbearingsgb.sldprt	364.56K
228	self-aligningrollerbearingsgb.sldprt	437.69K
229	self-aligningthrustrollerbearingsgb.sldprt	483.68K
230	taperedrollerbearingsgb.sldprt	520.12K
231	thrustballbearingsgb.sldprt	302.39K
232	cupheadnibboltsgb.sldprt	145.48K
233	cupheadnibboltswithlargeheadgb.sldprt	143.52K
234	cupheadsquareneckboltsgb.sldprt	254.61K
235	cupheadsquareneckboltsgradebgb.sldprt	147.23K
236	cupheadsquareneckboltsgradecgb.sldprt	144.21K
237	strengthenedcapheadsquareneckboltsgb.sldprt	199.42K
238	flatcountersunkdoublenibboltsgb.sldprt	136.30K
239	flatcountersunknibboltsgb.sldprt	132.78K
240	flatcountersunksquareneckboltsgb.sldprt	143.90K
241	crossrecessedhexboltsindentationgb.sldprt	187.84K
242	hexagonfitbolts--productgradeaandbgb.sldprt	163.10K
243	hexagonflangebolts--smallseriesgb.sldprt	175.84K
244	hexagonheadbolts--productgradecgb.sldprt	150.69K
245	hexagonheadbolts-fullthreadgb.sldprt	289.98K
246	hexagonheadbolts-fullthreadgb.sldprt1.SLDPRT	358.18K
247	hexagonheadbolts-fullthreadgb.sldprt2.SLDPRT	358.74K
248	hexagonheadbolts-fullthreadgb1.sldprt	597.14K
249	hexagonheadboltsgb.sldprt	160.37K
250	hexboltssplitpinhole-finepitch-abgb.sldprt	193.50K
251	hexboltswirehole-reducedshank-bgb.sldprt	163.61K
252	hexboltswithslotonheadgradeabgb.sldprt	159.61K
253	hexboltswithsplitpinhole-gradeabgb.sldprt	185.37K
254	hexboltswithsplitpinhole-reduced-bgb.sldprt	179.82K
255	hexboltswithsplitpinholegradeabgb.sldprt	165.28K
256	hexboltswithwirehole-finepitch-abgb.sldprt	160.49K
257	hexboltswithwirehole-gradeabgb.sldprt	163.11K
258	hexflangebolts-heavygradebgb.sldprt	235.92K
259	hexflangebolts-heavyreducedgradebgb.sldprt	181.16K
260	hexheadbolts-finepitchgradeabgb.sldprt	152.40K
261	hexheadbolts-fullthreadgradecgb.sldprt	199.18K
262	hexheadbolts-reducedshankgradebgb.sldprt	155.85K
263	highstrengthboltsforgridstructuresgb.sldprt	192.80K
264	boltsfort-slotgb.sldprt	139.27K
265	eyeboltsgb.sldprt	253.27K
266	eyeletboltsgb.sldprt	123.53K
267	squareheadbolts--productgradecgb.sldprt	151.79K
268	squareheadboltswithsmallhead-bgb.sldprt	146.98K
269	doubleendstudclampingtypegradebgb-2.sldprt	219.77K
270	doubleendstudsbm1.25dgb.sldprt	164.51K
271	doubleendstudsbm1.5dgb.sldprt	194.53K
272	doubleendstudsbm1dgb.sldprt	173.92K
273	doubleendstudsbm2dgb.sldprt	158.62K
274	doubleendstudsclampingtype-cgb.sldprt	135.92K
275	threadedrodsgb.sldprt	143.09K
276	weldstudsforarcwelding.sldprt	137.68K
277	weldstudsforcapacitordischargeagb.sldprt	147.39K
278	weldstudsforcapacitordischargebgb.sldprt	145.96K
279	weldstudsformanualweldinggb.sldprt	150.87K
280	hexagonnutsforfinemechanicsgb.sldprt	146.58K
281	hexagonnutsgradecgb.sldprt	283.16K
282	hexagonnutswithflangegb.sldprt	209.26K
283	hexagonnutswithraisedfacegb.sldprt	173.79K
284	hexagonthicknutsgb.sldprt	167.07K
285	hexnut-finepitch-stylewasher-gradeabgb.sldprt	353.50K
286	hexnuts-stylenormal-gradesabgb.sldprt	173.97K
287	hexnuts1-finepitch-gradesabgb.sldprt	152.66K
288	hexnutsstyle-gradesabgb.sldprt	347.09K
289	hexnutsstyle1-gradesabgb.sldprt	321.37K
290	hexnutsstyle1-gradesabgb.sldprt1.SLDPRT	208.07K
291	hexnutsstyle2-gradesabgb.sldprt	230.87K
292	hexnutswithflange-finepitchgb.sldprt	200.22K
293	hexslottedandcastlenuts1-gradeabgb.sldprt	222.27K
294	hexslottedandcastlenuts2-gradeabgb.sldprt	214.57K
295	hexslottedcastlenuts2-finepitch-abgb.sldprt	213.59K
296	hexslottedcastlenutsl-finepitch-abgb.sldprt	212.68K
297	hexslottednutsstyle1-gradescgb.sldprt	210.27K
298	hexthinnuts-gradesab-chamferedgb.sldprt	195.25K
299	hexthinnuts-gradesb--unchamferedgb.sldprt	122.74K
300	hexthinnutsgradesabgb.sldprt	185.03K
301	hexthinslottednuts-finepitch-abgb.sldprt	210.47K
302	hexthinslottednuts-gradesabgb.sldprt	216.54K
303	prevailingtorqueall-metal1gb.sldprt	149.97K
304	prevailingtorqueflange-finepitchgb.sldprt	217.00K
305	prevailingtorquehexnuts1-finepitchgb.sldprt	148.93K
306	prevailingtorquehexnuts2class9gb.sldprt	149.44K
307	prevailingtorquehexnuts2gb.sldprt	149.09K
308	prevailingtorquehexnutsfinepitchgb.sldprt	197.28K
309	prevailingtorquehexnutswithflangegb.sldprt	195.89K
310	prevailingtorquetype1withfinepitchgb.sldprt	169.57K
311	prevailingtorquetype2gb.sldprt	183.94K
312	prevailingtorquetypestyle1gb.sldprt	176.52K
313	prevailingtorquetypewithflangegb.sldprt	226.98K
314	smallhexthinnuts-finepitchthreadgb.sldprt	132.97K
315	tightnutsgb.sldprt	196.46K
316	insertroundnutstypeagb.sldprt	1.09M
317	insertroundnutstypebgb.sldprt	1.20M
318	roundnutsdrilledholesinonefacegb.sldprt	159.73K
319	roundnutsgb.sldprt	171.48K
320	roundnutswithsetpinholesinsidegb.sldprt	173.45K
321	slottedroundnutsgb.sldprt	191.20K
322	smallroundnutsgb.sldprt	185.64K
323	120degsmallctskheadrivetednutsgb.sldprt	183.34K
324	acornnutsgb.sldprt	182.61K
325	countersunkheadrivetednutsgb.sldprt	183.99K
326	flatheadhexagonrivetednutsgb.sldprt	178.06K
327	flatheadrivetednutsgb.sldprt	215.53K
328	knurlednutgb.sldprt	471.41K
329	knurlednutwithcollargb.sldprt	448.57K
330	lidnutgb.sldprt	196.04K
331	liftingnutsgb.sldprt	246.44K
332	smallcountersunkheadrivetednutsgb.sldprt	183.28K
333	squarenuts--productgradecgb.sldprt	212.23K
334	wingnutsgb.sldprt	157.51K
335	hexagonweldnutsgb.sldprt	228.33K
336	squareweldnutsgb.sldprt	149.92K
337	o-ringsseriesagb.sldprt	218.43K
338	o-ringsseriesggb.sldprt	221.78K
339	clevispinswithheadgb.sldprt	145.68K
340	groovedpins--paralleltypeaandbgb.sldprt	150.43K
341	groovedpins--paralleltypecandd-2gb.sldprt	171.40K
342	groovedpins--tapergroovedtypeaandbgb.sldprt	134.84K
343	groovedpins--tapergroovedtypec-2gb.sldprt	166.51K
344	groovedpins-withroundheadorctskgb.sldprt	132.00K
345	featherkeysgb.sldprt	144.98K
346	plainparallelkeys.sldprt	115.03K
347	thinflatkeysgb.sldprt	105.41K
348	thinkey_gb.sldprt	116.82K
349	parallelpinshardeningsteelgb.sldprt	130.65K
350	parallelpinsunhardeningsteelgb.sldprt	134.73K
351	pinswithexternalthreadgb.sldprt	137.15K
352	pinswithexternalthreadhardeninggb.sldprt	151.99K
353	pinswithexternalthreadunhardeninggb.sldprt	146.60K
354	pinswithsplitpinholegb.sldprt	145.78K
355	springpinslottedheavyduty1gb.sldprt	158.23K
356	springpinslottedlightduty1gb.sldprt	158.81K
357	straight-sidedsplinegb.sldprt	176.85K
358	splitpins.sldprt	120.50K
359	chipkeygb.sldprt	80.80K
360	presschipkeygb.sldprt	79.87K
361	gib-headtaperkeysgb.sldprt	109.82K
362	taperkeysforgeneralusegb.sldprt	127.75K
363	taperpinsgb.sldprt	112.00K
364	taperpinswithexternalthreadgb.sldprt	132.63K
365	taperpinswithinternalthreadgb.sldprt	140.99K
366	taperpinswithsplitgb.sldprt	113.22K
367	woodruffkeysgb.sldprt	90.55K
368	helicalgear_3_gb.sldprt	1.05M
369	internalspurgear_gb.sldprt	184.47K
370	rackspurrectangular_gb.sldprt	145.61K
371	spurgear_gb.sldprt	204.74K
372	straightbevelgear_gb.sldprt	379.39K
373	straightbevelpinion_gb.sldprt	294.97K
374	straightmitergear_gb.sldprt	306.31K
375	120degblindrivetsgb.sldprt	104.08K
376	120degclosedendblindrivetsgb.sldprt	99.27K
377	120degctsksemi-tubularrivetsgb.sldprt	108.05K
378	120degreecountersunkheadrivetsgb.sldprt	103.37K
379	120degreeovalcountersunkrivetsgb.sldprt	110.64K
380	closedendblindrivetsgb.sldprt	101.59K
381	coneheadrivets--blackgb.sldprt	120.57K
382	coneheadrivetsgb.sldprt	122.83K
383	coneheadsemi-tubulerrivetsgb.sldprt	122.02K
384	countersunkheaddriverivetsgb.sldprt	103.84K
385	countersunkheadrivets--blackgb.sldprt	115.42K
386	countersunkheadrivetsgb.sldprt	111.28K
387	countersunkheadsemi-tublarrivetsgb.sldprt	107.43K
388	flatheadrivetsgb.sldprt	111.73K
389	flatroundheaddriverivetsgb.sldprt	111.24K
390	flatroundheadrivetsgb.sldprt	111.71K
391	headlessrivetsgb.sldprt	139.65K
392	mushroomheadbreakmandrelblindrivetsgb.sldprt	106.42K
393	ovalcountersunkheadrivets-blackgb.sldprt	126.18K
394	ovalcountersunkheadrivetsgb.sldprt	131.08K
395	ovalheadsemi-tubularrivetsgb.sldprt	113.70K
396	pipetyperivetsgb.sldprt	149.65K
397	rivetsfornameplategb.sldprt	122.19K
398	roundheadrivets--blackgb.sldprt	119.83K
399	roundheadrivetsgb.sldprt	120.77K
400	roundheadrivetswithsmallhead--blackgb.sldprt	120.88K
401	thinheadrivetsgb.sldprt	132.86K
402	thinheadsemi-tubularrivetsgb.sldprt	116.35K
403	trussheadrivetsgb.sldprt	105.40K
404	trussheadsemi-tubuarrivetsgb.sldprt	108.52K
405	tubularrivetsgb.sldprt	155.78K
406	cheeseheadstudsforstudweldinggb.sldprt	138.90K
407	headlessstudsforstudweldinggb.sldprt	113.45K
408	slottedcheeseheadscrewswithshouldergb.sldprt	146.61K
409	slottedpanheadsetsetscrewsgb.sldprt	171.01K
410	slottedraisedcheeseheadwithshouldergb.sldprt	172.95K
411	slottedsetscrewswithdogpointgb.sldprt	155.37K
412	slottedsetscrewswithfrustumpointgb.sldprt	162.70K
413	slottedshoulderscrewsgb.sldprt	159.74K
414	crossrecessedcheeseheadscrewsgb.sldprt	182.77K
415	crossrecessedcheeseheadscrewstypeagb.sldprt	157.54K
416	crossrecessedcountersunkheadscrewsgb1.sldprt	213.14K
417	crossrecessedcountersunkheadscrewsgb2.sldprt	278.66K
418	crossrecessedctskheadscrewstypebgb.sldprt	163.10K
419	crossrecessedpanheadscrewsgb.sldprt	404.12K
420	crossrecessedpanheadscrewsgb1.sldprt	403.21K
421	crossrecessedraisedctskscrewsgb.sldprt	182.85K
422	crossrecessedraisedctskscrewstypecgb.sldprt	170.49K
423	crossrecessedsmallpanheadscrewsgb.sldprt	264.12K
424	hexagonlobularsocketpanheadscrewsgb.sldprt	262.44K
425	hexagonsocketheadshoulderscrewsgb.sldprt	178.63K
426	hexlobularsocketctskscrewsgb.sldprt	148.01K
427	hexlobularsocketheadcapscrews-4.8gb.sldprt	255.25K
428	hexlobularsocketraisedctskscrewsgb.sldprt	151.62K
429	slottedcapstanscrewsgb.sldprt	173.86K
430	slottedcheeseheadscrewsgb.sldprt	156.75K
431	slottedcountersunkheadscrewsgb.sldprt	142.67K
432	slottedlargecheeseheadscrewsgb.sldprt	119.09K
433	slottedlargeraisedcheeseheadscrewsgb.sldprt	147.35K
434	slottedpanheadscrewsgb.sldprt	160.36K
435	slottedraisedcountersunkheadscrewsgb.sldprt	151.21K
436	hexagonscrewswithwaistedshankgb.sldprt	139.21K
437	knurledthumbscrewswithwaistedshankgb.sldprt	501.96K
438	slottedctskscrewswaistedshankgb.sldprt	162.70K
439	slottedraisedctskscrewswaistedshankgb.sldprt	167.11K
440	slottedscrewswithwaistedshankgb.sldprt	167.40K
441	crossrecessedcountersunktappinggb.sldprt	156.67K
442	crossrecessedpanheadself-drillinggb.sldprt	171.73K
443	crossrecessedraisedctsktappinggb.sldprt	172.52K
444	hexflangeheadtappingscrewsgb.sldprt	164.27K
445	hexagonsocketsetscrewswithcuppointgb.sldprt	161.81K
446	hexagonsocketsetscrewswithdogpointgb.sldprt	185.34K
447	hexsocketsetscrewswithconepointgb.sldprt	148.81K
448	hexsocketsetscrewswithflatpointgb.sldprt	151.05K
449	slottedsetscrewswithconepointgb.sldprt	200.28K
450	slottedsetscrewswithcuppointgb.sldprt	181.01K
451	slottedsetscrewswithflatpointgb.sldprt	148.48K
452	slottedsetscrewswithlongdogpointgb.sldprt	163.11K
453	squaresetscrewswithchamferedendgb.sldprt	148.93K
454	squaresetscrewswithconeendgb.sldprt	149.88K
455	squaresetscrewswithcuppointgb.sldprt	151.44K
456	squaresetscrewswithlongdogpointgb.sldprt	153.76K
457	squaresetscrewswithroundedendgb.sldprt	163.15K
458	hexagonsocketbuttonheadscrewsgb.sldprt	227.72K
459	hexagonsocketcountersunkheadscrewsgb.sldprt	144.91K
460	hexagonsocketheadcapscrewsgb.sldprt	286.26K
461	hexlobularsocketheadcapscrews-8.8gb.sldprt	152.70K
462	eyeboltsgb.sldprt	445.91K
463	knurledscrewsgb.sldprt	389.12K
464	knurledscrewswithsmallheadgb.sldprt	241.63K
465	knurledthumbscrewsgb.sldprt	402.74K
466	plasticknurledscrewswithsmallheadagb.sldprt	313.51K
467	plasticknurledscrewswithsmallheadbgb.sldprt	285.46K
468	crossrecessedctskheadtappingscrewsgb.sldprt	148.98K
469	crossrecessedhextappingscrewsgb.sldprt	175.66K
470	crossrecessedpanheadtappingscrewsgb.sldprt	159.23K
471	crossrecessedraisedctsktappingscrewgb.sldprt	155.87K
472	drywallscrewsgb.sldprt	125.13K
473	fmcrtappingscrews-scrapepointagb.sldprt	151.45K
474	fmcrtappingscrews-scrapepointbgb.sldprt	142.72K
475	fmcrtappingscrews-scrapepointcgb.sldprt	156.72K
476	hexagonflangeheadtappingscrewsgb.sldprt	195.42K
477	hexagonheadtappingscrewsgb.sldprt	158.03K
478	hexagonheadtappingscrewswithcollargb.sldprt	173.57K
479	slottedcountersunkheadtappingscrewsgb.sldprt	136.53K
480	slottedpanheadtappingscrewsgb.sldprt	151.68K
481	slottedraisedctskheadtappingscrewsgb.sldprt	148.74K
482	crossrecessedctskthreadformingscrewgb.sldprt	152.34K
483	crossrecessedraisedctskthrd-forminggb.sldprt	150.15K
484	crossrecessedthreadformingscrewsgb.sldprt	147.66K
485	hexagonheadthreadformingscrewsgb.sldprt	160.31K
486	hexlobularsocketthreadformingscrewsgb.sldprt	160.21K
487	crossrecessedctskwoodscrewsgb.sldprt	147.34K
488	crossrecessedraisedctskwoodscrewsgb.sldprt	157.08K
489	crossrecessedroundheadwoodscrewsgb.sldprt	161.46K
490	hexagonheadwoodscrewsgb.sldprt	149.89K
491	slottedcountersinkheadwoodscrewsgb.sldprt	140.64K
492	slottedraisedctskwoodscrewsgb.sldprt	157.32K
493	slottedroundheadwoodscrewsgb.sldprt	156.44K
494	rubberdustsealstypeagb.sldprt	133.01K
495	rubberdustsealstypebgb.sldprt	138.97K
496	rubberdustsealstypecgb.sldprt	152.92K
497	rubbersealsonone-waygb.sldprt	149.95K
498	rubbersealsontwo-waygb.sldprt	166.69K
499	hot-rolleddoubletsteelgb.sldprt	144.60K
500	hot-rolledequalanglegb.sldprt	119.36K
501	hot-rolledhexagonalsteelgb.sldprt	125.63K
502	hot-rolledroundandsquaresteelbargb.sldprt	119.40K
503	hot-rolledsteelchannelgb.sldprt	127.25K
504	hot-rolledunequalanglegb.sldprt	109.55K
505	lightrailgb.sldprt	166.69K
506	ctskexternaltoothedlockwashersgb.sldprt	123.17K
507	ctskserratedexternalteethlockwashergb.sldprt	211.51K
508	externaltabwashersgb.sldprt	104.50K
509	lockwashersexternalteethgb.sldprt	123.06K
510	lockwashersinternalteethgb.sldprt	132.32K
511	serratedlockwashersexternalteethgb.sldprt	119.57K
512	serratedlockwashersinternalteethgb.sldprt	119.43K
513	tabwashersforroundnutgb.sldprt	145.06K
514	tabwasherswithlongtabandwinggb.sldprt	98.90K
515	tabwasherswithlongtabgb.sldprt	99.43K
516	plainwashers--productgradecgb.sldprt	230.05K
517	plainwashers-chamfered--normalseries-agb.sldprt	110.32K
518	plainwashers-lseries-gradesacgb.sldprt	115.27K
519	plainwashers-nseries-gradeagb.sldprt	129.81K
520	plainwashers-sseries-gradeagb.sldprt	129.71K
521	plainwashers-xlseries-gradecgb.sldprt	112.22K
522	plainwashersforclevispinsgb.sldprt	173.96K
523	circlipsforhole--typebgb.sldprt	111.20K
524	circlipsforholes--typeagb.sldprt	116.73K
525	circlipsforshaft--typealargegb.sldprt	123.56K
526	circlipsforshaft--typeasmallgb.sldprt	113.71K
527	circlipsforshaft--typebgb.sldprt	112.43K
528	eringsgb.sldprt	118.31K
529	gripringsgb.sldprt	106.77K
530	lockringsattheendofshaftwithboltgb.sldprt	109.05K
531	lockringsendofshaftwithscrewgb.sldprt	113.12K
532	lockringswithconepingb.sldprt	148.96K
533	lockringswithscrewandcirclipgb.sldprt	178.78K
534	lockringwithscrewgb.sldprt	159.54K
535	ringsforshoulderlightseriesgb.sldprt	101.07K
536	ringsforshouldermhseriesgb.sldprt	101.45K
537	roundwirecirclipsgb.sldprt	128.70K
538	roundwiresnapringsforholegb.sldprt	146.29K
539	roundwiresnapringsforshaftgb.sldprt	157.11K
540	shoulderringsradialforthrustbearinggb.sldprt	101.47K
541	squaretaperwashersforisectiongb.sldprt	104.46K
542	squaretaperwashersforslotsectiongb.sldprt	110.82K
543	washerswithconefacegb.sldprt	130.45K
544	washerswithsplitgb.sldprt	135.83K
545	wesherswithballfacegb.sldprt	138.73K
546	curvedsinglecoilspringlockwashersgb.sldprt	114.55K
547	curvedspringwashersgb.sldprt	113.52K
548	singlecoillockwasherslighttypegb.sldprt	109.85K
549	singlecoilspringlockwashersheavygb.sldprt	117.59K
550	springlockwashers--normaltypegb.sldprt	317.24K
551	wavesinglecoilspringlockwashersgb.sldprt	114.15K
552	wavespringwashersgb.sldprt	114.87K
553	气弹簧340-130-20（压缩）.SLDPRT	129.61K
554	气弹簧340-130-20（拉伸）.SLDPRT	115.33K

此图纸下载需要450金币

立即下载

发布者

皓月当空

创作: 69

粉丝: 48

加入时间：2021-06-01

私信

关注

模型信息

图纸ID：456171

图纸格式：pdf,sldasm,sldprt

文件大小：170.58M

所需金币：450

上传时间：2023-01-06 09:35:13

是否可编辑：可修改，包括参数

软件版本：SOLIDWORKS 2020

标签

图纸简介

螺污泥脱水机简介：叠螺污泥脱水机是一种设计紧凑占地空间小、低耗能低运行费用高节能高技术含量、便于维修及更换、重量小、便于搬运的设备。,尤其适合中小型污水厂、乡镇污水厂、污水处理站。该脱水机以独特微妙的滤体模式取代了传统的滤布和离心的过滤方式，降低投资成本，提高处理效率。应用：市政污水、造纸废水、化工废水、食品和饮料加工废水、工业生产废水、造纸废水、制药废水、石油加工和开采废水等。工作原理：叠螺污泥脱水机的主体是由多重固定环和游动环构成，螺旋轴贯穿其中形成的过滤装置。前段为浓缩部，后段为脱水部，将污泥的浓缩和压榨脱水工作在一筒内完成，以独特微妙的滤体模式取代了传统的滤布和离心的过滤方式。

版权说明

用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。

作者其它图纸查看更多
