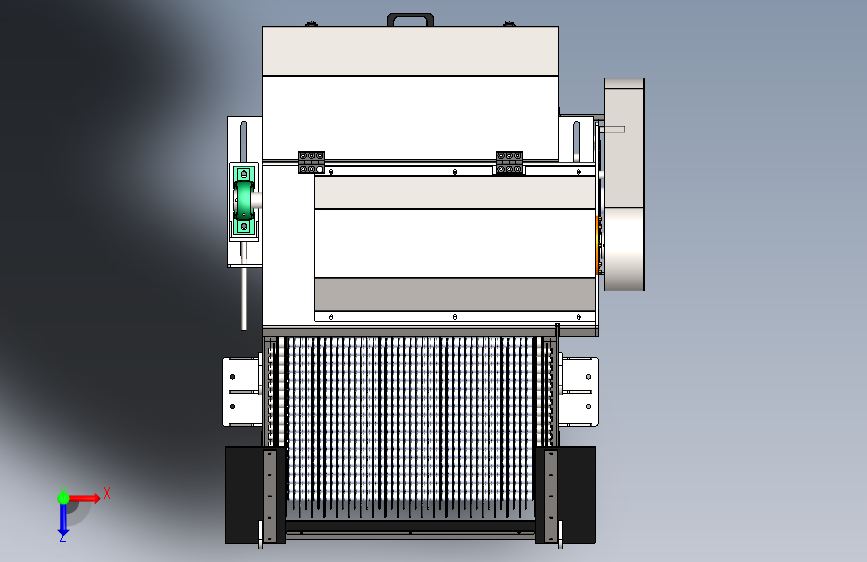

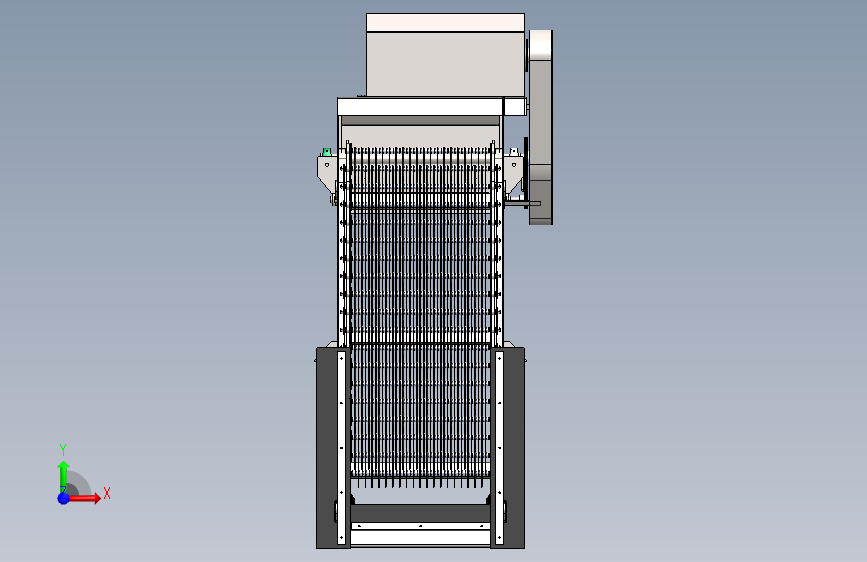

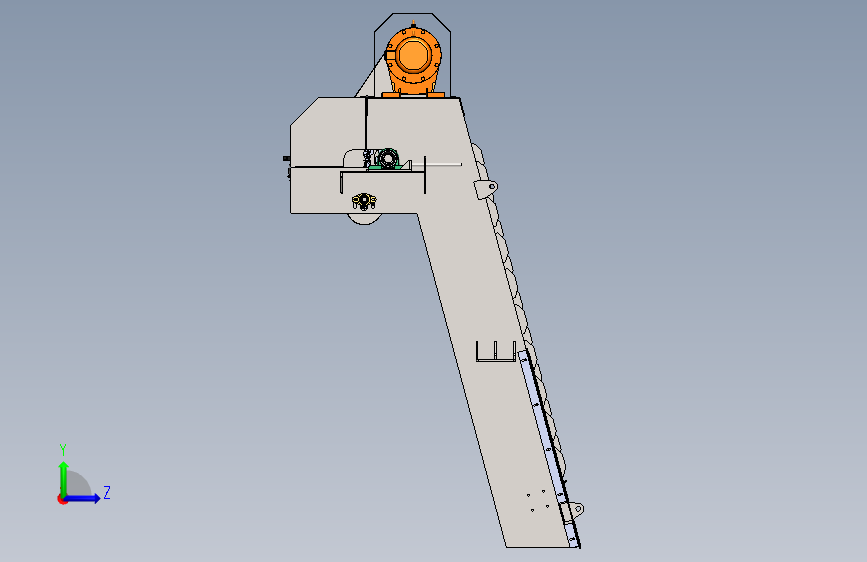

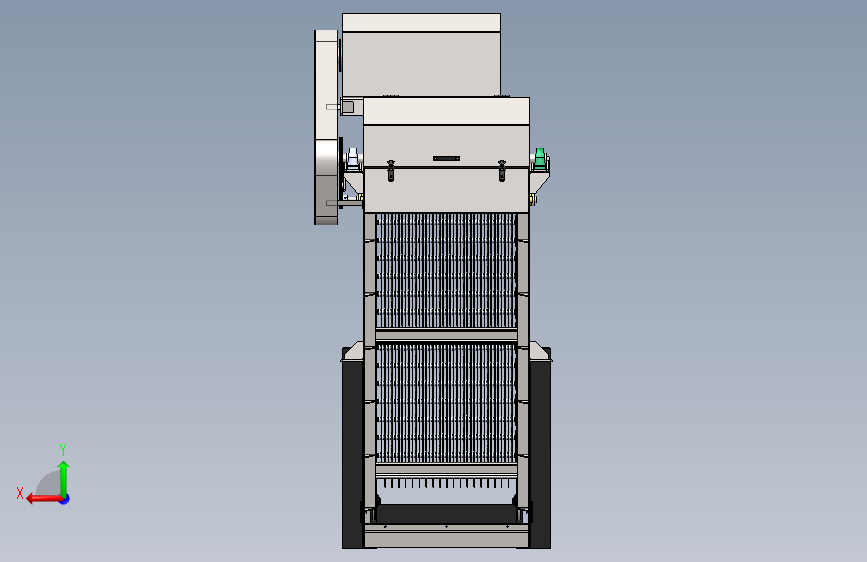

耙齿格栅PCGS900X1000-00(3d建模)（ID:684597）

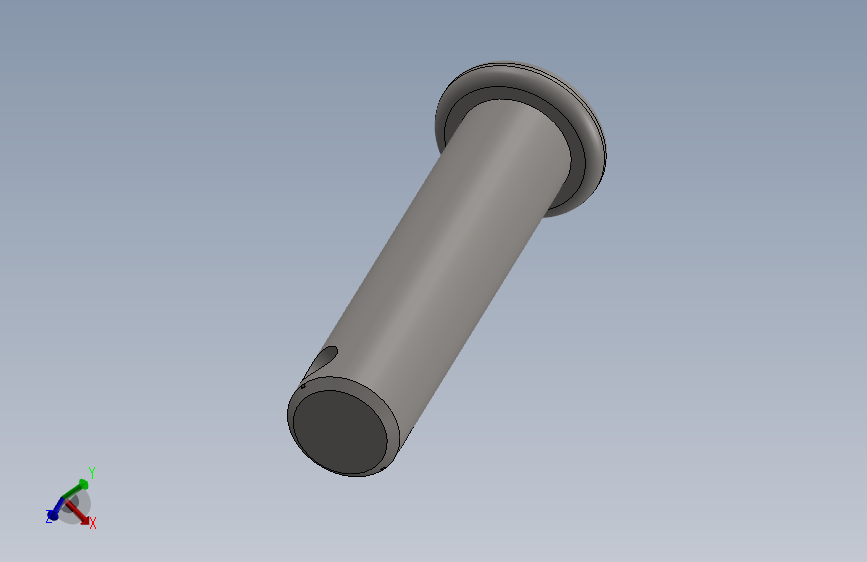

0.png)
1.png)
2.png)
3.png)
4.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 16904408171945.zip | 30.29M |
| 2 | GB╱T7810-1995（UCP210）带立式座轴承.sldprt | 607.38K |
| 3 | PCGS900X1000-00耙齿格栅.SLDPRT.SLDASM | 3.79M |
| 4 | PCGS900X1000-00耙齿格栅方案图-模型.pdf | 748.93K |
| 5 | PCGS900X1000-00耙齿格栅方案图.DWG | 7.07M |
| 6 | PCGS900X1000-08电机防雨罩.SLDPRT | 140.81K |
| 7 | PCGS900X1000-11主传动链条.SLDPRT | 678.26K |
| 8 | PCGS900X1000-13毛刷链条.SLDPRT | 1.86M |
| 9 | PCGS900X1000-14侧密封条角铁.SLDPRT | 144.06K |
| 10 | PCGS900X1000-15侧密封条.SLDPRT | 75.47K |
| 11 | PCGS900X1000-16侧密封条压板.SLDPRT | 63.94K |
| 12 | PCGS900X1000-17底密封条.SLDPRT | 60.30K |
| 13 | PCGS900X1000-18底密封条压板.SLDPRT | 65.09K |
| 14 | 轴承座BRTF-25.SLDPRT | 251.16K |
| 15 | 镜向GB╱T7810-1995（UCP210）带立式座轴承.sldprt | 181.54K |
| 16 | 镜向PCGS900X1000-14侧密封条角铁.SLDPRT | 83.78K |
| 17 | PCGS900X1000-01-00支架.SLDPRT.SLDASM | 444.40K |
| 18 | PCGS900X1000-01-01-00左侧机架.SLDPRT.SLDASM | 152.52K |
| 19 | PCGS900X1000-01-01-01左侧板.SLDPRT | 137.19K |
| 20 | PCGS900X1000-01-01-02扁钢1.SLDPRT | 92.52K |
| 21 | PCGS900X1000-01-01-03扁钢2.SLDPRT | 92.08K |
| 22 | PCGS900X1000-01-01-04导轨1.SLDPRT | 91.72K |
| 23 | PCGS900X1000-01-01-05导轨2.SLDPRT | 93.50K |
| 24 | PCGS900X1000-01-01-06肋板.SLDPRT | 70.26K |
| 25 | PCGS900X1000-01-01-07-00支座.SLDPRT.SLDASM | 83.33K |
| 26 | PCGS900X1000-01-01-07-01螺栓连接板.SLDPRT | 77.96K |
| 27 | PCGS900X1000-01-01-07-02肋板.SLDPRT | 66.84K |
| 28 | PCGS900X1000-01-01-08-00支撑座1.SLDPRT.SLDASM | 72.81K |
| 29 | PCGS900X1000-01-01-08-01板1.SLDPRT | 73.16K |
| 30 | PCGS900X1000-01-01-08-02肋板1.SLDPRT | 73.42K |
| 31 | PCGS900X1000-01-01-08-03肋板2.SLDPRT | 71.35K |
| 32 | PCGS900X1000-01-01-09吊耳.SLDPRT | 82.16K |
| 33 | PCGS900X1000-01-02-00右侧机架.SLDPRT.SLDASM | 155.80K |
| 34 | PCGS900X1000-01-02-01右侧板.SLDPRT | 156.49K |
| 35 | PCGS900X1000-01-02-02-00支撑座2.SLDPRT.SLDASM | 77.54K |
| 36 | PCGS900X1000-01-02-02-01板2.SLDPRT | 79.78K |
| 37 | PCGS900X1000-01-03顶板.SLDPRT | 184.45K |
| 38 | PCGS900X1000-01-04端板.SLDPRT | 92.93K |
| 39 | PCGS900X1000-01-05角铁.SLDPRT | 95.46K |
| 40 | PCGS900X1000-01-06格栅封板.SLDPRT | 93.76K |
| 41 | PCGS900X1000-01-07-00翻盖.SLDPRT.SLDASM | 147.04K |
| 42 | PCGS900X1000-01-07-01面板.SLDPRT | 164.39K |
| 43 | PCGS900X1000-01-07-02左侧板.SLDPRT | 196.48K |
| 44 | PCGS900X1000-01-07-03右侧板.SLDPRT | 119.77K |
| 45 | [8槽钢.SLDPRT | 76.60K |
| 46 | 铝合金把手120mm.SLDPRT | 161.39K |
| 47 | _1-PGXF-1A.sldprt | 44.10K |
| 48 | _2-PGXF-2A.sldprt | 47.64K |
| 49 | _3-PGXF-3A.sldprt | 28.71K |
| 50 | _4-PGXF-4A.sldprt | 33.33K |
| 51 | 箱扣PGXF-A.SLDASM | 160.37K |
| 52 | _合页PDNSJ1-65.sldprt | 36.30K |
| 53 | _合页PDNSJ2-65.sldprt | 35.06K |
| 54 | 合页PDNSJ-65.SLDASM | 108.91K |
| 55 | PCGS900X1000-02-00耙齿组装图.SLDPRT.SLDASM | 593.52K |
| 56 | PCGS900X1000-02-01链条挡板.SLDPRT | 64.52K |
| 57 | PCGS900X1000-02-02链条滚轮.SLDPRT | 122.43K |
| 58 | PCGS900X1000-02-03外链板.SLDPRT | 77.24K |
| 59 | PCGS900X1000-02-04小套.SLDPRT | 107.52K |
| 60 | PCGS900X1000-02-05耙齿轴.SLDPRT | 88.52K |
| 61 | PCGS900X1000-02-06耙齿.SLDPRT | 466.07K |
| 62 | PCGS900X1000-02-07耙齿隔套.SLDPRT | 103.37K |
| 63 | 开口销GBT914X25.SLDPRT | 124.89K |
| 64 | 轴挡圈GBT894-198618.SLDPRT | 89.72K |
| 65 | 轴挡圈GBT894-198625.SLDPRT | 89.20K |
| 66 | 道轨轮廓.SLDPRT | 79.29K |
| 67 | PCGS900X1000-03-00从动轮装置.SLDPRT.SLDASM | 264.08K |
| 68 | PCGS900X1000-03-01从动轮.SLDPRT | 237.65K |
| 69 | PCGS900X1000-03-02从动轮隔套.SLDPRT | 89.90K |
| 70 | PCGS900X1000-03-03导座轮.SLDPRT | 118.23K |
| 71 | PCGS900X1000-03-04从动轮挡圈.SLDPRT | 70.57K |
| 72 | PCGS900X1000-04-00主动轮装置.SLDPRT.SLDASM | 653.09K |
| 73 | PCGS900X1000-04-01主动轮.SLDPRT | 490.03K |
| 74 | PCGS900X1000-04-02主动轮轴.SLDPRT | 80.28K |
| 75 | PCGS900X1000-04-03从传动链轮.SLDPRT | 1006.01K |
| 76 | PCGS900X1000-04-04挂刷主动链轮.SLDPRT | 1.22M |
| 77 | PCGS900X1000-05-00挂刷装置.SLDPRT.SLDASM | 197.97K |
| 78 | PCGS900X1000-05-01挂刷轴.SLDPRT | 70.61K |
| 79 | PCGS900X1000-05-02扁钢.SLDPRT | 81.63K |
| 80 | PCGS900X1000-05-03毛刷从动轮.SLDPRT | 574.71K |
| 81 | PCGS900X1000-05-04挂刷.SLDPRT | 84.35K |
| 82 | PCGS900X1000-06-00轴承座调解装置.SLDPRT.SLDASM | 111.87K |
| 83 | PCGS900X1000-06-01底板.SLDPRT | 84.66K |
| 84 | PCGS900X1000-06-02内板.SLDPRT | 64.08K |
| 85 | PCGS900X1000-06-03背板.SLDPRT | 73.50K |
| 86 | PCGS900x1000-07-00链条防护罩1.SLDPRT.SLDASM | 91.50K |
| 87 | PCGS900x1000-07-01防护罩围板.SLDPRT | 102.26K |
| 88 | PCGS900x1000-07-02防护罩底板.SLDPRT | 78.47K |
| 89 | PCGS900x1000-07-03连接板.SLDPRT | 94.09K |
| 90 | PCGS900x1000-07-04连接板2.SLDPRT | 89.75K |
| 91 | PCGS900X1000-09-00主传动链轮装置.SLDPRT.SLDASM | 262.12K |
| 92 | PCGS900X1000-09-01主传动链轮轴套.SLDPRT | 118.32K |
| 93 | PCGS900X1000-09-02主传动链轮.SLDPRT | 576.70K |
| 94 | PCGS900X1000-10-00主传动张紧轮装置.SLDPRT.SLDASM | 167.65K |
| 95 | PCGS900X1000-10-01主传动张紧轮轴套.SLDPRT | 97.34K |
| 96 | PCGS900X1000-10-02主传动张紧轮.SLDPRT | 357.24K |
| 97 | PCGS900X1000-12-00挂刷张紧轮装置.SLDPRT.SLDASM | 177.57K |
| 98 | PCGS900X1000-12-01挂刷张紧轮.SLDPRT | 377.82K |
| 99 | PCGS900X1000-12-02挂刷张紧轮轴套.SLDPRT | 108.85K |
| 100 | DRN80Y2系列电机.sldprt | 1.04M |
| 101 | DRN80型双级.sldprt | 1.03M |
| 102 | DRN80电机接盘型卧式联接法兰.sldprt | 147.54K |
| 103 | R97_R57_DRN80M4.sldasm | 597.21K |
此图纸下载需要350金币
立即下载
发布者
皓月当空
创作: 66
粉丝: 31
加入时间：2021-06-01
模型信息
图纸格式：sldprt,sldasm,pdf
文件大小：31.02M
所需金币：350
上传时间：2023-07-27 14:54:23
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2018
标签
机械格栅
图纸简介
回转式耙齿格栅（又称固液分离机）广泛应用于城市污水处理厂、自来水厂、泵站、电厂等进水渠（井），连续自动拦截并清除水中的漂浮物，保证水泵和后续工序正常运行；也可用于纺织、印染、屠宰、造纸、制革、酿酒、制糖和食品加工等行业废水处理的固液分离。 该设备由电动机、摆线针轮减速机、机架、链轮、导向轮、耙齿链及牵引链等组成。由于ABS工程塑料、尼龙或不锈钢制成的特殊形状耙齿按照一定的排列次序装配在轴上形成封闭式耙齿链，其下部安装在进水渠中，在电机减速机的驱动下，传动系统带动链轮作匀速定向旋转时，整个耙齿链便自下而上运动，将栅前拦截的污物提升带出水面，并随着整个耙齿链的运动到出渣口处自动翻转，污物从出渣口处
